FractalBench: Diagnosing Visual-Mathematical Reasoning Through Recursive Program Synthesis

📝 Original Info

• Title: FractalBench: Diagnosing Visual-Mathematical Reasoning Through Recursive Program Synthesis
• ArXiv ID: 2511.06522
• Date: 2025-11-09
• Authors: ** NaiveNeuron (주요 연구자) 외 다수 공동 저자 (구체적인 저자 명단은 원 논문을 참고) **

📝 Abstract

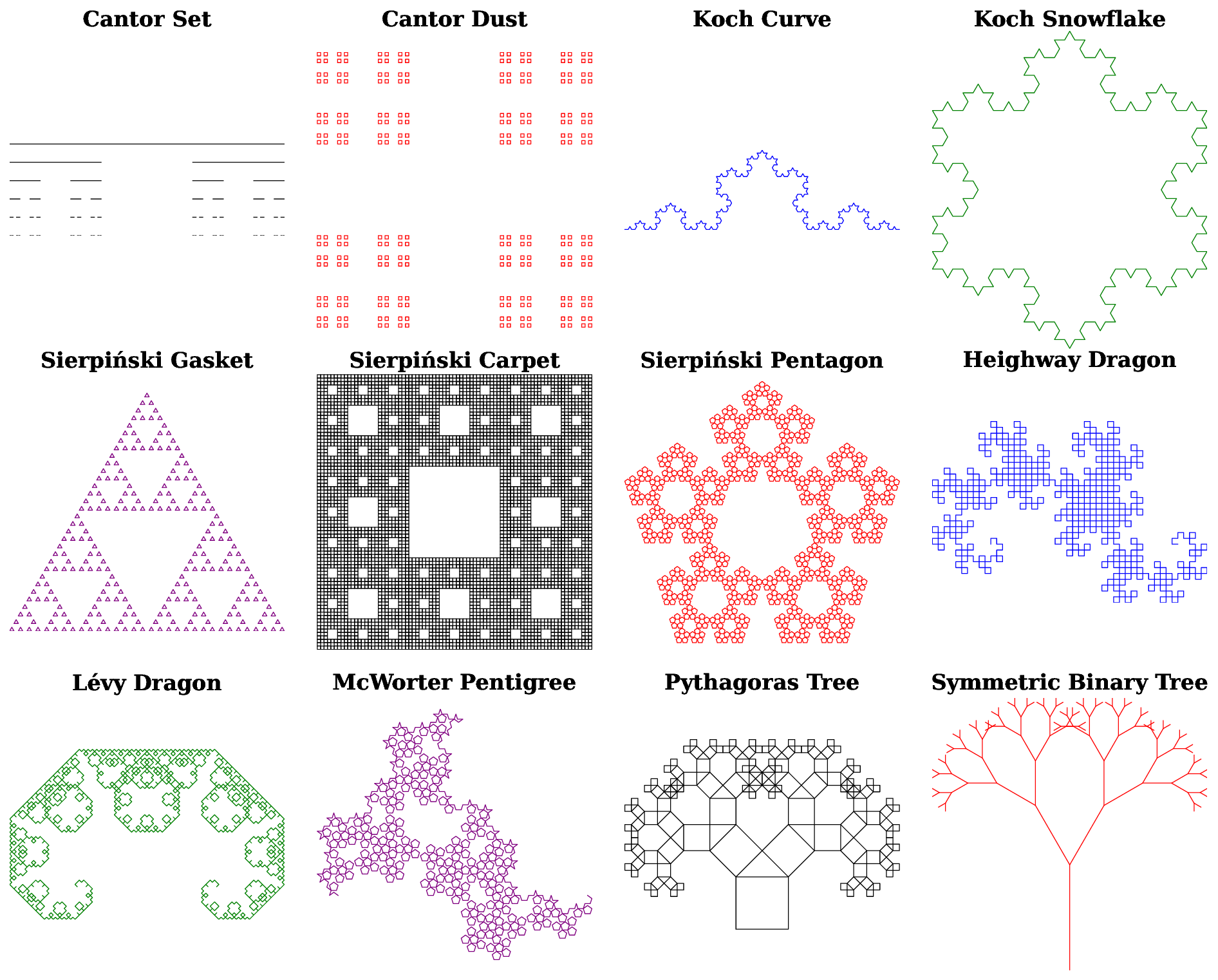

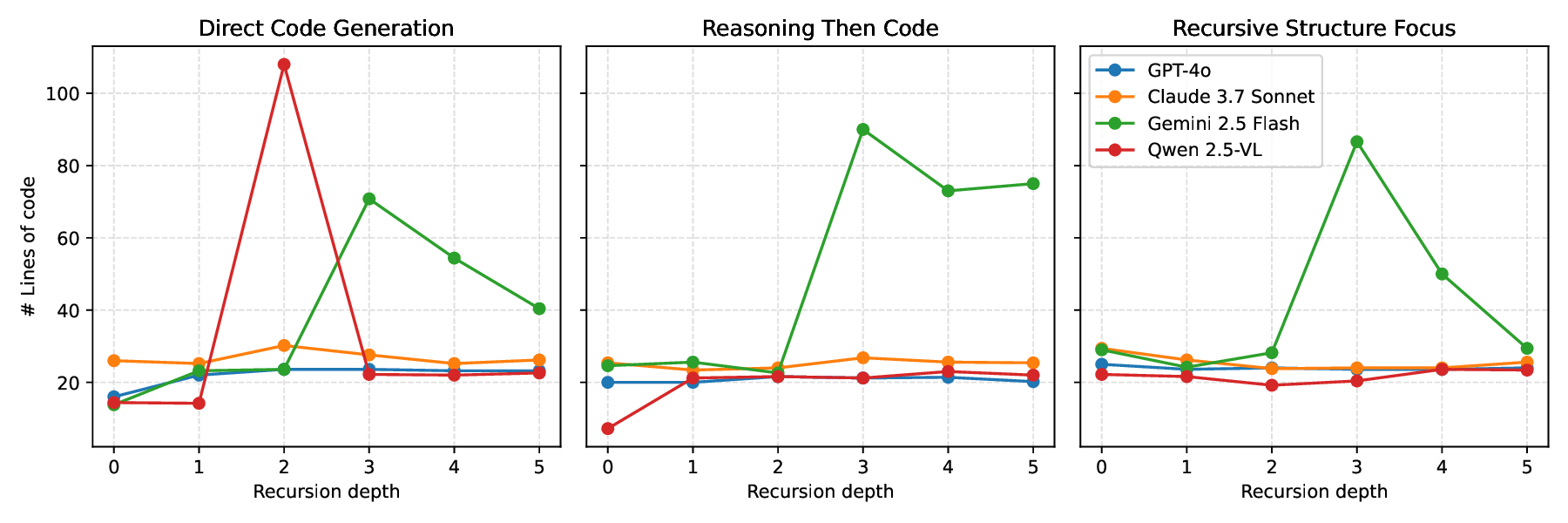

Mathematical reasoning requires abstracting symbolic rules from visual patterns -- inferring the infinite from the finite. We investigate whether multimodal AI systems possess this capability through FractalBench, a benchmark evaluating fractal program synthesis from images. Fractals provide ideal test cases: Iterated Function Systems with only a few contraction maps generate complex self-similar patterns through simple recursive rules, requiring models to bridge visual perception with mathematical abstraction. We evaluate four leading MLLMs -- GPT-4o, Claude 3.7 Sonnet, Gemini 2.5 Flash, and Qwen 2.5-VL -- on 12 canonical fractals. Models must generate executable Python code reproducing the fractal, enabling objective evaluation. Results reveal a striking disconnect: 76% generate syntactically valid code but only 4% capture mathematical structure. Success varies systematically -- models handle geometric transformations (Koch curves: 17-21%) but fail at branching recursion (trees: <2%), revealing fundamental gaps in mathematical abstraction. FractalBench provides a contamination-resistant diagnostic for visual-mathematical reasoning and is available at https://github.com/NaiveNeuron/FractalBench

💡 Deep Analysis

📄 Full Content

📸 Image Gallery

Reference
