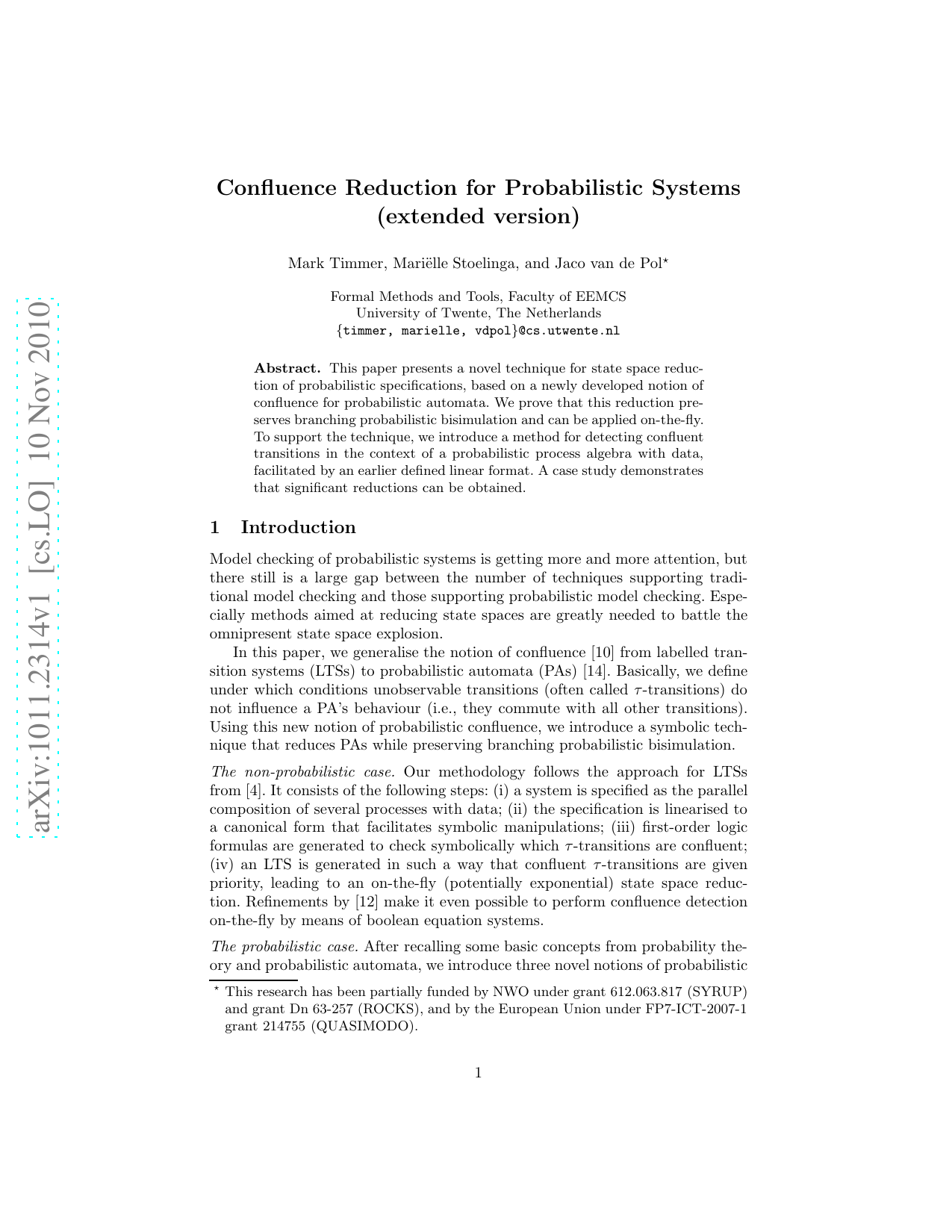

This paper presents a novel technique for state space reduction of probabilistic specifications, based on a newly developed notion of confluence for probabilistic automata. We prove that this reduction preserves branching probabilistic bisimulation and can be applied on-the-fly. To support the technique, we introduce a method for detecting confluent transitions in the context of a probabilistic process algebra with data, facilitated by an earlier defined linear format. A case study demonstrates that significant reductions can be obtained.
Model checking of probabilistic systems is getting more and more attention, but there still is a large gap between the number of techniques supporting traditional model checking and those supporting probabilistic model checking. Especially methods aimed at reducing state spaces are greatly needed to battle the omnipresent state space explosion.
In this paper, we generalise the notion of confluence [10] from labelled transition systems (LTSs) to probabilistic automata (PAs) [14]. Basically, we define under which conditions unobservable transitions (often called τ -transitions) do not influence a PA’s behaviour (i.e., they commute with all other transitions). Using this new notion of probabilistic confluence, we introduce a symbolic technique that reduces PAs while preserving branching probabilistic bisimulation.
The non-probabilistic case. Our methodology follows the approach for LTSs from [4]. It consists of the following steps: (i) a system is specified as the parallel composition of several processes with data; (ii) the specification is linearised to a canonical form that facilitates symbolic manipulations; (iii) first-order logic formulas are generated to check symbolically which τ -transitions are confluent; (iv) an LTS is generated in such a way that confluent τ -transitions are given priority, leading to an on-the-fly (potentially exponential) state space reduction. Refinements by [12] make it even possible to perform confluence detection on-the-fly by means of boolean equation systems.
The probabilistic case. After recalling some basic concepts from probability theory and probabilistic automata, we introduce three novel notions of probabilistic confluence. Inspired by [3], these are weak probabilistic confluence, probabilistic confluence and strong probabilistic confluence (in decreasing order of reduction power, but in increasing order of detection efficiency).
We prove that the stronger notions imply the weaker ones, and that τ -transitions that are confluent according to any of these notions always connect branching probabilistically bisimilar states. Basically, this means that they can be given priority without losing any behaviour. Based on this idea, we propose a reduction technique using weak probabilistic confluence, which merges all states that can reach each other by traversing only confluent transitions. Additionally, we propose a reduction technique that can be applied using the two stronger notions of confluence. As opposed to the first technique it does not need to merge states; rather, it chooses a representative state that has all relevant behaviour. We prove that both reduction techniques yield a branching probabilistically bisimilar PA. Therefore, they preserve virtually all interesting temporal properties.
As we want to analyse systems that would normally be too large, we need to detect confluence symbolically and use it to reduce on-the-fly during state space generation. That way, the unreduced PA never needs to be generated. Since we have not found an efficient method for detecting (weak) probabilistic confluence, we only provide a detection method for strong probabilistic confluence. Here, we exploit a previously defined probabilistic process-algebraic linear format, which is capable of modelling any system consisting of parallel components with data [9]. In this paper, we show how symbolic τ -transitions can be proven confluent by solving formulas in first-order logic over this format. As a result, confluence can be detected symbolically, and the reduced PA can be generated on-the-fly. We present a case study of leader election protocols, showing significant reductions.
As mentioned before, we basically generalise the techniques presented in [4] to probabilistic automata.
In the probabilistic setting, several reduction techniques similar to ours exist. Most of these are generalisations of the well-known concept of partial-order reduction (POR) [13]. In [2] and [5], the concept of POR was lifted to Markov decision processes, providing reductions that preserve quantitative LTL\X. This was refined in [1] to probabilistic CTL, a branching logic. Recently, a revision of POR for distributed schedulers was introduced and implemented in PRISM [7].
Our confluence reduction differs from these techniques on several accounts. First, POR is applicable on state-based systems, whereas our confluence reduction is the first technique that can be used for action-based systems. As the transformation between action-and state-based blows up the state space [11], having confluence reduction really provides new possibilities. Second, the definition of confluence is quite elegant, and (strong) confluence seems to be of a more local nature (which makes the correctness proofs easier). Third, the detection of POR requires language-specific heuristics, whereas confluence reduction acts at a more semantic level and can be implemented by a generic theorem prover. (Alternatively, decision procedures
