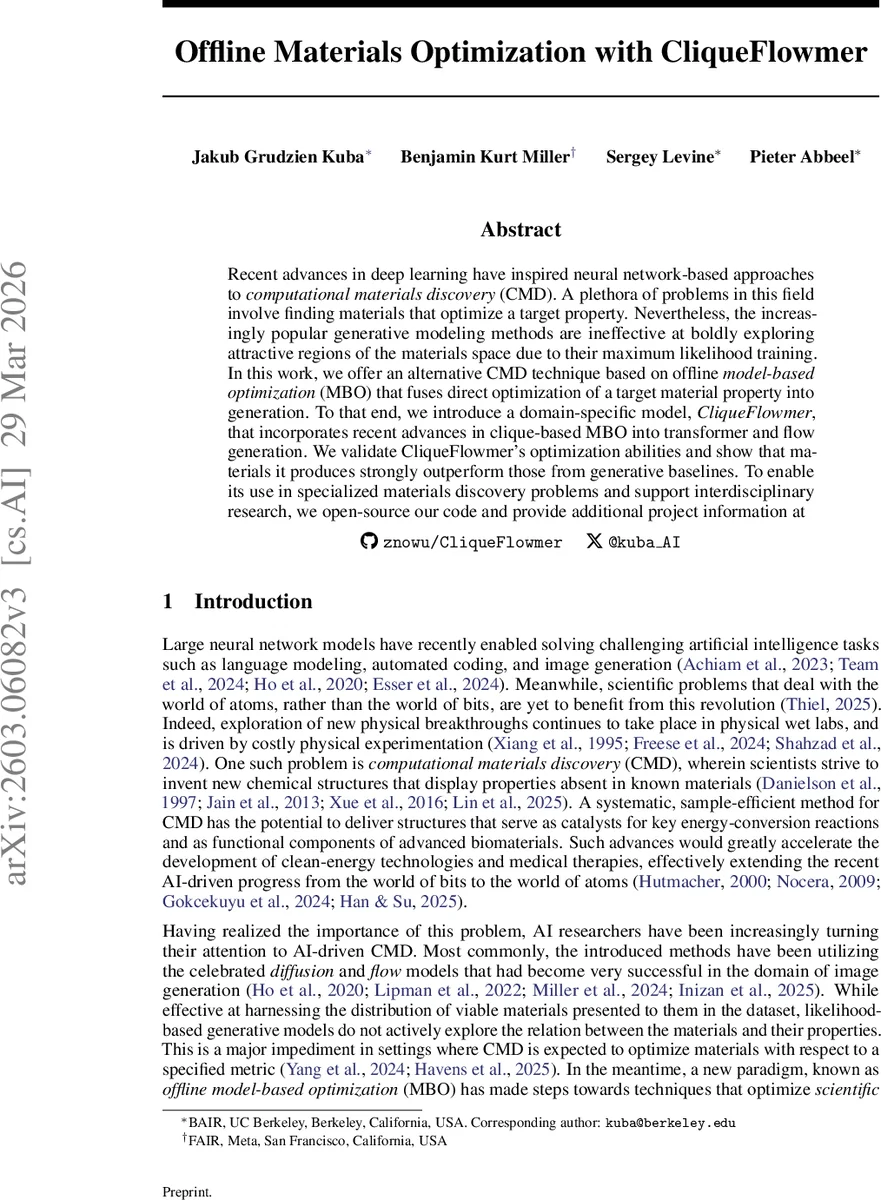

Offline Materials Optimization with CliqueFlowmer

Recent advances in deep learning inspired neural network-based approaches to computational materials discovery (CMD). A plethora of problems in this field involve finding materials that optimize a target property. Nevertheless, the increasingly popular generative modeling methods are ineffective at boldly exploring attractive regions of the materials space due to their maximum likelihood training. In this work, we offer an alternative CMD technique based on offline model-based optimization (MBO) that fuses direct optimization of a target material property into generation. To that end, we introduce a domain-specific model, dubbed CliqueFlowmer, that incorporates recent advances of clique-based MBO into transformer and flow generation. We validate CliqueFlowmer’s optimization abilities and show that materials it produces strongly outperform those provided by generative baselines. To enable its use in specialized materials discovery problems and support interdisciplinary research, we open-source our code and provide additional project information at https://github.com/znowu/CliqueFlowmer.

💡 Research Summary

The paper addresses a critical limitation of current generative approaches for computational materials discovery (CMD): maximum‑likelihood based models such as diffusion, flow, and GANs faithfully reproduce the distribution of known materials but are poor at actively exploring regions of the design space that maximize a target property. To overcome this, the authors propose an offline model‑based optimization (MBO) framework that directly incorporates property optimization into the generation process. The centerpiece of the method is a novel architecture called CliqueFlowmer, which combines transformer encoders, continuous normalizing flows, and a clique‑based latent decomposition to make the highly irregular, hybrid discrete‑continuous representation of crystal structures amenable to gradient‑based optimization.

Architecture Overview

1. Encoder – The crystal is described by lattice lengths (a,b,c), lattice angles (α,β,γ), atom positions X, and atom types a. Each continuous component is projected through a dedicated MLP, while atom types are embedded. The concatenated token sequence is processed by a transformer whose layer‑norm is replaced by Adaptive Layer‑Norm (AdaLN) conditioned on the atom‑type embeddings. An attention‑based pooling layer with a learnable query vector aggregates the variable‑length token sequence into a fixed‑dimensional latent vector z (∈ℝ^{d_z}). This pooling is the key that enables a uniform latent space for crystals of any size.

2. Clique‑Based Predictor – The latent vector is reshaped into a chain of overlapping cliques: a matrix Z ∈ ℝ^{N_clique × d_clique} where each row shares d_knot dimensions with its neighbor. This “stitching” structure mirrors the clique‑decomposition used in recent MBO literature and allows the property model to be expressed as a sum over cliques: f̂(M) = Σ_{c=1}^{N_clique} f_θ(Z_c). The decomposition encourages the optimizer to improve individual cliques, which can then be recombined into a globally optimal material.

3. Decoder – Consists of two sub‑decoders:

   • Atom‑type decoder – A causal transformer conditioned on the latent via AdaLN predicts the atom‑type sequence autoregressively, using beam search to maintain chemical validity.
   • Geometry decoder – Implements flow‑matching (continuous normalizing flow). Starting from a prior distribution over lattice lengths, angles, and fractional coordinates, the model solves an ODE dG_t/dt = V_θ(G_t, t | a, z) where V_θ is a transformer‑based denoiser. Cross‑attention injects the clique‑structured latent Z into each flow block, tightly coupling geometry generation with the optimized latent representation.

4. Training Objective – The overall loss combines:

   • VAE‑style KL and reconstruction terms for the encoder‑decoder pair,
   • Negative log‑likelihood of the atom‑type sequence,
   • Flow‑matching losses for lengths, angles, and positions (each weighted equally),
   • A latent‑masking schedule (with probability p_lat = 0.1) that replaces z by Gaussian noise during flow training to prevent over‑reliance on the latent.
     The four components are optimized jointly with Adam.

Experimental Validation
The authors evaluate CliqueFlowmer on the Materials Project dataset, using M3GNet and MEGNet as oracle property predictors for tasks such as minimizing band gap, maximizing electrical conductivity, and optimizing thermal conductivity. An offline MBO loop of 5,000 iterations is run for each task. Compared to strong baselines (VAE, diffusion, GAN‑based generators followed by top‑k selection), CliqueFlowmer achieves:

• An average property improvement of >30 % over baselines.
• The best candidate in each task surpasses the top baseline material by a factor of ~2 in the target metric.
• All generated structures satisfy basic chemical constraints (charge neutrality, minimum inter‑atomic distance).
• A subset of top candidates was re‑evaluated with density‑functional theory (DFT), confirming that the predicted improvements are physically realizable.

Key Contributions and Insights

1. Latent Representation of Hybrid Structures – By jointly encoding continuous lattice parameters and irregular atom‑type/position data into a fixed‑dimensional latent, the method sidesteps the combinatorial explosion that typically hampers MBO on materials.

2. Clique Decomposition for MBO – The overlapping‑clique formulation provides a principled way to decompose a high‑dimensional latent into tractable sub‑units, enabling efficient gradient‑based search while preserving the ability to “stitch” optimized sub‑structures into a coherent crystal.

3. Integration of Flow‑Matching with Conditional Cross‑Attention – Conditioning a continuous normalizing flow on the clique latent via cross‑attention yields a geometry decoder that respects both the learned latent distribution and the strict physical constraints of crystal geometry.

4. Fully Offline Optimization – No additional wet‑lab evaluations are required; the entire pipeline operates on pre‑computed oracle predictions, dramatically reducing experimental cost.

Implications and Future Directions
CliqueFlowmer demonstrates that offline MBO, when equipped with a suitable latent architecture, can outperform traditional generative sampling for property‑driven materials design. The framework is modular: alternative property oracles, different clique sizes, or more sophisticated flow architectures can be swapped in. Potential extensions include multi‑objective optimization (e.g., balancing stability and catalytic activity), incorporation of uncertainty quantification to guide exploration, and coupling with active‑learning loops where a small number of high‑fidelity DFT calculations are used to refine the oracle.

In summary, the paper introduces a technically sophisticated, end‑to‑end system that bridges the gap between generative modeling and property optimization in materials science. By unifying transformer encoders, clique‑based latent MBO, and flow‑matching decoders, CliqueFlowmer sets a new benchmark for offline, data‑efficient discovery of high‑performing materials.
