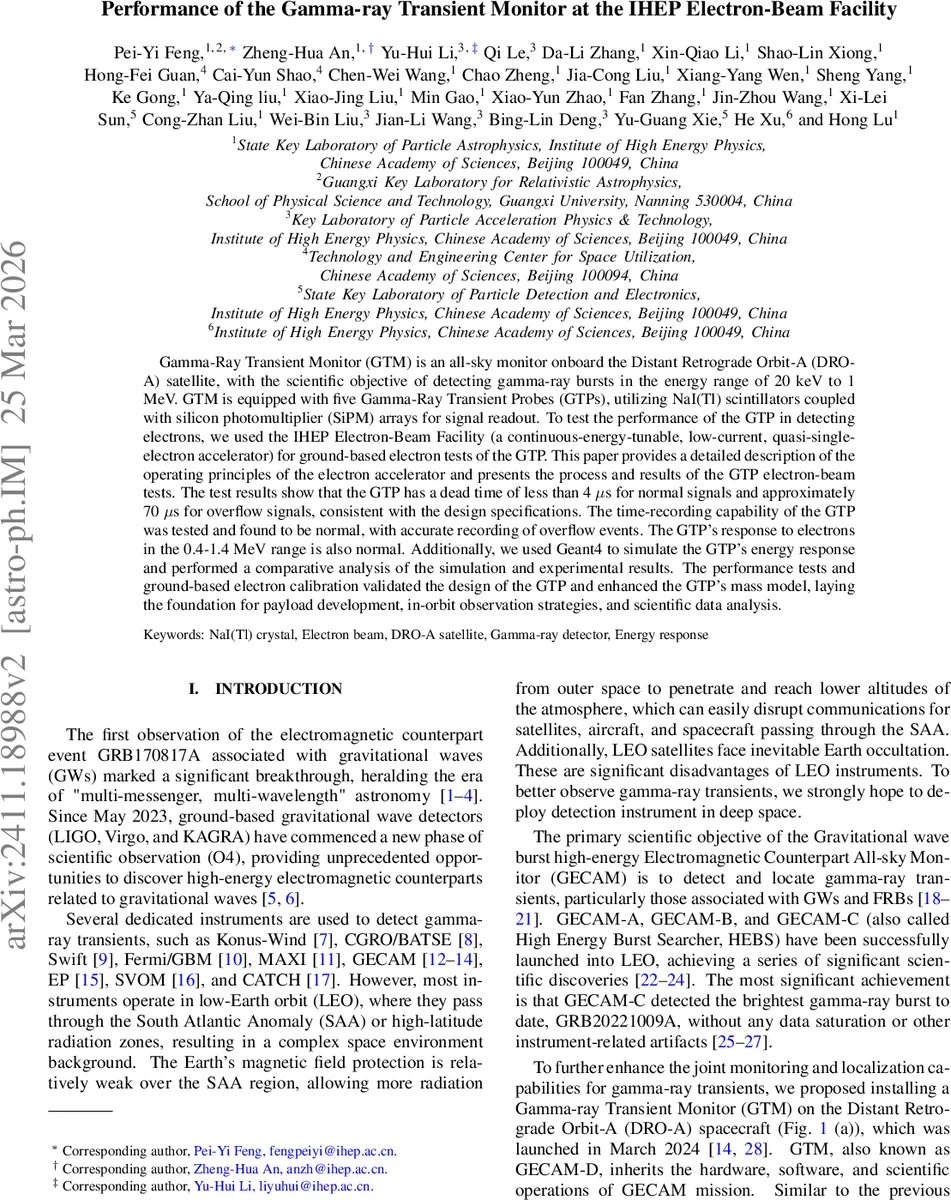

Performance of the Gamma-ray Transient Monitor at the IHEP Electron-Beam Facility

Gamma-Ray Transient Monitor (GTM) is an all-sky monitor onboard the Distant Retrograde Orbit-A (DRO-A) satellite, with the scientific objective of detecting gamma-ray bursts in the energy range of 20 keV to 1 MeV. GTM is equipped with five Gamma-Ray Transient Probes (GTPs), utilizing NaI(Tl) scintillators coupled with silicon photomultiplier (SiPM) arrays for signal readout. To test the performance of the GTP in detecting electrons, we used the IHEP Electron-Beam Facility (a continuous-energy-tunable, low-current, quasi-single-electron accelerator) for ground-based electron tests of the GTP. This paper provides a detailed description of the operating principles of the electron accelerator and presents the process and results of the GTP electron-beam tests. The test results show that the GTP has a dead time of less than 4 $μ$s for normal signals and approximately 70 $μ$s for overflow signals, consistent with the design specifications. The time-recording capability of the GTP was tested and found to be normal, with accurate recording of overflow events. The GTP’s response to electrons in the 0.4-1.4 MeV range is also normal. Additionally, we used Geant4 to simulate the GTP’s energy response and performed a comparative analysis of the simulation and experimental results. The performance tests and ground-based electron calibration validated the design of the GTP and enhanced the GTP’s mass model, laying the foundation for payload development, in-orbit observation strategies, and scientific data analysis.

💡 Research Summary

The paper presents a comprehensive ground‑based performance assessment of the Gamma‑Ray Transient Probe (GTP), the core detector of the Gamma‑Ray Transient Monitor (GTM) that will operate on the Distant Retrograde Orbit‑A (DRO‑A) spacecraft. GTM’s scientific goal is to monitor the sky for gamma‑ray bursts (GRBs) and other high‑energy transients in the 20 keV–1 MeV band, and it inherits the hardware architecture of the successful GECAM series. The GTP consists of a large NaI(Tl) scintillator (115 mm diameter, 10 mm thickness) optically coupled to a 100‑chip silicon photomultiplier (SiPM) array. The SiPM replaces traditional photomultiplier tubes, offering low voltage operation, compactness, and reduced power consumption. The array is split into two independent readout channels, allowing a coincidence window of 0.5 µs to suppress SiPM dark noise. A built‑in 241 Am source provides a 59.5 keV calibration line for in‑orbit gain monitoring.

To validate the detector’s response to high‑energy electrons—relevant for the deep‑space radiation environment, especially when the spacecraft traverses the magnetotail—the authors employed the Institute of High Energy Physics (IHEP) Electron‑Beam Facility. This accelerator delivers a quasi‑single‑electron beam with tunable energy from 100 keV to 50 MeV and an adjustable intensity ranging from a single electron to a few tens of electrons per pulse. The beamline comprises a 1‑m low‑energy accelerator (A1) and a 3‑m high‑energy section (A2), followed by a series of deflection and quadrupole magnets (B1‑B4, Q4, Q5) that steer and focus the beam. Collimators with an attenuation factor of ~1/350 produce an effectively single‑electron beam. Beam position and profile are monitored in real time by a particle distribution detector (PDD) based on thick‑gas electron multiplier (THGEM) technology, providing 2‑D centroid measurements with millimeter precision.

In the experimental campaign, the GTP was mounted inside a vacuum chamber and aligned with the beam to within ~2 mm. Electron energies between 0.4 MeV and 1.4 MeV were selected to probe the detector’s dead‑time, timing accuracy, and energy response. The key findings are:

1. Dead‑time performance – For normal pulses the measured dead time is < 4 µs, matching the design specification. In saturation (overflow) conditions the dead time extends to ≈ 70 µs, confirming the recovery behavior of the front‑end electronics and providing sufficient margin for the expected space‑environment electron fluxes.

2. Timing capability – The GTP accurately records the arrival time of both normal and overflow events with a resolution better than the 0.5 µs coincidence window. This validates the time‑stamping logic and ensures reliable temporal tagging of gamma‑ray transients.

3. Energy response – Using Geant4 (v11.0.3) the authors built a detailed mass model that includes the NaI(Tl) crystal, Be and Teflon entrance windows, quartz light guide, SiPM array, and pre‑amplifier chain. Simulated electron‑induced scintillation, photon transport, and SiPM conversion were compared with measured spectra. The simulated and experimental spectra agree within 5 % in peak position and overall shape across the 0.4–1.4 MeV range. Minor asymmetries near 0.8 MeV are attributed to small variations in SiPM quantum efficiency not fully captured in the simulation.

The successful agreement validates the mass model, enabling the creation of a calibrated response database for in‑orbit data analysis. Moreover, the quantified dead‑time and timing characteristics support the implementation of automatic overflow correction algorithms in the GTM data‑processing pipeline.

Overall, the paper demonstrates that the GTP meets its design goals for dead‑time, timing precision, and energy response under electron irradiation. These ground‑based calibrations, together with prior X‑ray and gamma‑ray tests, provide a solid foundation for the GTM’s scientific operations in deep space, where background electrons and protons differ from low‑Earth‑orbit environments. The work exemplifies a rigorous pre‑flight verification methodology that will enhance the reliability of future high‑energy transient monitors.
