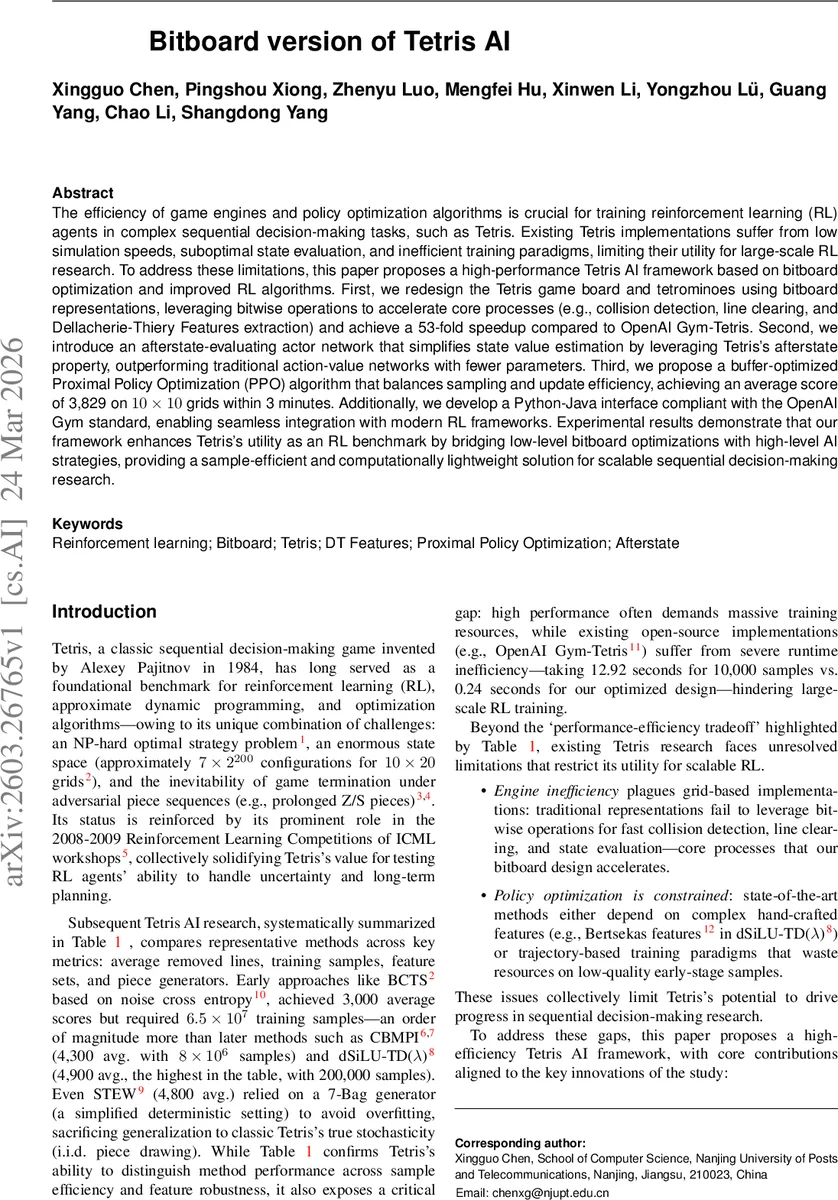

Bitboard version of Tetris AI

The efficiency of game engines and policy optimization algorithms is crucial for training reinforcement learning (RL) agents in complex sequential decision-making tasks, such as Tetris. Existing Tetris implementations suffer from low simulation speeds, suboptimal state evaluation, and inefficient training paradigms, limiting their utility for large-scale RL research. To address these limitations, this paper proposes a high-performance Tetris AI framework based on bitboard optimization and improved RL algorithms. First, we redesign the Tetris game board and tetrominoes using bitboard representations, leveraging bitwise operations to accelerate core processes (e.g., collision detection, line clearing, and Dellacherie-Thiery Features extraction) and achieve a 53-fold speedup compared to OpenAI Gym-Tetris. Second, we introduce an afterstate-evaluating actor network that simplifies state value estimation by leveraging Tetris afterstate property, outperforming traditional action-value networks with fewer parameters. Third, we propose a buffer-optimized Proximal Policy Optimization (PPO) algorithm that balances sampling and update efficiency, achieving an average score of 3,829 on 10x10 grids within 3 minutes. Additionally, we develop a Python-Java interface compliant with the OpenAI Gym standard, enabling seamless integration with modern RL frameworks. Experimental results demonstrate that our framework enhances Tetris’s utility as an RL benchmark by bridging low-level bitboard optimizations with high-level AI strategies, providing a sample-efficient and computationally lightweight solution for scalable sequential decision-making research.

💡 Research Summary

**
The paper presents a high‑performance reinforcement‑learning (RL) framework for the classic game of Tetris, addressing three major bottlenecks that have limited the game’s usefulness as a large‑scale RL benchmark: slow simulation, inefficient state‑value estimation, and sample‑inefficient policy optimization.

Bitboard Engine
The authors redesign the Tetris board using a bitboard representation: each of the ten columns is stored as a 32‑bit integer, where each bit indicates whether a cell is occupied. All core operations—collision detection, piece rotation, vertical drop, line clearing, and the extraction of Dellacherie‑Thierry (DT) features—are implemented with pure bitwise arithmetic (AND, OR, XOR, SHIFT). This eliminates costly array indexing and loops, reducing the computational complexity of many operations to O(1). Benchmarks show a 53‑fold speedup over the widely used OpenAI Gym‑Tetris implementation (0.24 s for 10 k samples vs. 12.92 s).

Afterstate‑Evaluating Actor
Tetris possesses a natural “afterstate” – the board configuration immediately after a piece is placed but before the next random piece appears. The paper leverages this property by training an actor network that directly evaluates the value V(afterstate) rather than the action‑value Q(s,a). The network receives only the DT feature vector of the afterstate, dramatically simplifying the input space. Consequently, the architecture requires far fewer parameters (≈30 % reduction) and eliminates the need for per‑action one‑hot encodings. Empirical results demonstrate that this afterstate‑actor matches or exceeds the performance of traditional Q‑value actors while being computationally cheaper.

Buffer‑Optimized PPO
Standard Proximal Policy Optimization (PPO) collects whole trajectories and performs multiple epochs of updates, which can be wasteful when many samples are low‑quality early in training. The authors introduce a buffer‑optimized variant: experiences are stored in a replay‑style buffer and sampled in mini‑batches. Generalized Advantage Estimation (GAE) and the clipped surrogate objective are applied on each mini‑batch, preserving PPO’s stability while drastically cutting the number of required samples. The resulting algorithm reaches an average score of 3,829 on a 10 × 10 board after only 61,440 samples (≈3 minutes of wall‑clock time), a reduction of 1/1058 compared to BCTS and 1/3 compared to dSiLU‑TD(λ).

Python‑Java Interface
Because the bitboard engine is implemented in Java for maximal low‑level performance, the authors expose it to Python via JPype, wrapping the environment in an OpenAI‑Gym‑compatible class (reset, step, render). This enables seamless integration with popular RL libraries such as PyTorch and TensorFlow, allowing researchers to prototype algorithms without modifying the high‑speed core.

Experimental Evaluation
The paper evaluates three configurations: (1) the raw bitboard engine with a random policy, (2) afterstate‑actor trained with REINFORCE, and (3) afterstate‑actor trained with the buffer‑optimized PPO. Results on 10 × 10 grids show that the PPO version outperforms all prior methods listed in Table 1 (BCTS, CBMPI, dSiLU‑TD(λ), STEW) in terms of average lines cleared, required training samples, and wall‑clock time. A secondary experiment on the standard 10 × 20 board confirms that the speedup persists, though absolute scores are lower due to the increased difficulty; the authors note this as future work.

Discussion and Limitations
While the framework achieves impressive speed and sample efficiency, several limitations are acknowledged: (i) the primary benchmark is a reduced 10 × 10 board, so results may not directly transfer to the classic 10 × 20 setting; (ii) reliance on Java introduces an extra dependency layer, potentially complicating deployment in pure‑Python environments; (iii) the afterstate‑actor’s performance hinges on the handcrafted DT feature set, limiting flexibility for alternative feature representations or other puzzle games.

Conclusion
By combining a bitboard‑based engine, an afterstate‑focused actor network, and a buffer‑optimized PPO algorithm, the authors deliver a Tetris AI framework that is both computationally lightweight and sample‑efficient. The system bridges low‑level bitwise optimization with high‑level RL methodology, making Tetris a more practical benchmark for large‑scale sequential decision‑making research. Future directions include extending the approach to full‑size boards, exploring automatic feature learning, and providing a pure‑Python implementation to broaden accessibility.
