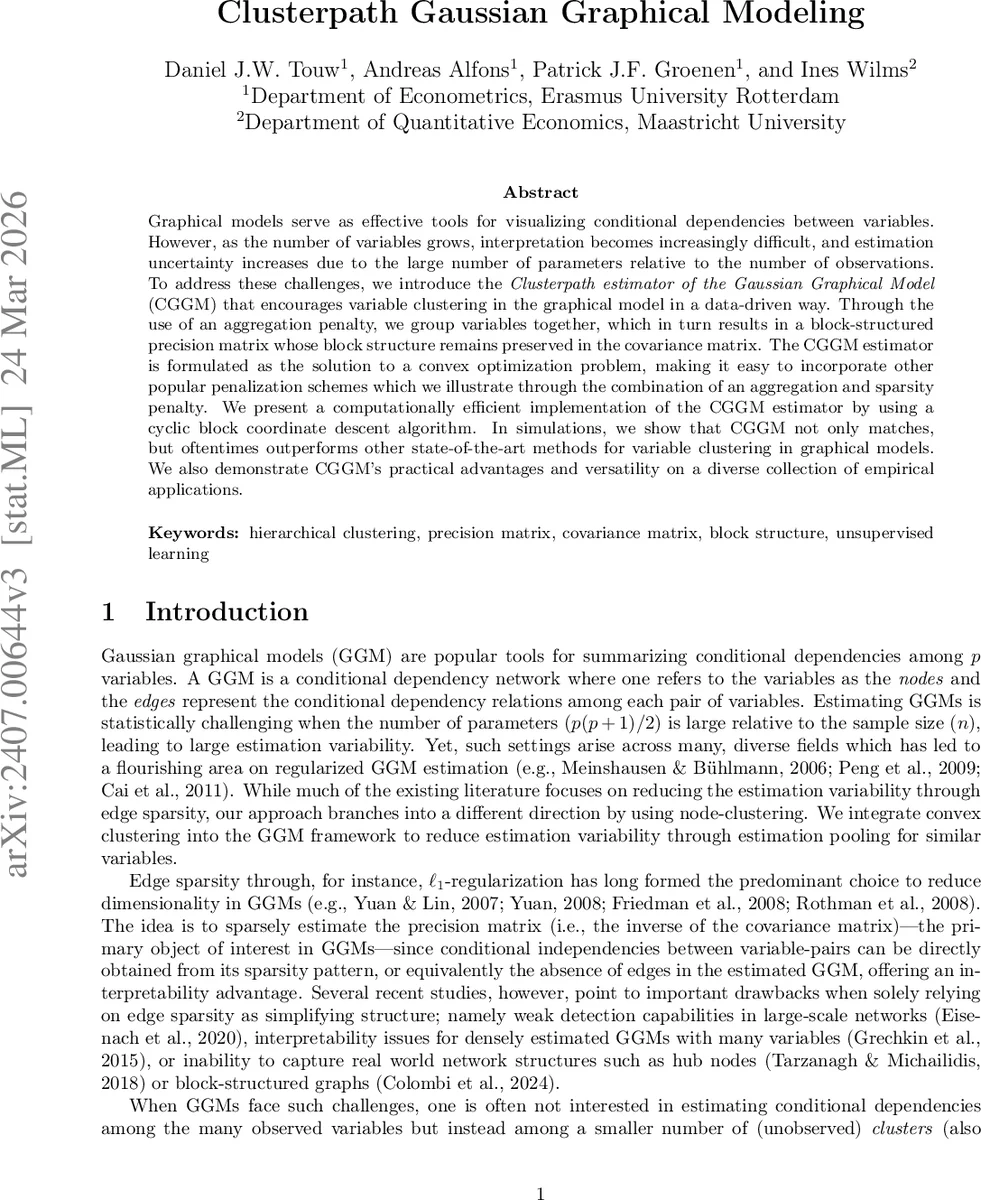

Clusterpath Gaussian Graphical Modeling

Graphical models serve as effective tools for visualizing conditional dependencies between variables. However, as the number of variables grows, interpretation becomes increasingly difficult, and estimation uncertainty increases due to the large number of parameters relative to the number of observations. To address these challenges, we introduce the Clusterpath estimator of the Gaussian Graphical Model (CGGM) that encourages variable clustering in the graphical model in a data-driven way. Through the use of an aggregation penalty, we group variables together, which in turn results in a block-structured precision matrix whose block structure remains preserved in the covariance matrix. The CGGM estimator is formulated as the solution to a convex optimization problem, making it easy to incorporate other popular penalization schemes which we illustrate through the combination of an aggregation and sparsity penalty. We present a computationally efficient implementation of the CGGM estimator by using a cyclic block coordinate descent algorithm. In simulations, we show that CGGM not only matches, but oftentimes outperforms other state-of-the-art methods for variable clustering in graphical models. We also demonstrate CGGM’s practical advantages and versatility on a diverse collection of empirical applications.

💡 Research Summary

The paper introduces the Clusterpath Gaussian Graphical Model (CGGM), a novel estimator for Gaussian graphical models (GGMs) that simultaneously performs variable clustering and precision‑matrix estimation. Traditional high‑dimensional GGMs rely heavily on ℓ₁ regularization to induce sparsity in the precision matrix, which can lead to overly fragmented graphs and difficulty interpreting large networks. CGGM addresses this by adding an “aggregation penalty” that encourages columns (and rows) of the precision matrix Θ to become identical for variables that belong to the same latent cluster. The penalty is defined as a sum over all unordered pairs (j, j′) of the squared differences between corresponding entries of the two columns, including the diagonal elements:
d_{jj′}(Θ)= (θ_{jj}−θ_{j′j′})² + Σ_{m≠j,j′} (θ_{jm}−θ_{j′m})².
When d_{jj′}(Θ)=0, the two variables are forced into the same cluster, yielding a block‑structured Θ.

CGGM’s objective function is
L(Θ)=−log|Θ| + tr(SΘ) + λ_c Σ_{j<j′} w_{jj′} d_{jj′}(Θ) + λ_s Σ_{j≠j′} z_{jj′}|θ_{jj′}|,
where S is the sample covariance, λ_c controls the strength of clustering, λ_s controls sparsity, and w_{jj′}, z_{jj′} are pre‑specified non‑negative weights (e.g., based on domain knowledge or distances derived from S⁻¹). The first regularizer encourages a G‑block structure (the so‑called G‑block format) while the second enforces edge sparsity, allowing the user to trade off between interpretability through clustering and parsimony through sparsity. Because each term is convex and Θ is constrained to the cone of symmetric positive‑definite matrices, the overall problem remains convex.

To solve the problem efficiently, the authors develop a cyclic block coordinate descent algorithm. At each iteration a whole column (and the symmetric row) of Θ is updated while keeping the remaining matrix fixed. The sub‑problem for a column reduces to a convex quadratic program with a closed‑form solution when λ_s=0, and to a simple soft‑thresholding step when only the ℓ₁ term is present. By cycling through all columns, the algorithm converges to the global optimum. The method scales linearly in the number of variables for each pass and requires only O(p) additional memory beyond storing Θ, making it suitable for problems with hundreds or thousands of variables.

A distinctive theoretical contribution is that the block structure imposed on Θ is preserved in its inverse Σ=Θ⁻¹. The authors explicitly include the diagonal entries in the aggregation penalty, guaranteeing that both within‑cluster variances and covariances are equal across members of a cluster. Consequently, the clustering discovered in the precision matrix is exactly reflected in the covariance matrix, a property absent in earlier works (e.g., Yao & Allen 2019; Pircalabelu & Claeskens 2020; Wilms & Bien 2022). This dual preservation enables analysts to interpret results either in terms of conditional dependencies (precision) or marginal relationships (covariance) without loss of the discovered community structure.

Extensive simulations explore a range of settings: varying numbers of variables (p=100–500), sample sizes (n=50–200), true numbers of clusters (K=3–10), and signal‑to‑noise ratios. Performance metrics include Frobenius norm error of Θ, edge‑wise precision/recall, and clustering accuracy measured by the Adjusted Rand Index (ARI). Across all scenarios CGGM outperforms the Graphical Lasso, the Clustered Graphical Lasso, and the convex clustering approach of Yao & Allen. In particular, CGGM achieves up to 20 % higher ARI while maintaining comparable or lower estimation error, demonstrating that joint clustering and sparsity yields more stable and interpretable models.

Three real‑world applications illustrate practical usefulness. (1) Using daily returns of the S&P 100 constituents, CGGM automatically discovers industry‑level clusters and reveals inter‑industry conditional dependencies that align with known economic linkages, offering a compact risk‑factor representation. (2) OECD well‑being indicators for 35 countries are clustered into coherent regional groups, and the resulting graph highlights cross‑regional policy spillovers. (3) Survey data on humor styles are reduced to a few latent “humor clusters,” with the estimated graph exposing how different styles interact. In each case, the block‑structured precision matrix yields a clear, low‑dimensional representation that is both statistically efficient (lower variance) and substantively meaningful.

The authors also discuss extensions. By swapping the aggregation penalty to act on the covariance matrix directly, one can target block structures in Σ while still preserving them in Θ via inversion, which can be advantageous when marginal relationships are of primary interest. They suggest possible future work on non‑Gaussian data, time‑varying networks, and multi‑view settings where different data modalities share a common clustering structure.

In summary, CGGM provides a unified, convex framework that (i) embeds variable clustering directly into GGM estimation, (ii) guarantees that the resulting block structure survives in both precision and covariance matrices, (iii) remains computationally tractable for high‑dimensional problems via a cyclic block coordinate descent algorithm, and (iv) demonstrates superior empirical performance over existing state‑of‑the‑art methods in both synthetic and real data contexts. This makes CGGM a powerful tool for researchers and practitioners seeking interpretable, low‑dimensional representations of complex dependency networks.
