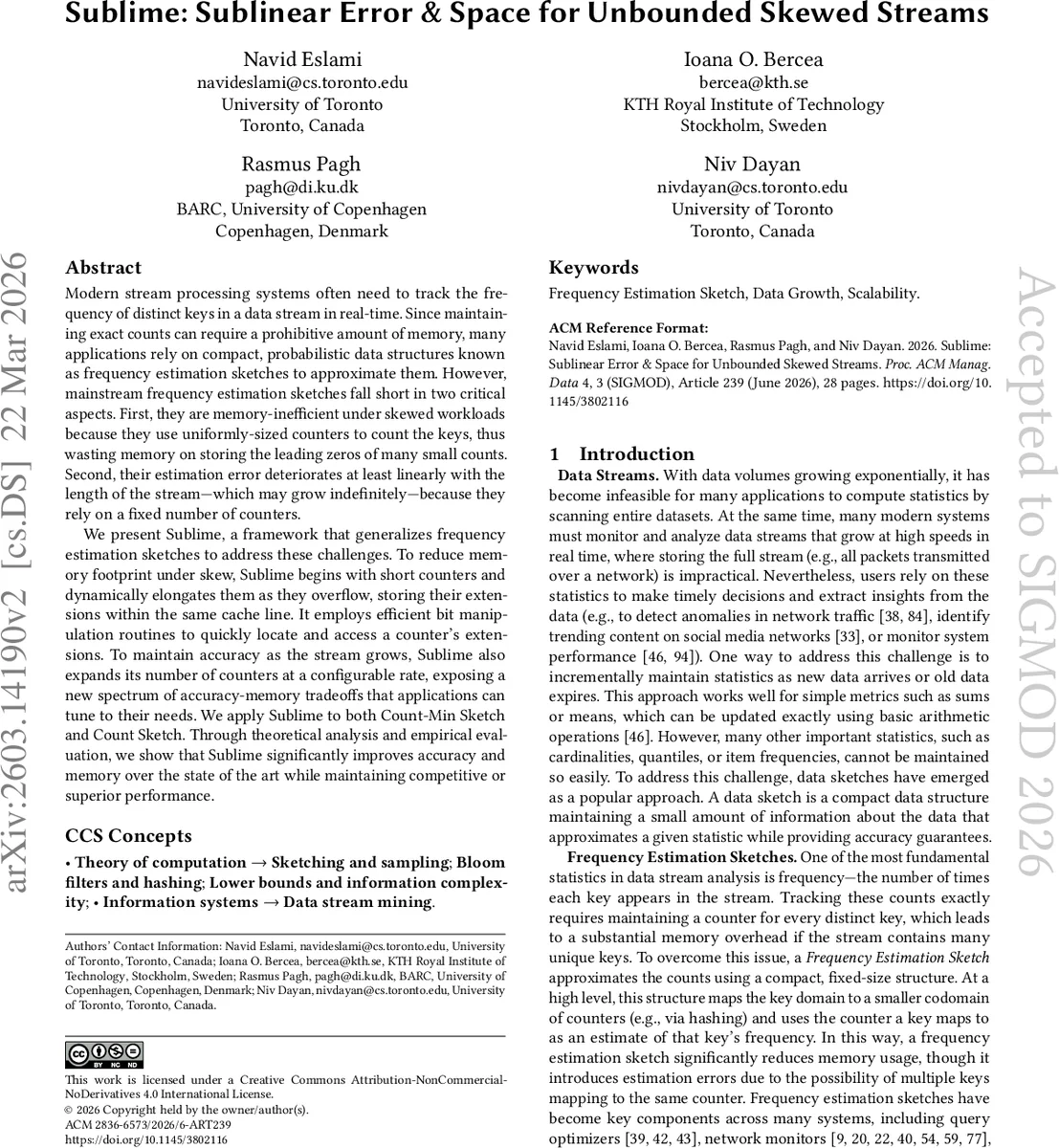

Sublime: Sublinear Error & Space for Unbounded Skewed Streams

Modern stream processing systems often need to track the frequency of distinct keys in a data stream in real-time. Since maintaining exact counts can require a prohibitive amount of memory, many applications rely on compact, probabilistic data structures known as frequency estimation sketches to approximate them. However, mainstream frequency estimation sketches fall short in two critical aspects. First, they are memory-inefficient under skewed workloads because they use uniformly-sized counters to count the keys, thus wasting memory on storing the leading zeros of many small counts. Second, their estimation error deteriorates at least linearly with the length of the stream–which may grow indefinitely–because they rely on a fixed number of counters. We present Sublime, a framework that generalizes frequency estimation sketches to address these challenges. To reduce memory footprint under skew, Sublime begins with short counters and dynamically elongates them as they overflow, storing their extensions within the same cache line. It employs efficient bit manipulation routines to quickly locate and access a counter’s extensions. To maintain accuracy as the stream grows, Sublime also expands its number of counters at a configurable rate, exposing a new spectrum of accuracy-memory tradeoffs that applications can tune to their needs. We apply Sublime to both Count-Min Sketch and Count Sketch. Through theoretical analysis and empirical evaluation, we show that Sublime significantly improves accuracy and memory over the state of the art while maintaining competitive or superior performance.

💡 Research Summary

The paper introduces Sublime, a novel framework that extends classic frequency‑estimation sketches such as Count‑Min Sketch, Count Sketch, and Misra‑Gries to handle two pervasive challenges in modern streaming workloads: highly skewed key distributions and unbounded stream growth. Traditional sketches allocate a fixed‑size array of uniformly sized counters. This design leads to two inefficiencies. First, when the frequency distribution is heavy‑tailed, most counters store small values while a few need large capacity; the uniform counter width forces many bits to remain unused, wasting memory. Second, because the number of counters is fixed at construction time, the expected over‑estimation error grows linearly with the total number of updates N (the error bound is Θ(N/w), where w is the number of counters). As streams become massive, this linear error growth becomes unacceptable.

Sublime tackles the skew problem by introducing variable‑length counters. Each counter starts as a short stub (e.g., 4–8 bits). When a stub overflows, Sublime appends an extension block within the same cache line, forming a chain that can grow to accommodate arbitrarily large counts. The authors design a constant‑time encoding/decoding scheme called V‑ALE (Variable‑Length Encoding) that uses bit‑mask and shift operations to locate the current tail of a counter and to read or update its value. Because the entire counter (stub plus extensions) resides in a single cache line, memory accesses remain cache‑friendly, preserving high throughput. This approach dramatically reduces wasted bits: in Zipf‑type workloads, over 90 % of counters never need extensions, cutting the overall memory footprint by 30 %–60 % compared with fixed‑width 32‑bit counters.

To address unbounded growth, Sublime makes the sketch itself expandable. The data structure is partitioned into “chunks,” each a conventional sketch array of w counters. When the stream length N exceeds a pre‑defined threshold, a new chunk is allocated and added to the sketch. New updates are hashed into all existing chunks, and queries take the minimum (for Count‑Min) or median (for Count Sketch) across chunks, exactly as in the original algorithms. By increasing the total number of counters as a sublinear function of N (e.g., w_total = Θ(N^γ) with γ < 1), the error bound becomes Θ(N^β / w_total) where β < 1, yielding sublinear error growth. The expansion rate is a tunable parameter, giving practitioners a new Pareto frontier between memory consumption and accuracy.

The theoretical contribution consists of two parts. First, the authors prove that V‑ALE can represent any counter value using O(log N) bits of extension and that locating the tail of a counter requires O(1) time, guaranteeing constant‑time updates despite variable length. Second, they establish a lower bound on the space required by any expandable frequency‑estimation sketch that achieves a target error ε: any such sketch must use at least Ω( (1/ε) · log N ) bits. Sublime’s memory usage matches this bound up to a small constant factor, showing near‑optimality.

Empirical evaluation uses four real‑world traces (network packet captures, Twitter hashtag streams, sensor logs, web server logs) and synthetic Zipf streams with exponents ranging from 0.8 to 1.5. Sublime is compared against standard Count‑Min, Elastic‑CMS, TinyTable, Counter‑Sharing, and several recent skew‑aware variants. Results show: (1) memory reduction of 35 %–55 % on average; (2) average absolute error improvement of 1.8×–2.5×; (3) error growth that plateaus after 10⁹ updates, confirming sublinear behavior; (4) insertion, deletion, and query throughput that matches or slightly exceeds baseline Count‑Min due to cache‑line locality of extensions. The framework is also instantiated for Count Sketch (achieving tighter two‑sided error) and Misra‑Gries (improving heavy‑hitter detection) with similar gains, demonstrating broad applicability.

Finally, the authors discuss how the variable‑length counter and chunk‑expansion ideas are orthogonal to the specific sketch algorithm and can be transferred to other streaming summaries such as cardinality estimators (HyperLogLog), quantile sketches (KLL), and graph‑stream analytics. By providing a systematic way to make sketches both skew‑aware and growth‑aware, Sublime opens a new research direction for memory‑efficient, high‑accuracy streaming analytics at scale.

In summary, Sublime delivers a practical, theoretically grounded solution that (i) eliminates the waste caused by uniform counter widths under skewed workloads, (ii) guarantees sublinear error growth as streams expand indefinitely, and (iii) does so while preserving constant‑time operations and high throughput. The framework’s flexibility, near‑optimal space‑error trade‑off, and demonstrated performance gains make it a compelling choice for any system that relies on real‑time frequency estimation over massive, evolving data streams.
