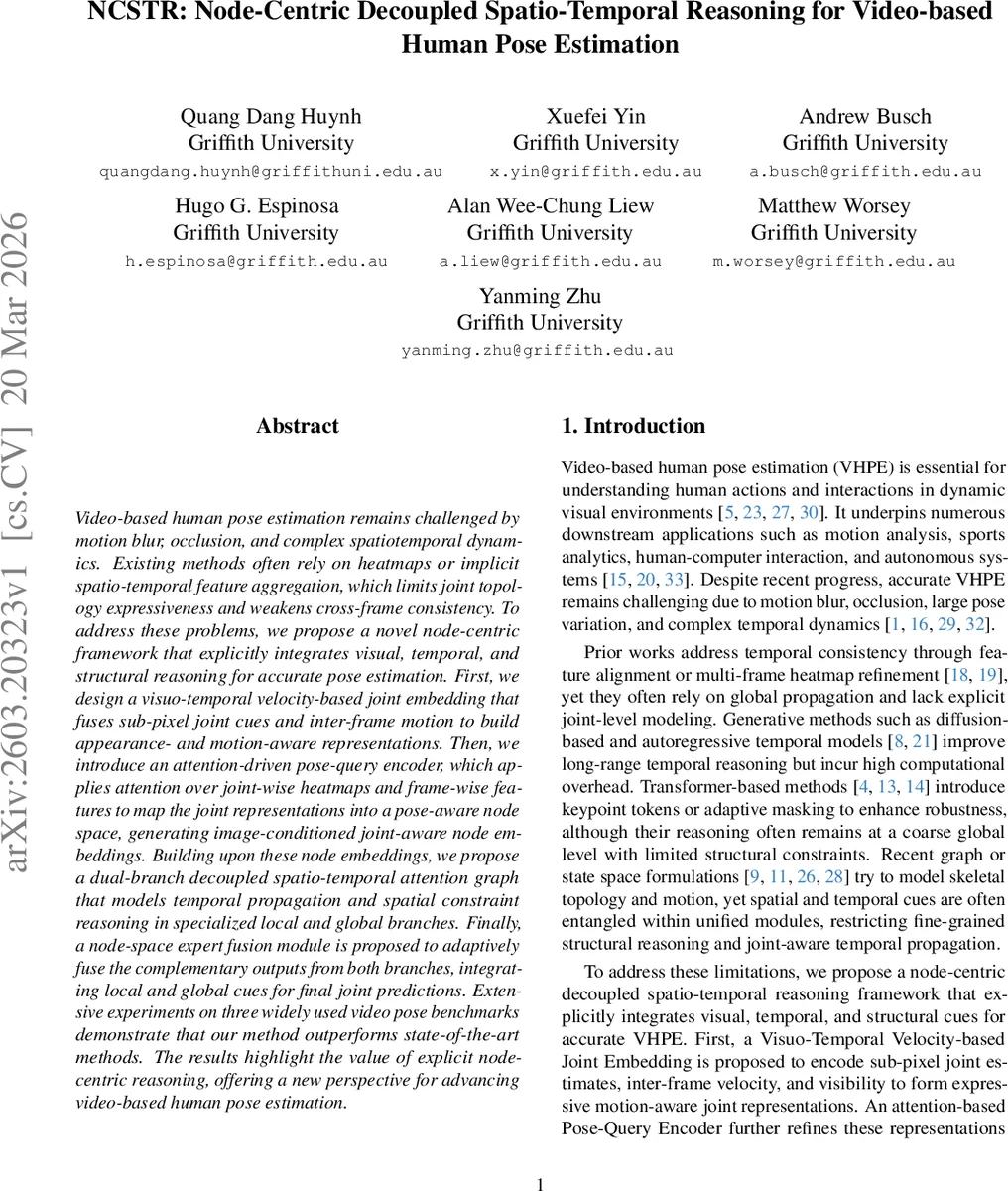

NCSTR: Node-Centric Decoupled Spatio-Temporal Reasoning for Video-based Human Pose Estimation

Video-based human pose estimation remains challenged by motion blur, occlusion, and complex spatiotemporal dynamics. Existing methods often rely on heatmaps or implicit spatio-temporal feature aggregation, which limits joint topology expressiveness and weakens cross-frame consistency. To address these problems, we propose a novel node-centric framework that explicitly integrates visual, temporal, and structural reasoning for accurate pose estimation. First, we design a visuo-temporal velocity-based joint embedding that fuses sub-pixel joint cues and inter-frame motion to build appearance- and motion-aware representations. Then, we introduce an attention-driven pose-query encoder, which applies attention over joint-wise heatmaps and frame-wise features to map the joint representations into a pose-aware node space, generating image-conditioned joint-aware node embeddings. Building upon these node embeddings, we propose a dual-branch decoupled spatio-temporal attention graph that models temporal propagation and spatial constraint reasoning in specialized local and global branches. Finally, a node-space expert fusion module is proposed to adaptively fuse the complementary outputs from both branches, integrating local and global cues for final joint predictions. Extensive experiments on three widely used video pose benchmarks demonstrate that our method outperforms state-of-the-art methods. The results highlight the value of explicit node-centric reasoning, offering a new perspective for advancing video-based human pose estimation.

💡 Research Summary

The paper introduces NCSTR (Node‑Centric Decoupled Spatio‑Temporal Reasoning), a novel framework for video‑based human pose estimation that explicitly integrates visual, temporal, and structural cues at the joint (node) level. Traditional video pose methods either rely on heatmap propagation or implicit spatio‑temporal feature aggregation, which limits the expressiveness of joint topology and weakens cross‑frame consistency. NCSTR addresses these shortcomings through a four‑stage pipeline.

1. Visuo‑Temporal Velocity Joint Embedding (VTVJE). For each joint, sub‑pixel coordinates are refined using a second‑order Taylor expansion on the heatmap of the two previous frames (t‑2, t‑1). The refined coordinates, peak confidence, and binary visibility are concatenated into a 4‑dimensional descriptor and projected via a lightweight MLP into a D‑dimensional embedding. For the current frame (t), the displacement between the two past frames is computed, linearly extrapolated, and combined with the previous frame’s peak and visibility to form a velocity‑guided descriptor. This design injects explicit motion information (direction and magnitude) while preserving appearance cues.

2. Pose‑Query Encoder (PQE). Each joint serves as a query vector; every spatial location of the backbone feature map and the corresponding heatmap act as key‑value pairs. Multi‑head attention is performed with a learnable temperature τ and an additive bias from the heatmap, which strengthens the signal for low‑confidence or occluded joints. Two masks are constructed for the current frame: a local mask centered on the extrapolated joint position with radius rₜ,ⱼ (derived from the estimated velocity) and a larger global mask that captures broader context. Past frames use fixed radii (3 and 6 pixels). The attention output is aggregated into a context vector, linearly transformed, and yields a node embedding zₜ,ⱼ of dimension F.

3. Dual‑branch Decoupled Spatio‑Temporal Attention Graph (DSTAG).

   • Temporal Graph Attention Network (T‑GAT) builds a chain graph for each joint across the causal window (t‑2 → t‑1 → t). It updates the joint embeddings by attending only to adjacent time steps, guaranteeing causality and smoothing noisy predictions. The temporally aggregated features are split into a past sequence and the current frame representation. A Transformer encoder processes the past sequence to produce a compact motion summary, which is fused with the current representation via an adaptive fusion module, yielding temporally contextualized embeddings for the local and global branches.
   • Spatial Graph Attention Networks (S‑GAT). The local branch uses a 1‑hop skeletal adjacency matrix, allowing messages only between anatomically adjacent joints, thereby enforcing fine‑grained anatomical consistency. The global branch employs a 2‑hop adjacency matrix, enabling longer‑range structural reasoning. Each branch refines the temporally contextualized embeddings through graph attention, producing local and global node representations.

4. Node‑Space Expert Fusion (NSEF). The outputs of the local and global spatial branches are combined with learned, joint‑specific weights that depend on visibility and confidence. This adaptive fusion integrates the complementary strengths of fine‑grained anatomical constraints (local) and global contextual coherence (global).

5. Geometric Node Codec (GNC‑Decoding) and Loss. The fused node predictions (x, y, visibility) are rendered back into heatmaps for supervision. A visibility‑aware loss combines L2 regression on coordinates with a weighted term for visibility, preventing over‑penalization of occluded joints.

Experimental validation is performed on three widely used video pose benchmarks: PoseTrack, Sub‑JHMDB, and Human3.6M. NCSTR consistently outperforms state‑of‑the‑art methods, achieving higher mAP and lower MPJPE across all datasets. Notably, the gains are most pronounced in scenarios with fast motion or severe occlusion, confirming the robustness of the node‑centric, velocity‑guided embeddings and the decoupled reasoning architecture. The model operates fully online (strictly causal) and maintains computational complexity comparable to recent transformer‑based baselines.

Key insights and contributions:

• Explicit joint‑level embeddings that fuse sub‑pixel appearance, confidence, visibility, and inter‑frame velocity provide richer, motion‑aware representations than pure heatmaps or global features.
• Pose‑Query Encoder’s attention with heatmap priors and adaptive local/global masks yields image‑conditioned node embeddings that are resilient to noise and occlusion.
• Decoupling temporal propagation from spatial constraint reasoning into separate branches allows each to specialize: the temporal branch smooths short‑term motion, while the spatial branches enforce anatomical consistency at different scales.
• Node‑Space Expert Fusion adaptively balances local and global cues, avoiding the need for handcrafted weighting schemes.

Limitations and future directions include the reliance on a short three‑frame causal window, which may restrict modeling of long‑range dependencies. Extending the temporal horizon, incorporating multi‑scale graph hierarchies, or integrating explicit motion prediction modules could further enhance performance.

In summary, NCSTR demonstrates that a node‑centric perspective, combined with decoupled spatio‑temporal graph reasoning, can substantially improve video‑based human pose estimation. By making joint topology explicit and separating temporal from spatial processing, the method achieves superior accuracy, robustness to motion blur and occlusion, and maintains online feasibility—qualities essential for real‑time applications such as sports analytics, human‑robot interaction, and complex action understanding.
