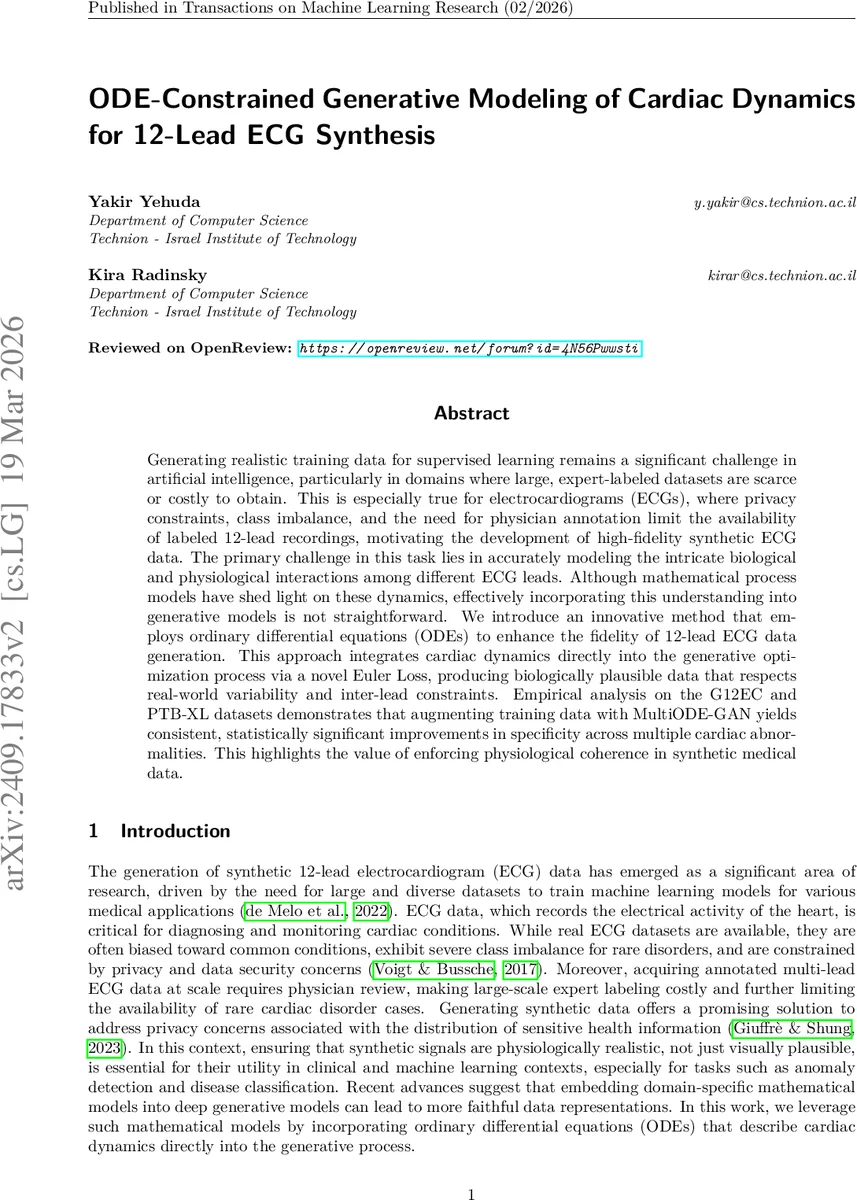

ODE-Constrained Generative Modeling of Cardiac Dynamics for 12-Lead ECG Synthesis

Generating realistic training data for supervised learning remains a significant challenge in artificial intelligence, particularly in domains where large, expert-labeled datasets are scarce or costly to obtain. This is especially true for electrocardiograms (ECGs), where privacy constraints, class imbalance, and the need for physician annotation limit the availability of labeled 12-lead recordings, motivating the development of high-fidelity synthetic ECG data. The primary challenge in this task lies in accurately modeling the intricate biological and physiological interactions among different ECG leads. Although mathematical process models have shed light on these dynamics, effectively incorporating this understanding into generative models is not straightforward. We introduce an innovative method that employs ordinary differential equations (ODEs) to enhance the fidelity of 12-lead ECG data generation. This approach integrates cardiac dynamics directly into the generative optimization process via a novel Euler Loss, producing biologically plausible data that respects real-world variability and inter-lead constraints. Empirical analysis on the G12EC and PTB-XL datasets demonstrates that augmenting training data with MultiODE-GAN yields consistent, statistically significant improvements in specificity across multiple cardiac abnormalities. This highlights the value of enforcing physiological coherence in synthetic medical data.

💡 Research Summary

This paper tackles the persistent problem of generating high‑fidelity, physiologically realistic 12‑lead electrocardiogram (ECG) data for machine‑learning applications. Real ECG recordings are scarce, heavily imbalanced, and encumbered by privacy and annotation costs, which limits the development of robust classifiers for rare cardiac conditions. While recent generative models (GANs, diffusion models) can produce visually plausible waveforms, they often ignore the underlying cardiac electrophysiology and, consequently, fail to respect inter‑lead relationships such as Einthoven’s law.

The authors propose MultiODE‑GAN, a novel generative adversarial network that directly embeds a biophysical model of cardiac dynamics—the ECG Dynamical Model (EDM) originally introduced by McSharry et al. (2003)—into the training loop. The EDM consists of three coupled ordinary differential equations (ODEs) that generate a trajectory (x(t), y(t), z(t)) in a three‑dimensional state space; the z‑component corresponds to the observable ECG signal. Parameters governing the amplitude, width, and angular position of the P, Q, R, S, and T waves (a_i, b_i, θ_i) are first fitted to each lead‑and‑class pair using a least‑squares procedure on real beats, and then kept fixed during GAN training.

The core technical contribution is the Euler Loss, a differentiable penalty that measures the discrepancy between the generated signal’s temporal derivative and the derivative prescribed by the EDM. Using a simple forward‑Euler discretization with a time step Δt = 1/fs (fs = sampling frequency), the loss enforces two levels of physiological consistency: (1) each individual lead must follow the ODE‑defined dynamics, and (2) the set of twelve leads must jointly satisfy known anatomical constraints (e.g., Einthoven’s law). This loss is added to the standard Wasserstein GAN with gradient penalty (WGAN‑GP) objective, encouraging the generator to produce waveforms that are both realistic to the discriminator and compliant with cardiac physics.

Architecturally, the model builds on WaveGAN, a one‑dimensional convolutional GAN designed for waveform synthesis, extending it to output 12 channels simultaneously. ECG recordings are segmented into fixed‑length cardiac cycles (beats) and represented as 12 × L matrices, where L corresponds to the RR‑interval duration. The generator therefore learns to produce entire beats rather than isolated samples, facilitating the enforcement of cycle‑level ODE constraints.

Empirical evaluation is performed on two large, publicly available 12‑lead datasets: G12EC and PTB‑XL. The authors compare MultiODE‑GAN against the state‑of‑the‑art diffusion model SSSD‑ECG and a single‑lead ODE‑constrained GAN (SimGAN). Quantitative metrics include Fréchet Inception Distance (FID), Inception Score (IS), and, more importantly, downstream classification performance for several cardiac abnormalities (e.g., atrial fibrillation, left ventricular systolic dysfunction). Across all metrics, MultiODE‑GAN achieves superior signal quality and, when its synthetic data are used for data augmentation, yields statistically significant improvements in specificity (up to 5 percentage points) without sacrificing sensitivity. In a retrospective clinical study focusing on early detection of left ventricular systolic dysfunction, classifiers trained with MultiODE‑GAN‑augmented data approach the specificity of board‑certified cardiologists.

The paper’s contributions are threefold: (1) introduction of an ODE‑constrained GAN that jointly enforces intra‑lead dynamics and inter‑lead physiological laws; (2) extensive empirical evidence that such constraints improve both synthetic signal realism and downstream diagnostic performance; (3) release of the full implementation as open‑source code to promote reproducibility.

Limitations acknowledged by the authors include the need for a separate parameter‑fitting step for each lead and pathology, which adds preprocessing overhead, and the reliance on a first‑order Euler scheme that may be sensitive to high‑frequency noise. Future work is suggested in the direction of automatic parameter inference, incorporation of higher‑order ODE solvers (e.g., Runge‑Kutta 4) for a more accurate Euler loss, and extending the ODE‑constrained paradigm to diffusion‑based generative models.
