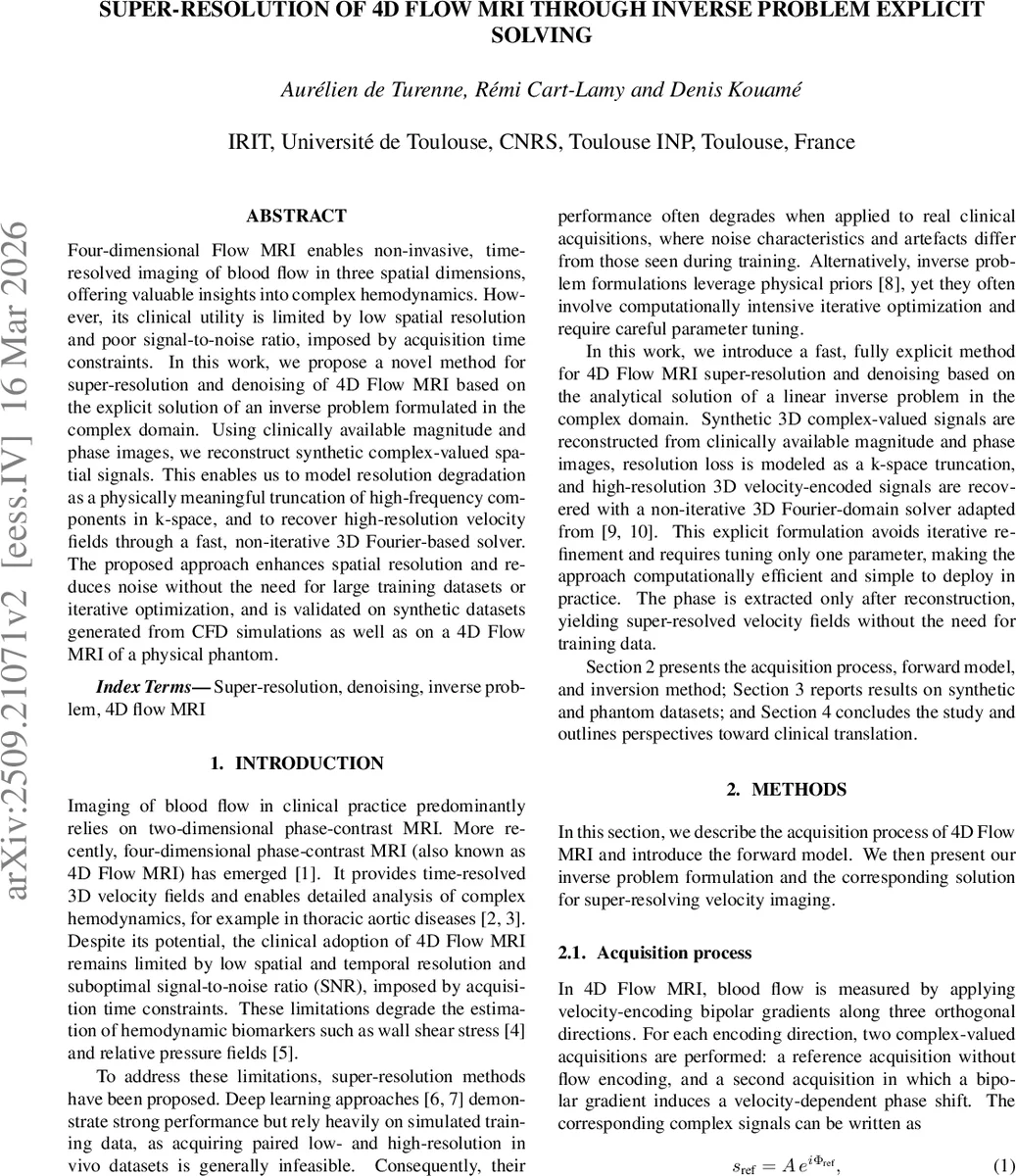

Super-resolution of 4D flow MRI through inverse problem explicit solving

Four-dimensional Flow MRI enables non-invasive, time-resolved imaging of blood flow in three spatial dimensions, offering valuable insights into complex hemodynamics. However, its clinical utility is limited by low spatial resolution and poor signal-to-noise ratio, imposed by acquisition time constraints. In this work, we propose a novel method for super-resolution and denoising of 4D Flow MRI based on the explicit solution of an inverse problem formulated in the complex domain. Using clinically available magnitude and phase images, we reconstruct synthetic complex-valued spatial signals. This enables us to model resolution degradation as a physically meaningful truncation of high-frequency components in k-space, and to recover high-resolution velocity fields through a fast, non-iterative 3D Fourier-based solver. The proposed approach enhances spatial resolution and reduces noise without the need for large training datasets or iterative optimization, and is validated on synthetic datasets generated from CFD simulations as well as on a 4D Flow MRI of a physical phantom.

💡 Research Summary

The paper addresses two fundamental limitations of clinical 4‑dimensional flow MRI—low spatial resolution and poor signal‑to‑noise ratio—by formulating a physically grounded inverse problem in the complex domain and solving it analytically. Conventional approaches either rely on deep‑learning super‑resolution, which demands large simulated training sets and often fails to generalize to real acquisitions, or on iterative physics‑based inverse methods that are computationally heavy and require careful parameter tuning. In contrast, the authors exploit the fact that clinical DICOM output already provides a magnitude image A and three phase images (Φ_u, Φ_v, Φ_w). By recombining these into synthetic complex‑valued spatial signals y_j = A e^{iΦ_j} for each velocity‑encoding direction, they obtain a data representation that is linear with respect to the underlying high‑resolution signal x_j.

Resolution loss is modeled as a truncation of high‑frequency k‑space components, which in the spatial domain corresponds to a convolution with a sinc kernel followed by subsampling. Mathematically this is expressed as y_j = S H x_j + n_j, where H is a block‑circulant‑with‑circulant‑blocks (BCCB) matrix representing the convolution, S is a decimation operator with integer factors (d_r, d_c, d_s), and n_j is additive white Gaussian noise. The inverse problem is posed as a Tikhonov‑regularized least‑squares minimization:

 min_x ½‖y_j – S H x‖²₂ + τ‖x – x̄‖²₂,

where x̄ is a simple interpolated guess and τ controls the trade‑off between data fidelity and regularization. Because H and S are diagonalizable by the 3‑D Fourier transform, the normal equations admit a closed‑form solution that only requires one forward FFT, one inverse FFT, and pointwise operations in the frequency domain. This solution follows the Fast Super‑Resolution (FSR) framework originally proposed for real‑valued images, but here it is extended to complex‑valued velocity‑encoded data. The result is a non‑iterative, O(N log N) algorithm that needs to tune only the single scalar τ.

The method was evaluated on two datasets. First, synthetic data were generated from computational fluid dynamics (CFD) simulations of three aortic geometries. Low‑resolution inputs were created by truncating high‑frequency k‑space components and adding complex Gaussian noise to achieve a PSNR of 15 dB. The high‑resolution reference was the original CFD velocity field. Second, a physical flow phantom was scanned with a clinical 4D Flow MRI protocol; here only low‑resolution data were available, and no ground‑truth high‑resolution image existed. For both ×2 and ×4 up‑sampling factors, the proposed approach was compared against bicubic interpolation and the deep‑learning method 4DFlowNet.

Quantitatively, on the synthetic dataset the proposed method achieved the highest peak‑signal‑to‑noise ratio (PSNR) and the lowest root‑mean‑square error (RMSE) across all three velocity components and all time frames. Visually, it preserved fine‑scale vortical structures and avoided the velocity over‑estimation observed in 4DFlowNet, while bicubic interpolation overly smoothed the flow. On the phantom data, the method reduced noise and maintained coherent flow patterns better than both baselines, producing realistic velocity magnitudes without the artificial smoothing of bicubic or the over‑brightening of the neural‑network output.

Despite these promising results, the study has limitations. The regularization is limited to a simple Tikhonov term, which may not fully capture the physics of incompressible blood flow or vessel wall constraints. Validation was confined to CFD simulations and a single phantom; performance on in‑vivo patient data, especially in the presence of complex pathologies, remains to be demonstrated. The authors propose future work that incorporates more sophisticated priors (e.g., divergence‑free constraints, total variation, or energy‑based models) and explores hybrid schemes such as deep unfolding, which could automate parameter selection while preserving interpretability.

In summary, the paper introduces a fast, training‑free, and mathematically transparent framework for super‑resolution and denoising of 4D Flow MRI. By reconstructing complex‑valued signals from standard magnitude and phase images and solving a linear inverse problem analytically in the Fourier domain, the method delivers higher spatial fidelity and lower noise with minimal computational burden. This approach offers a compelling alternative to both data‑hungry deep‑learning models and computationally intensive iterative reconstructions, and it sets the stage for further enhancements that could bring high‑quality 4D flow imaging into routine clinical practice.
