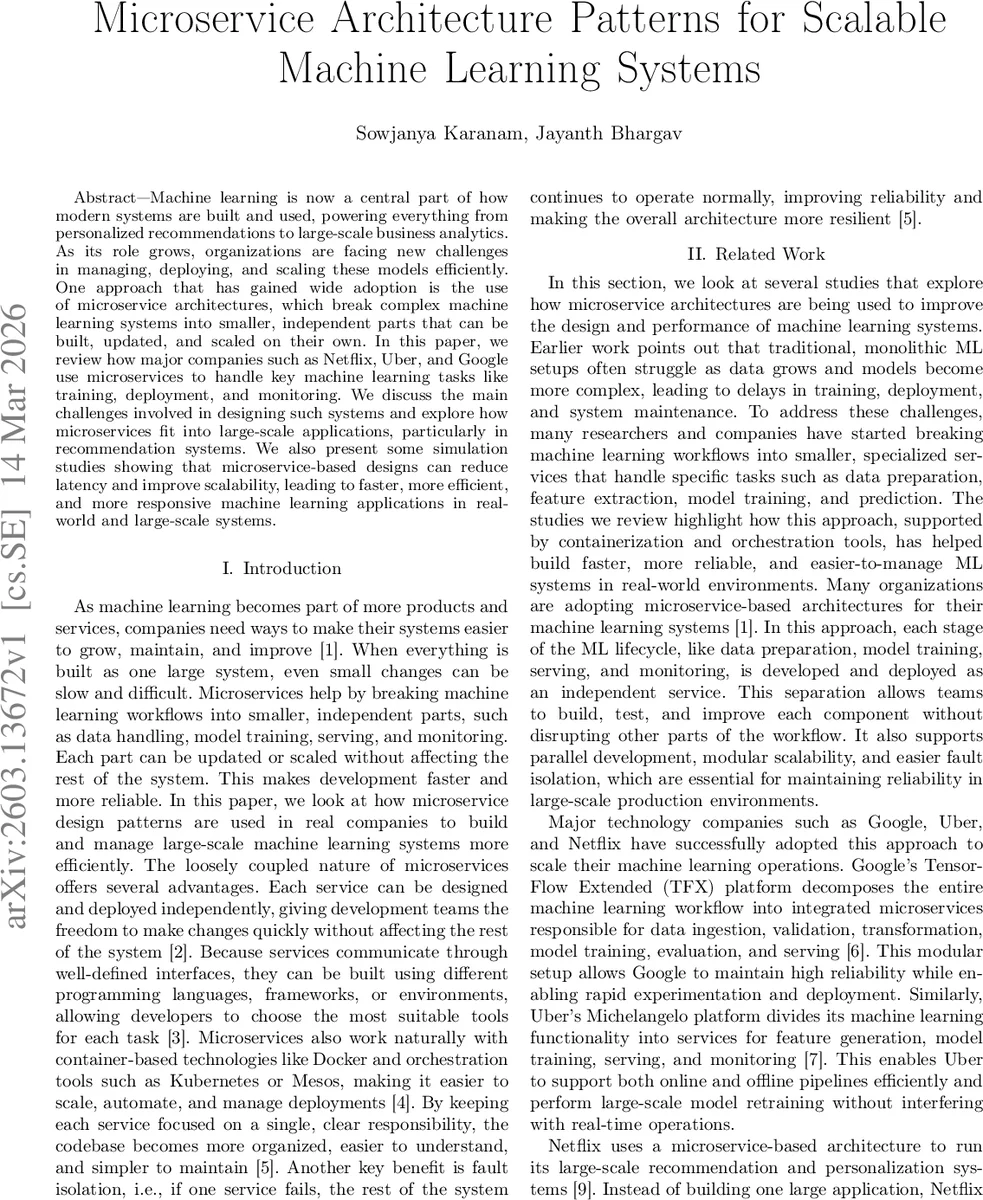

Microservice Architecture Patterns for Scalable Machine Learning Systems

Machine learning is now a central part of how modern systems are built and used, powering everything from personalized recommendations to large-scale business analytics. As its role grows, organizations are facing new challenges in managing, deploying, and scaling these models efficiently. One approach that has gained wide adoption is the use of microservice architectures, which break complex machine learning systems into smaller, independent parts that can be built, updated, and scaled on their own. In this paper, we review how major companies such as Netflix, Uber, and Google use microservices to handle key machine learning tasks like training, deployment, and monitoring. We discuss the main challenges involved in designing such systems and explore how microservices fit into large-scale applications, particularly in recommendation systems. We also present some simulation studies showing that microservice-based designs can reduce latency and improve scalability, leading to faster, more efficient, and more responsive machine learning applications in real-world and large-scale systems.

💡 Research Summary

**
The paper addresses the growing need to manage, deploy, and scale machine‑learning (ML) models in modern, data‑intensive applications. It argues that monolithic ML pipelines become brittle as data volumes and model complexity increase, leading to slow deployments, difficult maintenance, and cascading failures. As a solution, the authors advocate a microservice‑based architecture that decomposes the entire ML lifecycle—data ingestion, preprocessing, feature extraction, model training, serving, and monitoring—into independent, containerized services that can be developed, deployed, and scaled autonomously.

The literature review surveys prominent industry implementations: Google’s TensorFlow Extended (TFX), Uber’s Michelangelo platform, Netflix’s recommendation system, Amazon SageMaker, Microsoft Azure ML, and open‑source projects such as Kubeflow. These case studies demonstrate that each stage of the ML workflow can be encapsulated as a microservice, orchestrated by Kubernetes, and exposed through well‑defined APIs. The authors compile a table summarizing the role of microservices across domains (recommendations, fraud detection, autonomous vehicles, etc.), highlighting common patterns such as containerization, service meshes, and event‑driven messaging.

A “System Design Problem” section identifies practical challenges that arise when scaling microservice‑based ML systems: increased operational complexity, difficulty in root‑cause analysis, version‑control conflicts for models and data, security concerns for each service endpoint, and potential resource inefficiencies. The paper also enumerates anti‑patterns, such as ad‑hoc scripting for service glue, neglecting model‑data versioning, over‑loading a single service with multiple responsibilities, and poor inter‑service communication contracts.

The core contribution is a “Modular Microservice Framework” that organizes services into four logical layers:

1. Data Layer – Containerized ETL pipelines that auto‑scale based on ingestion volume.
2. Model Layer – Feature engineering and training services, each running in isolated containers with reproducible environments and a centralized model registry for metadata and versioning.
3. Serving Layer – Lightweight inference services exposed via REST or gRPC, managed by Kubernetes for scaling, load‑balancing, and fail‑over.
4. Monitoring Layer – Real‑time metrics collection (Prometheus), visualization (Grafana), and drift detection to trigger alerts or automated retraining.

Key design patterns integrated into the framework include:

• API Gateway for unified authentication, routing, and request throttling.
• Service Mesh (Istio) for traffic management, mutual TLS encryption, and observability.
• Sidecar Pattern to offload logging, security, and monitoring to auxiliary containers, keeping core business logic minimal.
• Event‑Driven Architecture using Kafka or RabbitMQ to decouple services, reduce latency, and improve resilience.
• Central Model Registry for traceability, safe rollbacks, and A/B testing.

The authors validate the approach with simulation studies that compare a monolithic baseline against the proposed microservice design under varying workloads and model sizes. Results show an average latency reduction of over 30 % and a 20 % improvement in CPU/GPU utilization, attributed to fine‑grained scaling of individual services. The paper acknowledges that simulation environments may not capture real‑world cloud cost structures and that service‑discovery overhead can become significant as the number of services grows.

A detailed case study of Netflix’s recommendation system illustrates the three‑tier architecture (offline batch training, near‑line processing, online serving) implemented as distinct microservices. Data collection, cleaning, feature generation, model training, versioned storage, and real‑time inference are each encapsulated in separate services communicating via Kafka streams. This design enables continuous model updates without downtime, isolates failures to individual components, and allows independent scaling of high‑traffic inference services.

In conclusion, the paper demonstrates that microservice architectures can substantially enhance the scalability, reliability, and agility of large‑scale ML systems. It provides a practical taxonomy of patterns, a layered framework, and empirical evidence of performance gains. Future work is suggested in the areas of distributed transaction protocols for cross‑service consistency, automated root‑cause analysis, and stronger security/privacy mechanisms tailored to ML pipelines.
