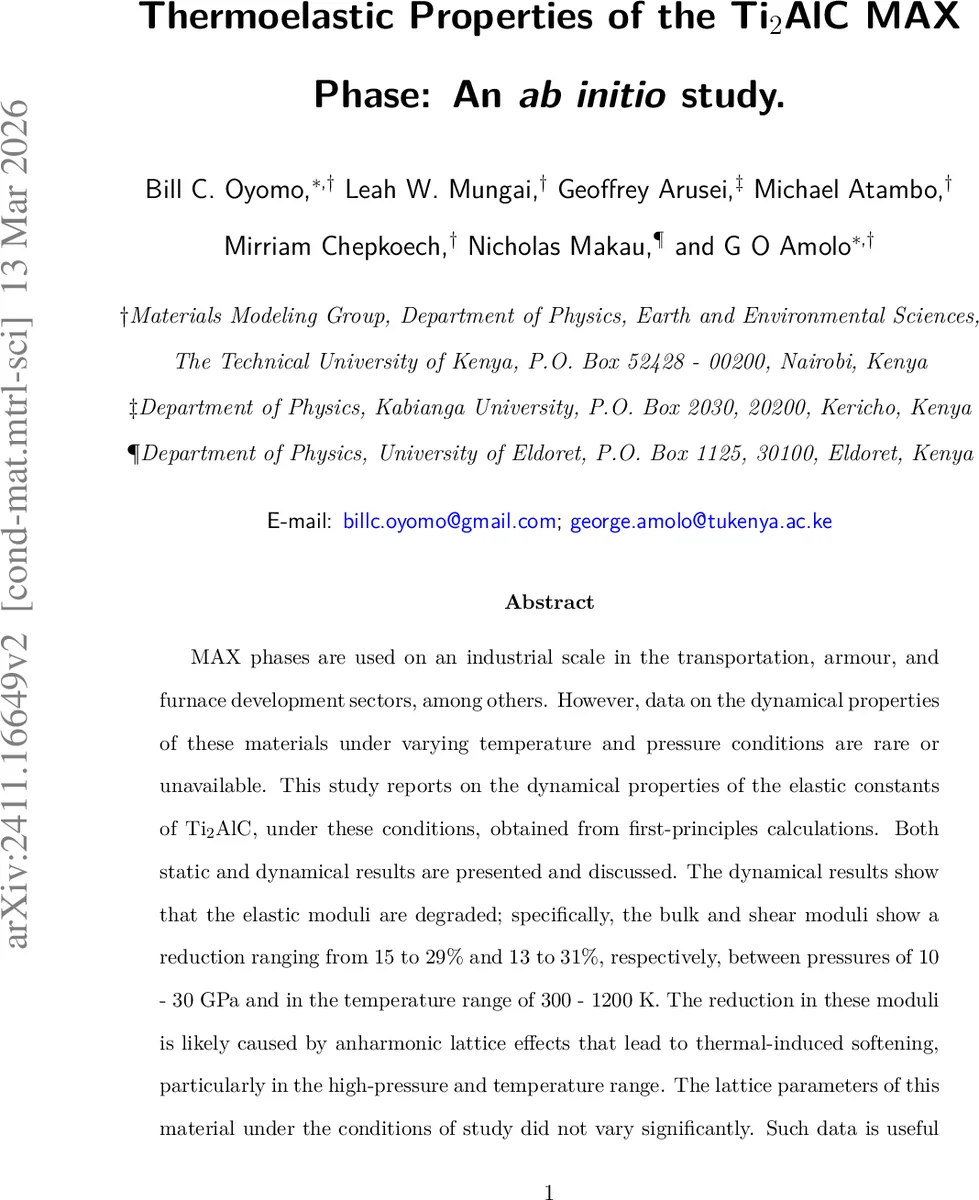

Thermoelastic Properties Of The Ti2AlC MAX Phase: An Ab Initio Study

MAX phases are used on an industrial scale in the transportation, armour, and furnace development sectors, among others. However, data on the dynamical properties of these materials under varying temperature and pressure conditions are rare or unavailable. This study reports on the dynamical properties of the elastic constants of Ti2AlC, under these conditions, obtained from first-principles calculations. Both static and dynamical results are presented and discussed. The dynamical results show that the elastic moduli are degraded; specifically, the bulk and shear moduli show a reduction ranging from 15 to 29% and 13 to 31%, respectively, between pressures of 10 - 30 GPa and in the temperature range of 300 - 1200 K. The reduction in these moduli is likely caused by anharmonic lattice effects that lead to thermal-induced softening, particularly in the high-pressure and temperature range. The lattice parameters of this material under the conditions of study did not vary significantly. Such data is useful as part of decision support that can inform applications as well as the limitations of use.

💡 Research Summary

This paper presents a comprehensive first‑principles investigation of the thermo‑elastic behavior of the Ti₂AlC MAX phase under combined high‑pressure (10–30 GPa) and high‑temperature (300–1200 K) conditions. The authors begin by highlighting the industrial relevance of MAX phases—particularly Ti₂AlC—in aerospace, armor, and high‑temperature furnace applications, and note the scarcity of experimental data on their dynamic mechanical response.

Using density‑functional theory (DFT) as implemented in Quantum Espresso, the study first determines static elastic constants (C₁₁, C₁₂, C₁₃, C₃₃, C₄₄) at 0 K for a series of fixed‑volume structures that simulate pressures up to 35 GPa. Ultrasoft pseudopotentials with a 60 Ry plane‑wave cutoff and a 12 × 12 × 2 k‑point mesh ensure convergence. Small strains (±0.5 %) are applied to extract the fourth‑order elastic tensor via the stress–strain relationship. All static Cij increase monotonically with pressure, reflecting the expected stiffening of Ti–C bonds in the basal plane (a‑axis) and Ti–Al bonds along the c‑axis. The Born‑Huang stability criteria for hexagonal crystals are satisfied throughout, confirming mechanical stability under compression.

To capture temperature effects, the authors employ the quasiharmonic approximation (QHA). Helmholtz free energy is computed as the sum of static DFT energy, zero‑point phonon energy, and the thermal phonon contribution. Phonon spectra are obtained via density‑functional perturbation theory (DFPT) on a 2 × 2 × 2 supercell with a 4 × 4 × 2 q‑point grid, and convergence is set to 1 × 10⁻⁸ eV. Additionally, ab‑initio molecular dynamics (AIMD) simulations at 1200 K (constant volume, Nosé thermostat) are performed with VASP, and the resulting trajectories are analyzed using Dynaphopy to extract anharmonic phonon properties. The temperature‑dependent elastic constants are then derived from the second derivatives of the free energy with respect to strain, incorporating pressure terms as required.

Dynamic results reveal a pronounced softening of the elastic constants with increasing temperature, especially when combined with pressures above ~20 GPa. C₁₁, C₁₂, and C₄₄ display near‑linear decreases up to ~15 GPa, after which the rate of decline accelerates. C₁₃ and C₃₃ also decrease with temperature, but at higher pressures they exhibit a steeper increase, indicating a complex interplay between lattice anharmonicity and directional bonding. Bulk modulus (B) and shear modulus (G) follow the same trend: between 300 K and 1200 K, B drops by 15 % at 10 GPa, 24 % at 20 GPa, and 29 % at 30 GPa; G declines by 13 %, 20 %, and 31 % over the same pressure range. Poisson’s ratio rises from 0.014 to 0.225, yet remains below the ductility threshold (ν < 0.26), and the Pugh ratio B/G stays under 1.75, confirming that Ti₂AlC retains a brittle character even at elevated temperatures.

The authors attribute the observed softening primarily to anharmonic lattice vibrations that increase atomic displacement amplitudes, reducing the effective stiffness of both Ti–C and Ti–Al bonds. Near the upper temperature limit (≈1200 K), the material approaches its predicted melting point, and the rapid decline of shear modulus suggests incipient structural disorder or amorphization, consistent with prior observations of pressure‑induced amorphization in related compounds.

In conclusion, while Ti₂AlC becomes stiffer under pure compression, simultaneous heating leads to significant elastic degradation due to anharmonic effects. These findings provide essential quantitative guidance for the design of components operating under combined high‑pressure and high‑temperature environments, such as turbine blades, heat exchangers, and protective armor. Moreover, the combined QHA‑AIMD workflow demonstrated here offers a robust framework for predicting thermo‑elastic properties of other MAX phases and layered carbides/nitrides. The paper suggests future work should incorporate defects, Al diffusion, and possible phase transformations to more closely mimic real‑world material conditions.
