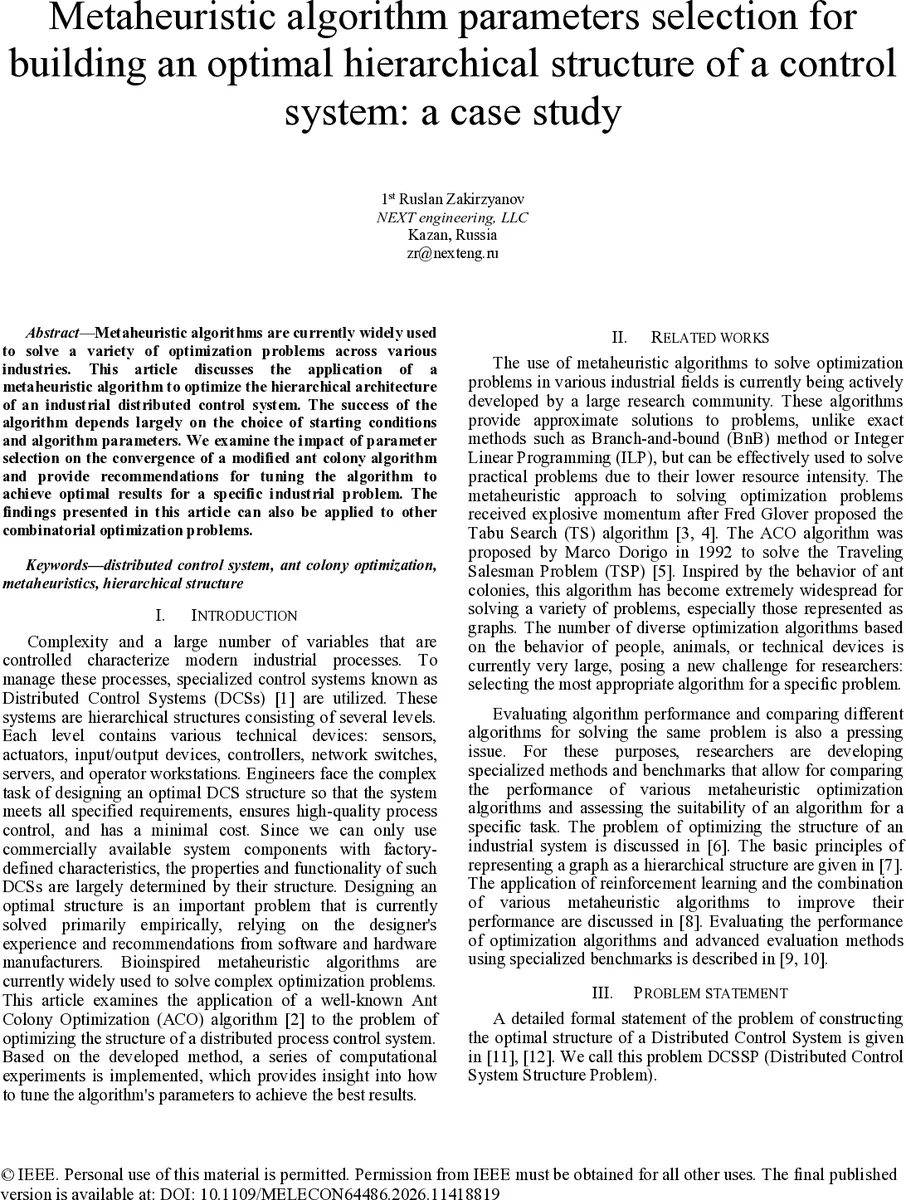

Metaheuristic algorithm parameters selection for building an optimal hierarchical structure of a control system: a case study

Metaheuristic algorithms are currently widely used to solve a variety of optimization problems across various industries. This article discusses the application of a metaheuristic algorithm to optimize the hierarchical architecture of an industrial distributed control system. The success of the algorithm depends largely on the choice of starting conditions and algorithm parameters. We examine the impact of parameter selection on the convergence of a modified ant colony algorithm and provide recommendations for tuning the algorithm to achieve optimal results for a specific industrial problem. The findings presented in this article can also be applied to other combinatorial optimization problems.

💡 Research Summary

The paper addresses the challenging problem of designing an optimal hierarchical architecture for industrial Distributed Control Systems (DCS). Modern process plants contain numerous devices—sensors, actuators, I/O modules, processors, network switches, servers, and operator workstations—organized in multiple levels. Traditionally, engineers rely on experience and vendor recommendations, which often leads to sub‑optimal, empirically derived structures. The authors formalize this design task as the Distributed Control System Structure Problem (DCSSP), representing the DCS as a rooted tree (acyclic graph) where nodes correspond to device types and edges to communication channels. Each device type is characterized by a vector of attributes (cost, number of physical channels, memory capacity, failure probability, execution time, operating mode, maximum children, transmission delay). Control loops are attached to leaf nodes, and a large set of constraints (reliability, performance, child‑device limits, etc.) is imposed. The objective is to minimize total system cost while satisfying all constraints.

To solve DCSSP, the authors select Ant Colony Optimization (ACO) because of its natural suitability for graph‑based problems. However, standard ACO does not directly handle the multiple, heterogeneous constraints of DCS design. Therefore, they modify the algorithm in several ways: (1) each ant’s decision process is broken into fine‑grained actions—selecting a device type, determining the number of child devices, assigning control loops—each governed by a probabilistic rule p_i = (τ_i^α·η_i^β) / Σ(τ_j^α·η_j^β), where τ is pheromone, η is a heuristic based on cost and constraint violation, α and β control the relative influence of pheromone vs. heuristic. (2) Pheromone update follows τ_i ← (1−ρ)·τ_i + Δτ_i, with ρ as the evaporation coefficient and Δτ_i proportional to the inverse of the solution cost. (3) After a feasible tree is built, a local search (2‑opt) swaps device types of different branches to escape local minima. The algorithm terminates when a feasible tree is constructed; infeasible trees are discarded.

A dedicated software tool (Python + Qt) was developed, providing a graphical interface for specifying system parameters (number of hierarchy levels, device types, control loops) and for tuning ACO parameters. Notably, the tool allows parameters to be defined as functions of the current iteration, enabling dynamic strategies (e.g., high α early on for exploration, decreasing α and increasing β later for exploitation).

Four experimental configurations (Table 1) were tested on a hardware platform (Intel Core i5, 16 GB RAM, 512 GB SSD). Each configuration was run 30 times; average cost, best cost, and coefficient of variation (CV) were recorded (Table 2). The configuration with α = 0.25, β = 2.0, ρ = 0.0 (Experiment 3) achieved the lowest average cost (≈ 6063) and the smallest CV (≈ 3.39 %), indicating the most stable and efficient convergence. Convergence plots (Figures 3‑4) show rapid cost reduction within the first few iterations, with the best solution typically found early. The results demonstrate that increasing the influence of pheromone (higher β) relative to the heuristic (lower α) helps guide ants toward high‑quality solutions in a highly constrained search space, reducing the likelihood of stagnation in local optima.

The authors acknowledge several limitations: the model assumes a strictly hierarchical tree without horizontal (same‑level) connections; only two device types (a PLC‑like processor and an I/O‑like repeater) were considered; scalability to larger numbers of levels, device types, and control loops may increase computational effort. Future work is outlined, including (i) quantitative comparison with other metaheuristics such as Genetic Algorithms, Tabu Search, and Grey Wolf Optimizer; (ii) exploration of advanced ACO variants (e.g., MAX‑MIN ACO, elitist pheromone updates) for larger problem instances; (iii) incorporation of horizontal links and additional constraints (power, thermal, security); and (iv) validation of the optimized structures through simulation on real process units (e.g., a chemical plant).

In conclusion, the paper provides a concrete methodology for applying a modified ACO to the hierarchical design of DCS, highlights the critical impact of algorithm parameter selection on convergence speed and solution quality, and offers a practical GUI‑based tool that enables engineers to systematically explore design alternatives. The presented parameter‑tuning guidelines and experimental evidence serve as a valuable reference for both practitioners seeking to optimize control system architectures and researchers investigating metaheuristic applications to complex industrial optimization problems.
