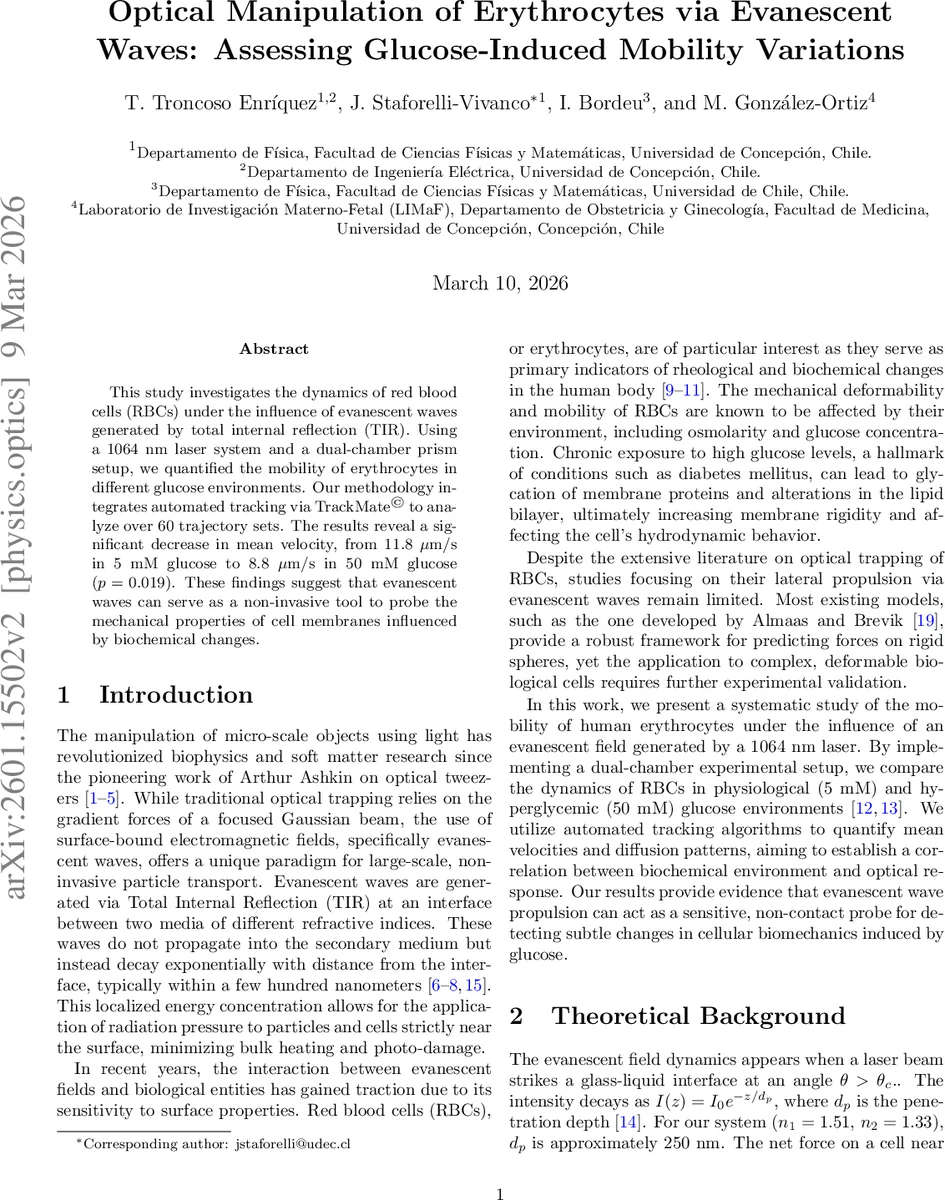

Optical Manipulation of Erythrocytes via Evanescent Waves: Assessing Glucose-Induced Mobility Variations

This study investigates the dynamics of red blood cells (RBCs) under the influence of evanescent waves generated by total internal reflection (TIR). Using a 1064 nm laser system and a dual-chamber prism setup, we quantified the mobility of erythrocytes in different glucose environments. Our methodology integrates automated tracking via TrackMate\c{opyright} to analyze over 60 trajectory sets. The results reveal a significant decrease in mean velocity, from 11.8 μm/s in 5 mM glucose to 8.8 μm/s in 50 mM glucose (p = 0.019). These findings suggest that evanescent waves can serve as a non-invasive tool to probe the mechanical properties of cell membranes influenced by biochemical changes.

💡 Research Summary

This paper presents a novel platform for non‑invasive optical manipulation of red blood cells (RBCs) using evanescent waves (EWs) generated by total internal reflection (TIR) of a 1064 nm continuous‑wave laser. The authors constructed a dual‑chamber prism system that allows simultaneous observation of a control sample (polystyrene microspheres) and RBCs under identical optical conditions, thereby minimizing systematic errors associated with prism replacement and laser realignment.

The experimental setup includes a 1.8 W laser directed onto a glass‑water interface at an incidence angle exceeding the critical angle (n₁ = 1.51, n₂ = 1.33), producing an evanescent field with a penetration depth of approximately 250 nm. A 60× objective (NA 0.85) coupled to a 1280 × 1024 pixel CMOS camera records particle motion at 25 fps. Image sequences are processed with the TrackMate plugin in Fiji/ImageJ, using carefully calibrated detection thresholds, linking distances, and gap‑closing parameters to generate reliable trajectories.

Human blood samples were diluted 1:250 in phosphate‑buffered saline (PBS) and prepared in two glucose concentrations: a physiological level of 5 mM and a hyperglycemic level of 50 mM. The high‑glucose condition mimics chronic diabetic exposure and is expected to induce membrane glycation, increased rigidity, and altered optical properties. Polystyrene spheres (diameter ≈ 1 µm) serve as a mechanical benchmark.

A total of 64 trajectory sets (derived from eight independent experiments) were analyzed. The mean steady‑state velocity of RBCs in the 5 mM glucose group was 11.8 ± 2.1 µm s⁻¹, whereas in the 50 mM group it dropped to 8.8 ± 1.8 µm s⁻¹. This reduction is statistically significant (p = 0.019). Control microspheres displayed a higher, glucose‑independent velocity of 15.2 ± 1.4 µm s⁻¹, confirming that the observed effect is specific to the biological cells. Velocity distributions are visualized with histograms and violin plots, clearly showing the shift toward lower speeds at high glucose.

Theoretical analysis follows the Almaas‑Brevik model for EW‑particle interaction, which calculates the optical force based on the particle’s polarizability, the evanescent field intensity, and the angle of incidence. By applying Stokes’ drag law with a surface‑correction factor β, the predicted velocities fall in the 10–15 µm s⁻¹ range, matching the experimental data. Discrepancies between the two prisms (average velocities of 10.5 µm s⁻¹ vs. 13.8 µm s⁻¹) are attributed to slight variations in laser focus and local field intensity, underscoring the importance of the dual‑chamber design.

From a biophysical perspective, elevated glucose leads to non‑enzymatic glycation of membrane proteins and alterations in lipid bilayer composition, which increase membrane stiffness and modify the cell’s effective refractive index. These changes reduce the coupling between the evanescent field and the cell, diminishing the radiation pressure component that drives lateral motion. Consequently, the measured velocity serves as an indirect metric of membrane mechanical state.

The authors acknowledge several limitations: (1) lack of active temperature control, which could affect medium viscosity and cell elasticity; (2) high cell concentrations generating local fluid flows that may displace cells beyond the evanescent decay length; (3) the theoretical model assumes rigid spherical particles, whereas RBCs are deformable biconcave discs, introducing systematic error. Future work is proposed to incorporate temperature stabilization, event‑based cameras for high‑speed, low‑bandwidth data acquisition, and more sophisticated models that account for cell deformability.

In conclusion, evanescent‑wave‑based optical manipulation provides a sensitive, label‑free method to probe biochemical‑induced mechanical changes in cells. The demonstrated decrease in RBC mobility with increasing glucose concentration suggests potential applications in diabetes monitoring, vascular pathology diagnostics, and even food authentication (e.g., honey adulteration). By integrating neuromorphic vision sensors and advanced micro‑fluidic designs, this technique could evolve into a practical clinical tool for rapid, non‑invasive cellular biomechanics assessment.
