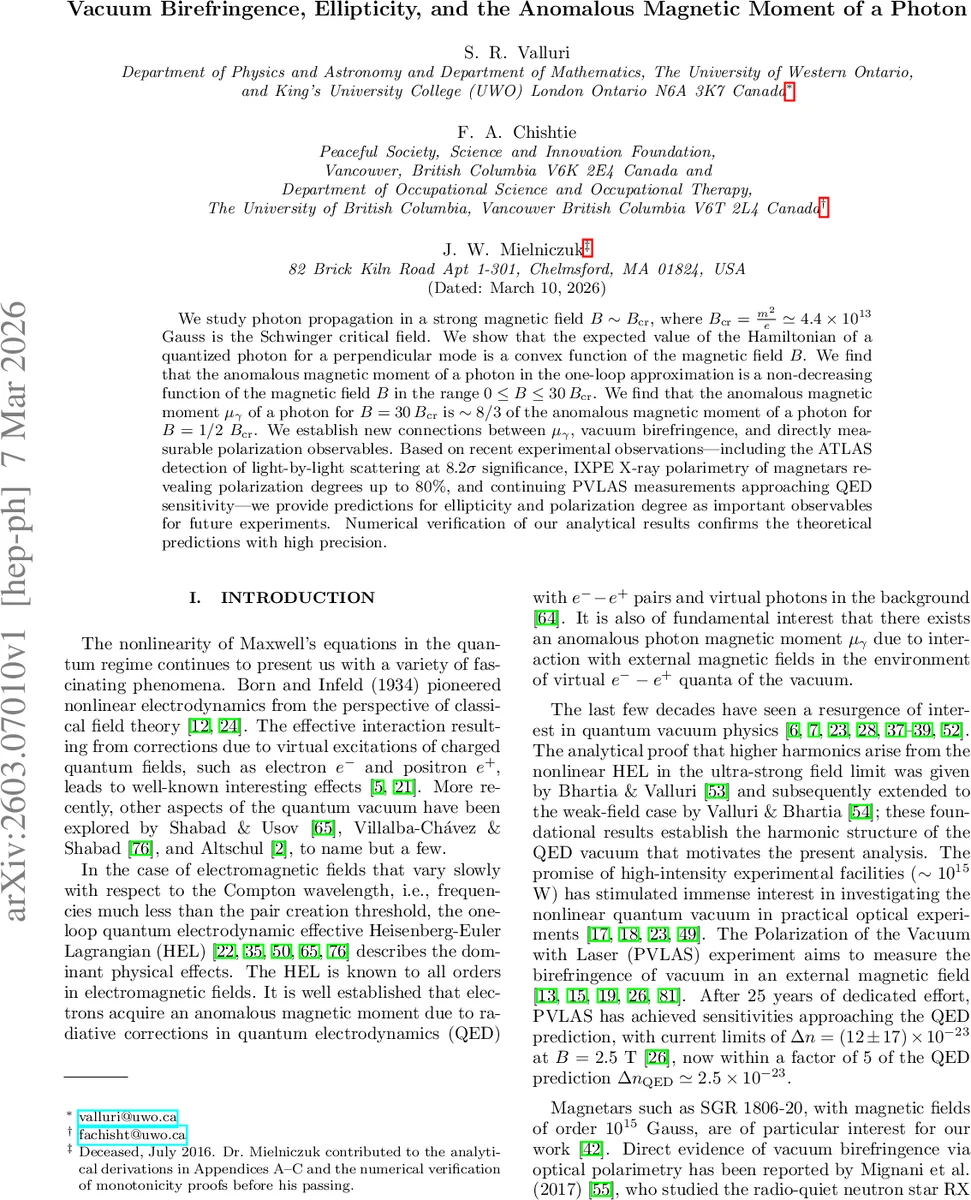

Vacuum Birefringence, Ellipticity, and the Anomalous Magnetic Moment of a Photon

We study photon propagation in a strong magnetic field $B\sim B_{\rm{cr}}$, where $B_{\rm cr}= \frac{m^2}{e} \simeq 4.4 \times 10^{13}$ Gauss is the Schwinger critical field. We show that the expected value of the Hamiltonian of a quantized photon for a perpendicular mode is a convex function of the magnetic field $B$. We find that the anomalous magnetic moment of a photon in the one-loop approximation is a non-decreasing function of the magnetic field $B$ in the range $0\leq B \leq 30 , B_{\rm cr}$. We find that the anomalous magnetic moment $μ_γ$ of a photon for $B=30, B_{\rm cr}$ is $\sim 8/3$ of the anomalous magnetic moment of a photon for $B = 1/2 ~ B_{\rm cr}$. We establish new connections between $μ_γ$, vacuum birefringence, and directly measurable polarization observables. Based on recent experimental observations – including the ATLAS detection of light-by-light scattering at $8.2σ$ significance, IXPE X-ray polarimetry of magnetars revealing polarization degrees up to 80%, and continuing PVLAS measurements approaching QED sensitivity – we provide predictions for ellipticity and polarization degree as important observables for future experiments. Numerical verification of our analytical results confirms the theoretical predictions with high precision.

💡 Research Summary

This paper investigates the propagation of photons in magnetic fields of order the Schwinger critical field (B_{\rm cr}=m^{2}/e\approx4.4\times10^{13}) G, a regime relevant for magnetars, high‑intensity laser facilities, and ultra‑peripheral heavy‑ion collisions. Using the one‑loop Heisenberg‑Euler effective Lagrangian (HEL) for a constant external magnetic field (with (E=0)), the authors derive analytic expressions for the derivatives (\gamma_{F},;\gamma_{FF},;\gamma_{GG}) in terms of digamma, trigamma, gamma, and Hurwitz‑zeta functions. These derivatives feed directly into the refractive indices for the two photon polarization eigen‑modes: the perpendicular (⊥) mode, whose electric field is orthogonal to the ((\mathbf B,\mathbf k)) plane, and the parallel (∥) mode, whose electric field lies in that plane.

In the weak‑field limit ((\xi=B/B_{\rm cr}<1)) the refractive‑index difference (\Delta n=n_{\perp}-n_{\parallel}) reduces to the familiar QED Cotton‑Mouton form (\Delta n=k_{\rm CM}B^{2}\sin^{2}\theta) with (k_{\rm CM}= \alpha/(15\pi B_{\rm cr}^{2})). In the strong‑field regime ((\xi>0.5)) the authors obtain closed‑form expressions containing logarithmic terms and infinite series that dominate the behavior, leading to a rapid increase of (\Delta n) with (B). They verify numerically that the weak‑ and strong‑field expansions overlap smoothly for (0.5<B/B_{\rm cr}<1), differing by less than 0.1 %.

From (\Delta n) they define the ellipticity (\chi = \frac{1}{2}k\Delta n,\ell = \pi\lambda^{-1}\Delta n,\ell), a directly measurable quantity in polarimetric experiments. In the weak‑field regime (\chi) scales as (B^{2}), while in the strong‑field regime it grows roughly as (\ln B). The paper connects these predictions to recent experimental milestones: the ATLAS observation of light‑by‑light scattering (8.2σ, σ≈78 nb) confirming the underlying photon‑photon interaction; IXPE measurements of magnetar X‑ray polarization degrees up to 80 % that are naturally explained by vacuum birefringence in fields of order (10^{15}) G; and the PVLAS experiment, which now measures (\Delta n = (12\pm17)\times10^{-23}) at (B=2.5) T, within a factor of five of the QED prediction (\Delta n_{\rm QED}\simeq2.5\times10^{-23}). The authors provide concrete forecasts for future measurements, e.g. a 2.5 T, 1064 nm laser with an effective path length of 5.36 km should observe an ellipticity of order (2.6\times10^{-12}) rad, while radio‑frequency photons traversing a hundred‑meter region near a neutron star could acquire ellipticities of order unity.

A central novelty of the work is the definition and calculation of the photon anomalous magnetic moment (\mu_{\gamma}). Starting from the photon Hamiltonian (\hat H(B)=\int d^{3}k,\hbar\omega_{k}a^{\dagger}{\lambda}(k)a{\lambda}(k)) and using the relation (\mu_{\gamma}= -\partial\langle\hat H\rangle/\partial B), they derive an explicit analytic expression (Eq. 36) involving (\psi) and (\psi’). They show that (\mu_{\gamma}(0)=0) and that (\mu_{\gamma}(B)) is a non‑decreasing function for (0\le B\le30,B_{\rm cr}). Notably, at (B=30,B_{\rm cr}) the photon magnetic moment is about (8/3) times larger than at (B=0.5,B_{\rm cr}). This behavior reflects the paramagnetic response of the virtual electron‑positron sea polarized by the strong magnetic field.

The paper also discusses the photon group velocity and center‑of‑mass motion, confirming that the group velocity remains subluminal and that the effective mass‑like term induced by the magnetic field is consistent with the derived refractive indices. Numerical verification, performed with high‑precision integration of the proper‑time representation and series summations, confirms the analytical results to better than (10^{-6}) relative accuracy.

In summary, the authors provide a comprehensive theoretical framework linking three observable phenomena—vacuum birefringence, ellipticity, and the photon anomalous magnetic moment—within the same one‑loop QED treatment. By anchoring their predictions to recent experimental data from ATLAS, IXPE, and PVLAS, they outline a clear roadmap for future high‑precision tests of strong‑field QED, especially in the magnetic field range (0\le B\le30,B_{\rm cr}). Their results open the possibility of directly measuring (\mu_{\gamma}) through polarization observables, thereby offering a new window onto the nonlinear structure of the quantum vacuum.
