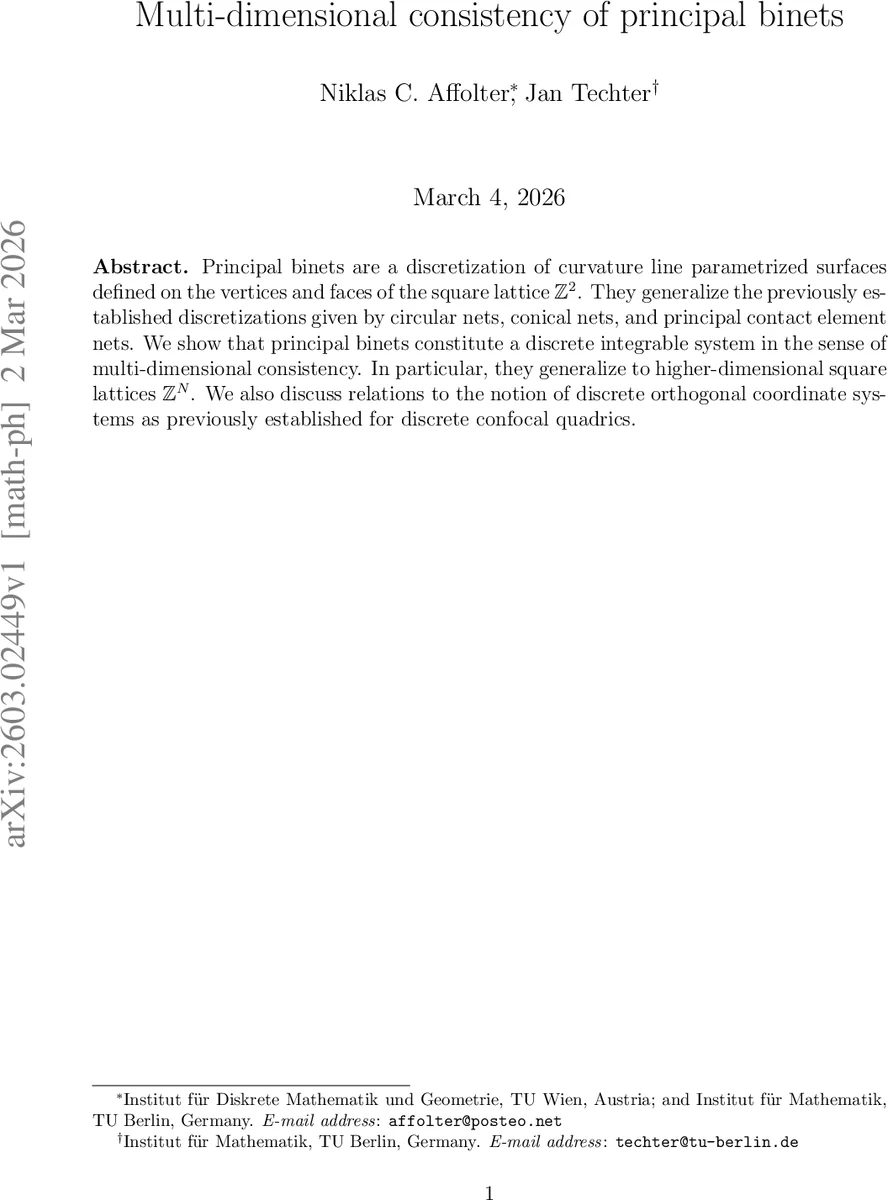

Multi-dimensional consistency of principal binets

Principal binets are a discretization of curvature line parametrized surfaces defined on the vertices and faces of the square lattice $\Z^2$. They generalize the previously established discretizations given by circular nets, conical nets, and principal contact element nets. We show that principal binets constitute a discrete integrable system in the sense of multi-dimensional consistency. In particular, they generalize to higher-dimensional square lattices $\Z^N$. We also discuss relations to the notion of discrete orthogonal coordinate systems as previously established for discrete confocal quadrics.

💡 Research Summary

This paper introduces and studies “principal binets,” a novel discretization of curvature‑line parametrized surfaces that assigns points not only to the vertices of a square lattice but also to its faces. The authors place this construction in the broader context of discrete differential geometry, where earlier discretizations such as circular nets, conical nets, and principal contact‑element nets have been defined solely on vertex lattices. By extending the underlying combinatorial domain from the two‑dimensional lattice ℤ² to the N‑dimensional lattice ℤᴺ, the paper establishes that principal binets form a multi‑dimensional consistent (MDC) system, i.e., an integrable discrete system that can be consistently extended to higher dimensions without contradictions.

The exposition begins with precise definitions. For a given N, the set of vertices Vᴺ, edges Eᴺ, and 2‑dimensional faces Fᴺ of ℤᴺ are introduced, together with their union Dᴺ = Vᴺ ∪ Fᴺ. Three classes of “conjugate” nets are defined: (i) conjugate vertex‑nets g: Vᴺ → ℝℙⁿ, requiring that for each face f the images of its four incident vertices lie in a common plane; (ii) conjugate face‑nets h: Fᴺ → ℝℙⁿ, requiring that for each vertex v the images of all incident faces lie in a common plane; (iii) conjugate binets b: Dᴺ → ℝℙⁿ, which simultaneously satisfy both (i) and (ii). Non‑degeneracy and genericity conditions are imposed to avoid pathological configurations; when necessary, a “lift” to a higher‑dimensional projective space ℝℙⁿ⁺ᵐ is employed, preserving the conjugate structure under central projection.

The first major result (Theorem 1.3) shows that conjugate vertex‑nets, conjugate face‑nets, and conjugate binets are all MDC 3‑D systems. The proof relies on a block‑wise construction: for any rectangular block A ⊂ ℤᴺ, Lemma 2.6 (for vertex‑nets) and Lemma 2.7 (for face‑nets) guarantee lifts whose images span a space of dimension exactly equal to the sum of the block’s side lengths, ensuring that the local planarity constraints can be satisfied independently along each coordinate direction. Consequently, when extending a solution from a 3‑dimensional cube to an adjacent cube, the compatibility conditions are automatically met, establishing multidimensional consistency.

To connect principal binets with previously known discretizations, the authors introduce the notion of a “polar conjugate binet.” Fix a non‑degenerate quadric Q ⊂ ℝℙⁿ (e.g., the Möbius sphere). A polar conjugate binet is a conjugate binet such that for every incident vertex–face pair (v, f) the points b(v) and b(f) are polar with respect to Q. Theorem 1.5 proves that polar conjugate binets are a consistent reduction of general conjugate binets; this mirrors the classical result that conjugate nets constrained to a quadric inherit the MDC property.

Principal binets are then defined as a further reduction of polar conjugate binets by imposing an orthogonality condition on “crosses.” A cross is a quadruple (v, f, v′, f′) where the two vertices are incident to both faces. The principal binet condition requires that the line through b(v) and b(v′) be orthogonal (in the Euclidean sense) to the line through b(f) and b(f′). Theorem 1.7 establishes that principal binets are a consistent reduction of conjugate binets. The proof proceeds in two steps: first, the MDC property of polar conjugate binets (Theorem 1.5) is invoked; second, a 1‑to‑ℝ correspondence is constructed between a principal binet and its Möbius lift (a polar conjugate binet). This correspondence translates the orthogonality condition into the polar condition, thereby inheriting consistency.

The paper further clarifies the relationship with existing models. Circular nets appear as the special case where the orthogonality condition is imposed only on the vertex‑net component; conical nets arise when the condition is imposed only on the face‑net component (Theorem 5.1). Both are thus MDC reductions of the same underlying conjugate structure. Principal contact‑element nets, which are known to correspond to isotropic line complexes in the Lie quadric, are shown to be a particular instance of a more general “polar line complex” framework; this provides an alternative proof of MDC for principal binets in three dimensions via line‑complex theory (Section 5.3).

A significant part of the discussion connects principal binets to discrete orthogonal coordinate systems, especially those used in the construction of discrete confocal quadrics. While discrete confocal quadrics are built on vertices and elementary cubes of ℤ³, principal binets live on vertices and faces. Theorem 6.4 establishes a direct bijection between the two combinatorial setups, allowing a principal binet to be interpreted either as a sequence of Ribaucour transformations of a principal parametrization or as an extension of an orthogonal coordinate system. Theorem 7.1 further shows that the orthogonality constraints imposed on principal binets coincide with the focal‑point orthogonality conditions of smooth orthogonal coordinate systems, thereby bridging the discrete and smooth theories.

In summary, the authors have provided a comprehensive framework that (1) defines principal binets as a natural, higher‑dimensional generalization of curvature‑line discretizations; (2) proves their multi‑dimensional consistency by leveraging lifts, block constructions, and polar geometry; (3) situates them within the hierarchy of known discrete nets (circular, conical, contact‑element); and (4) links them to discrete orthogonal coordinate systems and classical transformation theory. The work not only unifies several strands of discrete differential geometry but also opens avenues for applications in numerical geometry, integrable systems, and geometric modeling, where higher‑dimensional consistent discretizations are essential.
