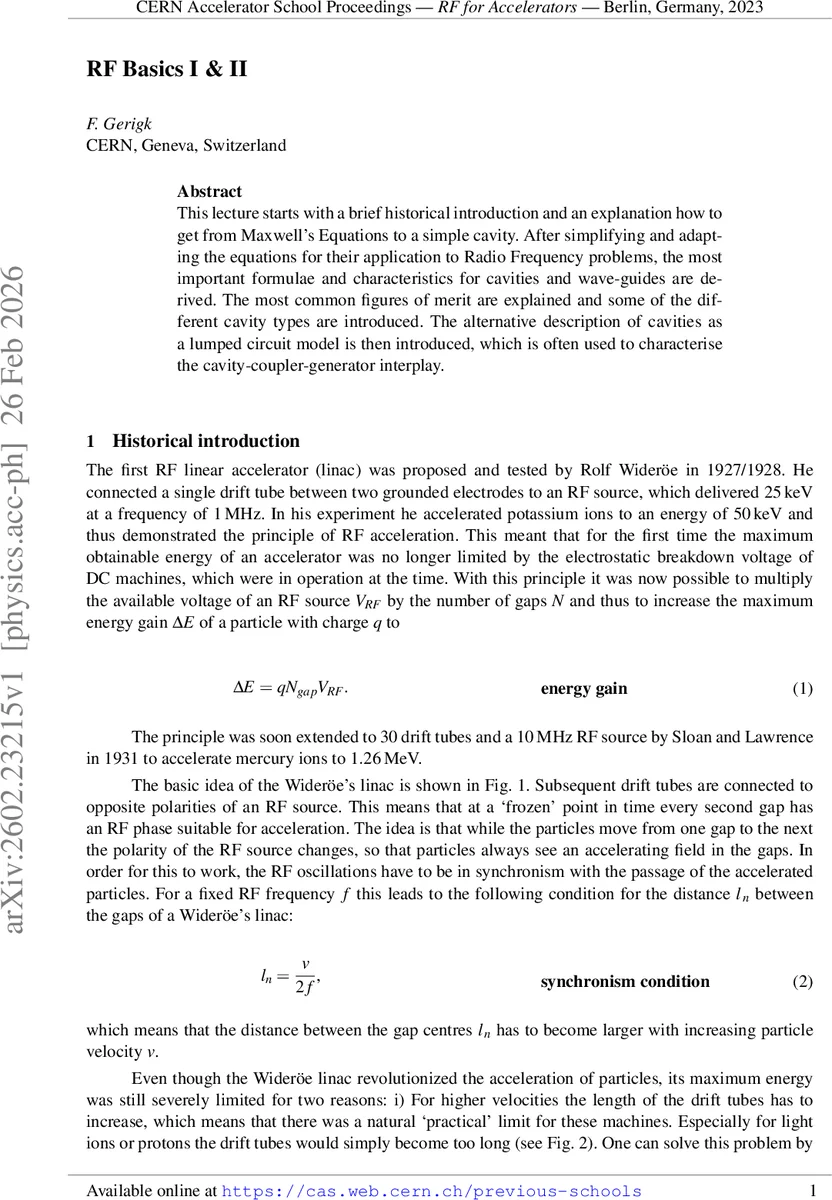

RF Basics I & II

This lecture starts with a brief historical introduction and an explanation how to get from Maxwell’s Equations to a simple cavity. After simplifying and adapting the equations for their application to Radio Frequency problems, the most important formulae and characteristics for cavities and wave-guides are derived. The most common figures of merit are explained and some of the different cavity types are introduced. The alternative description of cavities as a lumped circuit model is then introduced, which is often used to characterise the cavity-coupler-generator interplay.

💡 Research Summary

The paper “RF Basics I & II” is a comprehensive lecture that traces the development of radio‑frequency (RF) acceleration from its historical roots to the modern theoretical framework used in accelerator design. It begins with a concise history, describing Rolf Wideröe’s pioneering 1927‑28 linac, which demonstrated that an RF voltage could be multiplied by the number of accelerating gaps to increase particle energy. The authors explain the synchronism condition (l_n = v/(2f)) that ties the gap spacing to particle velocity and RF frequency, and they highlight two fundamental limitations of the early drift‑tube design: (1) the drift tubes become impractically long for higher particle velocities, and (2) at frequencies above about 10 MHz the tubes act as antennas, radiating RF power and dramatically reducing efficiency.

Louis Alvarez’s 1946 solution—enclosing the drift‑tube structure within a conducting cylinder—solved the radiation problem and introduced the concept of a resonant cavity whose mode frequency is set by the cylinder diameter, drift‑tube spacing, and tube diameter. The “zero‑mode” (no phase shift between gaps) ensures that the electric field points in the same direction in every gap, while the particle sees a 2π phase advance per gap, satisfying both synchronism and resonant conditions. The paper notes that early high‑power RF amplifiers, originally developed for WWII radar at ~200 MHz, made such cavities practical; modern implementations such as CERN’s Linac4 operate at 352 MHz.

The second part of the lecture translates Maxwell’s equations into the language of RF engineering. Starting from the differential forms of Faraday’s law, Ampère‑Maxwell law, Gauss’s law for electricity, and Gauss’s law for magnetism, the authors introduce the material relations (D = \varepsilon_0\varepsilon_r E), (B = \mu_0\mu_r H), and Ohm’s law (J = \kappa E). By applying Gauss’s theorem and Stokes’s theorem, they derive the familiar integral forms and then the boundary conditions at material interfaces: tangential electric and magnetic fields are continuous across a perfect conductor (both become zero), while normal components of (D) and (B) may experience jumps proportional to surface charge or surface current. These conditions are essential for solving mode patterns in waveguides and cavities.

A special emphasis is placed on the displacement current (\partial D/\partial t). The authors derive the continuity equation (\nabla\cdot J = -\partial\rho/\partial t) and show, via a capacitor example, that the displacement current represents a “current without charge transport” that bridges the gap between the physical conduction current entering a capacitor plate and the changing electric field in the dielectric. This concept underpins the propagation of electromagnetic waves in charge‑free regions.

The wave equation is then derived for homogeneous, isotropic, non‑conducting media, yielding (\nabla^2 E = \mu\varepsilon \partial^2 E/\partial t^2) and the analogous equation for (H). By assuming time‑harmonic fields (e^{j\omega t}), the equations simplify to the Helmholtz form, allowing the definition of the propagation constant (k = \omega\sqrt{\mu\varepsilon}). The authors discuss the skin effect in conductive walls, introducing the surface resistance (R_s = \sqrt{\pi f \mu/\sigma}) and explaining how it leads to RF losses.

Key figures of merit for RF cavities are presented: the quality factor (Q = \omega \times (\text{stored energy})/(\text{power loss})), shunt impedance (R_{sh}), accelerating voltage gain (V_{acc}), and the ratio (V_{acc}^2/P_{loss}). High‑(Q) cavities minimize power dissipation, while high shunt impedance maximizes the accelerating voltage for a given input power.

Finally, the lecture introduces the lumped‑element equivalent circuit model of a cavity (an LC resonator). The resonant frequency is given by (\omega_0 = 1/\sqrt{LC}), and coupling to external RF sources is described by external quality factors and coupling coefficients. This model is valuable for tuning, matching, and feedback control in real accelerator operation, allowing engineers to predict how changes in coupler geometry or cavity dimensions affect the overall system impedance and power transfer efficiency.

Overall, the paper provides a self‑contained bridge from fundamental electromagnetic theory to practical accelerator RF design, covering historical motivation, mathematical foundations, boundary‑condition physics, wave propagation, loss mechanisms, and circuit modeling. It serves as an essential reference for graduate students and practicing accelerator physicists who need a clear, concise, yet thorough understanding of RF basics as applied to modern particle accelerators.
