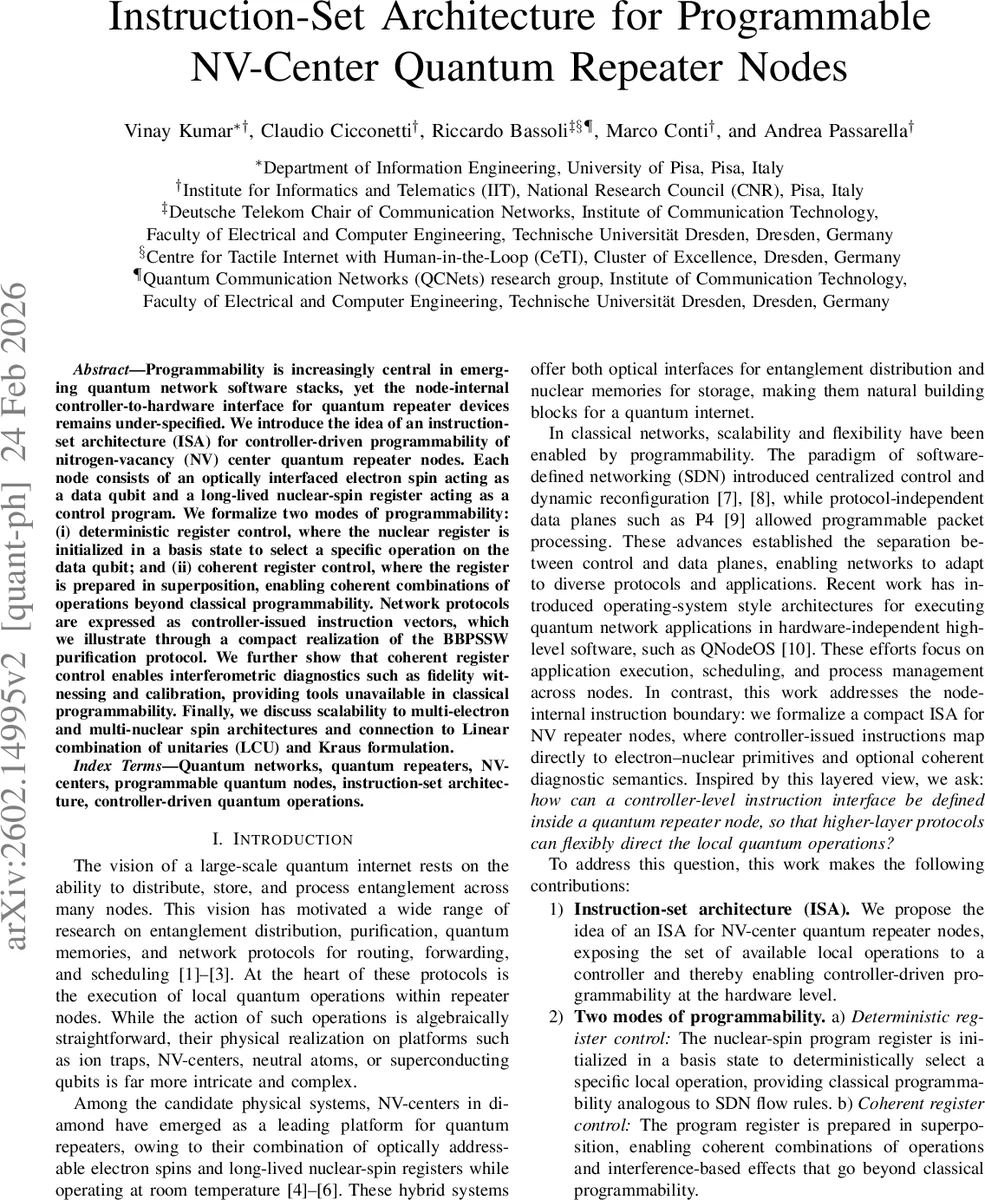

Instruction-Set Architecture for Programmable NV-Center Quantum Repeater Nodes

Programmability is increasingly central in emerging quantum network software stacks, yet the node-internal controller-to-hardware interface for quantum repeater devices remains under-specified. We introduce the idea of an instruction-set architecture (ISA) for controller-driven programmability of nitrogen-vacancy (NV) center quantum repeater nodes. Each node consists of an optically interfaced electron spin acting as a data qubit and a long-lived nuclear-spin register acting as a control program. We formalize two modes of programmability: (i) deterministic register control, where the nuclear register is initialized in a basis state to select a specific operation on the data qubit; and (ii) coherent register control, where the register is prepared in superposition, enabling coherent combinations of operations beyond classical programmability. Network protocols are expressed as controller-issued instruction vectors, which we illustrate through a compact realization of the BBPSSW purification protocol. We further show that coherent register control enables interferometric diagnostics such as fidelity witnessing and calibration, providing tools unavailable in classical programmability. Finally, we discuss scalability to multi-electron and multi-nuclear spin architectures and connection to Linear combination of unitaries (LCU) and Kraus formulation.

💡 Research Summary

The paper addresses a critical gap in the quantum‑network stack: the definition of a concrete, hardware‑level interface between a classical controller and the physical operations inside a quantum repeater node. Focusing on nitrogen‑vacancy (NV) centers in diamond, the authors propose an instruction‑set architecture (ISA) that treats the optically addressable electron spin as the data qubit and a set of nearby nuclear spins as a programmable control register. The ISA is deliberately minimal yet expressive: each instruction consists of an OPCODE (the elementary electron‑spin gate, e.g., X, Z, H, R_y(θ), CNOT, MEASURE), a PARAMS field for continuous parameters and target identifiers, a PATTERN field that enumerates which nuclear‑register basis states activate the instruction, and a MODE flag that selects between two distinct programmability regimes.

In the deterministic mode, the nuclear register is initialized in a single computational basis state. This state acts as a classical “program word” that selects exactly one electron‑spin operation. The approach mirrors current experimental practice, where nuclear spins are used as long‑lived memory bits and the electron spin is driven by a fixed microwave pulse sequence. Deterministic control enables high repetition rates and avoids post‑selection overhead, making it suitable for the bulk of network‑level tasks such as entanglement swapping, purification, and routing.

The second regime, coherent register control, is the paper’s most novel contribution. Here the nuclear register is prepared in a quantum superposition, for example (|\psi_N\rangle = \sum_k c_k |k\rangle). The instruction then implements a controlled unitary of the form (U_{\text{repeater}} = \sum_k |k\rangle\langle k| \otimes U_k), where each (U_k) is the electron‑spin gate associated with pattern (k). After the controlled operation, a measurement of the nuclear register in a rotated basis (e.g., the X basis) projects the electron spin onto a linear combination (\sum_k d_k^* c_k U_k |\psi_E\rangle). This yields interference terms proportional to (\langle\psi_E|U_i^\dagger U_j|\psi_E\rangle), which directly encode the overlap between distinct unitaries. Consequently, coherent control provides a built‑in mechanism for fidelity witnessing, phase calibration, and more generally for implementing linear combinations of unitaries (LCU), a primitive essential for many quantum algorithms and error‑mitigation techniques.

To demonstrate the practical utility of the ISA, the authors encode the BBPSSW entanglement‑purification protocol as a sequence of instruction vectors broadcast by a central classical controller. In deterministic mode the protocol follows the standard pattern of CNOT gates, measurements, and conditional feed‑forward. In coherent mode, the same logical steps are augmented with superposed nuclear‑register states, allowing the two purification branches to interfere. By scanning the relative phase of the nuclear superposition, the experimenter can extract the real part of (\langle\psi_E|U_0^\dagger U_1|\psi_E\rangle), thereby obtaining an on‑the‑fly estimate of gate fidelity without additional calibration hardware.

The paper also discusses scalability. Adding more nuclear spins expands the address space exponentially, enabling richer conditional logic and multi‑qubit data processing within a single node. Multiple electron spins can be incorporated to support parallel data channels. In this multi‑qubit setting, the overall operation can be expressed as an LCU over a larger set of unitaries, and the same ISA naturally accommodates non‑unitary (Kraus) maps, allowing noise‑aware programming and error‑characterization within the same instruction framework.

From an architectural perspective, the ISA mirrors the separation of control and data planes that propelled classical networking (e.g., SDN, P4). The classical controller issues a time‑slotted instruction vector (I(t) = { \text{INSTR}^{(1)}(t), \dots, \text{INSTR}^{(M)}(t) }) to all (M) nodes. Each node’s local decoder translates the high‑level instruction into microwave and radio‑frequency pulse sequences that initialize the nuclear register, apply the conditional electron‑spin gate, and optionally read out the register. The time‑slotted model guarantees that all operations complete within the coherence window of the most fragile qubit, preserving end‑to‑end fidelity.

In conclusion, the authors provide a concrete, hardware‑aware ISA for NV‑center quantum repeaters that supports both classical programmability and genuinely quantum‑coherent control. The deterministic mode offers a straightforward path to near‑term deployment, while the coherent mode unlocks diagnostic capabilities and algorithmic primitives (LCU, Kraus representations) previously unavailable at the node level. By formalizing this interface, the work bridges the gap between high‑level quantum‑network protocols and the low‑level physical operations required for their execution, paving the way for more flexible, scalable, and self‑calibrating quantum networks.
