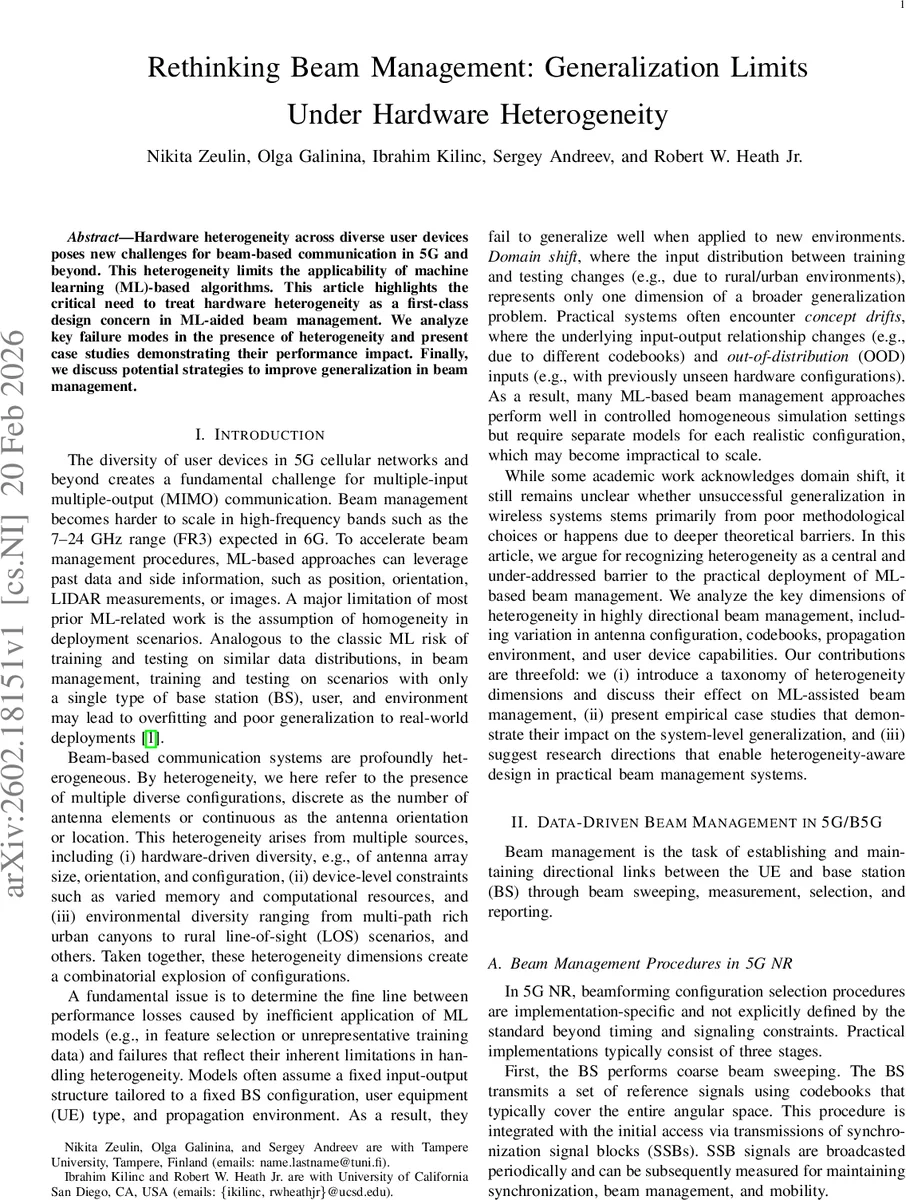

Rethinking Beam Management: Generalization Limits Under Hardware Heterogeneity

Hardware heterogeneity across diverse user devices poses new challenges for beam-based communication in 5G and beyond. This heterogeneity limits the applicability of machine learning (ML)-based algorithms. This article highlights the critical need to treat hardware heterogeneity as a first-class design concern in ML-aided beam management. We analyze key failure modes in the presence of heterogeneity and present case studies demonstrating their performance impact. Finally, we discuss potential strategies to improve generalization in beam management.

💡 Research Summary

The paper tackles a fundamental obstacle to the practical deployment of machine‑learning‑based beam management in 5G and future 6G networks: hardware heterogeneity across user equipment. After outlining the standard 5G NR beam‑management workflow—coarse SSB sweeping, CSI‑RS refinement, and optional UE‑side SRS refinement—the authors point out that the sheer size of modern codebooks makes exhaustive searching costly, motivating data‑driven approaches that predict the optimal beam from measurements (RSRP, CSI) and side information (position, IMU, LiDAR, images).

The core contribution is a taxonomy of heterogeneity dimensions: (i) antenna geometry (array type, number of elements, panel orientation), (ii) codebook design (size, oversampling factor, beamwidth), (iii) environmental diversity (urban canyon, rural LOS, indoor rich‑scattering), and (iv) device‑level constraints (memory, compute, battery). Each dimension introduces a domain shift or concept drift that breaks the implicit coupling between the learned input‑output mapping and the underlying hardware. For example, changing from a UPA to a ULA alters the mapping from beam indices to physical directions; swapping a sparse codebook for a denser one reshapes the angular discretization; moving to a new propagation environment invalidates location‑dependent patterns learned during training.

Through a series of case studies, the authors demonstrate dramatic performance drops when any of these factors change. A model trained on a fixed antenna array suffers a >30 % Top‑1 accuracy loss when evaluated on a different array; codebook changes cause an average 5 dB RSRP gap; and cross‑environment deployment reduces spectral efficiency by up to 30 %. Fine‑tuning on a small amount of new data only partially recovers performance and is often infeasible for low‑power devices.

To overcome these limits, the paper proposes several heterogeneity‑aware strategies. First, replace hardware‑dependent features (raw RSRP per beam) with physics‑aligned representations such as beamspace, power‑angular spectrum, or angular‑delay profiles, which are invariant to antenna size and codebook granularity. Second, embed domain knowledge via physics‑informed neural networks that explicitly learn path loss, angles of arrival, and delays from ray‑tracing data; although computationally heavy, they provide strong generalization. Third, adopt meta‑learning or multi‑task learning across a diverse set of hardware‑environment configurations, enabling rapid adaptation with a few gradient steps. Fourth, introduce a hardware‑parameter encoder that normalizes antenna geometry and codebook descriptors before feeding them to the main predictor. Fifth, employ lightweight adaptation layers and knowledge‑distillation techniques to keep on‑device fine‑tuning affordable. Finally, integrate continuous KPI monitoring (throughput, BLER, RSRP gap) and a fallback to conventional beam sweeping when out‑of‑distribution inputs are detected.

The authors argue that hardware heterogeneity must be treated as a first‑class design concern, not an afterthought. Standardization bodies should expose antenna and codebook metadata, and the research community should develop benchmark suites covering a wide range of hardware and environmental scenarios. By aligning learned representations with the physical structure of wireless channels and leveraging meta‑learning for rapid adaptation, ML‑aided beam management can achieve robust, scalable performance in the heterogeneous reality of future cellular networks.
