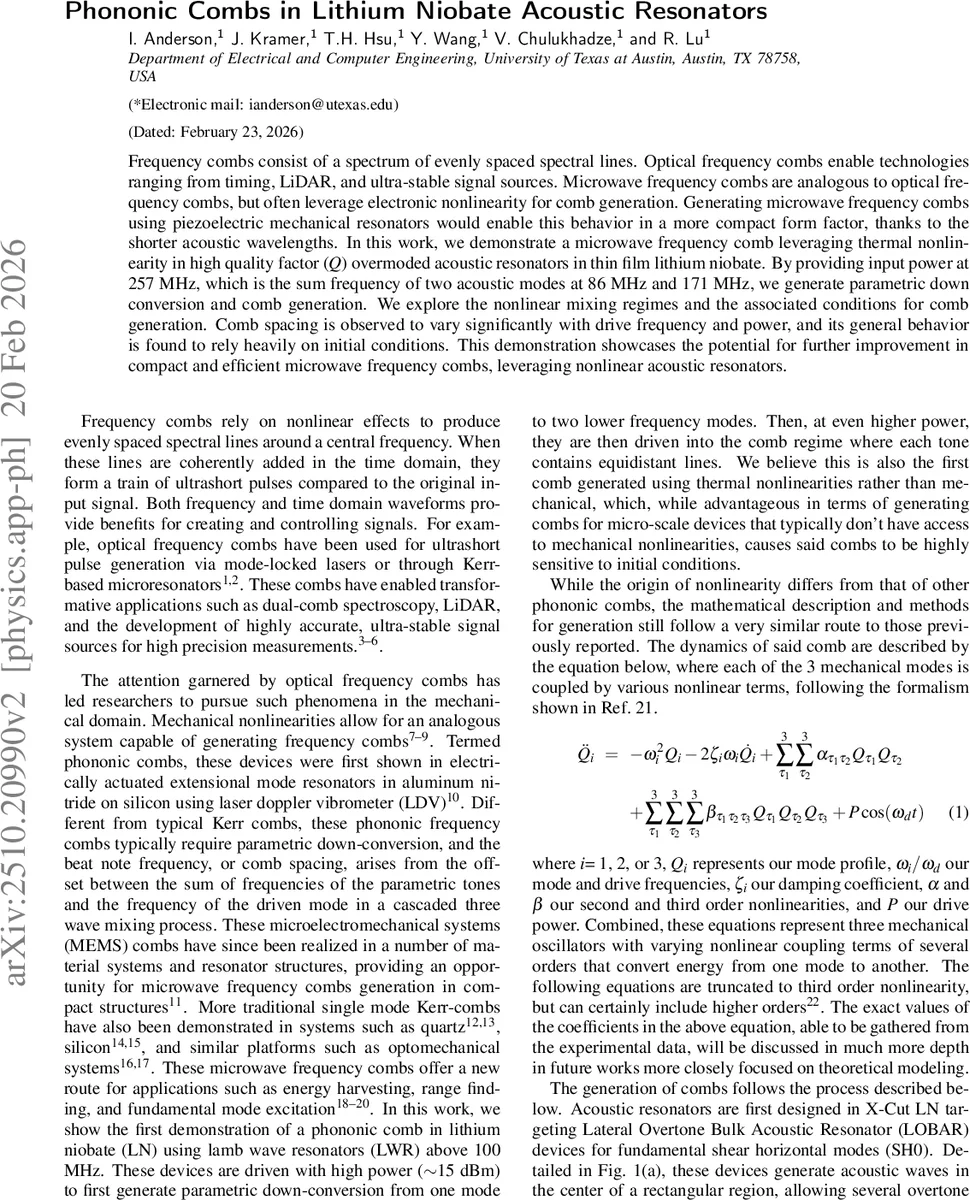

Phononic Combs in Lithium Niobate Acoustic Resonators

Frequency combs consist of a spectrum of evenly spaced spectral lines. Optical frequency combs enable technologies ranging from timing, LiDAR, and ultra-stable signal sources. Microwave frequency combs are analogous to optical frequency combs, but often leverage electronic nonlinearity for comb generation. Generating microwave frequency combs using piezoelectric mechanical resonators would enable this behavior in a more compact form factor, thanks to the shorter acoustic wavelengths. In this work, we demonstrate a microwave frequency comb leveraging thermal nonlinearity in high quality factor ($Q$) overmoded acoustic resonators in thin film lithium niobate. By providing input power at 257 MHz, which is the sum frequency of two acoustic modes at 86 MHz and 171 MHz, we generate parametric down conversion and comb generation. We explore the nonlinear mixing regimes and the associated conditions for comb generation. Comb spacing is observed to vary significantly with drive frequency and power, and its general behavior is found to rely heavily on initial conditions. This demonstration showcases the potential for further improvement in compact and efficient microwave frequency combs, leveraging nonlinear acoustic resonators.

💡 Research Summary

The paper presents the first demonstration of a microwave‑frequency phononic comb generated in thin‑film lithium niobate (LN) acoustic resonators by exploiting thermal (Joule‑heating) nonlinearity rather than the more common mechanical or electronic Kerr‑type effects. The authors fabricate lateral overtone bulk acoustic resonators (LOBARs) on X‑cut LN, supporting high‑Q shear‑horizontal Lamb modes at 86 MHz (9th overtone), 172 MHz (17th overtone) and 259 MHz (25th overtone). Because these modes satisfy the sum‑frequency condition f₁ + f₂ ≈ f₃, a single drive tone at ≈257 MHz can parametrically down‑convert energy into the two lower‑frequency modes.

When the drive power is modest (≈12 dBm), the device operates in a linear regime, showing only the drive tone. Increasing the power activates the thermal nonlinearity: the resonator temperature rises, producing a Duffing‑type amplitude‑dependent frequency shift and a second‑order coupling term that generates the two daughter tones (parametric down‑conversion). At still higher powers (≈16 dBm), third‑order nonlinearities become dominant, leading to strong mode coupling, multiple bifurcations, and the emergence of equidistant sidebands around each of the three primary tones. The sideband spacing Δf is given by |f₁ + f₂ − f_d|; experimentally Δf≈70 kHz for a drive frequency of 257.32 MHz.

A key observation is that the comb spacing is highly sensitive to the exact drive frequency, power, and initial thermal state. Small changes (≈100 kHz) in the drive frequency cause the comb to transition through several distinct spectral regimes: pure parametric conversion, regular comb formation, chaotic “sech‑comb” where lines merge, and even the simultaneous appearance of a second comb associated with the other set of parametric tones. This behavior reflects complex multi‑mode interactions that go beyond a simple Duffing model, suggesting the need for a comprehensive multi‑mode nonlinear theory.

Thermal modeling using COMSOL shows that the device’s thermal conductance is 2.37 × 10⁻⁴ W/K in air and drops to 1.46 × 10⁻⁵ W/K in vacuum. Consequently, the same drive power produces a larger temperature rise (≈30 °C at 12 dBm in air) and a lower threshold for comb generation in vacuum, where the nonlinearity is amplified. Experimental attempts to directly measure temperature were hampered by the transparency of LN, but indirect evidence from resistance changes and the enhanced nonlinearity in vacuum supports the model.

The authors characterize the devices using a single‑port reflection measurement: a signal generator and amplifier feed the resonator through an isolator, and the reflected signal is analyzed with a spectrum analyzer. By sweeping drive frequency and power, they construct heat‑maps of the spectral output, revealing the evolution of comb spacing and the onset of bifurcations. Repeated measurements with computer‑controlled instrumentation show good repeatability for a given device, yet the system remains highly susceptible to environmental perturbations, underscoring the importance of stable thermal and electrical conditions for reliable operation.

Overall, the work demonstrates that high‑Q LN Lamb‑wave resonators can serve as compact, low‑volume platforms for microwave phononic combs, leveraging thermal nonlinearity to achieve comb generation at modest power levels. The findings open pathways toward integrated microwave photonic‑like sources for applications such as frequency synthesis, radar/LiDAR, energy harvesting, and quantum‑compatible signal processing. However, practical deployment will require robust control of the thermal state, precise engineering of mode spectra to ensure deterministic sum‑frequency matching, and development of predictive multi‑mode nonlinear models to tame the observed sensitivity to initial conditions.
