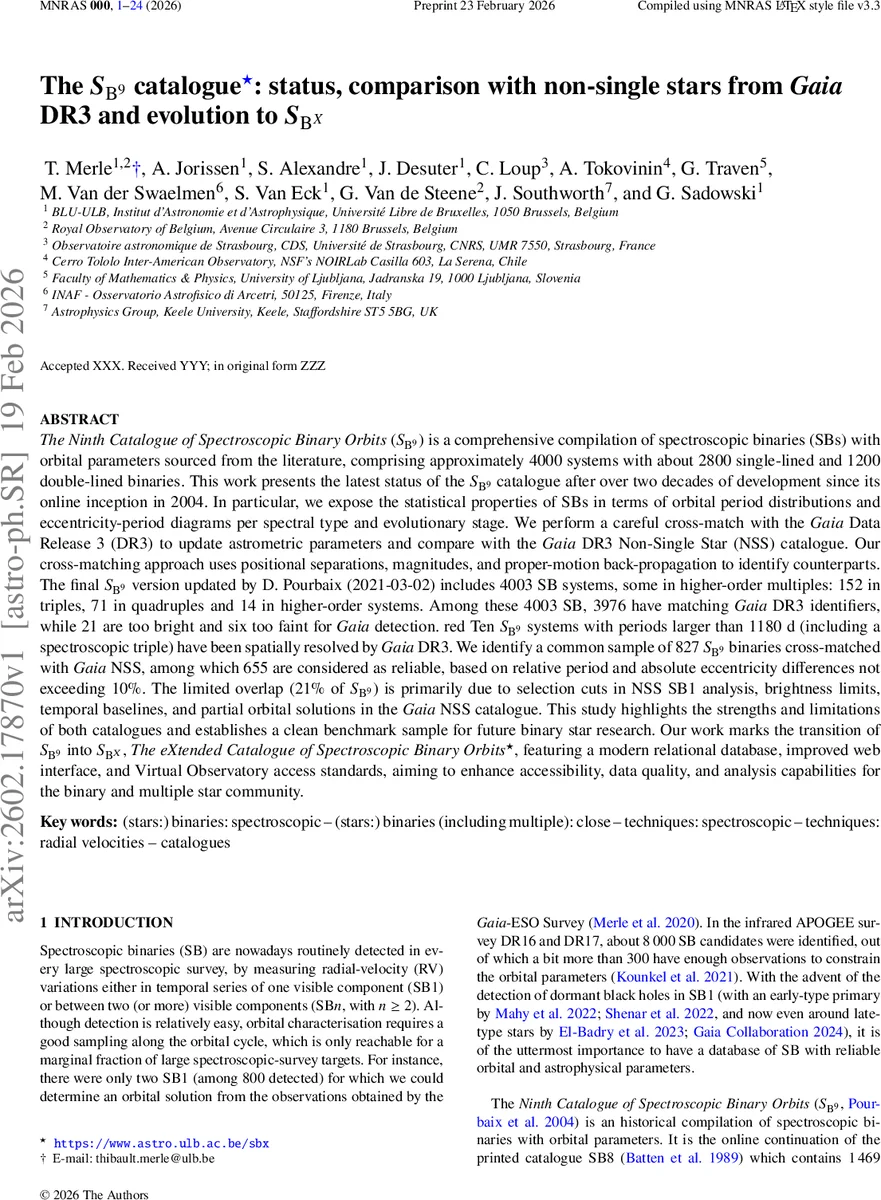

The SB9 catalogue: status, comparison with non-single stars from Gaia DR3 and evolution to SBX

The Ninth Catalogue of Spectroscopic Binary Orbits (SB9) is a comprehensive compilation of spectroscopic binaries (SBs) with orbital parameters sourced from literature, comprising approximately 4000 systems (2800 single-lined and 1200 double-lined). This work presents the latest status of SB9 after two decades of development, detailing the statistical properties of SBs through orbital period distributions and eccentricity-period diagrams categorized by spectral type and evolutionary stage. We performed a rigorous cross-match with Gaia Data Release 3 (DR3) to update astrometric parameters and compare SB9 with the Gaia DR3 Non-Single Star (NSS) catalogue. Our methodology utilized positional separations, magnitudes, and proper-motion back-propagation for identification. The final SB9 version updated by D. Pourbaix includes 4003 systems, including higher-order multiples: 152 triples, 71 quadruples, and 14 higher-order systems. Of these, 3976 have Gaia DR3 identifiers; 21 are too bright and six too faint for detection. Ten SB9 systems with periods exceeding 1180 days were spatially resolved by Gaia DR3. We identified a common sample of 827 binaries cross-matched with Gaia NSS, with 655 considered highly reliable based on period and eccentricity differences under 10%. The limited overlap (20-30% of SB9) results from NSS selection cuts, brightness limits, and temporal baselines. This study highlights the complementary strengths of both catalogues and establishes a benchmark sample for binary star research. Finally, this work marks the transition of SB9 into SBX (The eXtended Catalogue of Spectroscopic Binary Orbits), featuring a modern relational database, improved web interface, and Virtual Observatory access standards to enhance data quality and accessibility for the stellar community.

💡 Research Summary

The paper presents a comprehensive update of the Ninth Catalogue of Spectroscopic Binary Orbits (SB9) and a detailed comparison with the Gaia Data Release 3 (DR3) Non‑Single Star (NSS) catalogue, culminating in the planned migration to an extended, relational database called SBX. The current SB9 version, last revised by D. Pourbaix on 2021‑03‑02, contains 5 042 orbital solutions for 4 021 binary systems, of which 2 788 are single‑lined (SB1) and 1 233 are double‑lined (SB2). In addition, the catalogue now records higher‑order multiples: 152 triples, 71 quadruples, and 14 systems of even higher multiplicity, bringing the total to 4 003 distinct spectroscopic binary (SB) systems.

A key feature of the update is the inclusion of radial‑velocity (RV) time‑series for 3 111 systems (≈77 % of the catalogue). However, many older entries lack easily accessible RV data, and the historic subjective grading scheme (0–5) has been abandoned without replacement. Spectral type and luminosity class information remain incomplete: 16 % of primaries lack a spectral type, and 85 % of secondaries are untyped, reflecting the dominance of SB1 systems where only one component is observed.

Statistical analysis of the orbital periods reveals a log‑normal distribution with three prominent peaks at ≈0.6 d, ≈7 d, and ≈1 800 d. The shortest‑period peak aligns with the physical contact‑binary limit derived from Roche‑lobe filling calculations across spectral types, confirming that the catalogue captures the expected minimum periods for main‑sequence stars. The second peak around 7 d is interpreted as a blend of observational bias (early‑type binaries are easier to detect at these periods) and a genuine astrophysical accumulation possibly driven by Kozai‑Lidov cycles coupled with tidal friction in hierarchical triples—a scenario supported by recent Gaia detections of astrometric accelerations and by the prevalence of compact triples in the 5–10 d range. The long‑period peak near 1 800 d (≈5 yr) reflects the increasing detectability of wide spectroscopic binaries within the typical Gaia DR3 time baseline (≈34 months) and matches the period range of many NSS SB solutions.

Cross‑matching SB9 with Gaia DR3 was performed using positional offsets, G‑band magnitudes, and proper‑motion back‑propagation to account for epoch differences. Of the 4 003 SB9 systems, 3 976 have Gaia DR3 source identifiers; 21 are too bright and six too faint for Gaia detection. The cross‑match yields a common sample of 827 binaries, of which 655 (≈79 %) satisfy stringent reliability criteria: the absolute differences in orbital period and eccentricity are each below 10 % when compared to the NSS solutions. The modest overlap (≈21 % of SB9) is primarily due to the NSS selection cuts (e.g., signal‑to‑noise thresholds, minimum number of RV epochs), Gaia’s bright‑ and faint‑limit constraints, and the relatively short temporal baseline of DR3, which hampers detection of long‑period spectroscopic binaries. Ten SB9 systems with periods >1180 d are spatially resolved in Gaia DR3, illustrating Gaia’s capability to complement spectroscopic data with astrometric orbital information.

The authors argue that SB9 and Gaia NSS are highly complementary: SB9 offers a curated, literature‑based repository of well‑studied orbital solutions and extensive notes, while Gaia NSS provides homogeneous, all‑sky astrometric and spectroscopic measurements for a vastly larger sample (≈277 000 SBs). By establishing a benchmark set of 655 high‑confidence cross‑matched binaries, the paper provides a valuable testbed for validating orbital parameters, investigating systematic differences, and calibrating future surveys.

Looking forward, the paper announces the transition of SB9 into SBX (the eXtended Catalogue of Spectroscopic Binary Orbits). SBX will be hosted on a modern relational database management system, support Virtual Observatory standards (IVOA TAP, SIA, etc.), and feature an improved web interface with advanced query capabilities. Planned enhancements include a new, objective orbit‑quality grading scheme, automated cross‑matching pipelines with Gaia and other large spectroscopic surveys (APOGEE, LAMOST, 4MOST), and integration of forthcoming Gaia DR4 epoch spectra. These upgrades aim to increase data accessibility, ensure reproducibility, and foster international collaboration.

In summary, the paper delivers a thorough status report of SB9, demonstrates a rigorous methodology for linking it to Gaia DR3 NSS, highlights the astrophysical insights gleaned from period–eccentricity distributions, and sets the stage for a next‑generation, community‑driven SBX platform that will serve as a cornerstone for binary‑star research in the era of large‑scale astrometric and spectroscopic surveys.
