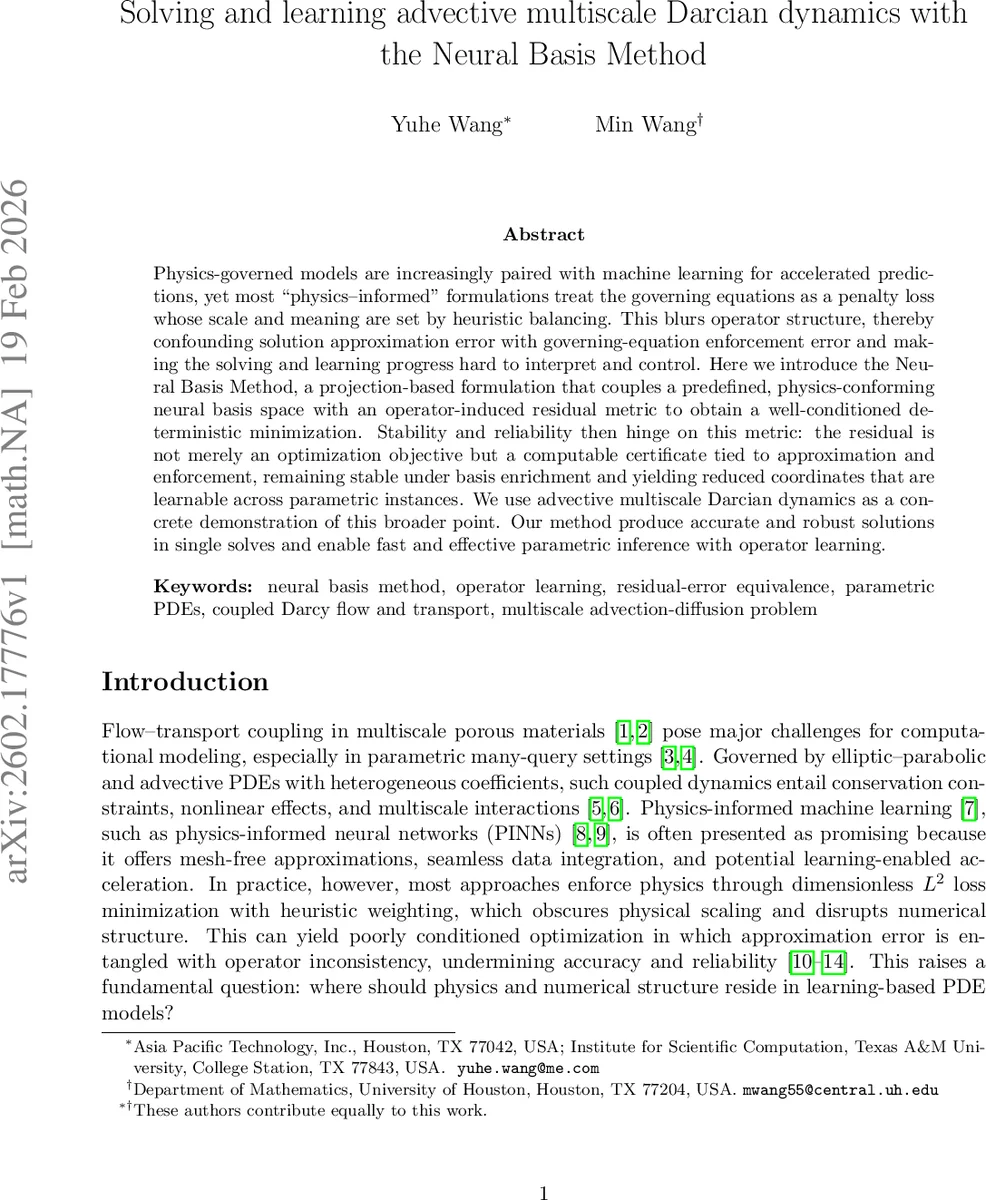

Solving and learning advective multiscale Darcian dynamics with the Neural Basis Method

Physics-governed models are increasingly paired with machine learning for accelerated predictions, yet most “physics–informed” formulations treat the governing equations as a penalty loss whose scale and meaning are set by heuristic balancing. This blurs operator structure, thereby confounding solution approximation error with governing-equation enforcement error and making the solving and learning progress hard to interpret and control. Here we introduce the Neural Basis Method, a projection-based formulation that couples a predefined, physics-conforming neural basis space with an operator-induced residual metric to obtain a well-conditioned deterministic minimization. Stability and reliability then hinge on this metric: the residual is not merely an optimization objective but a computable certificate tied to approximation and enforcement, remaining stable under basis enrichment and yielding reduced coordinates that are learnable across parametric instances. We use advective multiscale Darcian dynamics as a concrete demonstration of this broader point. Our method produce accurate and robust solutions in single solves and enable fast and effective parametric inference with operator learning.

💡 Research Summary

The paper addresses a fundamental limitation of most physics‑informed neural network (PINN) approaches, namely the use of a heuristic penalty loss to enforce governing equations. By mixing the PDE residual with a tunable weight, traditional PINNs obscure the underlying operator structure, making it difficult to separate approximation error from enforcement error and often leading to ill‑conditioned optimization. To overcome this, the authors propose the Neural Basis Method (NBM), a projection‑based framework that separates the representation of the solution from the enforcement of the physics.

In NBM, a set of neural basis functions is generated once and then frozen; these bases are constructed to respect the physics of the problem. For scalar fields such as pressure and concentration, a multilayer ResNet‑style network produces global scalar bases. For vector fields like the Darcy flux, the authors employ a Helmholtz‑type decomposition, representing the flux as a sum of a divergence‑free component (streamfunction in 2‑D or vector potential in 3‑D) and a curl‑free component (gradient of a scalar potential). This design guarantees that the divergence‑free part automatically satisfies the incompressibility constraint, while the curl‑free part carries the compressibility and source effects.

The governing PDE operators and boundary conditions are discretized on collocation points, yielding a linear system Aθ = b where θ contains the coefficients of the frozen bases. Crucially, the residual is measured not in a plain L₂ norm but in a physically‑scaled energy norm. The authors construct a weighting matrix W that incorporates Darcy‑specific scales (density ρ, viscosity μ, permeability κ) and a characteristic length h associated with collocation spacing. The minimization problem becomes
 θ* = arg minθ ‖W(Aθ − b)‖²,
which is a well‑conditioned least‑squares projection. Because the residual is orthogonal to the column space of A under the weighted inner product, reduction of the residual directly reflects improvement in the physical solution, providing a computable certificate of accuracy.

For the coupled Darcy‑flow/transport system, the authors formulate a mixed weighted least‑squares problem that simultaneously solves for pressure and flux coefficients. This mixed formulation preserves local mass conservation without post‑processing, a property that would be lost if pressure were solved alone and flux recovered later. Energy‑consistent weighting ensures that each term (constitutive law, continuity, boundary conditions) contributes on the same physical scale, preventing the dominance of any single residual component.

Transport is treated with a first‑order upwind control‑volume scheme. The velocity field obtained from the Darcy solve is frozen during each transport sub‑step, and the concentration update is performed by solving a linear least‑squares problem that enforces the upwind balance on each control volume. This hybrid approach retains the stability of classical finite‑volume upwinding while leveraging the low‑dimensional global representation of the neural bases, thereby suppressing spurious oscillations typical of global bases in advection‑dominated regimes.

To handle parametric many‑query scenarios, the authors extend NBM to Neural Basis Method‑Operator Learning (NBM‑OL). The same frozen basis space is used for all parameter instances; only the coefficient vectors θ(p), θ(q), and θ(c) vary with parameters such as heterogeneous permeability fields or boundary values. Because the loss remains the physically‑scaled residual, the training process can be monitored via the residual magnitude, enabling adaptive stopping criteria and reducing over‑fitting.

Numerical experiments focus on a 2‑D porous medium with multiscale permeability, solving the coupled pressure‑flux‑concentration system. Results show:

• Single‑query accuracy: Energy‑consistent mixed least‑squares yields L₂ errors on the order of 10⁻⁴ and energy errors around 10⁻⁵, outperforming standard PINNs.
• Parametric inference: Across a wide range of permeability realizations and boundary conditions, NBM‑OL achieves speed‑ups of 10³–10⁴ relative to full finite‑element solves while maintaining comparable accuracy.
• Robustness: Out‑of‑distribution tests (e.g., permeability patterns not seen during training) exhibit only modest error growth, demonstrating the method’s intrinsic stability.
• Conditioning: The multilevel neural basis generator and the mixed weighted formulation keep the condition number of the linear systems modest even as the basis is enriched to capture fine‑scale features, addressing a key weakness of earlier random‑feature or extreme‑learning‑machine approaches.

The authors also provide a theoretical guarantee: under standard continuity and stability assumptions, the projection error can be bounded by the best approximation error in the N‑dimensional neural space plus a high‑probability term proportional to N⁻¹ᐟ², analogous to Céa’s lemma in classical Galerkin theory.

In summary, NBM offers a principled alternative to loss‑driven PINNs by (1) fixing a physics‑conforming neural basis, (2) enforcing the PDE through a weighted least‑squares projection that respects the underlying operator scaling, (3) preserving local conservation via a mixed formulation, and (4) enabling reliable operator learning with a residual that serves as a built‑in error estimator. The method bridges the expressive power of deep neural networks with the rigor of classical numerical analysis, opening a pathway toward scalable, accurate, and trustworthy surrogate models for multiscale PDEs. Future work is suggested on DPG‑inspired optimal test norms, adaptive error control via the Riesz representation theorem, and extensions to three‑dimensional coupled flow‑transport problems.
