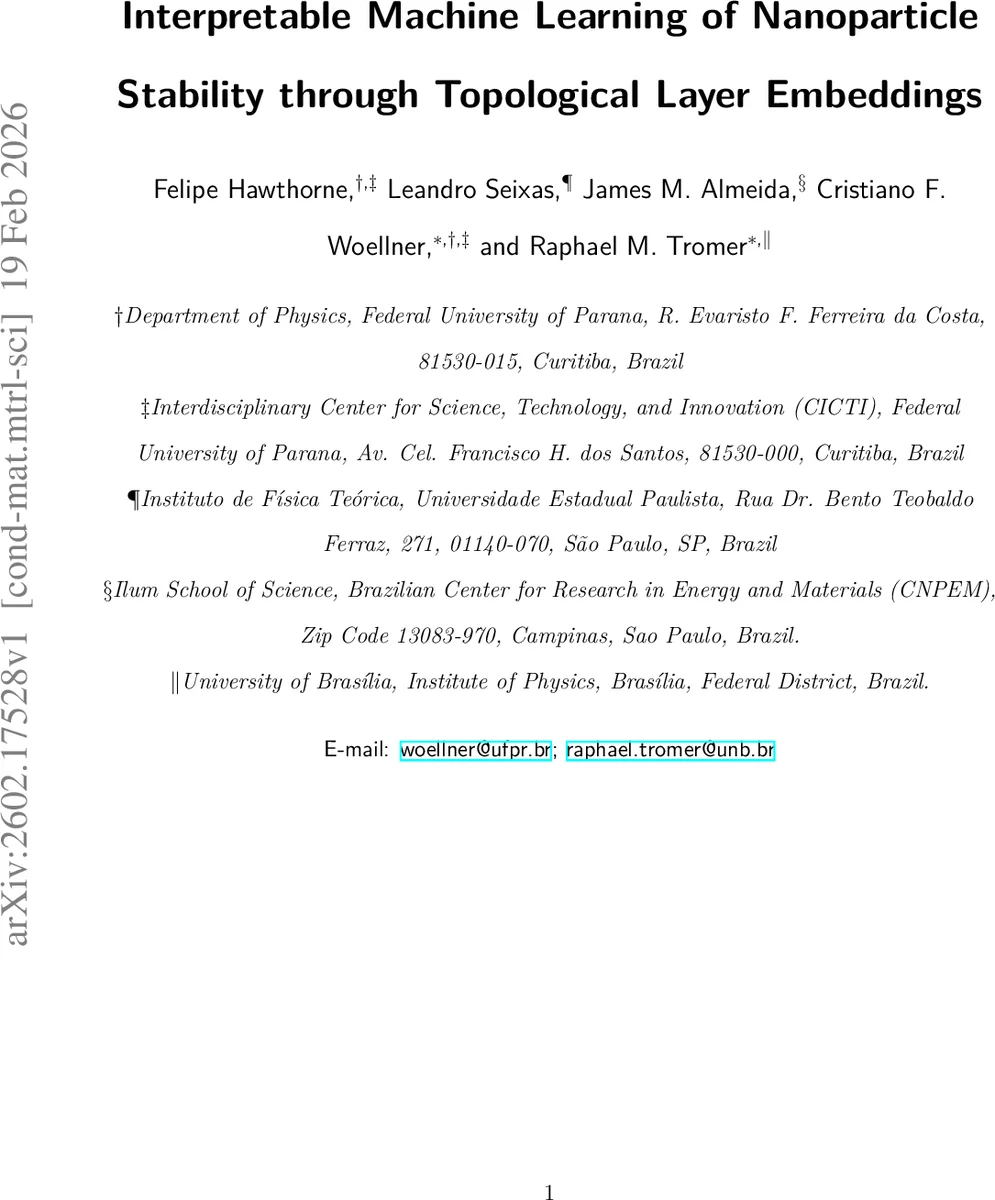

Interpretable Machine Learning of Nanoparticle Stability through Topological Layer Embeddings

The stability of chemically complex nanoparticles is governed by an immense configurational space arising from heterogeneous local atomic environments across surface and interior regions. Efficiently identifying low-energy configurations within this space remains a central challenge for first-principles-based materials discovery, particularly when the available reference data are limited. Here, we introduce a data-efficient and physically interpretable machine-learning framework based on a fragmented, layer-resolved descriptor that explicitly decomposes nanoparticles into surface, intermediate, and core environments using a topology-driven definition. This representation preserves a compact and fixed feature dimensionality while retaining spatial resolution, enabling controlled emphasis on different regions of the nanoparticle through physically motivated weighting schemes. Coupled with gradient-boosted decision tree models and a ranking-based learning strategy, the proposed framework enables accurate identification of the most stable nanoparticle configurations using only a few hundred density functional theory reference calculations. Ranking performance metrics demonstrate near-saturation of correlation, high top-k recall, and rapidly vanishing regret at moderate training-set sizes, highlighting the strong data efficiency of the approach. Beyond predictive performance, layer-weighting and SHAP-based interpretability analyses reveal how surface segregation, coordination topology, and local chemical disorder contribute differently to stability across spatial regions of the nanoparticle. These insights provide a transparent physical interpretation of the learned models and establish a natural pathway toward active learning-driven exploration of complex nanoparticle configurational spaces.

💡 Research Summary

This paper presents a data‑efficient, physically interpretable machine‑learning framework for predicting the stability of chemically complex metallic nanoparticles. The authors recognize that nanoparticles exhibit pronounced spatial heterogeneity—surface atoms differ markedly from subsurface and core atoms in coordination, composition, and bonding—making exhaustive first‑principles sampling infeasible, especially when only a few hundred DFT calculations are affordable.

To retain spatial resolution while keeping the descriptor dimensionality fixed, they introduce a “layer‑resolved topological embedding.” Starting from atomic coordinates, a connectivity graph is built using a distance criterion scaled by atomic radii. Atoms with coordination lower than the modal bulk coordination are marked as surface seeds. A breadth‑first search then assigns each atom a topological distance ℓᵢ (the minimum number of graph edges to any surface seed). By choosing a cutoff L, atoms are partitioned into surface (ℓᵢ < L), intermediate (ℓᵢ ≈ L), and core (ℓᵢ ≫ L) layers. This definition is geometry‑agnostic, robust to distortions, and independent of particle size or shape.

For each layer the authors compute a set of physically meaningful features: average coordination and its variance, bond‑length statistics (mean and standard deviation), elemental fractions, pairwise neighbor probabilities, Warren‑Cowley short‑range order parameters, chemical Shannon entropy, topological cycle fractions and entropy, and element‑pair bond‑length distributions. The concatenation of all layer‑specific vectors yields a compact descriptor D whose length does not grow with the number of atoms. An optional weighting vector w_L allows the user to emphasize particular layers, enabling systematic probing of how surface, subsurface, or core chemistry influences stability.

Rather than regressing absolute DFT energies, the authors formulate the learning task as a ranking problem: the goal is to correctly order candidate structures so that the lowest‑energy configurations appear at the top of a shortlist. They employ gradient‑boosted decision trees (XGBoost) trained with a pairwise ranking loss. Tree‑based models are well suited to limited data regimes, offering robustness against over‑fitting and inherent interpretability.

Performance is evaluated on a dataset of ~1500 nanoparticle configurations spanning several alloy systems. With only 10 % of the data (≈150 structures) for training, the model achieves a Pearson correlation of 0.97, a top‑5 recall above 0.90, and rapidly decreasing regret as the training size grows. Even with as few as 50 training points, the ranking metrics remain strong, demonstrating remarkable data efficiency compared with conventional global descriptors that require orders of magnitude more samples.

Interpretability is provided through SHAP (Shapley Additive exPlanations) analysis applied to each layer’s features. Surface layers show the highest SHAP contributions from chemical segregation parameters (negative Warren‑Cowley α_AB) and reduced coordination, indicating that surface composition disorder drives stability. Core layers are dominated by average bond lengths and topological entropy, reflecting bulk‑like elastic and network effects. By varying the layer weights w_L, the authors show how model performance shifts, offering a quantitative tool for hypothesis testing (e.g., “What if surface chemistry is more important?”).

An active‑learning demonstration further validates the approach. Starting from 200 DFT‑computed structures, the model selects new candidates based on SHAP‑derived uncertainty and layer weighting. After five iterations (≈100 additional DFT calculations), the algorithm identifies structures within 0.03 eV of the global minimum, cutting the total number of expensive DFT evaluations by roughly 70 % relative to a naïve global‑descriptor search.

In summary, the paper contributes three key advances: (1) a topology‑driven, layer‑resolved descriptor that preserves physical meaning while remaining low‑dimensional and size‑independent; (2) a ranking‑based learning strategy that excels in data‑limited settings; and (3) a transparent SHAP‑based interpretability pipeline that quantifies the distinct energetic roles of surface, intermediate, and core regions. The framework is poised to accelerate the discovery of stable, multicomponent nanoparticles and can be extended to other nanostructured materials, non‑spherical morphologies, and experimental data integration.
