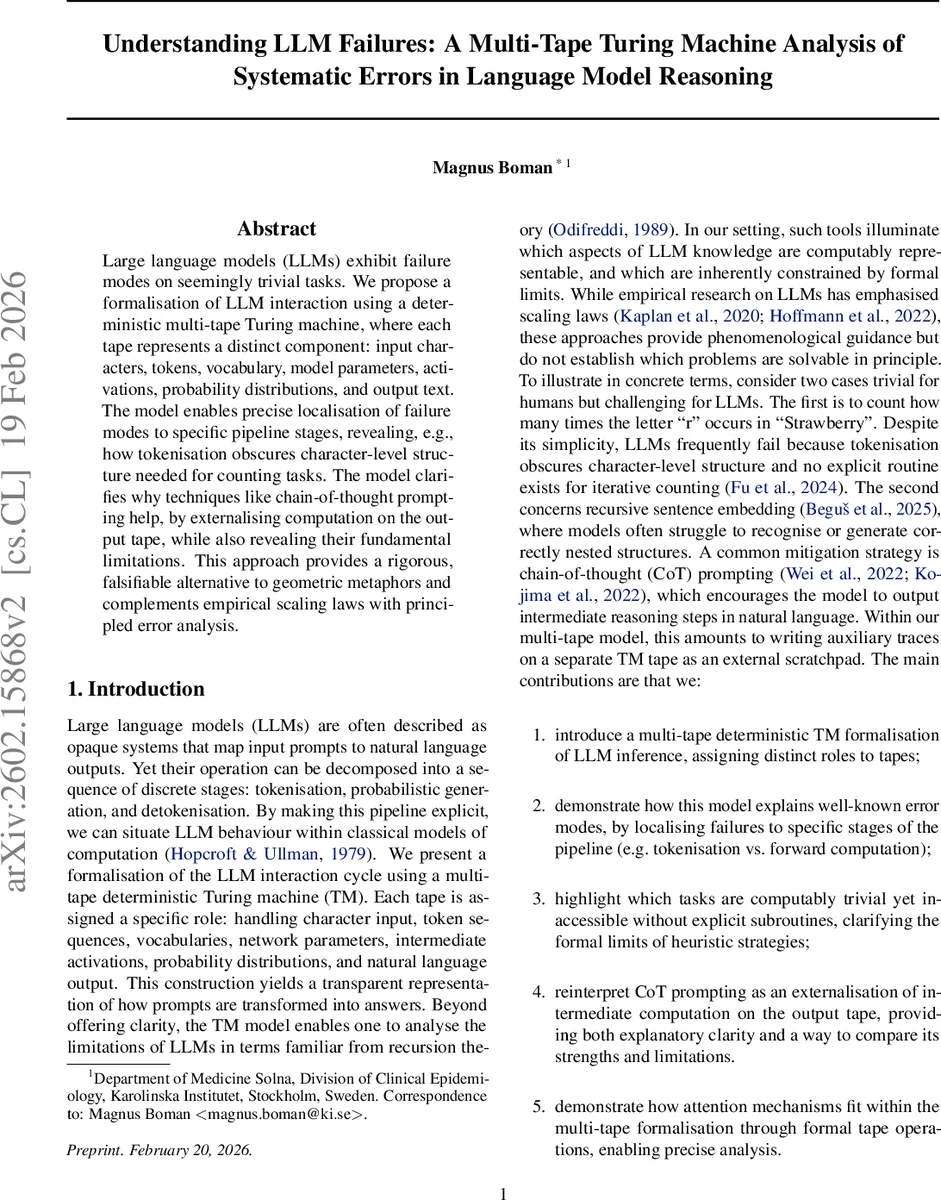

Understanding LLM Failures: A Multi-Tape Turing Machine Analysis of Systematic Errors in Language Model Reasoning

Large language models (LLMs) exhibit failure modes on seemingly trivial tasks. We propose a formalisation of LLM interaction using a deterministic multi-tape Turing machine, where each tape represents a distinct component: input characters, tokens, vocabulary, model parameters, activations, probability distributions, and output text. The model enables precise localisation of failure modes to specific pipeline stages, revealing, e.g., how tokenisation obscures character-level structure needed for counting tasks. The model clarifies why techniques like chain-of-thought prompting help, by externalising computation on the output tape, while also revealing their fundamental limitations. This approach provides a rigorous, falsifiable alternative to geometric metaphors and complements empirical scaling laws with principled error analysis.

💡 Research Summary

The paper proposes a rigorous formalisation of large language model (LLM) inference as a deterministic multi‑tape Turing machine (TM). Seven tapes are defined, each representing a distinct component of the generation pipeline: Tape 1 holds raw characters, Tape 2 stores token IDs, Tape 3 contains the tokenizer’s merge rules, vocabulary and inverse mappings, Tape 4 holds model architecture metadata and parameters, Tape 5 is a workspace that includes the key‑value cache and intermediate activations, Tape 6 buffers logits or probability distributions, and Tape 7 accumulates the final detokenised characters. A finite set of control states Q is partitioned into phases—tokenisation, forward computation, token selection, emission, and detokenisation—each with its own transition sub‑set. The transition function δ explicitly describes head movements (left, right, stay) and symbol rewrites for every phase, making the entire inference process traceable at the level of individual tape operations.

Using this machinery, the authors analyse two canonical failure modes. In the “Strawberry counting” example, they show that when the word is tokenised as a single token, the internal character sequence is completely hidden from the forward computation phase; even with sub‑word tokenisation, characters inside each sub‑token remain opaque. Because the forward computation (Q_fwd) lacks any sub‑routine that iterates over characters, the model cannot perform an exact count and instead relies on learned heuristics. The paper demonstrates how adding explicit counting states (locate, detokenise‑internal, count, emit‑count) to Q_fwd would enable exact symbolic computation without violating Turing‑equivalence, thereby exposing the root cause of the error as a missing algorithmic component rather than a statistical shortcoming.

The second case study examines centre‑embedded recursion (“The cat that the dog that the mouse feared chased …”). Here the same token “that” appears multiple times, erasing syntactic distinctions at the token level. The analysis shows that standard transformer attention, which operates over a bounded window on Tape 5, can only approximate context‑free patterns; it cannot maintain a stack‑like structure required for true context‑sensitive (type‑1) grammars. Consequently, the model fails systematically beyond depth‑2 embeddings. The authors argue that to handle arbitrary nesting depth, the TM would need explicit push, pop, and check states that manipulate a stack region on Tape 5, a capability absent from current architectures.

Chain‑of‑thought (CoT) prompting is interpreted as an externalisation of intermediate reasoning onto the output tape. By writing “scratch‑pad” steps to Tape 7, CoT effectively adds new transition sequences that separate computation from token selection, which explains why CoT can mitigate some errors but still cannot overcome fundamental pipeline limitations (e.g., lack of character‑level loops).

The paper also extends the model to probabilistic decoding by introducing an infinite random‑bit tape R for sampling, and to beam search by replicating token and probability tapes per beam and adding a scoreboard tape for cumulative log‑probabilities. These extensions preserve the deterministic core while formally capturing stochastic behaviours used in practice.

Overall, the work provides a falsifiable, mathematically precise framework for locating LLM failures, clarifying why certain tasks are intractable without additional algorithmic machinery, and offering a principled lens through which to evaluate prompting strategies and future architectural modifications.
