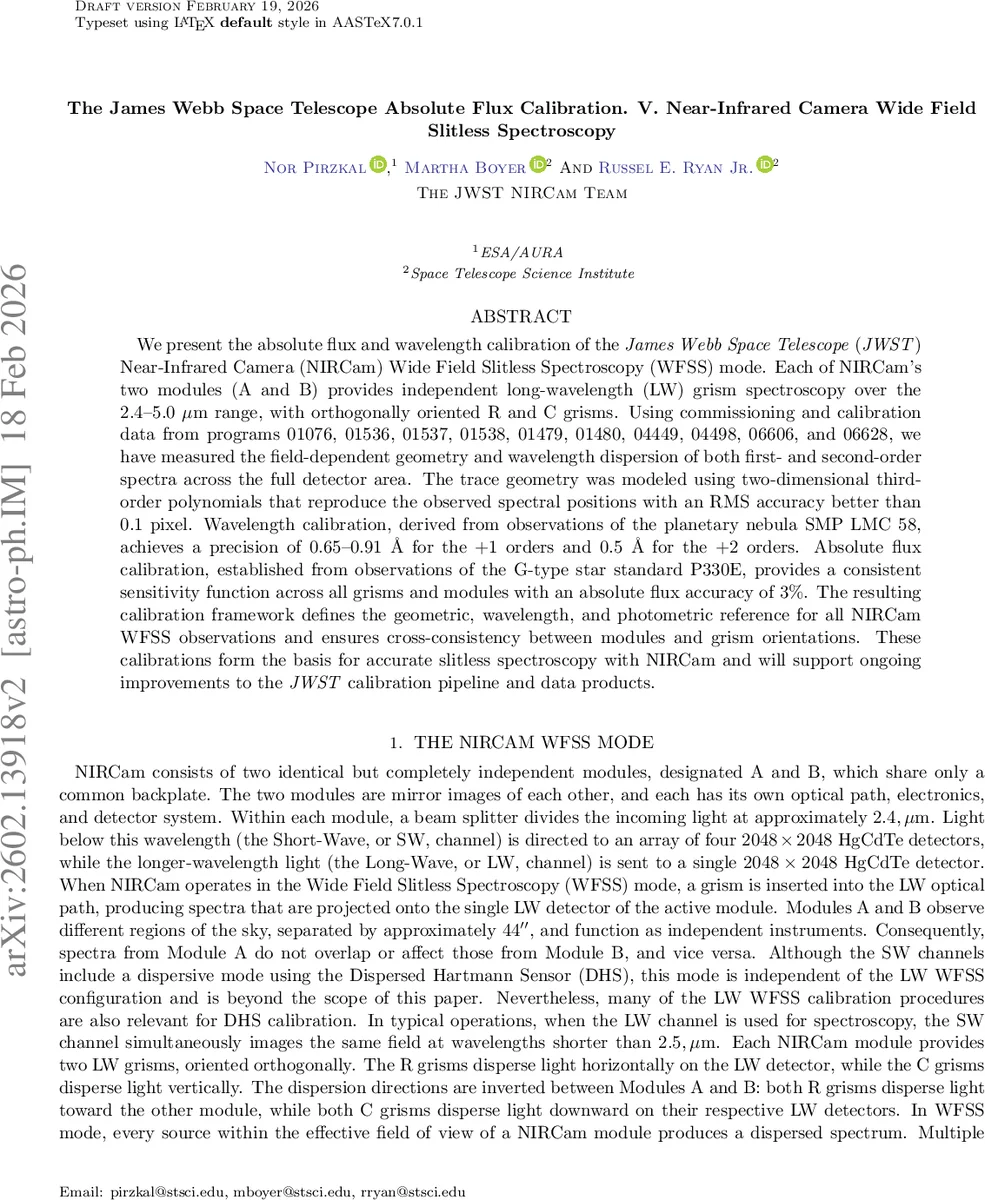

The James Webb Space Telescope Absolute Flux Calibration. V. Near-Infrared Camera Wide Field Slitless Spectroscopy

We present the absolute flux and wavelength calibration of the James Webb Space Telescope (JWST) Near-Infrared Camera (NIRCam) Wide Field Slitless Spectroscopy (WFSS) mode. Each of NIRCam’s two modules (A and B) provides independent long wavelength (LW) grism spectroscopy over the 2.4-5.0 micron range, with orthogonally oriented R and C grisms. Using commissioning and calibration data from programs 01076, 01536, 01537, 01538, 01479, 01480, 04449, 04498, 06606, and 06628, we have measured the field-dependent geometry and wavelength dispersion of both first and second order spectra across the full detector area. The trace geometry was modeled using two-dimensional third-order polynomials that reproduce the observed spectral positions with an RMS accuracy better than 0.1 pixel. Wavelength calibration, derived from observations of the planetary nebula SMP LMC 58, achieves a precision of 0.65-0.91A for the +1 orders and 0.5A for the +2 orders. Absolute flux calibration, established from observations of the G-type star standard P330E, provides a consistent sensitivity function across all grisms and modules with an absolute flux accuracy of 3%. The resulting calibration framework defines the geometric, wavelength, and photometric reference for all NIRCam WFSS observations and ensures cross-consistency between modules and grism orientations. These calibrations form the basis for accurate slitless spectroscopy with NIRCam and will support ongoing improvements to the JWST calibration pipeline and data products.

💡 Research Summary

This paper presents a comprehensive calibration of the James Webb Space Telescope (JWST) Near‑Infrared Camera (NIRCam) Wide Field Slitless Spectroscopy (WFSS) mode, delivering absolute flux and wavelength solutions for both modules (A and B) and for the two orthogonal grisms (R and C) that operate over the 2.4–5.0 µm long‑wavelength channel. The authors assembled an extensive set of commissioning and calibration observations from ten JWST programs (e.g., 01076, 01479, 01480, 04449, 04498, 06606, 06628) covering a wide range of detector positions, filters, and source types.

The calibration workflow follows three major steps. First, the geometric trace of each dispersed spectrum is characterized. Using a formalism that relates the source position (x₀, y₀) to the detector coordinates (δx, δy) and wavelength λ through a free parameter t, the authors model the trace with a two‑dimensional third‑order polynomial P₃,₂(x, y, t). They extract thousands of uncontaminated +1‑order spectra and several hundred +2‑order spectra by combining direct‑image source catalogs (generated with Source Extractor) with forward‑modeled WFSS images from the Simulation‑Based Extraction (SBE) code. Only spectra with less than 4 % contamination are retained, and Gaussian + continuum fits to the cross‑dispersion profiles provide precise centroid measurements. An iterative outlier‑rejection scheme (initially 5σ, refined to 2σ) removes about 10 % of the measurements, yielding a final trace model with an RMS residual of ~0.06 pixel and a mean offset of only a few thousandths of a pixel. This translates to a positional prediction accuracy better than 0.1 pixel for any source across the detector, regardless of module or grism.

Second, the wavelength solution is derived using the planetary nebula SMP LMC 58, which exhibits strong emission lines throughout the 2.5–5 µm range. High‑resolution NIRSpec spectra of the nebula serve as the reference line list. By measuring the observed line centroids in the WFSS data for each module, grism, and filter combination, the authors fit a field‑dependent wavelength polynomial (the same P₃,₂ functional form). The resulting precision is 0.65–0.91 Å for the first‑order spectra and 0.5 Å for the second‑order spectra, comfortably meeting the JWST requirement of ≤1 Å.

Third, absolute flux calibration is achieved with the G2 V standard star P330E. The authors observe P330E with each grism/module/filter set, extract the slitless spectra, and compare them to the well‑characterized reference spectrum of the star. The derived sensitivity functions are consistent across all four grism orientations, and the absolute flux accuracy is quantified at 3 % (1σ).

All calibration products—trace geometry coefficients, wavelength polynomial coefficients, and flux sensitivity curves—are packaged as standard reference files for the JWST pipeline (AssignWCS, FlatField, WavelengthSolution, FluxCalibration). The paper demonstrates cross‑consistency between modules and between the R and C grisms, and it outlines a straightforward path for future updates as additional calibration data become available.

By delivering sub‑pixel trace accuracy, sub‑Å wavelength precision, and 3 % absolute flux fidelity, this work establishes a robust foundation for scientific exploitation of NIRCam WFSS data. The calibrated products enable reliable line identification, accurate redshift determination, and precise measurement of continuum and line fluxes even in crowded fields where overlapping spectra are common. Consequently, the calibration will benefit a broad range of JWST science cases, from studies of high‑redshift galaxies and star‑forming regions to investigations of planetary atmospheres and the interstellar medium, ensuring that NIRCam’s slitless spectroscopy fulfills its full potential.
