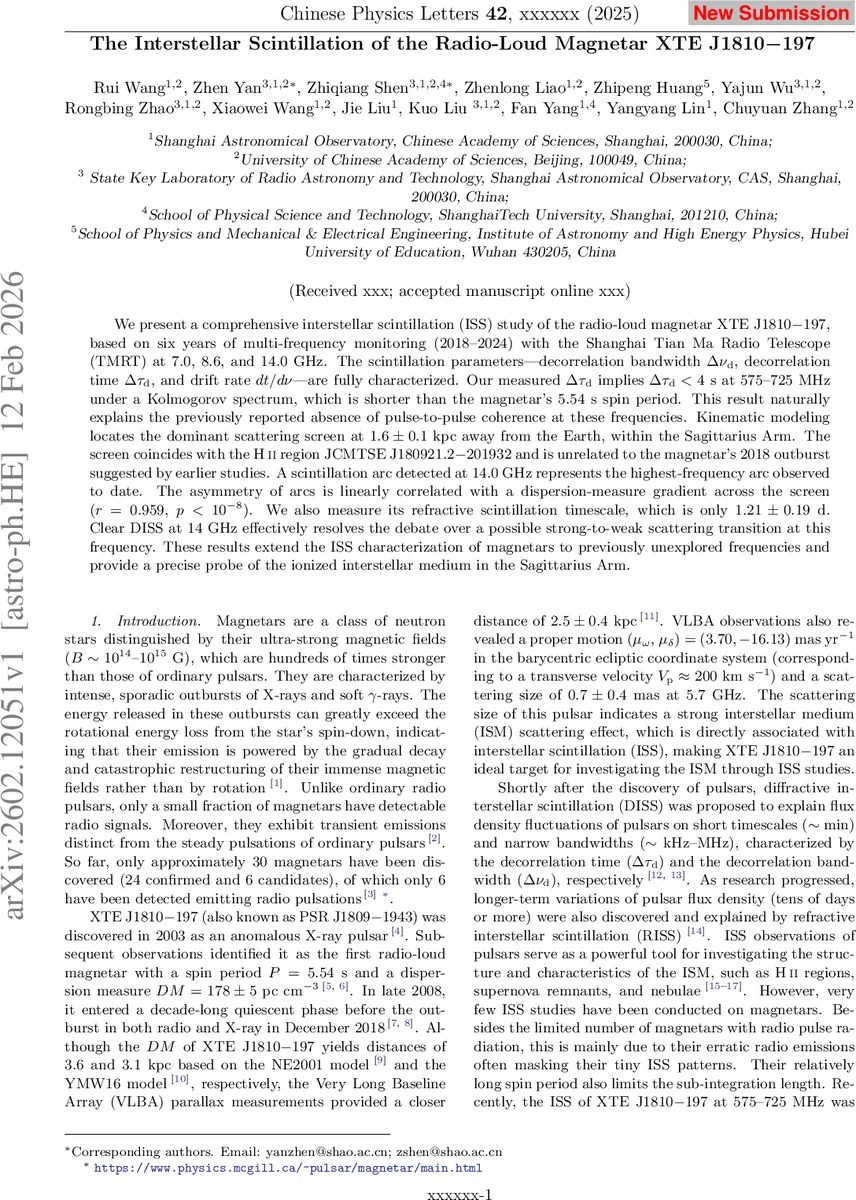

The Interstellar Scintillation of the Radio-Loud Magnetar XTE J1810-197

We present a comprehensive interstellar scintillation (ISS) study of the radio-loud magnetar XTEJ1810$-$197, based on six years of multi-frequency monitoring (2018$-$2024) with the Shanghai Tian Ma Radio Telescope (TMRT) at 7.0, 8.6, and 14.0GHz. The scintillation parameters–decorrelation bandwidth $Δν_{\rm d}$, decorrelation time $Δτ_{\rm d}$, and drift rate $dt/dν$–are fully characterized. Our measured $Δτ_{\rm d}$ implies $Δτ_{\rm d} < 4$s at 575-725MHz under a Kolmogorov spectrum, which is shorter than the magnetar’s 5.54s spin period. This result naturally explains the previously reported absence of pulse-to-pulse coherence at these frequencies. Kinematic modeling locates the dominant scattering screen at $1.6\pm0.1$kpc away from the Earth, within the Sagittarius Arm. The screen coincides with the HII region JCMTSEJ180921.2$-$201932 and is unrelated to the magnetar’s 2018 outburst suggested by earlier studies. A scintillation arc detected at 14.0GHz represents the highest-frequency arc observed to date. The asymmetry of arcs is linearly correlated with a dispersion-measure gradient across the screen ($r = 0.959$, $p < 10^{-8}$). We also measure its refractive scintillation timescale, which is only $1.21\pm0.19$d. Clear DISS at 14GHz effectively resolves the debate over a possible strong-to-weak scattering transition at this frequency. These results extend the ISS characterization of magnetars to previously unexplored frequencies and provide a precise probe of the ionized interstellar medium in the Sagittarius Arm.

💡 Research Summary

The paper presents a comprehensive interstellar scintillation (ISS) study of the radio‑loud magnetar XTE J1810‑197 using six years of multi‑frequency monitoring (2018–2024) with the Shanghai Tian Ma Radio Telescope (TMRT) at 7.0, 8.6 and 14.0 GHz. A total of 83 high‑quality epochs were selected (six at 7 GHz, 83 at 8.6 GHz, and one at 14 GHz) with an 800 MHz bandwidth split into 1.95 MHz sub‑channels and 30 s sub‑integrations. After standard flux calibration, RFI excision, and SVD‑based intrinsic variability suppression (the 14 GHz data were left uncorrected due to strong intrinsic variability), dynamic spectra were generated for each epoch.

Scintillation parameters were extracted using two‑dimensional autocorrelation functions (2D‑ACFs) fitted with an exponential model via the open‑source scintools package. At 8.6 GHz the decorrelation time Δτ_d ranged from 0.85 to 1.80 minutes with a mean of 1.22 minutes, while the decorrelation bandwidth Δν_d spanned 4.2–13.5 MHz (average 8.1 MHz). The modulation index m varied between 0.49 and 1.38, indicating that the source remains in the strong‑scattering regime. At 7 GHz the values of Δτ_d and Δν_d are slightly smaller but m is comparable. The single 14 GHz observation shows a very narrow Δτ_d (essentially zero) and a Δν_d of 27.96 ± 1.90 MHz; despite earlier predictions of a transition to weak scattering near 14 GHz, the modulation index remains ≈1, confirming that strong scattering persists.

The authors derived the reduced ISS speed V_iss,0 from the measured Δν_d, Δτ_d, observing frequency and distance, and modeled the screen geometry assuming a stationary thin screen (screen transverse velocity set to zero). Using the VLBA parallax distance D = 2.5 ± 0.4 kpc and the pulsar proper motion (μ_α = 3.70 mas yr⁻¹, μ_δ = −16.13 mas yr⁻¹), a least‑squares fit yields a fractional screen distance x = L₀/L_p ≈ 1.8 ± 0.4. This translates to a screen located L₀ = 1.6 ± 0.1 kpc from Earth and L_p = 0.9 ± 0.1 kpc from the magnetar, placing it within the Sagittarius arm. The screen coincides with the H II region JCMTSE J180921.2‑201932 (distance ≈ 1.56 kpc, projected separation ≈ 16 pc from the line of sight), providing a natural explanation for the over‑estimated distances from the NE2001 and YMW16 electron‑density models. The assumption of a stationary screen is consistent with Galactic differential rotation models predicting a transverse speed < 0.2 km s⁻¹ for this region.

Secondary spectra (the 2‑D Fourier transform of the dynamic spectra) reveal a parabolic scintillation arc at 14 GHz, the highest‑frequency arc detected to date. Arc curvature η and half‑width w were measured using a Hough‑transform method. The arc asymmetry, expressed as ln(S_r/S_l), shows a remarkably tight linear correlation (r = 0.959, p < 10⁻⁸) with the dispersion‑measure gradient across the screen, indicating a systematic electron‑density gradient within the scattering material. The refractive scintillation timescale is measured as 1.21 ± 0.19 days, implying rapid refractive fluctuations.

Extrapolating the measured Δτ_d to the low‑frequency band 575–725 MHz using a Kolmogorov scaling (Δτ_d ∝ ν⁻¹·²) yields Δτ_d < 4 s, shorter than the magnetar’s 5.54 s spin period. This naturally explains the previously reported lack of pulse‑to‑pulse coherence at those frequencies. The frequency dependence of Δν_d follows Δν_d ∝ ν^α with α ≈ 4.0–4.4, consistent with Kolmogorov turbulence. No secular evolution of scintillation parameters is observed over the six‑year span, contradicting earlier suggestions that the ISS might fade after the 2018 outburst.

In summary, the study extends ISS characterization of a magnetar to high radio frequencies, precisely locates a dominant scattering screen within a known H II region, demonstrates that strong diffractive scintillation persists up to 14 GHz, and provides a powerful probe of small‑scale ionized structure in the Sagittarius arm. The results have implications for pulsar timing, magnetar emission models, and the use of ISS as a diagnostic of the interstellar medium.
