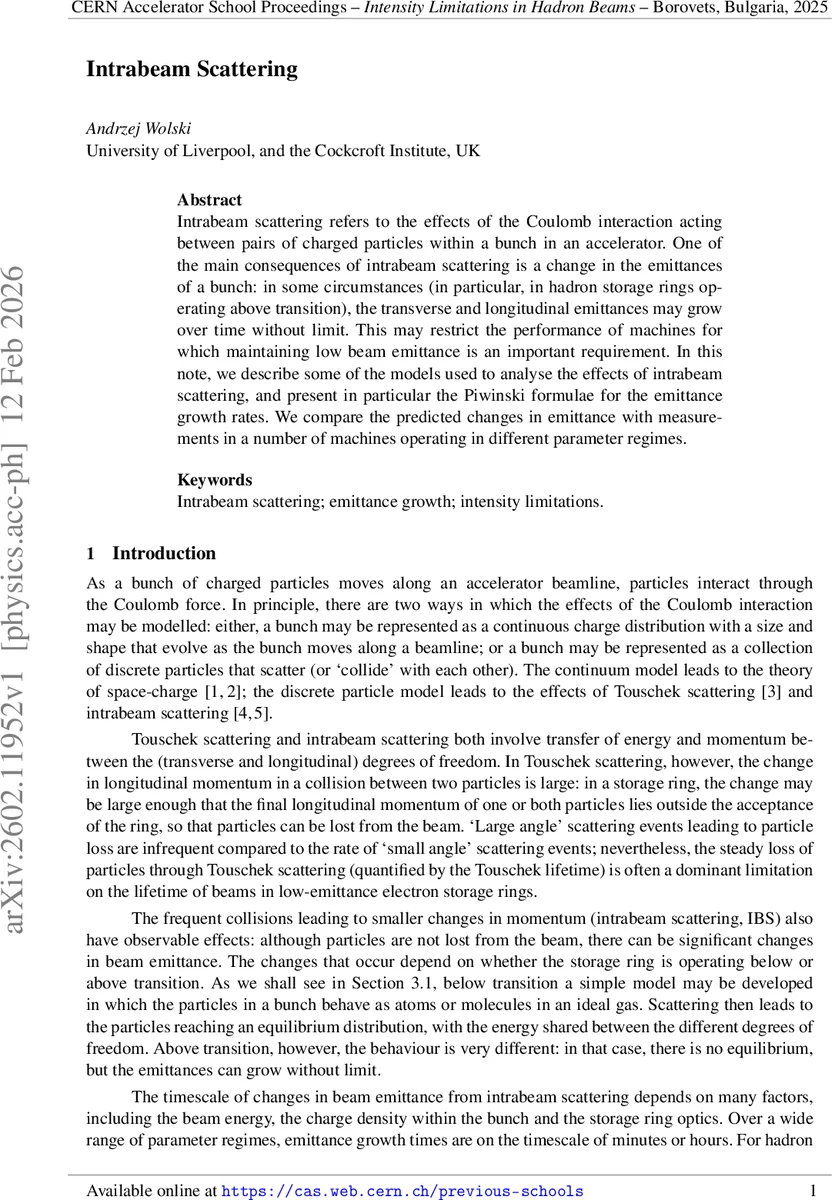

Intrabeam Scattering

Intrabeam scattering refers to the effects of the Coulomb interaction acting between pairs of charged particles within a bunch in an accelerator. One of the main consequences of intrabeam scattering is a change in the emittances of a bunch: in some circumstances (in particular, in hadron storage rings operating above transition), the transverse and longitudinal emittances may grow over time without limit. This may restrict the performance of machines for which maintaining low beam emittance is an important requirement. In this note, we describe some of the models used to analyse the effects of intrabeam scattering, and present in particular the Piwinski formulae for the emittance growth rates. We compare the predicted changes in emittance with measurements in a number of machines operating in different parameter regimes.

💡 Research Summary

The paper provides a comprehensive overview of intrabeam scattering (IBS), the Coulomb‑mediated interaction between charged particles within a bunch, and its impact on beam emittance in modern accelerators. After a brief introduction that distinguishes the continuous charge‑distribution (space‑charge) model from the discrete‑particle (collision) model, the authors focus on two collision‑type effects: Touschek scattering, which involves large‑angle collisions that can eject particles from the ring, and IBS, which consists of many small‑angle collisions that redistribute momentum among the transverse and longitudinal degrees of freedom without causing particle loss.

A key conceptual tool introduced is the “ideal‑gas” analogy. Below the transition energy, particle velocities increase sufficiently with energy to offset the longer path length of higher‑energy particles, so the revolution period actually shortens. In this regime the bunch behaves like an ideal gas that reaches thermal equilibrium: elastic collisions transfer energy between horizontal, vertical, and longitudinal motions until a steady‑state emittance is established. Above transition, however, particles are already ultra‑relativistic; the velocity change with energy is negligible, and the longer path length dominates, causing the revolution period to increase with energy. Consequently, there is no equilibrium and the emittances grow without bound.

The theoretical backbone of IBS analysis is represented by two classic formalisms: the Piwinski (1974) and the Bjorken‑Mtingwa (1983) formulas. Both assume a Gaussian particle distribution and express growth rates as multidimensional integrals over lattice functions (beta functions, dispersion, and momentum compaction). While mathematically equivalent, the integrals are computationally intensive because they must be evaluated at many points around the accelerator lattice. The paper notes that subsequent work has produced high‑energy approximations, semi‑analytical shortcuts, and extensions that incorporate radiation damping, quantum excitation, and coupling effects, thereby reducing the computational burden for specific machine regimes.

To validate the theory, the authors present measurements from three very different machines: the CERN SPS (270 GeV protons and antiprotons), the low‑energy CELSIUS ring (400 MeV protons), and the Cornell Electron Storage Ring (CESR, 2.085 GeV electrons/positrons). In the SPS, longitudinal and horizontal emittances were recorded over eight hours for bunches with populations ranging from 10¹⁰ to 10¹¹ particles. The data show a clear increase in bunch length and transverse size that matches the Piwinski‑based predictions; moreover, the growth rate diminishes as the emittance grows, reflecting the density‑dependent nature of IBS. In CELSIUS, the same population produces a dramatically faster emittance rise (seconds rather than minutes), illustrating the strong inverse dependence of IBS on beam energy. CESR, being an electron machine where synchrotron‑radiation damping is normally dominant, still exhibits measurable IBS effects because of its ultra‑low vertical emittance (nanometer scale). Here the equilibrium emittance results from a balance among radiation damping, quantum excitation, and IBS‑driven diffusion, and the measured horizontal size and bunch length increase with bunch charge in agreement with theory.

Overall, the paper concludes that IBS is a well‑understood, yet still critical, limitation for high‑intensity, low‑emittance accelerators. Understanding the distinct behavior below and above transition, applying the appropriate growth‑rate formalism, and using modern approximations enable accelerator designers to predict and mitigate IBS‑induced emittance growth, thereby extending beam lifetime and preserving the brightness required for cutting‑edge physics experiments and next‑generation light sources.
