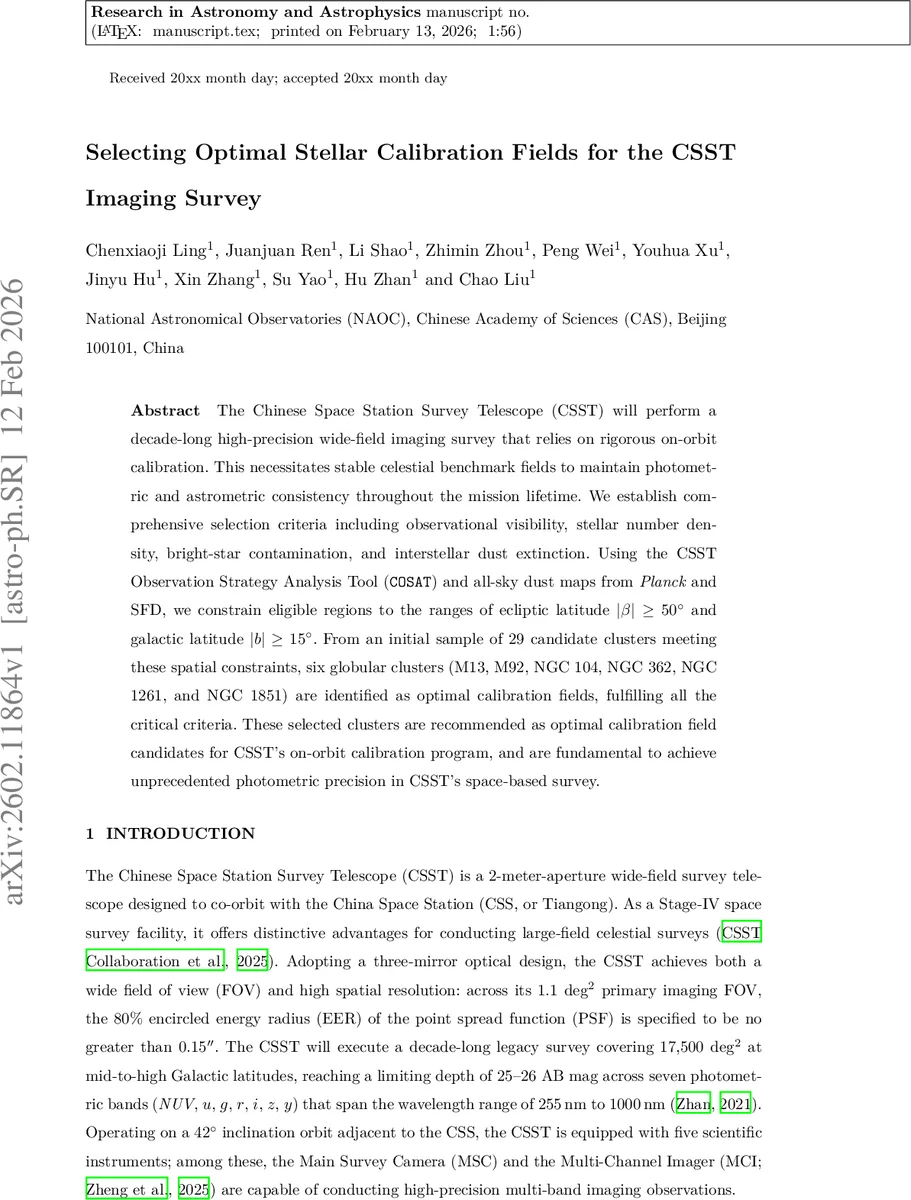

Selecting Optimal Stellar Calibration Fields for the CSST Imaging Survey

The Chinese Space Station Survey Telescope (CSST) will perform a decade-long high-precision wide-field imaging survey that relies on rigorous on-orbit calibration. This necessitates stable celestial benchmark fields to maintain photometric and astrometric consistency throughout the mission lifetime. We establish comprehensive selection criteria including observational visibility, stellar number density, bright-star contamination, and interstellar dust extinction. Using the CSST Observation Strategy Analysis Tool (COSAT) and all-sky dust maps from Planck and SFD, we constrain eligible regions to the ranges of ecliptic latitude $ |β| > 50^\circ$ and galactic latitude $|b| > 15^\circ$. From an initial sample of 29 candidate clusters meeting these spatial constraints, six globular clusters (M13, M92, NGC 104, NGC 362, NGC 1261, and NGC 1851) are identified as optimal calibration fields, fulfilling all the critical criteria. These selected clusters are recommended as optimal calibration field candidates for CSST’s on-orbit calibration program, and are fundamental to achieving unprecedented photometric precision in CSST’s space-based survey.

💡 Research Summary

The paper presents a systematic methodology for selecting on‑orbit calibration fields for the Chinese Space Station Survey Telescope (CSST), a 2‑meter, wide‑field (1.1 deg²) space observatory slated to conduct a decade‑long imaging survey covering 17,500 deg² in seven bands from the near‑UV to the y‑band. Precise photometric and astrometric calibration is essential for achieving the mission’s ambitious goals of sub‑millimagnitude photometric stability and sub‑arcsecond astrometric consistency.

Observational Visibility Analysis
Using the CSST Observational Strategy Analysis Tool (COSAT), the authors performed high‑fidelity orbital simulations covering the 2027–2038 mission window. The sky was tessellated with HEALPix (≈1 deg²) and, for each pixel, three statistical metrics were derived: D_obs (annual number of days with ≥90 min usable time), H_obs (total usable hours per year), and σ_frac (standard deviation of the monthly fraction of usable days). The analysis revealed a strong dependence on ecliptic latitude (β). Regions with |β| ≥ 50° consistently delivered D_obs ≈ 240 days, H_obs ≈ 1,600 hours, and σ_frac ≈ 0.15, indicating stable month‑to‑month visibility. By contrast, lower‑latitude zones suffered from intermittent gaps of one to two months where no calibration observations were possible, making them unsuitable for a regular calibration cadence.

Dust Extinction Constraints
Because CSST’s bluest bands (NUV, u) are highly susceptible to interstellar reddening, the authors overlaid all‑sky dust maps from Planck and the Schlegel‑Finkbeiner‑Davis (SFD) surveys using the dustmap Python package. They imposed a Galactic latitude cut of |b| ≥ 15°, which corresponds to E(B–V) ≲ 0.03 across the selected sky. This ensures that extinction does not introduce systematic color terms larger than a few millimagnitudes in the UV/optical regime.

Candidate Cluster Pre‑selection
Applying the dual spatial filters (|β| ≥ 50°, |b| ≥ 15°) reduced the initial pool of known star clusters to 29 objects (both globular and open clusters). These candidates were then subjected to a multi‑parameter screening:

1. Stellar Number Density – Required ≥10⁴ stars deg⁻² within the CSST field of view to provide a statistically robust reference set for each calibration visit.
2. Bright‑Star Contamination – No stars brighter than V = 7 mag within a 0.5° radius, mitigating saturation, ghosting, halo, and stray‑light effects.
3. Extinction Verification – Confirmed E(B–V) ≤ 0.03 from the dust maps for each cluster’s line of sight.
4. Color‑Magnitude Uniformity – Presence of well‑populated main‑sequence, sub‑giant, and red‑giant branches to enable cross‑band color calibration.

Final Selection
Six globular clusters satisfied all criteria: M13, M92, NGC 104 (47 Tuc), NGC 362, NGC 1261, and NGC 1851. All lie at high ecliptic latitudes (|β| > 55°) and high Galactic latitudes (|b| > 30°), exhibit stellar densities of ~2 × 10⁴ stars deg⁻², have negligible bright‑star neighbors, and possess E(B–V) values around 0.02. Notably, NGC 104 and M13 have already served as calibration standards for HST and Euclid, providing a valuable cross‑mission validation baseline.

Implications for CSST Operations
Incorporating these six fields into the regular calibration schedule guarantees at least 90 minutes of usable exposure time per month, translating into >1,500 hours of calibration data over the mission lifetime. Their dense, well‑characterized stellar populations enable precise zero‑point determination across all seven photometric bands, while the absence of bright contaminants ensures clean PSF modeling and stray‑light mitigation. Consequently, the selected fields are expected to underpin CSST’s ability to achieve sub‑mmag photometric precision and sub‑arcsecond astrometric stability across the entire survey footprint.

Future Work
The authors propose building a high‑resolution pre‑flight imaging and spectroscopic library for each field, facilitating real‑time monitoring of instrumental drifts and long‑term stability. They also suggest extending the methodology to identify supplemental fields for specific science programs (e.g., time‑domain calibration) and to periodically reassess field suitability as the mission progresses.

In summary, the paper delivers a rigorously quantified, reproducible framework for calibration‑field selection tailored to CSST’s orbital dynamics, instrument characteristics, and scientific requirements, and it delivers a concrete set of six optimal globular clusters that will serve as the backbone of the mission’s on‑orbit calibration strategy.
