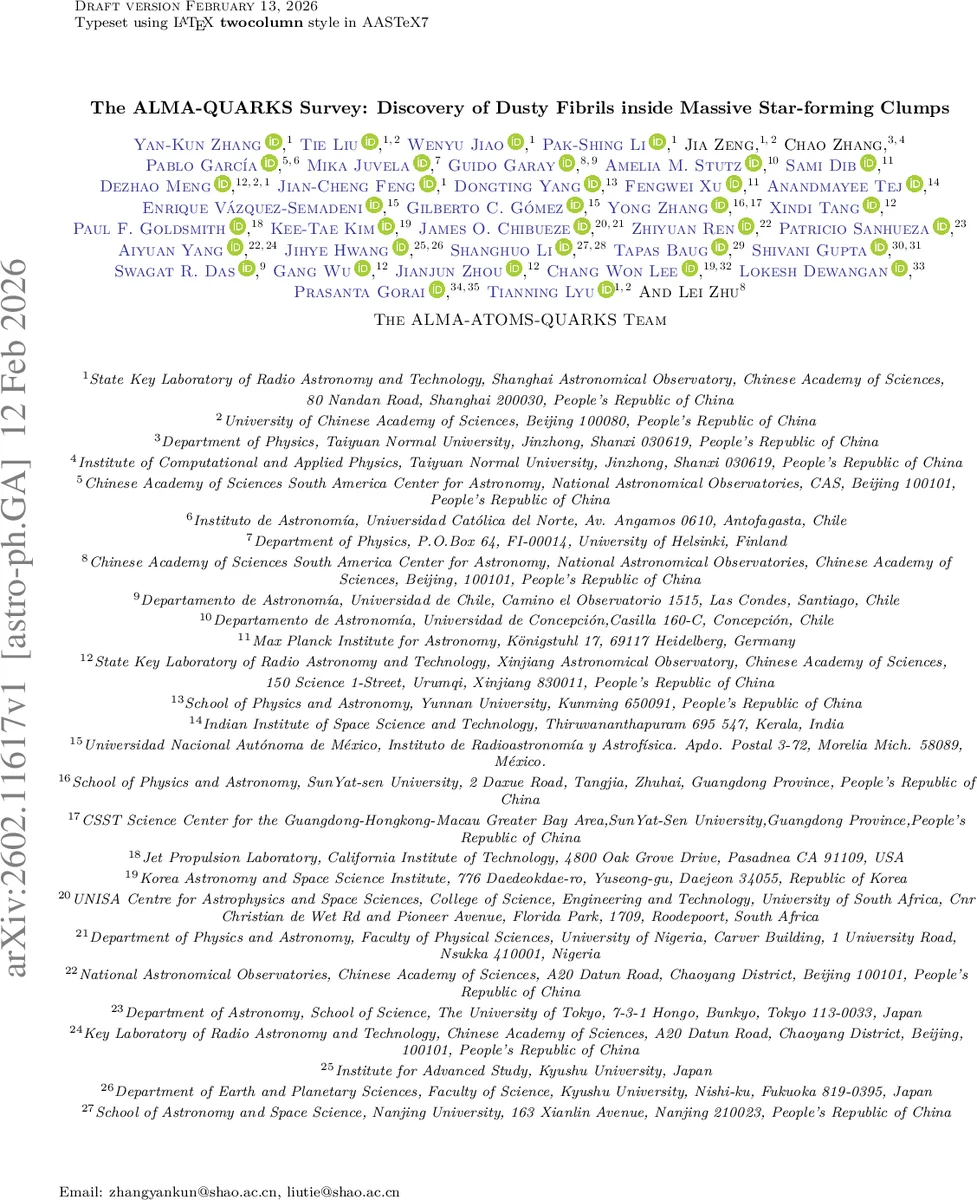

The ALMA-QUARKS Survey: Discovery of Dusty Fibrils inside Massive Star-forming Clumps

We report the discovery of more than 323 superfine dusty filamentary structures (fibrils) inside 121 massive star forming clumps that are located in widely different Galactic environments (Galactocentric distances of $\sim$0.5-12.7 kpc). These fibrils are identified from the 1.3~mm continuum emission in the ALMA-QUARKS survey, which has a linear resolution of $\sim900$ AU for a source at $\sim$3 kpc, using the \textit{FilFinder} software. Using \textit{RadFil} software, we find that the typical width of these fibrils is $\sim$0.01 pc, which is about ten times narrower than that of dusty filaments in nearby clouds identified by the \textit{Herschel} Space Observatory. The mass ($M$) versus length ($L$) relation for these fibrils follows $M\propto L^{2}$, similar to that of Galactic filaments identified in space (e.g., \textit{Herschel}) and ground-based single-dish (e.g., \textit{APEX}) surveys. However, these fibrils are significantly denser ($\mathrm{N_{H_2} = 10^{23}-10^{24}\ cm^{-2}}$) than the filaments found in previous \textit{Herschel} surveys ($\mathrm{N_{H_2} = 10^{20}-10^{23}\ cm^{-2}}$). This work contributes a large sample of superfine fibrils in massive clumps, following the identification of large 0.1-pc wide filaments and associated internal velocity coherent fibers in nearby molecular clouds, further emphasizing the crucial role played by filamentary structures in star formation at various physical scales.

💡 Research Summary

The paper presents a systematic study of ultra‑fine dusty filamentary structures, termed “fibrils,” within massive star‑forming clumps using the ALMA‑QUARKS survey. The authors observed 139 clumps in Band 6 (1.3 mm) with a combined ACA + 12 m array configuration, achieving an angular resolution of ~0.3″, which corresponds to linear scales of 300–3900 AU (0.001–0.019 pc) for sources between 1 and 13 kpc. From these data they identified 323 fibrils in 121 clumps, employing the FilFinder algorithm with source‑specific parameter tuning to ensure reliable detection of elongated, high‑contrast structures. The detection is not claimed to be complete; rather, it focuses on the most prominent fibrils that are visually evident.

Fibril widths were measured with the RadFil package by fitting both Plummer‑like and Gaussian radial intensity profiles along the filament spines. The two methods yielded consistent results, with a median full‑width‑half‑maximum (FWHM) of ~0.01 pc. A secondary Gaussian peak near 0.03 pc was also observed, and fibrils associated with UC H II regions tend to be slightly broader (by ~0.005 pc) than those without such association, suggesting a modest influence of ionizing feedback on filament thickness.

The mass‑length relation follows M ∝ L², identical to the scaling seen in large‑scale Galactic filaments identified by Herschel and ground‑based surveys, but the column densities are markedly higher, ranging from N_H₂ = 10²³ to 10²⁴ cm⁻², i.e., one to two orders of magnitude above typical Herschel filaments (10²⁰–10²³ cm⁻²). This indicates that the fibrils reside in exceptionally dense environments. Moreover, compact cores and young stellar objects are preferentially located along the fibrils, reinforcing the idea that these structures act as conduits for mass accretion onto forming stars.

The study bridges a gap between the well‑studied ~0.1 pc Herschel filaments and the sub‑0.05 pc velocity‑coherent “fibers” identified in molecular line data. By revealing that fibrils with widths an order of magnitude smaller than Herschel filaments are ubiquitous in massive clumps across a wide range of Galactocentric distances (0.5–12.7 kpc), the authors demonstrate that filamentary morphology persists down to scales comparable to individual protostellar cores. This multi‑scale continuity supports theoretical models in which turbulence, gravity, and magnetic fields generate a hierarchy of filamentary structures that funnel material from cloud scales to core scales.

The paper’s strengths include the use of high‑resolution ALMA data, a robust combination of automated filament detection (FilFinder) and width fitting (RadFil), and a statistically significant sample that spans diverse Galactic environments. However, several limitations are noted. The filament catalog is not exhaustive; detection thresholds and visual verification may bias the sample toward brighter, more massive fibrils. Distance‑dependent resolution effects could artificially truncate the width distribution at the smallest scales for the most distant sources. Mass estimates rely solely on dust continuum emission, assuming a uniform temperature and opacity, which may introduce systematic uncertainties. The lack of accompanying kinematic information (e.g., N₂H⁺ or H¹³CO⁺ line data) precludes a direct assessment of velocity coherence, gravitational stability, or magnetic support within the fibrils.

Future work should incorporate high‑resolution spectral line observations to probe the dynamical state of the fibrils, polarization measurements to evaluate magnetic field alignment, and numerical MHD simulations to test formation scenarios. By extending the analysis to include these aspects, the community can better quantify how ultra‑fine filaments influence star formation efficiency, the initial mass function, and the evolution of massive star‑forming regions.
