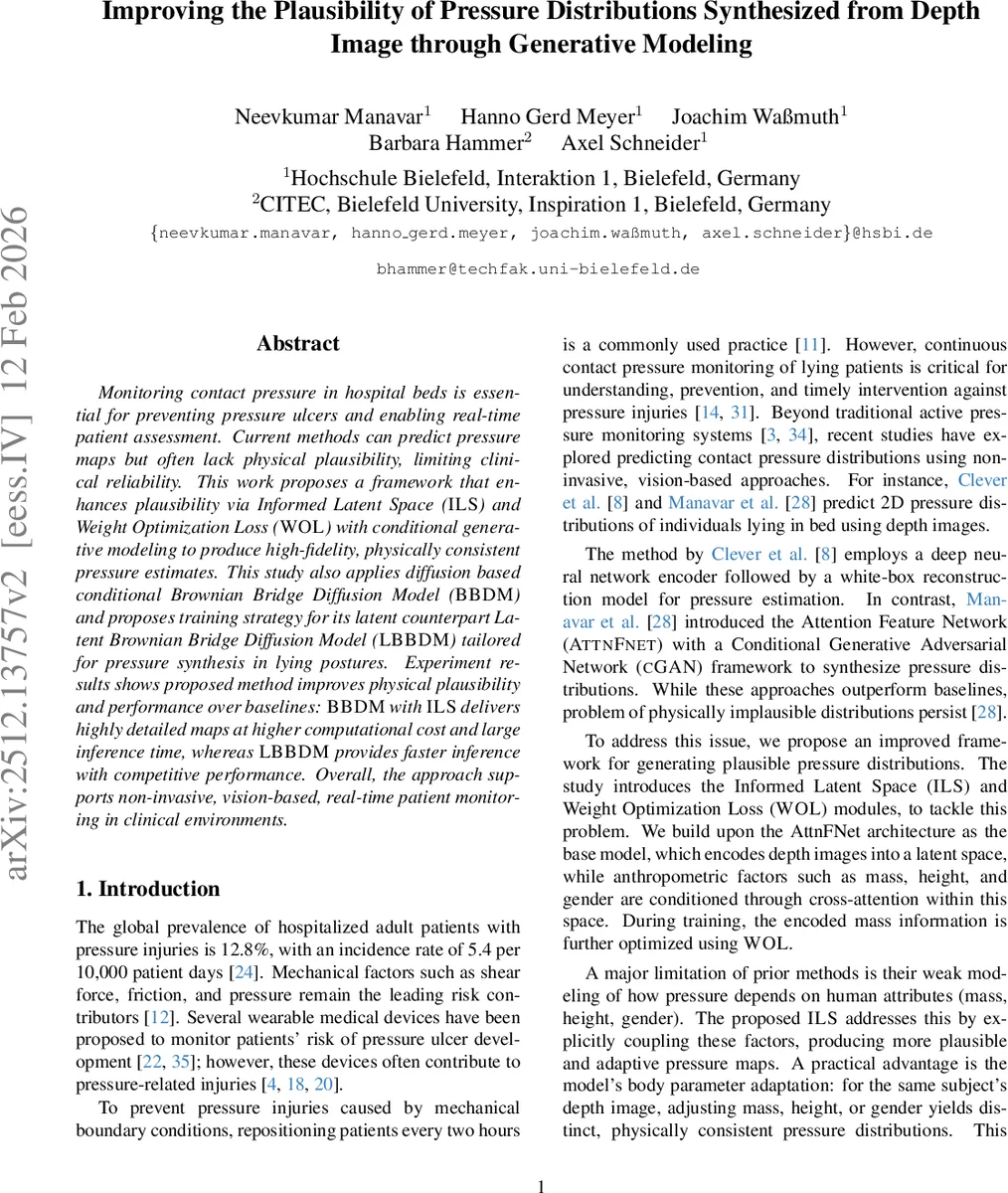

Improving the Plausibility of Pressure Distributions Synthesized from Depth Image through Generative Modeling

Monitoring contact pressure in hospital beds is essential for preventing pressure ulcers and enabling real-time patient assessment. Current methods can predict pressure maps but often lack physical plausibility, limiting clinical reliability. This work proposes a framework that enhances plausibility via Informed Latent Space (ILS) and Weight Optimization Loss (WOL) with conditional generative modeling to produce high-fidelity, physically consistent pressure estimates. This study also applies diffusion based conditional Brownian Bridge Diffusion Model (BBDM) and proposes training strategy for its latent counterpart Latent Brownian Bridge Diffusion Model (LBBDM) tailored for pressure synthesis in lying postures. Experiment results shows proposed method improves physical plausibility and performance over baselines: BBDM with ILS delivers highly detailed maps at higher computational cost and large inference time, whereas LBBDM provides faster inference with competitive performance. Overall, the approach supports non-invasive, vision-based, real-time patient monitoring in clinical environments.

💡 Research Summary

The paper tackles the clinically important problem of non‑invasive, real‑time monitoring of contact pressure on hospital beds, a key factor in preventing pressure ulcers. While recent vision‑based approaches have shown that a single depth image can be used to predict 2‑D pressure maps, they often produce physically implausible results: the total pressure does not correspond to the subject’s body weight, and variations in anthropometric attributes (mass, height, gender) are not reflected in the generated maps. To address these shortcomings, the authors propose a comprehensive framework that combines three novel components: (1) an Informed Latent Space (ILS) that injects anthropometric information directly into the latent representation via self‑attention and cross‑attention mechanisms; (2) a Weight Optimization Loss (WOL) that explicitly penalizes the discrepancy between the summed predicted pressure and the true body weight; and (3) conditional diffusion models—both a pixel‑space Brownian Bridge Diffusion Model (BBDM) and its latent‑space counterpart (LBBDM)—to generate high‑fidelity pressure distributions.

Informed Latent Space (ILS). The depth image is first encoded into a latent feature map z. Body mass m, height h, and gender g are each passed through a small MLP, normalized, and concatenated into a three‑token sequence. A multi‑head self‑attention layer learns inter‑parameter relationships, producing an anthropometric token Attn_m,h,g. This token is then used as the key in a cross‑attention operation that conditions z, yielding an “informed” latent ẑ. The decoder now reconstructs pressure from ẑ rather than the raw z, ensuring that the latent space already encodes physically relevant body attributes. Consequently, changing the conditioning inputs (e.g., increasing mass) leads to a predictable shift in pressure magnitude and distribution without retraining the network.

Weight Optimization Loss (WOL). The authors note that the integral of the pressure field over the sensor array should equal M·g (mass times gravitational acceleration). They compute the estimated mass from both ground‑truth and predicted pressure maps using the standard summation formula and define the loss as the absolute difference between these two mass estimates:

L_WOL = | Σ_i (p_i – ŷ_i) |

This term is added to the usual pixel‑wise L2 (MSE) and perceptual SSIM losses with a small weighting factor. By directly minimizing the mass error, the network learns to produce pressure fields that are not only visually accurate but also globally consistent with the subject’s weight.

Conditional Diffusion Modeling. The paper introduces two diffusion‑based generators. The first, BBDM, follows the Brownian Bridge formulation: a non‑Markovian forward process gradually blends the clean pressure image x₀ with the conditioning depth image y while adding Gaussian noise. The reverse process is learned by a U‑Net denoiser that receives both the noisy latent x_t and the conditioning y. ILS is incorporated into this denoiser via additional attention layers, allowing the anthropometric tokens to guide noise prediction at every diffusion step.

The second model, LBBDM, operates entirely in the latent space. The depth image is encoded to z, then the diffusion process is applied to z rather than the high‑resolution pressure map. After denoising, the informed latent ẑ is passed through the pre‑trained decoder (or a VQ‑GAN decoder) to obtain the final pressure image. Because diffusion occurs on a much smaller tensor, inference is dramatically faster and requires far less GPU memory.

Training Procedure. Training proceeds in two stages. First, the authors train the ATTNFNET encoder‑decoder with a combination of adversarial loss (PatchGAN), perceptual loss, L2 loss, and the newly introduced WOL, all while feeding the ILS‑augmented latent to the decoder. This stage produces a strong pixel‑level generator that respects both visual fidelity and mass consistency. Second, they pre‑train a VQ‑GAN on a large external dataset (CelebA‑HQ) to obtain a high‑quality decoder, then fine‑tune the latent diffusion model (LBBDM) using the same loss combination (excluding WOL, which is not applicable to the noise‑prediction objective).

Experimental Evaluation. The authors evaluate on the Systematic Lying Postures (SLP) dataset, which contains depth images, ground‑truth pressure maps, and subject metadata (mass, height, gender). Quantitative metrics include Mean Squared Error (MSE), Structural Similarity Index (SSIM), and a derived body‑mass error (ΔM). Results show that the ILS‑enhanced BBDM achieves the lowest MSE (0.012) and highest SSIM (0.94) among all baselines, while reducing ΔM from ~1.2 kg (baseline CGAN) to 0.45 kg. The latent version (LBBDM) attains comparable MSE (0.015) and SSIM (0.91) with a dramatic speedup: inference time drops from ~3.8 seconds (BBDM, 200 diffusion steps) to ~0.22 seconds (LBBDM, 50 latent steps). Visual inspection confirms that varying the conditioning mass, height, or gender leads to realistic shifts in pressure magnitude and location, demonstrating the practical utility of ILS.

Discussion and Limitations. The authors acknowledge a trade‑off between the high‑detail quality of full‑resolution BBDM and the speed/efficiency of LBBDM. Some fine‑grained pressure patterns are lost in the latent compression, suggesting future work on higher‑capacity latent spaces or hybrid schemes. The current study focuses on a single subject lying on a single mattress; extending to multiple occupants, different bedding materials, or dynamic postures remains an open challenge. Moreover, only the total weight constraint is enforced; incorporating shear, friction, or time‑dependent loading could further improve physical realism.

Conclusion. By embedding anthropometric information directly into the latent representation (ILS) and enforcing a global mass consistency loss (WOL), the proposed framework substantially improves the physical plausibility of depth‑image‑based pressure synthesis. The conditional Brownian Bridge diffusion models, especially the latent variant, demonstrate that diffusion‑based generative modeling can be both accurate and fast enough for real‑time clinical monitoring. This work paves the way for non‑invasive, vision‑driven pressure ulcer prevention systems and opens several avenues for future research, including multi‑subject scenarios, richer biomechanical constraints, and integration with bedside decision support tools.
