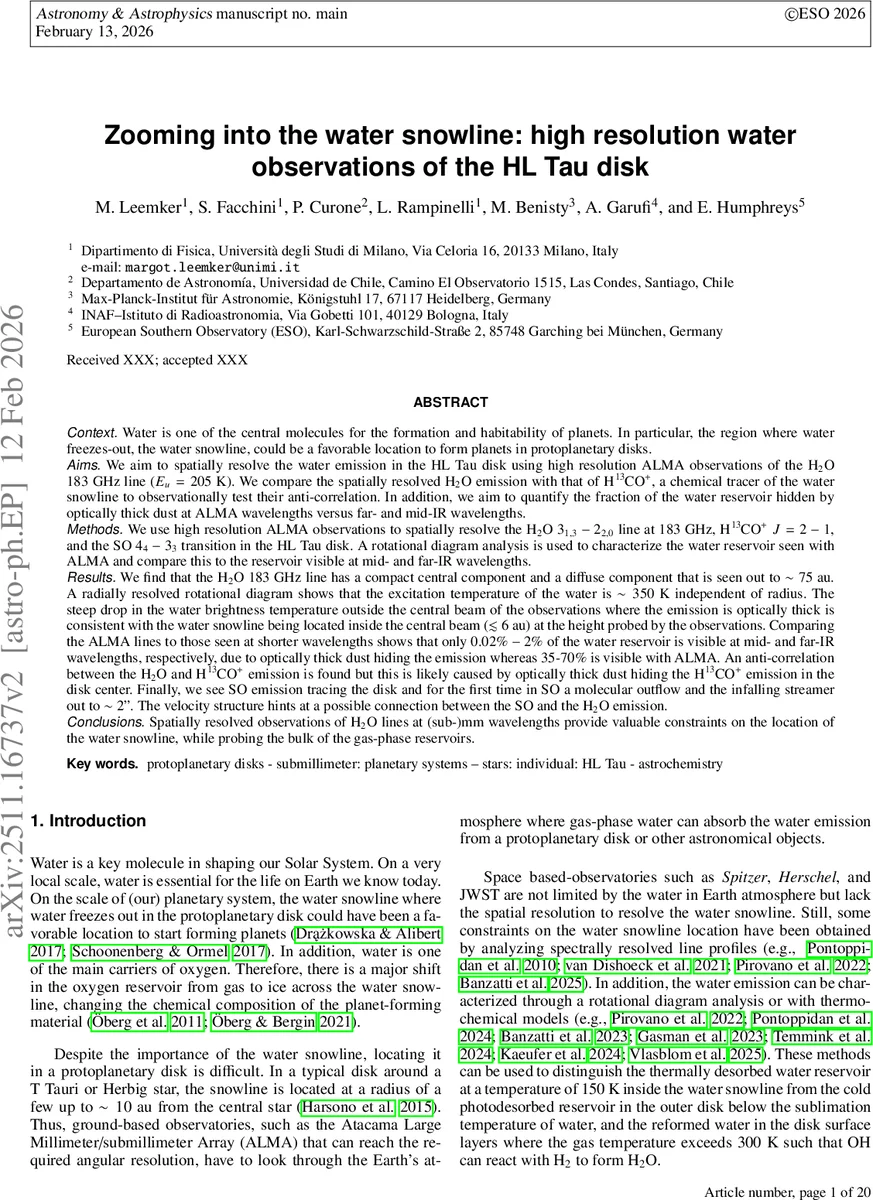

Zooming into the water snowline: high resolution water observations of the HL Tau disk

Water is one of the central molecules for the formation and habitability of planets. In particular, the region where water freezes-out, the water snowline, could be a favorable location to form planets in protoplanetary disks. We use high resolution ALMA observations to spatially resolve H$_2$O, H$^{13}$CO$^+$ and SO emission in the HL Tau disk. A rotational diagram analysis is used to characterize the water reservoir seen with ALMA and compare this to the reservoir visible at mid- and far-IR wavelengths. We find that the H$_2$O 183 GHz line has a compact central component and a diffuse component that is seen out to ~75 au. A radially resolved rotational diagram shows that the excitation temperature of the water is ~350 K independent of radius. The steep drop in the water brightness temperature outside the central beam of the observations where the emission is optically thick is consistent with the water snowline being located inside the central beam ($\lesssim 6$ au) at the height probed by the observations. Comparing the ALMA lines to those seen at shorter wavelengths shows that only 0.02%-2% of the water reservoir is visible at mid- and far-IR wavelengths, respectively, due to optically thick dust hiding the emission whereas 35-70% is visible with ALMA. An anti-correlation between the H$_2$O and H$^{13}$CO$^+$ emission is found but this is likely caused by optically thick dust hiding the H$^{13}$CO$^+$ emission in the disk center. Finally, we see SO emission tracing the disk and for the first time in SO a molecular outflow and the infalling streamer out to ~2". The velocity structure hints at a possible connection between the SO and the H$_2$O emission. Spatially resolved observations of H$_2$O lines at (sub-)mm wavelengths provide valuable constraints on the location of the water snowline, while probing the bulk of the gas-phase reservoirs.

💡 Research Summary

This paper presents a detailed study of the water snowline in the protoplanetary disk around HL Tau using high‑resolution ALMA observations of the H₂O 183 GHz line (E_u = 205 K) complemented by simultaneous observations of H¹³CO⁺ J = 2–1 and SO 4₄–3₃. The authors combine data from two ALMA projects—one in a compact configuration (2017.1.01178.S) and one in an extended configuration (2022.1.00905.S)—and perform an extensive self‑calibration workflow (phase‑only and amplitude‑phase rounds) using CASA 6.5.4. After careful alignment of the short‑ and long‑baseline datasets, they apply JvM corrections to avoid flux overestimation for extended low‑S/N emission, a step that notably revises the water line fluxes compared to earlier work.

Imaging is carried out with Briggs weighting at several robust parameters to achieve both the finest spatial resolution (≈0.05″ × 0.04″, corresponding to ~7 au) for the central water emission and a more tapered beam (≈0.35″) to recover diffuse emission out to ~75 au. The H₂O 183 GHz line exhibits a compact, optically thick core and a fainter, extended component. A radially resolved rotational diagram analysis yields an excitation temperature of ~350 K that is remarkably constant with radius, indicating that the detected water resides in a warm surface layer rather than in the cold midplane.

The brightness temperature of the water line drops sharply beyond the central beam, implying that the water snowline lies inside the ~6 au region probed at the line‑forming height. This direct constraint is more precise than previous indirect estimates based on infrared spectroscopy or chemical tracers. By comparing the ALMA water fluxes with those derived from mid‑ and far‑infrared observations, the authors find that only 0.02 %–2 % of the total water reservoir is visible at IR wavelengths, whereas 35 %–70 % is recovered in the (sub‑mm) band. The discrepancy is attributed to the high dust optical depth at IR wavelengths that hides most of the gas‑phase water.

H¹³CO⁺, a known chemical tracer destroyed efficiently by gas‑phase water, shows an anti‑correlated spatial distribution with H₂O. However, the authors argue that this anti‑correlation is largely an observational artifact: the central dust opacity also suppresses H¹³CO⁺ emission, creating an apparent central hole. Consequently, the expected ring‑like H¹³CO⁺ emission outside the snowline is not clearly observed in this dataset.

SO emission is detected both in the disk and in an extended structure extending to ~2″ (≈280 au). The SO morphology reveals a molecular outflow and an infalling streamer previously identified in HCO⁺, and its velocity field hints at a connection with the water‑emitting layer, suggesting that water may be involved in the chemistry of these dynamical features.

The paper concludes that spatially resolved (sub‑mm) water lines are powerful probes of the water snowline, providing direct constraints on its radial and vertical location while simultaneously accessing the bulk of the gas‑phase water reservoir. The results emphasize the importance of high‑resolution, multi‑line ALMA campaigns for unraveling the interplay between chemistry, dust opacity, and dynamics in planet‑forming disks. Future work should aim at even higher angular resolution and include additional water transitions to map the vertical temperature structure and to refine models of water delivery to forming planets.
