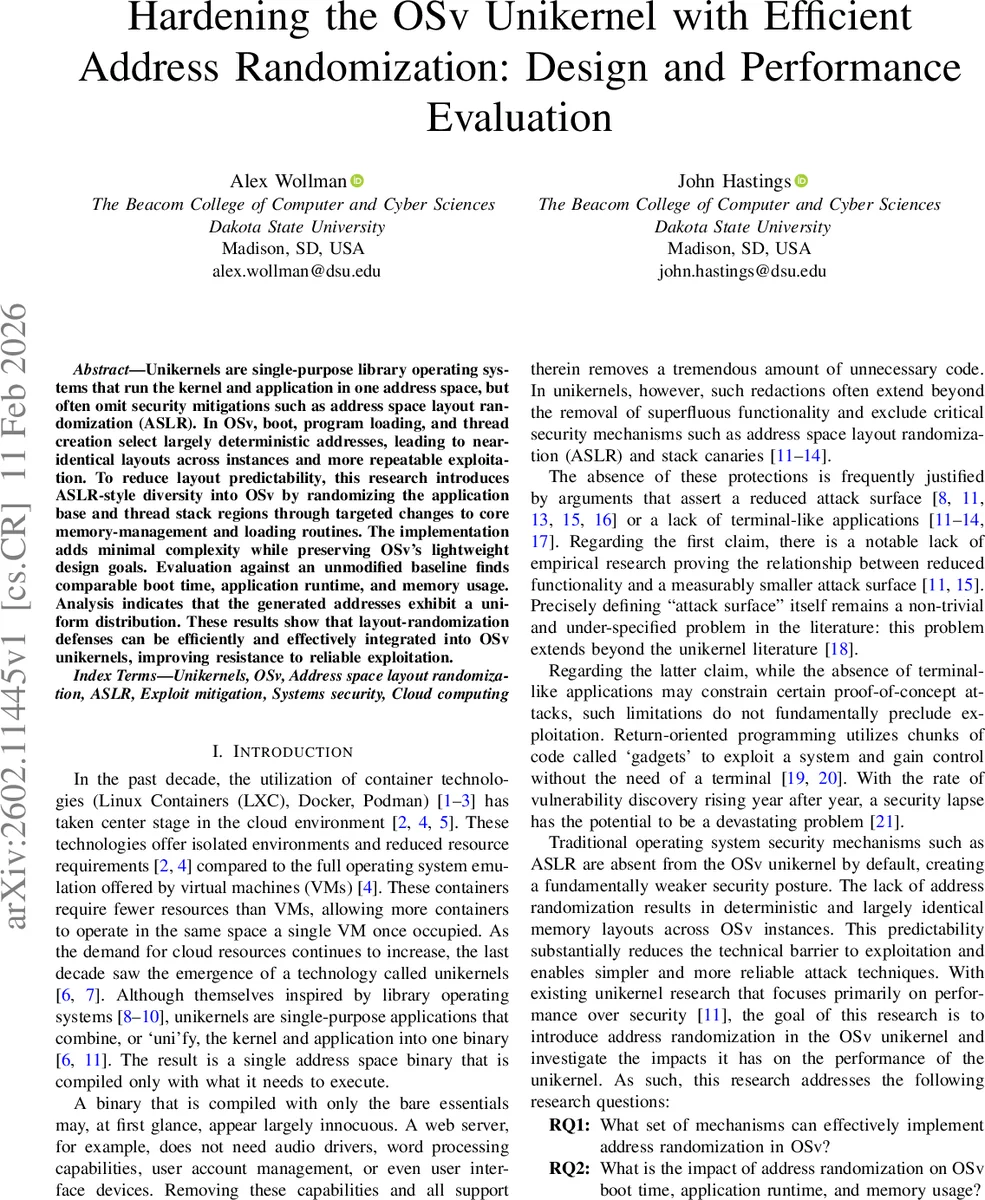

Hardening the OSv Unikernel with Efficient Address Randomization: Design and Performance Evaluation

Unikernels are single-purpose library operating systems that run the kernel and application in one address space, but often omit security mitigations such as address space layout randomization (ASLR). In OSv, boot, program loading, and thread creation select largely deterministic addresses, leading to near-identical layouts across instances and more repeatable exploitation. To reduce layout predictability, this research introduces ASLR-style diversity into OSv by randomizing the application base and thread stack regions through targeted changes to core memory-management and loading routines. The implementation adds minimal complexity while preserving OSv’s lightweight design goals. Evaluation against an unmodified baseline finds comparable boot time, application runtime, and memory usage. Analysis indicates that the generated addresses exhibit a uniform distribution. These results show that layout-randomization defenses can be efficiently and effectively integrated into OSv unikernels, improving resistance to reliable exploitation.

💡 Research Summary

The paper addresses a notable security gap in OSv, a popular unikernel platform, by introducing address space layout randomization (ASLR)–style diversification while preserving the lightweight performance characteristics that make unikernels attractive for cloud workloads. The authors begin by contrasting containers and virtual machines with unikernels, noting that unikernels combine the kernel and application into a single address‑space binary and typically omit traditional hardening mechanisms such as ASLR and stack canaries. This omission results in deterministic memory layouts across boots, which dramatically lowers the barrier for exploitation techniques like return‑oriented programming (ROP).

Three research questions guide the investigation: (RQ1) What mechanisms can effectively implement address randomization in OSv? (RQ2) What is the impact of such randomization on boot time, application runtime, and memory consumption? (RQ3) Do the generated addresses follow a uniform distribution? To answer these, the authors adopt a Design Science methodology and conduct a single‑case mechanism experiment, altering only the address‑selection logic of OSv while leaving the rest of the system untouched.

Implementation details are concise: only 93 lines of code across eight source files are modified. The core idea is to replace hard‑coded base addresses (e.g., 0x0000100000000000 for the program and 0x0000200000000000 for stacks) with values produced by a pseudo‑random number generator (PRNG). The PRNG uses C++’s random_device to obtain two 32‑bit values, concatenates them into a 64‑bit seed, and then masks the result with architecture‑specific constants (ELF_RND_MASK, STACK_RND_MASK) to enforce page alignment and stay within OSv’s address space limits. If the CPU supports the RDRAND instruction, the hardware RNG is used; otherwise, the software seed is employed. Two boolean flags—random_stack in the thread attribute structure and a corresponding mmu_rand flag in the memory manager—gate the randomization for stack allocation. Program‑base randomization occurs in elf::create_main_program, while stack randomization is triggered during pthread_attr_init and propagated through allocate_stack to map_anon. The heap is not independently randomized; it inherits its start address from the (now random) program base and grows in fixed 4 KB increments.

Performance evaluation is conducted on a Dell Latitude 7450 (Intel Core Ultra 7 165U, 16 GB RAM) running Ubuntu 24.04 LTS inside VMware Workstation 17, with OSv instances launched via QEMU. The baseline (unmodified) and the ASLR‑enabled variant are each executed 303 times, yielding roughly 600 total runs after discarding seven erroneous samples. Metrics collected include total run time, boot time, and memory usage (reported in MiB). Statistical analysis uses Levene’s test to compare variances and reports p‑values well above the 0.05 significance threshold for all three metrics, indicating no statistically significant performance degradation. Confidence intervals further show that differences are within a few percent.

To assess the quality of the randomization, the authors apply the Kolmogorov–Smirnov test against a uniform distribution (α = 0.05, n > 50). The calculated D statistic never exceeds the asymptotic critical value (D_crit = 1.36/√n), so the null hypothesis of uniformity cannot be rejected. This satisfies RQ3, confirming that the address values are statistically indistinguishable from a uniform random sample within the defined range.

The paper also candidly discusses limitations. Large memory allocations (>10 MiB) trigger a separate malloc_large path that bypasses the randomization logic; the current prototype leaves this path untouched, acknowledging a potential attack surface. Attempts to randomize the stack pointer earlier in the thread constructor caused memory corruption bugs and were abandoned. Future work is outlined to extend randomization to the heap, to safely handle large allocations, and to explore alternative PRNGs (e.g., ChaCha20, AES‑CTR) that may offer stronger entropy or lower overhead.

In conclusion, the study demonstrates that a modest code addition can endow OSv unikernels with ASLR‑like defenses without compromising boot speed, runtime efficiency, or memory footprint. The generated addresses are shown to be uniformly distributed, and the approach respects the minimalist philosophy of unikernels. This work provides a practical blueprint for integrating lightweight security mitigations into other unikernel platforms, thereby enhancing their suitability for security‑sensitive cloud services while preserving the performance advantages that originally motivated their adoption.
