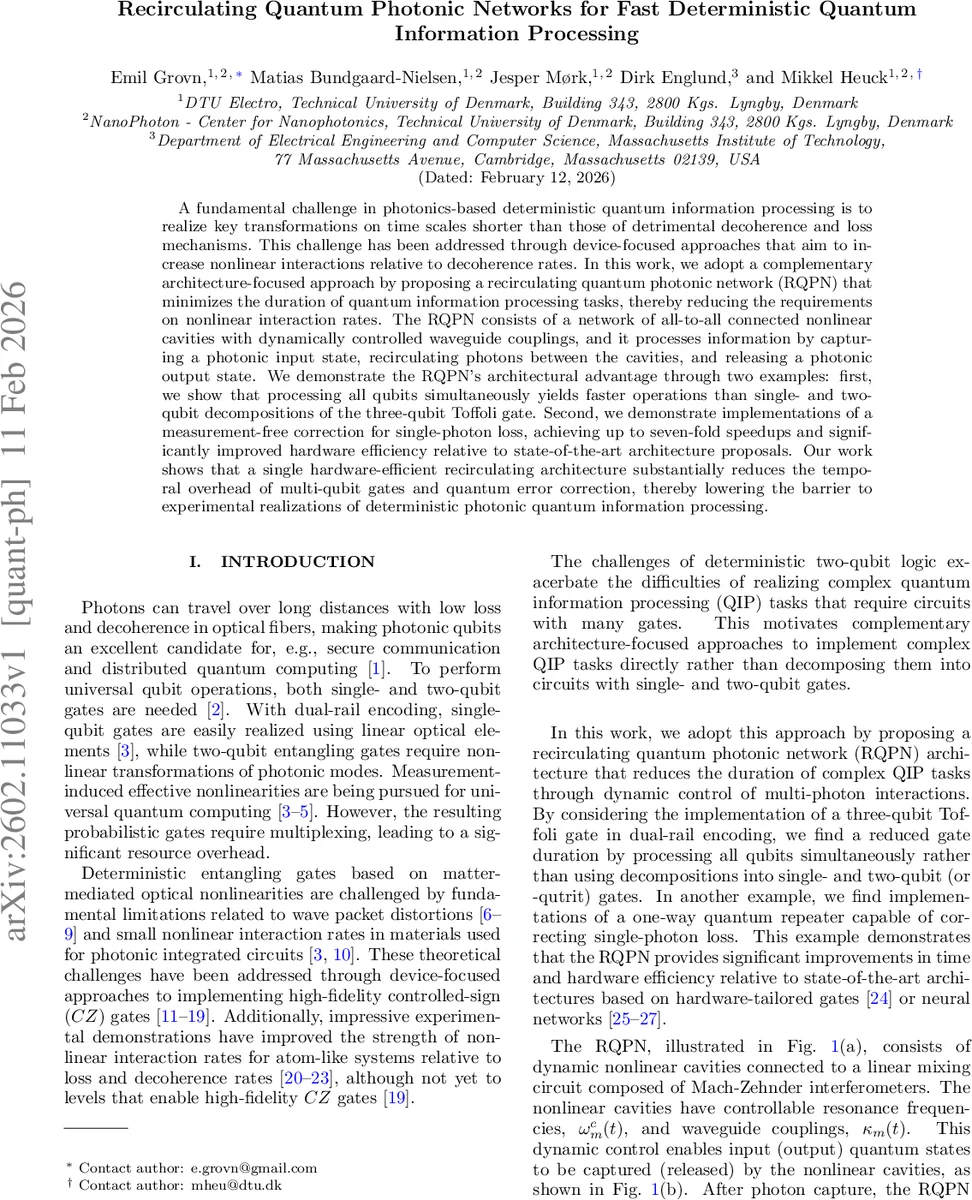

Recirculating Quantum Photonic Networks for Fast Deterministic Quantum Information Processing

A fundamental challenge in photonics-based deterministic quantum information processing is to realize key transformations on time scales shorter than those of detrimental decoherence and loss mechanisms. This challenge has been addressed through device-focused approaches that aim to increase nonlinear interactions relative to decoherence rates. In this work, we adopt a complementary architecture-focused approach by proposing a recirculating quantum photonic network (RQPN) that minimizes the duration of quantum information processing tasks, thereby reducing the requirements on nonlinear interaction rates. The RQPN consists of a network of all-to-all connected nonlinear cavities with dynamically controlled waveguide couplings, and it processes information by capturing a photonic input state, recirculating photons between the cavities, and releasing a photonic output state. We demonstrate the RQPN’s architectural advantage through two examples: first, we show that processing all qubits simultaneously yields faster operations than single- and two-qubit decompositions of the three-qubit Toffoli gate. Second, we demonstrate implementations of a measurement-free correction for single-photon loss, achieving up to seven-fold speedups and significantly improved hardware efficiency relative to state-of-the-art architecture proposals. Our work shows that a single hardware-efficient recirculating architecture substantially reduces the temporal overhead of multi-qubit gates and quantum error correction, thereby lowering the barrier to experimental realizations of deterministic photonic quantum information processing.

💡 Research Summary

The paper introduces a novel architecture for deterministic photonic quantum information processing called the Recirculating Quantum Photonic Network (RQPN). Unlike the prevailing “device‑centric” strategy that seeks ever‑stronger optical nonlinearities to outpace decoherence and loss, the authors adopt an “architecture‑centric” approach: they minimize the total processing time of a quantum task, thereby relaxing the required nonlinear interaction rates.

An RQPN consists of M nonlinear cavities whose resonance frequencies ωcₘ(t) and waveguide coupling rates κₘ(t) can be dynamically tuned. The cavities are linked by an all‑to‑all linear mixing circuit built from Mach‑Zehnder interferometers; the coupling matrix C, derived from the scattering matrix of the mesh, can be programmed to realize any unitary mixing among the cavity modes. Using the SLH formalism, the authors model the system as a set of localized quantum degrees of freedom coupled to broadband bosonic baths, leading to a time‑dependent Hamiltonian
H(t)=∑ₘ ħδcₘ(t) aₘ†aₘ + ħ∑ₙₘ Cₙₘ κₙ*(t)κₘ(t) aₙ†aₘ + H_NL,
where H_NL is either a self‑phase‑modulation (SPM) term χ³ a†²a² or a Jaynes‑Cummings interaction g(σ a†+σ† a) with controllable two‑level emitters (TLEs).

The operational cycle has three stages. First, an input photonic state is captured by opening the cavity‑waveguide mirrors (fast routers). Second, the network is switched to a recirculating configuration: the mirrors close, photons bounce among all cavities under the optimized time‑dependent controls, and the desired multi‑photon unitary transformation is enacted. Third, the output mirrors open to release the processed state. Capture and release are assumed instantaneous relative to the nonlinear interaction time, allowing the authors to focus solely on the recirculating dynamics.

To evaluate the architecture, the authors formulate a numerical optimal‑control problem. Controls (κₘ, δcₘ, δeₘ, and the elements of C) are discretized into piecewise‑constant bins; the evolution for each bin is computed with the open‑source Dynamiqs library (JAX‑backed). An Adam gradient‑descent optimizer minimizes a cost function that penalizes infidelity I (average overlap error over a set of input‑output state pairs) and, optionally, large control bandwidths. The process duration T is expressed in units of the inverse nonlinear rate, T = T_η/Γ_NL, so that minimizing the dimensionless T_η directly reduces the required Γ_NL/γ_decoherence ratio.

Two benchmark tasks illustrate the RQPN’s advantage.

1. Three‑qubit Toffoli gate (dual‑rail encoding).
   Standard decompositions use single‑qubit linear gates (negligible time) plus two‑qubit controlled‑Z (CZ) gates, each limited by χ³. The minimal CZ count is six, giving a total time ≈4.64/χ³. If an extra optical mode is introduced, a qubit‑qutrit CZ can replace pairs of CZs, reducing the count to three and the time to ≈2.67/χ³. The authors numerically find that a direct RQPN implementation, where all three photons occupy six modes simultaneously, achieves a Toffoli duration of roughly 2.0–2.2/χ³—about a factor of two faster than the best decomposition. This translates into a ≈30 % reduction in the required nonlinear strength.

2. Measurement‑free single‑photon loss correction (one‑way repeater).
   Conventional repeaters detect loss, store the remaining photons, and later retransmit, incurring large latency (tens of χ⁻¹). The RQPN design embeds the correction directly in the recirculating phase: when a photon is lost, the nonlinear interaction in the cavities automatically restores the logical state without any measurement. Using either SPM or TLE‑mediated nonlinearity, the optimized protocol reduces the correction time to ≈0.14 χ⁻¹, a seven‑fold speedup over prior architectures, while also cutting the required number of auxiliary components.

The paper discusses practical implementation considerations. Fast optical routers (electro‑optic or MEMS switches) can realize the capture/release versus recirculating switching on sub‑nanosecond timescales. High‑Q nonlinear cavities are already demonstrated in silicon photonics, superconducting circuits, and atom‑integrated platforms, providing χ³ or g values compatible with the required Γ_NL. Propagation delays in the mixing circuit are assumed negligible; the authors note that for larger meshes or slower controls, explicit field‑propagation models would be needed, suggesting future work on matrix‑product‑state or other scalable simulation techniques.

In summary, the RQPN framework shows that by treating a multi‑photon processor as a single, globally controlled quantum system, one can dramatically shorten gate times and lower the nonlinear interaction threshold. This architectural perspective opens a realistic pathway toward deterministic photonic quantum computing and error‑corrected communication, potentially accelerating experimental demonstrations in the near term.
