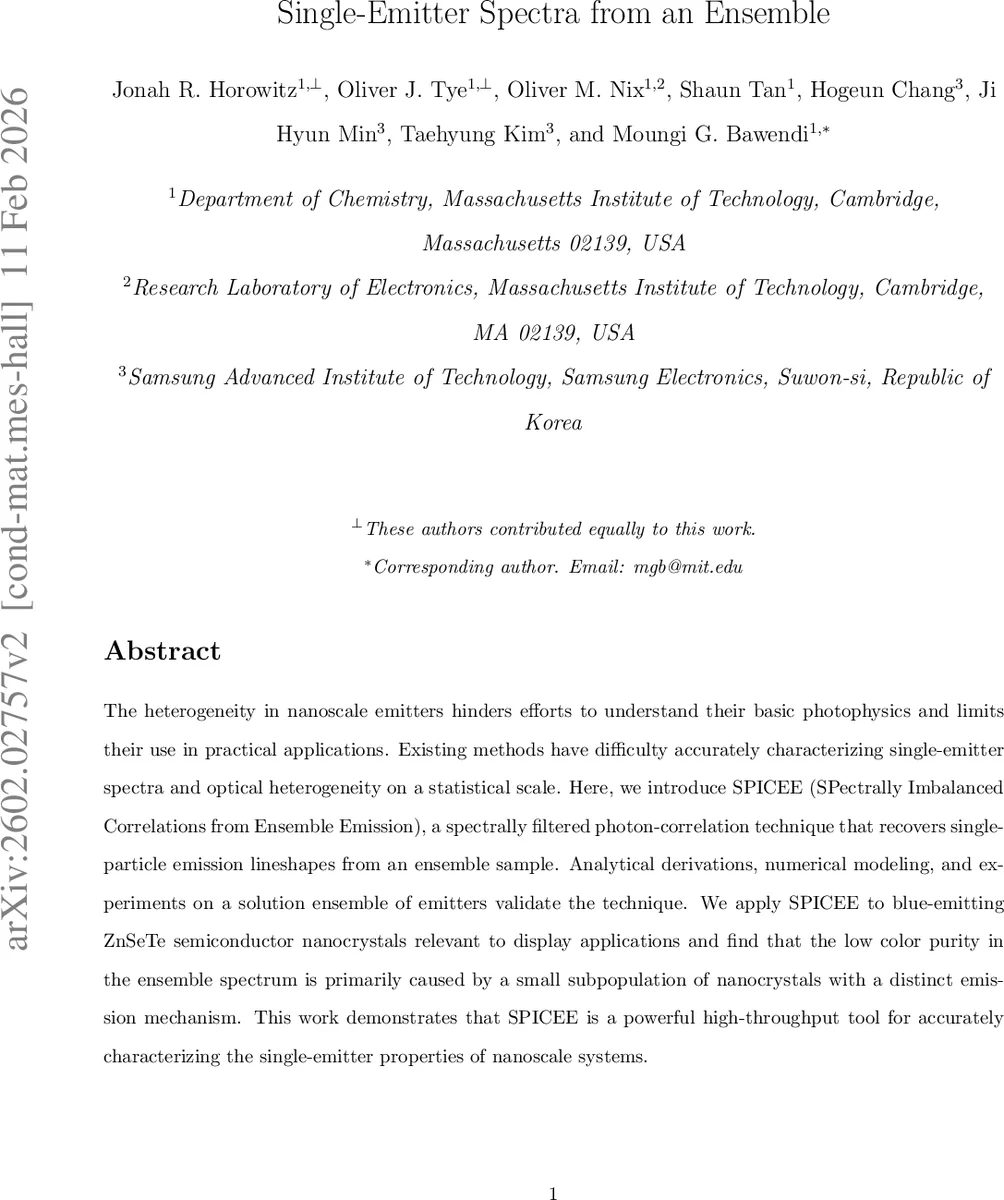

Single-Emitter Spectra from an Ensemble

The heterogeneity in nanoscale emitters hinders efforts to understand their basic photophysics and limits their use in practical applications. Existing methods have difficulty accurately characterizing single-emitter spectra and optical heterogeneity on a statistical scale. Here, we introduce SPICEE (SPectrally Imbalanced Correlations from Ensemble Emission), a spectrally filtered photon-correlation technique that recovers single-particle emission lineshapes from an ensemble sample. Analytical derivations, numerical modeling, and experiments on a solution ensemble of emitters validate the technique. We apply SPICEE to blue-emitting ZnSeTe semiconductor nanocrystals relevant to display applications and find that the low color purity in the ensemble spectrum is primarily caused by a small subpopulation of nanocrystals with a distinct emission mechanism. This work demonstrates that SPICEE is a powerful high-throughput tool for accurately characterizing the single-emitter properties of nanoscale systems.

💡 Research Summary

The authors address a fundamental challenge in nanophotonics: the optical heterogeneity of nanoscale emitters broadens ensemble spectra and obscures the intrinsic photophysics of individual particles. Conventional single‑particle spectroscopy requires spatial isolation, long acquisition times, and can induce photodamage, while ensemble‑level nonlinear or correlation techniques typically lose detailed spectral information and only provide averaged properties. To overcome these limitations, the paper introduces SPICEE (Spectrally Imbalanced Correlations from Ensemble Emission), a novel photon‑correlation method that extracts single‑emitter lineshapes from an ensemble without the need for single‑particle isolation.

In SPICEE, a low‑intensity excitation beam illuminates emitters diffusing through a confocal focal volume (similar to fluorescence correlation spectroscopy). The emitted light is split by a 50:50 beamsplitter and directed to two single‑photon avalanche diodes (SPADs), each preceded by an independently tunable band‑pass filter. By scanning the central wavelengths of the two filters across the ensemble emission, the authors record the intensity cross‑correlation function g×(τ). The key theoretical result (Equation 1) shows that the short‑time limit g×(τ→0) is proportional to a ratio of integrals involving the single‑emitter spectrum sμ(ω), the population distribution of peak energies P(μ), and the filter transmission functions fA(ω) and fB(ω). Physically, this ratio represents the probability that two photons from the same emitter pass through both filters versus the probability that two photons from different emitters do so. Consequently, the height of g×(0) is highly sensitive to the overlap of the two filter windows with the underlying single‑emitter lineshape, and it encodes information about linewidth, asymmetry, and any energy‑dependent evolution of the spectrum.

The authors validate the theory with extensive numerical simulations. First, they model a system where all emitters share an identical asymmetric lineshape but differ in peak energy, producing a broadened ensemble spectrum. By generating a 10 × 10 grid of filter combinations and computing g×(0) for each, they demonstrate that fitting the grid with Equation 1 accurately recovers both the single‑emitter lineshape and the Gaussian distribution of peak energies. Second, they compare two hypothetical ensembles that have the same overall spectrum but differ in the intrinsic linewidth of individual emitters (narrow vs. broad). The simulated g×(0) grids are clearly distinct, confirming that SPICEE can discriminate between these scenarios. Finally, they simulate a case where the emitter linewidth varies systematically with peak energy; fitting the simulated data again retrieves the correct energy‑dependent linewidth, proving that SPICEE can resolve such evolution.

Experimentally, the technique is applied to a solution of InP/ZnSe/ZnS core‑shell‑shell nanocrystals (NCs). The ensemble photoluminescence (PL) peaks at 624 nm with a full width at half maximum (FWHM) of 35 nm (≈110 meV) and a quantum yield of 80 %. Using ten red and ten blue tunable filters, the authors acquire a full 10 × 10 g×(τ) matrix, extract the short‑time amplitudes, and fit them with a double‑Gaussian model for the single‑NC spectrum and a single Gaussian for the population distribution. Monte‑Carlo error analysis yields a most‑likely single‑NC linewidth of 58 meV and a slight red tail (average shift –8.6 meV), consistent with previous single‑particle studies. To benchmark SPICEE, they perform solution photon‑correlation Fourier spectroscopy (sPCFS) on the same sample, which provides the symmetrized spectral correlation of the single‑emitter spectrum. The spectral correlation derived from the SPICEE‑fitted spectrum matches the sPCFS result with a FWHM difference of only ~3 meV, confirming the accuracy and reliability of SPICEE.

The method is then applied to a technologically relevant system: ZnSeTe‑based blue‑emitting NCs (core‑shell‑shell ZnSeTe/ZnSe/ZnS). These NCs exhibit a PL peak at 443 nm with a relatively narrow ensemble FWHM of 100 meV, yet their color purity is limited, a problem attributed to Te‑induced defects, non‑uniform doping, or mid‑gap trap states. SPICEE analysis reveals that while the overall heterogeneity (population FWHM ≈ 93 meV) accounts for a substantial part of the ensemble broadening, a small subpopulation of emitters displays a distinctly broader lineshape and a modest red shift. This subpopulation likely corresponds to NCs where Te atoms create localized hole traps or lattice defects, providing a direct spectroscopic signature of the mechanisms that degrade color purity. By pinpointing these outliers, SPICEE offers actionable insight for synthetic optimization and device engineering.

In summary, SPICEE delivers a high‑throughput, statistically robust pathway to retrieve single‑emitter spectra and population distributions from ensemble measurements. Its advantages include: (i) avoidance of single‑particle isolation and associated photodamage; (ii) simultaneous extraction of linewidth, asymmetry, and energy‑dependent spectral evolution; (iii) compatibility with solution, solid‑state, and potentially low‑temperature or scattering‑based implementations; and (iv) validation against an independent interferometric technique (sPCFS). Limitations involve the need for precise calibration of filter transmission functions and potential complications when rapid spectral diffusion occurs on timescales comparable to the diffusion time through the focal volume. Future extensions could target solid‑state thin films, quantum emitters in photonic structures, or fluorescent proteins, making SPICEE a versatile tool for the broader nanophotonics and materials community.
