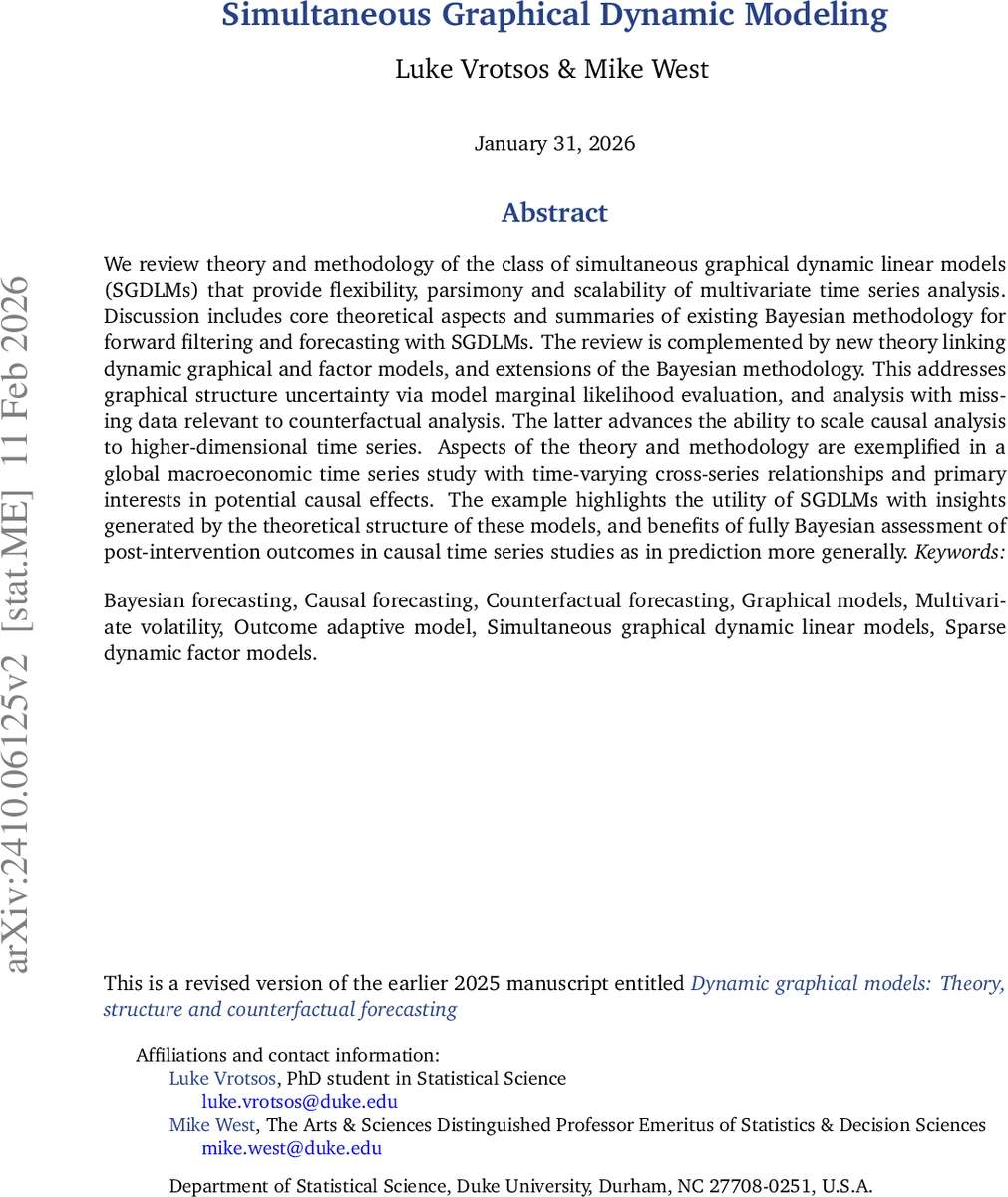

Simultaneous Graphical Dynamic Modeling

We review theory and methodology of the class of simultaneous graphical dynamic linear models (SGDLMs) that provide flexibility, parsimony and scalability of multivariate time series analysis. Discussion includes core theoretical aspects and summaries of existing Bayesian methodology for forward filtering and forecasting with SGDLMs. The review is complemented by new theory linking dynamic graphical and factor models, and extensions of the Bayesian methodology. This addresses graphical structure uncertainty via model marginal likelihood evaluation, and analysis with missing data relevant to counterfactual analysis. The latter advances the ability to scale causal analysis to higher-dimensional time series. Aspects of the theory and methodology are exemplified in a global macroeconomic time series study with time-varying cross-series relationships and primary interests in potential causal effects. The example highlights the utility of SGDLMs with insights generated by the theoretical structure of these models, and benefits of fully Bayesian assessment of post-intervention outcomes in causal time series studies as in prediction more generally.

💡 Research Summary

This paper provides a comprehensive review and extension of Simultaneous Graphical Dynamic Linear Models (SGDLMs), a class of multivariate time‑series models that combine the flexibility of graphical representations with the scalability of dynamic linear models. The authors first formalize the basic structure: for a q‑dimensional observation vector yₜ, the model is (I − Γₜ) yₜ = μₜ + νₜ, where νₜ ∼ N(0,Λₜ⁻¹). The matrix Γₜ is sparse, has zero diagonal, and encodes simultaneous parent‑child relationships among series; Λₜ is diagonal with time‑varying residual precisions. When I − Γₜ is nonsingular, yₜ follows a multivariate normal distribution with mean αₜ = (I − Γₜ)⁻¹μₜ and precision Ωₜ = (I − Γₜ)′Λₜ(I − Γₜ). The authors show that αₜ can be expressed as an infinite series of “spill‑over” terms, illustrating how a change in one series propagates through successive generations of parents.

A key contribution is the explicit link between the graphical structure and conditional independence. Non‑zero off‑diagonal elements of Ωₜ arise either from direct parent‑child links or from “moralizing” edges created when two series share a common child. Thus the sparsity pattern of Ωₜ directly reflects the underlying directed graph, providing a clear probabilistic interpretation of the graph’s edges.

The paper then uncovers an implicit dynamic factor model hidden within any SGDLM. By applying singular‑value decomposition Γₜ = Lₜ Dₜ Sₜ, the authors obtain a factor‑loading matrix Lₜ, a diagonal matrix of singular values Dₜ, and a score matrix Sₜ. The model can be rewritten as yₜ = μₜ + Lₜ ηₜ + νₜ with ηₜ = Dₜ Sₜ yₜ. Unlike traditional factor models that impose orthogonal factors, the factors here are generally correlated, and they may also be correlated with the residuals νₜ. The number of factors p equals the rank of Γₜ (or a reduced rank identified from the graph), and the sparsity of Lₜ and Sₜ is inherited from the sparsity of Γₜ. This dual representation unifies graphical modeling and dimensionality reduction, allowing practitioners to interpret the fitted model both in terms of direct network connections and latent common drivers.

For inference, each series is modeled as a univariate Dynamic Linear Model (DLM) with observation equation y_{j,t}=F_{j,t}′θ_{j,t}+ν_{j,t} and state evolution θ_{j,t}=G_{j,t}θ_{j,t‑1}+ω_{j,t}. The regression vector F_{j,t} contains both external covariates and the contemporaneous values of the series in sp(j), the parent set defined by Γₜ. The authors adopt a “decouple/recouple” strategy: conditional on past data D_{t‑1}, the joint prior over all series factorizes into independent normal‑gamma (NG) priors for (θ_{j,t},λ_{j,t}). Updating proceeds via standard conjugate NG posterior formulas for each series, after which the series are recoupled to obtain a joint posterior over Θₜ and Λₜ. Importance sampling and variational Bayes steps are used to maintain tractability and to propagate uncertainty efficiently. This approach avoids costly batch MCMC while preserving exactness for the univariate components.

Two methodological extensions are introduced. First, the marginal likelihood of a given Γₜ structure can be computed analytically, enabling Bayesian model comparison and automatic selection of sparse parent sets. Second, the framework accommodates missing observations by treating them as latent variables; the model can be run with partially observed data, producing posterior predictive distributions that serve as counterfactual forecasts. This capability is crucial for causal analysis, where one wishes to estimate what would have happened in the absence of an intervention.

The authors illustrate the methodology on a global macro‑economic panel comprising roughly 30 countries and 30 variables (GDP, inflation, interest rates, etc.). By estimating a time‑varying Γₜ, they uncover periods where cross‑country linkages intensify (e.g., during the 2020 pandemic) and where certain variables become dominant parents. The factor decomposition reveals a small number of latent drivers that align with known macro‑economic shocks. Counterfactual experiments—such as removing a sudden interest‑rate hike in the United States—show how the model propagates the intervention through the network, yielding credible intervals for post‑intervention outcomes across all countries. The results demonstrate that SGDLMs capture both the dynamic network topology and the latent factor structure, leading to more accurate forecasts and richer causal interpretations than traditional VAR or static factor models.

In summary, the paper makes three major contributions: (1) a rigorous theoretical bridge between simultaneous graphical models and dynamic factor models; (2) an efficient Bayesian filtering and forecasting algorithm that handles model uncertainty, missing data, and counterfactual analysis; and (3) a compelling empirical application that validates the approach on high‑dimensional, real‑world time series. The work opens avenues for further research on non‑linear extensions, non‑Gaussian errors, and real‑time deployment in finance, economics, and other domains where understanding evolving interdependencies is essential.
