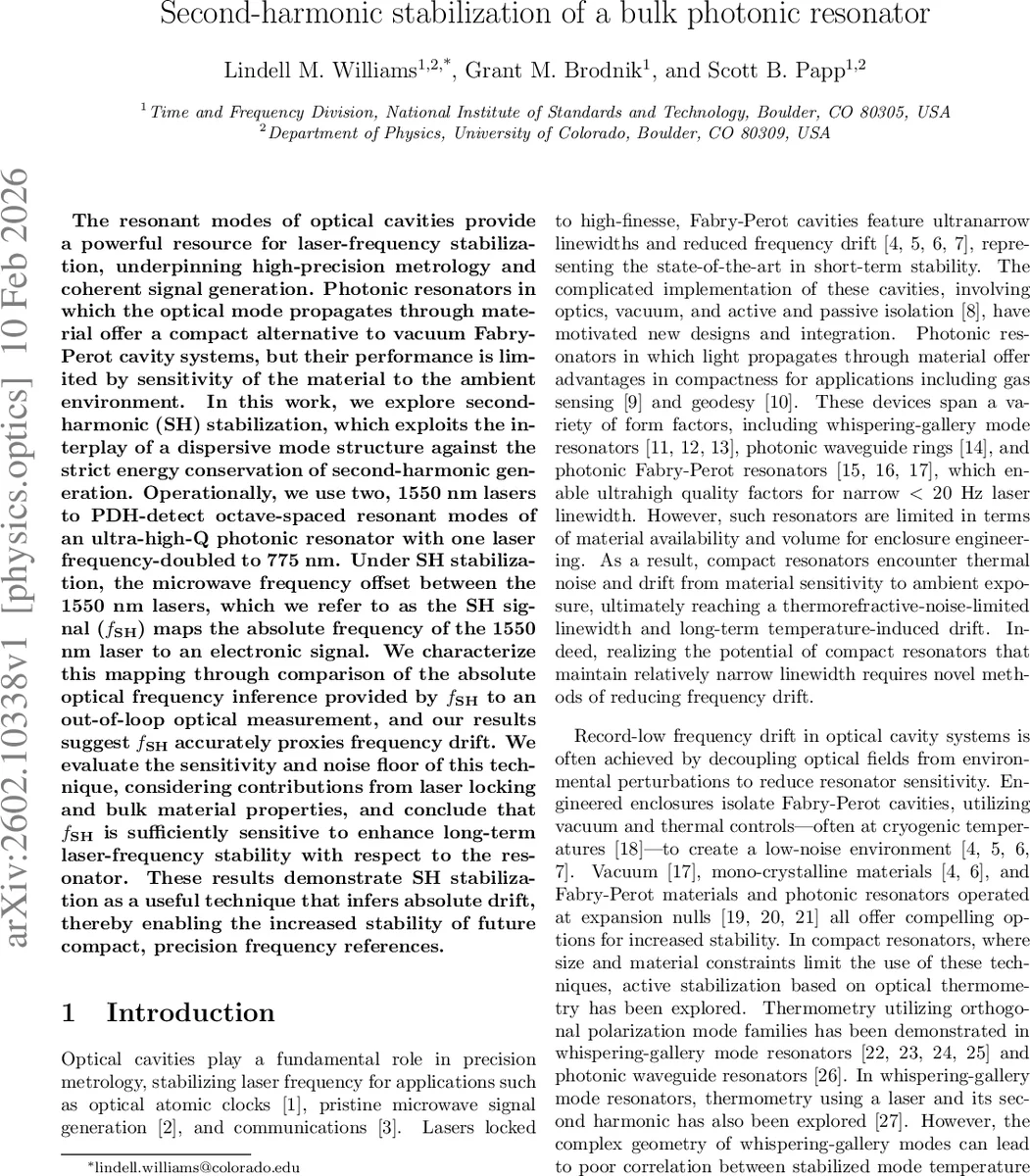

Second-harmonic stabilization of a bulk photonic resonator

The resonant modes of optical cavities provide a powerful resource for laser-frequency stabilization, underpinning high-precision metrology and coherent signal generation. Photonic resonators in which the optical mode propagates through material offer a compact alternative to vacuum Fabry-Perot cavity systems, but their performance is limited by sensitivity of the material to the ambient environment. In this work, we explore second-harmonic (SH) stabilization, which exploits the interplay of a dispersive mode structure against the strict energy conservation of second-harmonic generation. Operationally, we use two, 1550 nm lasers to PDH-detect octave-spaced resonant modes of an ultra-high-Q photonic resonator with one laser frequency-doubled to 775 nm. Under SH stabilization, the microwave frequency offset between the 1550 nm lasers, which we refer to as the SH signal ($f_{SH}$) maps the absolute frequency of the 1550 nm laser to an electronic signal. We characterize this mapping through comparison of the absolute optical frequency inference provided by $f_{SH}$ to an out-of-loop optical measurement, and our results suggest $f_{SH}$ accurately proxies frequency drift. We evaluate the sensitivity and noise floor of this technique, considering contributions from laser locking and bulk material properties, and conclude that $f_{SH}$ is sufficiently sensitive to enhance long-term laser-frequency stability with respect to the resonator. These results demonstrate SH stabilization as a useful technique that infers absolute drift, thereby enabling the increased stability of future compact, precision frequency references.

💡 Research Summary

The authors present a novel “second‑harmonic (SH) stabilization” technique for an ultra‑high‑Q bulk photonic resonator and demonstrate its ability to infer long‑term laser frequency drift with Hz‑per‑second precision. The work addresses a key challenge in compact optical references: while material‑based photonic resonators (e.g., whispering‑gallery or Fabry‑Perot cavities made from fused silica) can achieve sub‑20 Hz linewidths, they are intrinsically sensitive to ambient temperature, pressure, and mechanical perturbations, leading to thermorefractive‑limited drift over long timescales. Traditional solutions rely on bulky vacuum enclosures, cryogenic operation, or monocrystalline materials, which defeat the purpose of miniaturization.

The SH stabilization concept exploits the fact that a resonator’s dispersive mode structure uniquely links a fundamental mode (frequency ν₁ at 1550 nm) with its nearest second‑harmonic mode (ν₂ ≈ 2 ν₁ at 775 nm). By locking two independent lasers to these two modes using Pound‑Drever‑Hall (PDH) techniques—one laser directly at ν₁, the other frequency‑doubled via a periodically poled lithium‑niobate (PPLN) waveguide and then PDH‑locked at ν₂—the authors generate a microwave beat note f_SH = ν₁ − ν₂⁄2. Because f_SH is a function of the resonator’s refractive index n(ν) and its thermo‑optic coefficient, any change in the resonator’s absolute frequency (Δν₁) translates linearly into a measurable change in f_SH (Δf_SH = (df_SH/dν₁) Δν₁). The proportionality factor df_SH/dν₁ is derived analytically (Eq. 1) and depends only on material parameters and mode numbers.

Experimentally, a 2.54 cm monolithic fused‑silica Fabry‑Perot cavity (Q ≈ 10⁹) is housed in a Teflon enclosure with passive vibration isolation and active PID‑controlled heating set 15 °C above ambient. A commercial 1550 nm laser (drift ≈ 0.1 Hz s⁻¹) serves as an out‑of‑loop reference. The authors calibrate the scaling factor between f_SH fluctuations and absolute frequency fluctuations by simultaneously recording f_SH and the heterodyne beat between the locked laser and the reference. The best fit yields Δf_SH = (−48.7) Δν₁, in excellent agreement with theoretical predictions based on the Sellmeier equation for fused silica and known thermo‑optic coefficients.

Noise analysis shows that the f_SH spectrum contains the quadrature sum of the two PDH‑locked lasers’ white frequency noise (≈ 0.4 Hz² Hz⁻¹) and the resonator’s thermorefractive noise (10⁰–10¹ Hz² Hz⁻¹) at offsets of 10²–10³ Hz. After scaling by the calibration factor, the effective noise floor for inferred ν₁ is ≈ 10³ Hz² Hz⁻¹, which limits the ability to resolve sub‑Hz short‑term fluctuations but is sufficient for long‑term drift monitoring. The dominant systematic error originates from residual amplitude modulation (RAM) in the PDH loops, which introduces slow bias drifts as the phase‑modulators and polarization‑maintaining fibers experience temperature changes. This RAM‑induced drift manifests as a few‑Hz‑per‑second offset in the inferred frequency, as confirmed by measurements over 4 000 s (actual drift 6.5 kHz s⁻¹, inferred drift error −2.3 Hz s⁻¹) and over 10 000 s (residual errors 3–7 Hz s⁻¹).

The authors conclude that, despite the RAM limitation, SH stabilization provides a robust, compact proxy for absolute frequency drift without requiring an external frequency comb or atomic reference. The technique leverages intrinsic material properties, enabling drift inference at the Hz s⁻¹ level—approximately three orders of magnitude improvement over the free‑running resonator. Future work should focus on eliminating RAM (e.g., via balanced detection or active RAM cancellation), reducing electronic flicker noise, and extending the model to include pressure, humidity, and vibration couplings. With these refinements, SH stabilization could become a key enabling technology for portable optical clocks, low‑phase‑noise microwave generation, and field‑deployable precision metrology systems.
