Device Applications of Heterogeneously Integrated Strain-Switched Ferrimagnets/Topological Insulator/Piezoelectric Stacks

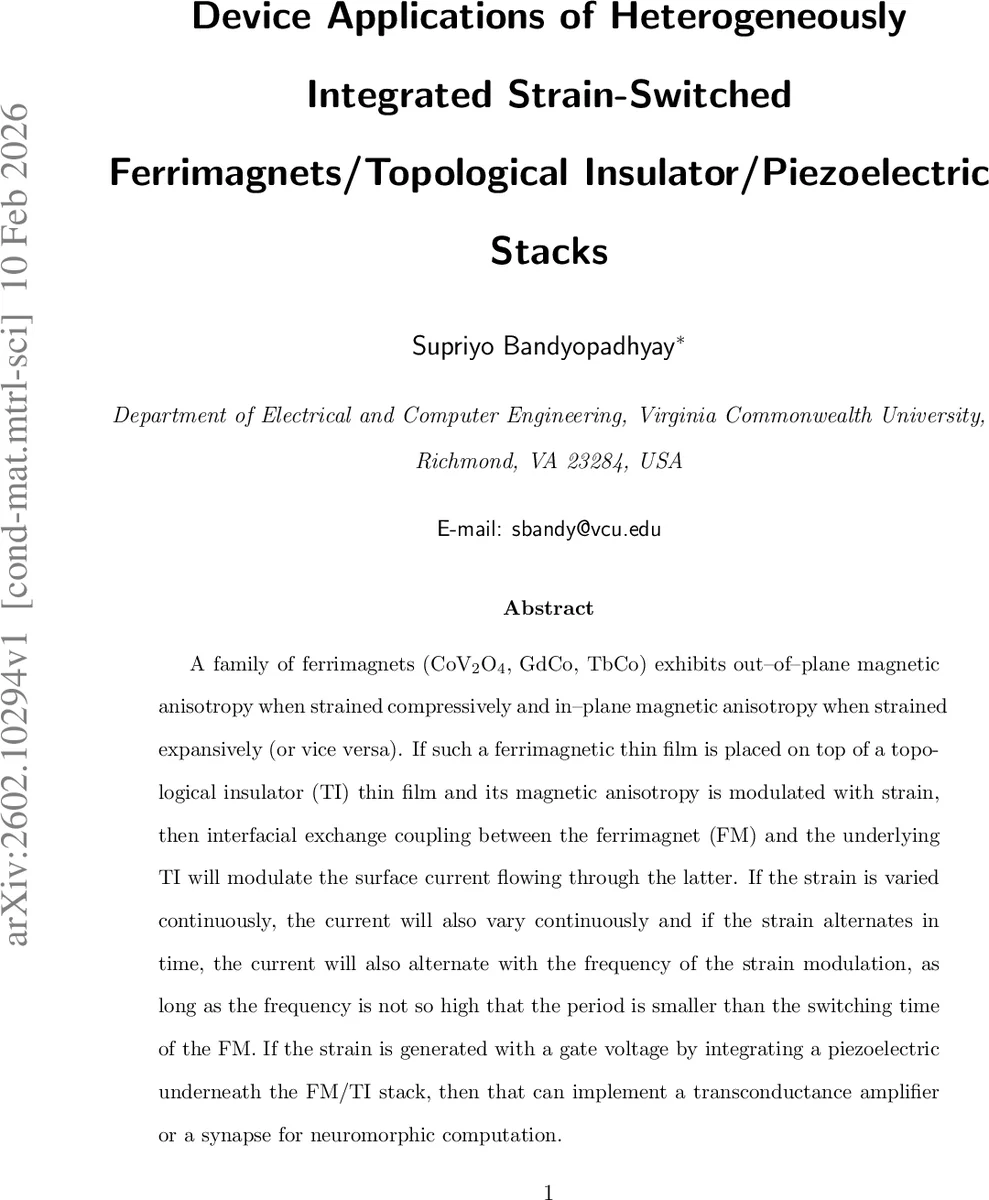

A family of ferrimagnets (CoV2O4, GdCo, TbCo) exhibits out-of-plane magnetic anisotropy when strained compressively and in-plane magnetic anisotropy when strained expansively (or vice versa). If such a ferrimagnetic thin film is placed on top of a topological insulator (TI) thin film and its magnetic anisotropy is modulated with strain, then interfacial exchange coupling between the ferrimagnet (FM) and the underlying TI will modulate the surface current flowing through the latter. If the strain is varied continuously, the current will also vary continuously and if the strain alternates in time, the current will also alternate with the frequency of the strain modulation, as long as the frequency is not so high that the period is smaller than the switching time of the FM. If the strain is generated with a gate voltage by integrating a piezoelectric underneath the FM/TI stack, then that can implement a transconductance amplifier or a synapse for neuromorphic computation.

💡 Research Summary

The paper proposes a heterogeneously integrated three‑layer stack—piezoelectric substrate, a ferrimagnetic thin film (CoV₂O₄, GdCo, or TbCo), and a topological insulator (TI)—as a versatile platform for analog and neuromorphic electronics. The central physical mechanism is strain‑mediated magnetic anisotropy switching in the ferrimagnet. When a compressive strain is applied, the ferrimagnet’s easy axis aligns out‑of‑plane (OOP); under tensile strain it rotates in‑plane (IP), or vice‑versa depending on material specifics. This anisotropy reversal modifies the interfacial exchange coupling with the adjacent TI, breaking time‑reversal symmetry at the TI surface and opening or closing a Dirac‑gap. Consequently, the surface conductance of the TI can be tuned continuously, and the direction of the source‑drain current can even reverse when the strain polarity changes.

Strain is generated electrically by a poled piezoelectric layer beneath the TI. Applying a gate voltage V_G between two shorted contacts on the piezo surface creates a biaxial strain field: compressive along the line joining the contacts and tensile perpendicular to it. Reversing the voltage polarity flips the sign of both strain components, thereby toggling the ferrimagnet’s anisotropy. Because the piezoelectric response is strong, only a few millivolts of V_G are required to produce sufficient strain (8–10 mV reported), leading to extremely low‑power operation.

Two device functionalities are outlined. First, by sweeping V_G continuously from positive to negative, the TI current I_SD follows a smooth, monotonic transfer curve, realizing a transconductance amplifier where V_G is the input and I_SD the output. The ferrimagnet’s ability to change current polarity makes this a true transconductance device, unlike earlier ferromagnet‑based proposals where polarity remained fixed. Second, a static V_G sets a fixed anisotropy state, fixing the TI resistance; varying V_G then adjusts the resistance, providing a voltage‑controlled synaptic weight for neuromorphic circuits.

The authors discuss material considerations. CoV₂O₄ exhibits ferrimagnetism only below ~150 K and has modest saturation magnetization, limiting its practical use. GdCo and TbCo retain ferrimagnetic order at room temperature with higher magnetization, making them more suitable. The TI layer is kept ultrathin (5–10 nm) to ensure strong exchange coupling while preserving surface transport. Modeling the device requires solving the Landau‑Lifshitz‑Gilbert‑Langevin equation for the ferrimagnet dynamics and employing non‑equilibrium Green’s function (NEGF) techniques for charge transport in the TI. Reported experimental switching times for similar FM/TI stacks are sub‑nanosecond, implying that the strain‑mediated approach could support GHz‑range modulation, provided the mechanical response of the piezo does not become the bottleneck.

Key advantages highlighted include (i) ultra‑low gate voltage and energy consumption, (ii) large transconductance with sub‑Boltzmann subthreshold slope, (iii) the ability to reverse current polarity, and (iv) compatibility with existing CMOS‑compatible piezoelectric materials. Challenges remain in (a) ensuring efficient strain transfer across the TI, (b) mitigating fatigue and reliability issues in the piezoelectric layer under repeated cycling, (c) maintaining high‑quality interfaces to avoid scattering that would degrade TI surface conduction, and (d) scaling the fabrication process for large‑area integration.

In the broader context, the work demonstrates how quantum materials such as topological insulators and Weyl semimetals can be harnessed in functional devices beyond pure research, by coupling them to strain‑engineered magnetic layers. The proposed stack opens a pathway toward low‑power analog signal processing, high‑speed transconductance amplification, and programmable synaptic elements for emerging neuromorphic hardware. Future research directions include detailed micromagnetic simulations of the strain‑induced anisotropy dynamics, experimental validation of the continuous current modulation, and integration of multiple stacks into larger circuits to assess system‑level performance.
