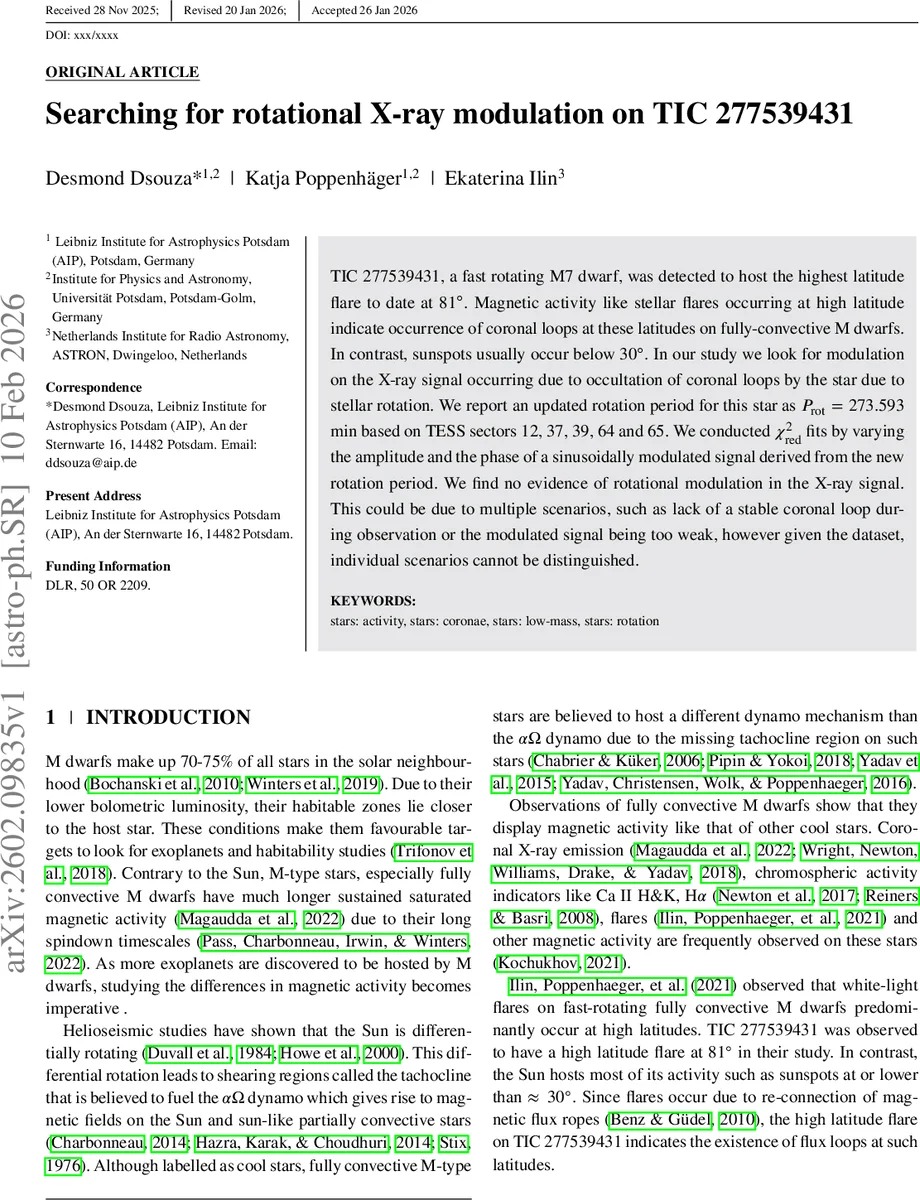

Searching for rotational X-ray modulation on TIC 277539431

TIC 277539431, a fast rotating M7 dwarf, was detected to host the highest latitude flare to date at $81^\circ$. Magnetic activity like stellar flares occurring at high latitude indicate occurrence of coronal loops at these latitudes on fully-convective M dwarfs. In contrast, sunspots usually occur below $30^\circ$. In our study we look for modulation on the X-ray signal occurring due to occultation of coronal loops by the star due to stellar rotation. We report an updated rotation period for this star as $P_{\text{rot}}=273.593$ min based on TESS sectors 12, 37, 39, 64 and 65. We conducted $χ^2_{\textrm{red}}$ fits by varying the amplitude and the phase of a sinusoidally modulated signal derived from the new rotation period. We find no evidence of rotational modulation in the X-ray signal. This could be due to multiple scenarios, such as lack of a stable coronal loop during observation or the modulated signal being too weak, however given the dataset, individual scenarios cannot be distinguished.

💡 Research Summary

TIC 277539431 is a rapidly rotating M7 dwarf that has produced a flare at an unprecedented latitude of 81°, suggesting the presence of magnetic flux loops at high stellar latitudes on a fully convective star. The authors set out to test whether such high‑latitude coronal structures could be detected indirectly via rotational modulation of the star’s X‑ray emission, as the loops would be partially occulted during rotation.

First, they refined the star’s rotation period using all available TESS 2‑minute cadence data from sectors 12, 37, 39, 64, and 65, spanning four years. A Lomb‑Scargle periodogram of the combined light curves yields a peak at 273.593 minutes, slightly shorter than the previously reported 273.618 ± 0.007 min. The false‑alarm probability is ≤10⁻¹⁰, confirming a robust photometric period. The star’s inclination is near 87°, meaning the line of sight is almost equatorial.

The X‑ray dataset consists of a single XMM‑Newton observation taken on 5 August 2022, lasting 36 ks (≈2.2 stellar rotations). Using SAS 21.0.0, the authors extracted source and background events from the PN detector with a time bin of 407 s, producing 90 bins. A flare identified in the light curve (previously reported) was removed to focus on quiescent emission that could reveal a stable, high‑latitude loop.

To search for rotational modulation, they modeled the X‑ray light curve as a sinusoid:
f_model(t) = A sin(2πt/P_rot + φ) + μ,
where μ is the mean count rate, A the amplitude, and φ the phase offset relative to the optical modulation. They constructed a grid of models varying A from 0 to 0.0175 counts s⁻¹ in steps of 0.0025 and φ from 0° to 330° in 30° increments. For each model they computed the reduced chi‑square (χ²_red) using 90 data points and two free parameters (A, φ).

The best fit occurs for A = 0 counts s⁻¹, i.e., a flat line, with χ²_red = 1.34. All non‑zero‑amplitude models produce χ²_red values equal to or larger than this, indicating no statistically significant sinusoidal component. The authors therefore conclude that no rotational X‑ray modulation is detectable in the available data.

They discuss three plausible explanations: (1) the observation covers only ~2 rotations and the photon statistics for such a faint M7 dwarf are insufficient to detect a low‑amplitude signal; (2) during the observation there may have been no stable high‑latitude coronal loop, perhaps because the loop was disrupted by the flare or simply absent; (3) even if a large loop existed, the fractional occultation could be tiny, producing a modulation amplitude below the intrinsic variability (“quiescent corona noise”) of the star. The star’s rapid rotation places it deep in the saturated coronal regime, which can increase background variability and further mask subtle signals.

Given the limited dataset, the authors cannot discriminate among these scenarios. They highlight that future X‑ray observatories with substantially larger effective area, such as ESA’s upcoming Athena (or the proposed “NewAthena”), will improve sensitivity by an order of magnitude, making it feasible to detect rotational modulation even in low‑luminosity fully convective stars. They also suggest coordinated multi‑wavelength campaigns (simultaneous optical and X‑ray monitoring) and longer, continuous X‑ray exposures to increase phase coverage and photon counts.

In summary, the paper refines the rotation period of TIC 277539431, demonstrates a rigorous search for X‑ray rotational modulation, and finds none. The non‑detection is attributed to observational limitations and possible physical absence of a stable high‑latitude coronal structure during the observation. The work underscores the need for more sensitive X‑ray facilities and longer monitoring to probe coronal geometry on fully convective, fast‑rotating M dwarfs, which has implications for stellar magnetic dynamo theory and the habitability of planets orbiting such active stars.
