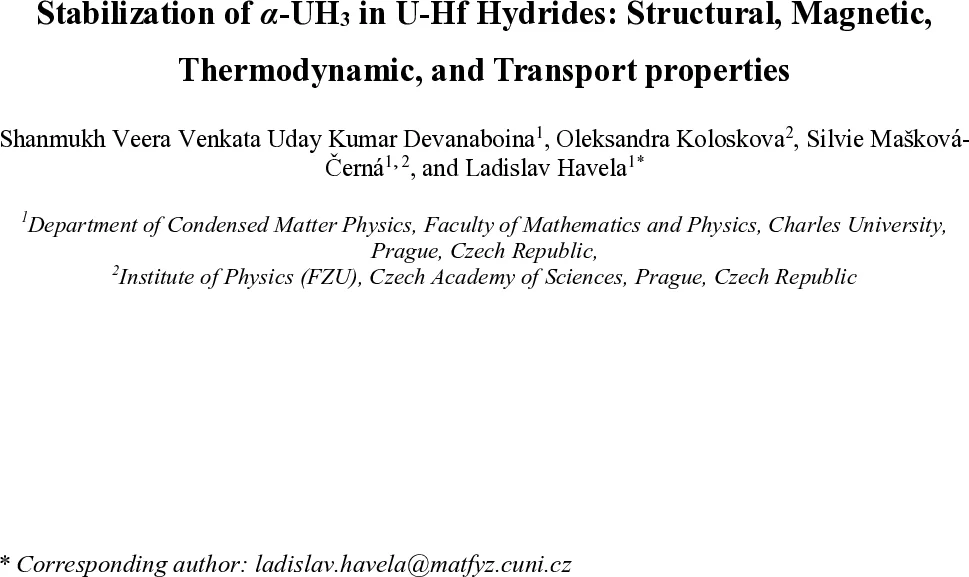

Stabilization of $α$-UH$_3$ in U-Hf Hydrides: Structural, Magnetic, Thermodynamic, and Transport Properties

Hf substitution stabilizes the metastable body-centered cubic (bcc) $α$-UH$3$ phase in uranium hydrides, enabling systematic measurements of its magnetic, thermodynamic, and transport properties. (UH$3$)${1-x}$Hf$x$ hydrides ($x = 0.10, 0.15, 0.30, 0.40$) were obtained by hydrogenation of U${1-x}$Hf$x$ precursor alloys. Powder X-ray diffraction shows a progressive suppression of $β$-UH$3$ phase with increasing $x$, with $α$-UH$3$ domination at $x = 0.30$ and $β$-UH$3$ nearly fully suppressed at $x = 0.40$. Magnetization measurements show ferromagnetic behavior for all compositions with Curie temperatures in the range $T\mathrm{C} \approx 178$–$185$ K and a maximum near $x = 0.15$; however, the spontaneous magnetization is strongly reduced with Hf content, decreasing from $1.0,μ\mathrm{B}$/U in pure $β$-UH$3$ to $0.46,μ\mathrm{B}$/U for (UH$3$)${0.60}$Hf${0.40}$. Specific-heat data show a broadened Curie anomaly in the $α$-UH$3$ rich hydride samples, consistent with a distribution of $T\mathrm{C}$ values arising from ferromagnetic inhomogeneities. Specific heat also reveals a monotonic decrease in the Sommerfeld coefficient with increasing Hf concentration, reflecting a reduction in the electronic density of states at the Fermi level, especially in (UH$3$)${0.60}$Hf${0.40}$. The resistivity of (UH$3$)${0.60}$Hf${0.40}$ is very large, exhibits a robust negative temperature coefficient over 2–300 K, and shows only weak magnetoresistance, placing transport in a strongly incoherent, disorder-dominated regime.

💡 Research Summary

**
The authors report a systematic study of uranium‑hafnium hydrides (UH₃)₁₋ₓHfₓ with x = 0.10, 0.15, 0.30, 0.40, aimed at stabilizing the metastable body‑centered‑cubic (bcc) α‑UH₃ phase, which is otherwise difficult to isolate because it rapidly transforms to the stable β‑UH₃ (Cr₃Si‑type) structure. Polycrystalline U₁₋ₓHfₓ alloys were prepared by arc‑melting under Ar, then hydrogenated in a high‑pressure reactor (initially 120 bar H₂, later standardized to 5 bar for reproducibility). The hydrogen uptake corresponds to roughly three H atoms per U atom, as confirmed by desorption experiments at 500 °C.

Powder X‑ray diffraction (Cu‑Kα, Rietveld refinement) shows that all hydrides retain a bcc lattice (a ≈ 416 pm), characteristic of α‑UH₃, while the intensity of β‑UH₃ reflections diminishes with increasing Hf content. At x = 0.30 the β‑phase is only a minor broad component; at x = 0.40 it is essentially absent, demonstrating that Hf acts analogously to Zr in suppressing β‑UH₃ and stabilizing α‑UH₃. A small amount of HfH₂ and trace HfC appear as impurity phases, more pronounced at the highest Hf concentration. Crystallite sizes derived from peak broadening lie in the nanometer regime, indicating a highly disordered microstructure.

Magnetic measurements performed with a SQUID magnetometer (2–300 K, 0–7 T) reveal ferromagnetic ordering in every composition. Zero‑field‑cooled (ZFC) and field‑cooled (FC) curves bifurcate below the Curie temperature, reflecting domain‑wall pinning and substitutional disorder introduced by Hf. The Curie temperature (TC) extracted from low‑field (0.05 T) M(T) inflection points ranges from 178 K (x = 0.10) to a maximum of 185 K at x = 0.15, then slightly decreases for higher Hf levels. Despite the relatively constant TC, the spontaneous magnetization per uranium atom (Ms) drops sharply with Hf: 1.0 μB/U in the nearly pure β‑UH₃ reference, 0.93 μB/U at x = 0.10, and only 0.46 μB/U at x = 0.40. This reduction is attributed not only to dilution of the magnetic U sublattice but also to a weakening of the effective 5f‑5f exchange caused by lattice expansion and reduced 5f‑6d hybridization. High‑field (6 T) magnetization curves confirm the same trend.

Specific‑heat measurements (PPMS, 0.5–300 K) show a broadened λ‑type anomaly near TC for the α‑rich samples, consistent with a distribution of transition temperatures arising from microscopic ferromagnetic inhomogeneities. The electronic Sommerfeld coefficient γ decreases monotonically with Hf content, from ≈30 mJ mol⁻¹ K⁻² at x = 0.10 to ≈12 mJ mol⁻¹ K⁻² at x = 0.40, indicating a substantial reduction of the density of states at the Fermi level. This trend mirrors the loss of itinerant 5f character as the lattice expands.

Electrical resistivity was measured on the x = 0.40 specimen, which exhibits a very large resistivity (several mΩ·cm) that decreases with increasing temperature, i.e., a robust negative temperature coefficient from 2 K to 300 K. Magnetoresistance is weak (< 1 % at 9 T), suggesting that charge transport is dominated by disorder‑induced incoherence rather than conventional electron‑phonon scattering. The data place the system in a strongly localized, non‑Fermi‑liquid regime where the mean free path is comparable to the inter‑atomic spacing.

Overall, the work demonstrates that hafnium substitution is an effective route to stabilize the metastable α‑UH₃ phase and to tune its electronic and magnetic properties. The expansion of the U‑U distance beyond the Hill limit promotes 5f electron localization, leading to ferromagnetism with a relatively high TC (≈180 K) that is only weakly dependent on Hf concentration, while the ordered moment is strongly suppressed. The simultaneous reduction of γ and the emergence of a large, negative‑slope resistivity highlight a crossover from itinerant 5f ferromagnetism toward a disorder‑driven, incoherent metallic state.

These findings have broader implications for actinide physics: they provide a rare experimental platform where the delicate balance between 5f delocalization, lattice geometry, and chemical substitution can be examined in a controlled manner. Moreover, because UH₃ is a promising hydrogen‑storage material (low equilibrium pressure, high H/U ratio), the Hf‑stabilized α‑phase offers a potentially more robust hydride for tritium handling in nuclear applications, combining magnetic functionality with favorable hydrogen‑absorption characteristics. Future work could explore co‑doping strategies (e.g., Hf + Zr, Ti) to further enhance TC, investigate pressure‑dependent behavior, or employ spectroscopic probes (ARPES, neutron scattering) to directly map the evolution of the 5f electronic structure across the α/β transition.
