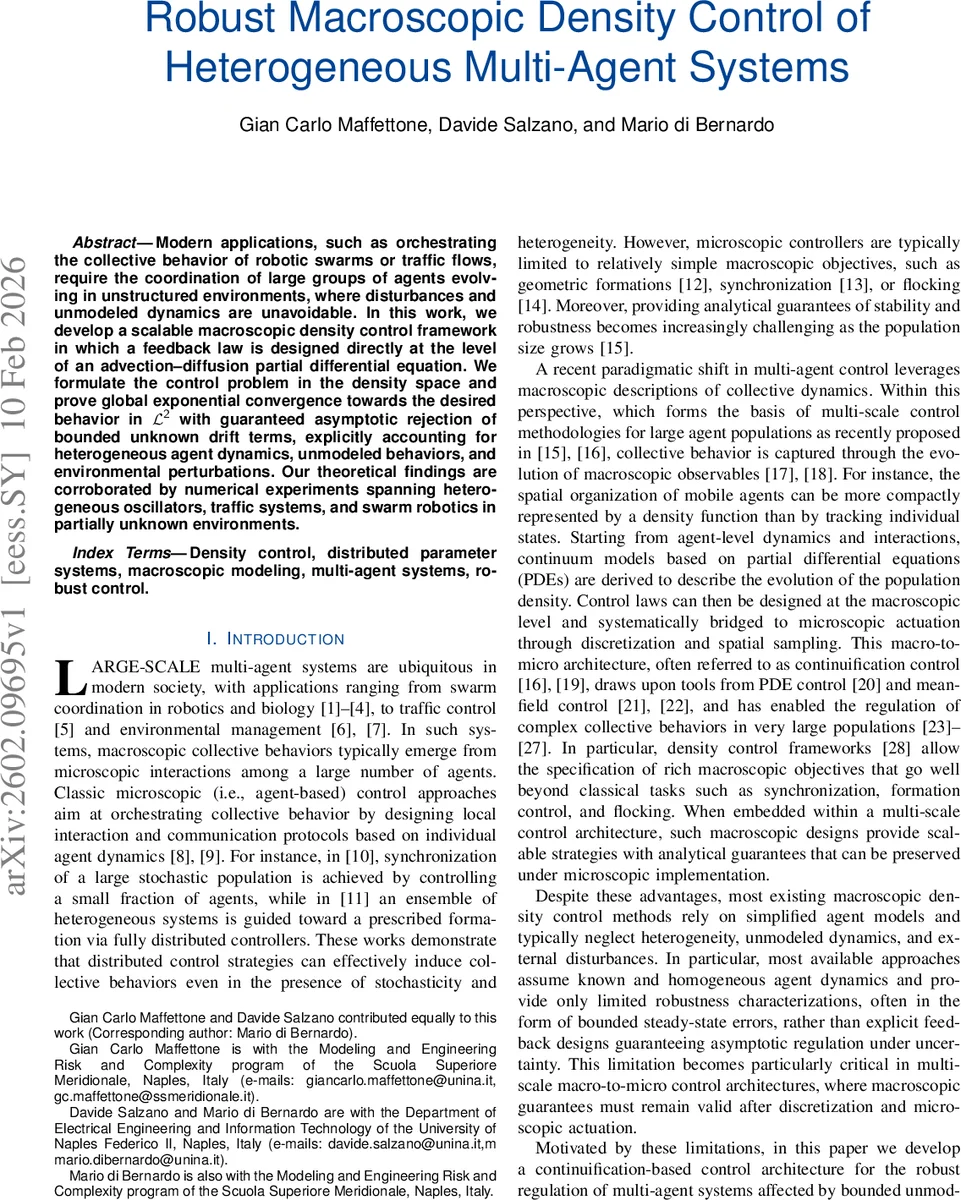

Robust Macroscopic Density Control of Heterogeneous Multi-Agent Systems

Modern applications, such as orchestrating the collective behavior of robotic swarms or traffic flows, require the coordination of large groups of agents evolving in unstructured environments, where disturbances and unmodeled dynamics are unavoidable. In this work, we develop a scalable macroscopic density control framework in which a feedback law is designed directly at the level of an advection–diffusion partial differential equation. We formulate the control problem in the density space and prove global exponential convergence towards the desired behavior in $\mathcal{L}^2$ with guaranteed asymptotic rejection of bounded unknown drift terms, explicitly accounting for heterogeneous agent dynamics, unmodeled behaviors, and environmental perturbations. Our theoretical findings are corroborated by numerical experiments spanning heterogeneous oscillators, traffic systems, and swarm robotics in partially unknown environments.

💡 Research Summary

The paper addresses the problem of steering the collective behavior of very large heterogeneous multi‑agent populations toward a prescribed spatial density distribution, while accounting for unknown but bounded disturbances and model uncertainties. The authors adopt a macroscopic viewpoint: starting from stochastic first‑order dynamics for each agent, they introduce an unknown drift term g_i(t,X) that captures heterogeneous internal dynamics, inter‑agent interactions, and environmental perturbations. By assuming a uniform bound |g_i| ≤ K, they construct two auxiliary stochastic systems that bound the true dynamics from below and above, respectively, by adding ±K to the drift.

In the limit of an infinite number of agents, the probability densities associated with these bounding systems satisfy advection‑diffusion (Fokker‑Planck) partial differential equations (PDEs) of the form

ρ_t + (ρ U)x ∓ K ρ_x = D ρ{xx},

where U(x,t) is the macroscopic velocity field generated by the microscopic control inputs, D is the diffusion coefficient, and the sign corresponds to the lower (−) or upper (+) bound. Zero‑flux or periodic boundary conditions guarantee mass conservation.

The control objective is to make the density ρ(x,t) converge to a desired static profile ρ_d(x) (normalized to unit mass). Defining the tracking error e(x,t)=ρ_d(x)−ρ̂(x,t) for either bound, the error dynamics become a linear PDE with an additional term q(x,t) = (ρ̂ U)_x that encapsulates the effect of the control field.

The core contribution is a Lyapunov‑based feedback law for q:

q = −k_p e − k_s(t) sign(e) + α(t),

where k_p>0 determines the exponential decay rate, α(t) is any bounded auxiliary signal, and k_s(t) is a time‑varying gain chosen to dominate the unknown drift and the spatial derivative of the error. Specifically, k_s(t) must satisfy

k_s(t) > A + K ‖e_x‖∞, A = D ‖ρ_d’’‖∞ + K ‖ρ_d’‖_∞.

With this choice, the Lyapunov functional V(t)=½‖e‖_2² satisfies V̇ ≤ −k_p V, which yields the global exponential bound

‖e(·,t)‖_2² ≤ ‖e(·,0)‖_2² e^{−k_p t}.

Thus, both the upper and lower bounding densities converge exponentially to the target, and by comparison the original density inherits the same convergence property. The design inherently rejects any bounded disturbance up to the known magnitude K, achieving asymptotic regulation rather than merely bounded steady‑state error.

Implementation proceeds by discretizing the macroscopic control field U(x,t) on a spatial grid and assigning the sampled values to individual agents as their velocity commands u_i(t). This “continuization‑to‑discretization” step preserves the theoretical guarantees at the microscopic level, provided the sampling is sufficiently fine.

The authors validate the approach on three representative scenarios:

1. Heterogeneous oscillators – agents with differing natural frequencies are driven to a prescribed probability density; the controller compensates for frequency dispersion and stochastic noise.
2. Traffic flow on a ring road – vehicles are modeled as particles on a circular domain; the controller shapes the vehicle density to alleviate congestion, despite unknown driver behavior modeled as bounded drift.
3. Swarm robotics in partially unknown environments – a fleet of ground robots operates in a 2‑D arena with obstacles whose locations are only partially known; the macroscopic controller steers the swarm’s spatial density toward a target region while automatically adapting to the unknown obstacles.

In all cases, numerical simulations demonstrate rapid exponential convergence of the density error, robustness against the prescribed disturbance bound, and scalability to large agent counts.

Overall, the paper makes several notable contributions:

• It introduces a systematic method to construct upper and lower PDE models that bound the true stochastic dynamics under unknown but bounded drifts, thereby enabling rigorous robustness analysis.
• It designs a single macroscopic feedback law that guarantees global exponential stability in the L² norm for the density tracking error, using a combination of proportional and sliding‑mode‑like terms.
• It bridges the gap between macroscopic PDE control and microscopic implementation, providing a scalable framework suitable for real‑world large‑scale multi‑agent systems.

The work advances the state of the art in density‑based control by moving beyond homogeneous, perfectly known dynamics and offering explicit robustness guarantees. Future research directions include extending the theory to higher‑dimensional domains, handling time‑varying or state‑dependent disturbance bounds, and experimental validation on physical robotic platforms.
