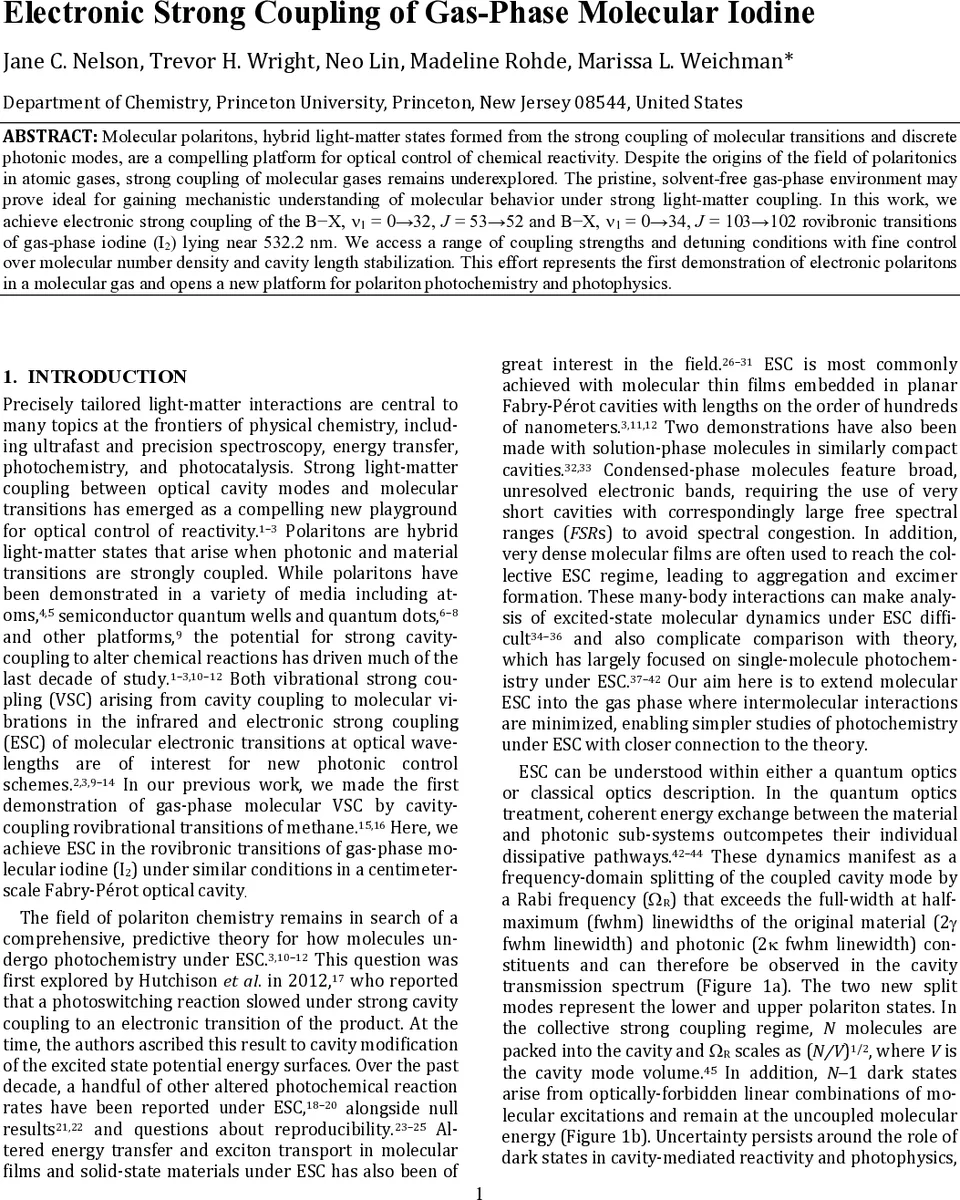

Electronic Strong Coupling of Gas-Phase Molecular Iodine

Molecular polaritons, hybrid light-matter states formed from the strong coupling of molecular transitions and discrete photonic modes, are a compelling platform for optical control of chemical reactivity. Despite the origins of the field of polaritonics in atomic gases, strong coupling of molecular gases remains underexplored. The pristine, solvent-free gas-phase environment may prove ideal for gaining mechanistic understanding of molecular behavior under strong light-matter coupling. In this work, we achieve electronic strong coupling of the B-X, $ν_1$ = 0$\rightarrow$32, J = 53$\rightarrow$52 and B-X, $ν_1$ = 0$\rightarrow$34, J = 103$\rightarrow$102 rovibronic transitions of gas-phase iodine (I$_2$) lying near 532.2 nm. We access a range of coupling strengths and detuning conditions with fine control over molecular number density and cavity length stabilization. This effort represents the first demonstration of electronic polaritons in a molecular gas and opens a new platform for polariton photochemistry and photophysics.

💡 Research Summary

In this work the authors report the first observation of electronic strong coupling (ESC) in a molecular gas, using iodine (I₂) vapor confined in a centimeter‑scale Fabry‑Pérot cavity. The target transitions are the B–X rovibronic lines ν₁ = 0 → 32 (J = 53 → 52) and ν₁ = 0 → 34 (J = 103 → 102), both located near 532.2 nm. By delivering iodine vapor through a helium carrier gas into a custom‑built gas cell, the authors achieve controllable number densities up to ~7.4 × 10¹⁵ cm⁻³ (≈0.23 torr at room temperature). The cavity mirrors (Al‑coated fused silica, R ≈ 78 %) are mounted 1.18 cm apart, yielding a free spectral range (FSR) of ~63 GHz and a cavity linewidth of 982 MHz (finesse ≈ 13). One mirror is attached to a piezoelectric actuator and the cavity length is actively stabilized using a side‑of‑line lock to a 1550 nm metrology‑grade laser, allowing the cavity mode frequencies to be positioned with sub‑MHz precision.

A 1064 nm distributed‑feedback diode laser is frequency‑doubled in a PPMgO:LN crystal to generate narrow‑band green light. The green beam is split into three arms: (i) transmission through the cavity for spectroscopy, (ii) a reference iodine cell for absolute frequency calibration, and (iii) residual 1064 nm light sent through a free‑space etalon for relative calibration. The authors record cavity transmission spectra while varying the helium flow (0–100 sccm) and thus the iodine density. When the cavity mode is tuned into resonance with either of the selected iodine lines, the transmission spectrum exhibits a clear Rabi splitting, producing distinct lower and upper polariton peaks. The measured splitting (Ω_R) ranges from a few hundred GHz up to ~4 THz, depending on the molecular density and detuning, satisfying the strong‑coupling criterion ℏΩ_R > κ, γ (where κ and γ are the photon and molecular linewidths, respectively).

To interpret the data the authors employ both a quantum‑optical collective coupling model and a classical transfer‑matrix description. In the classical picture the intracavity absorption coefficient α(ν) = σ(ν) · N/V is inserted into the standard Fabry‑Pérot transmission formula (Eq. 1). The complex refractive index n(ν) is obtained via Kramers‑Kronig relations from α(ν), allowing the model to reproduce the observed transmission maxima, linewidths, and the dispersive lineshape that gives rise to the polariton splitting. The quantum model emphasizes that the collective Rabi frequency scales as √(N/V) and predicts the existence of N − 1 dark states that remain at the bare molecular energy. Although the dark states are not directly visible in the transmission spectra, the authors note a gradual reduction in mirror reflectivity (from 78.4 % to 76.3 %) as iodine density increases, which they attribute to adsorption of I and I₂ on the thin Al₂O₃ oxide layer of the mirrors—a loss channel that may be linked to the dark‑state manifold.

The paper discusses the broader significance of achieving ESC in the gas phase. Unlike solid‑ or liquid‑phase implementations, the gas‑phase system eliminates solvent effects, aggregation, and inhomogeneous broadening, providing a “clean” platform where single‑molecule theories can be directly tested. The centimeter‑scale cavity geometry also permits orthogonal optical access, enabling pump‑probe, time‑resolved, and nonlinear spectroscopies that are difficult in sub‑micron cavities. Consequently, the authors argue that this platform opens a pathway toward systematic studies of polariton‑mediated photochemistry, energy transfer, and reaction dynamics, addressing reproducibility concerns that have plagued earlier polariton chemistry experiments.

In summary, the authors demonstrate that electronic polaritons can be formed in a molecular gas by coupling well‑resolved iodine rovibronic transitions to a high‑finesse Fabry‑Pérot cavity. They provide a thorough experimental methodology, quantitative control over coupling strength via molecular density and cavity detuning, and a dual theoretical framework that bridges classical optics and quantum collective coupling. This work establishes gas‑phase ESC as a versatile testbed for future investigations into polariton‑controlled chemistry and photophysics.
