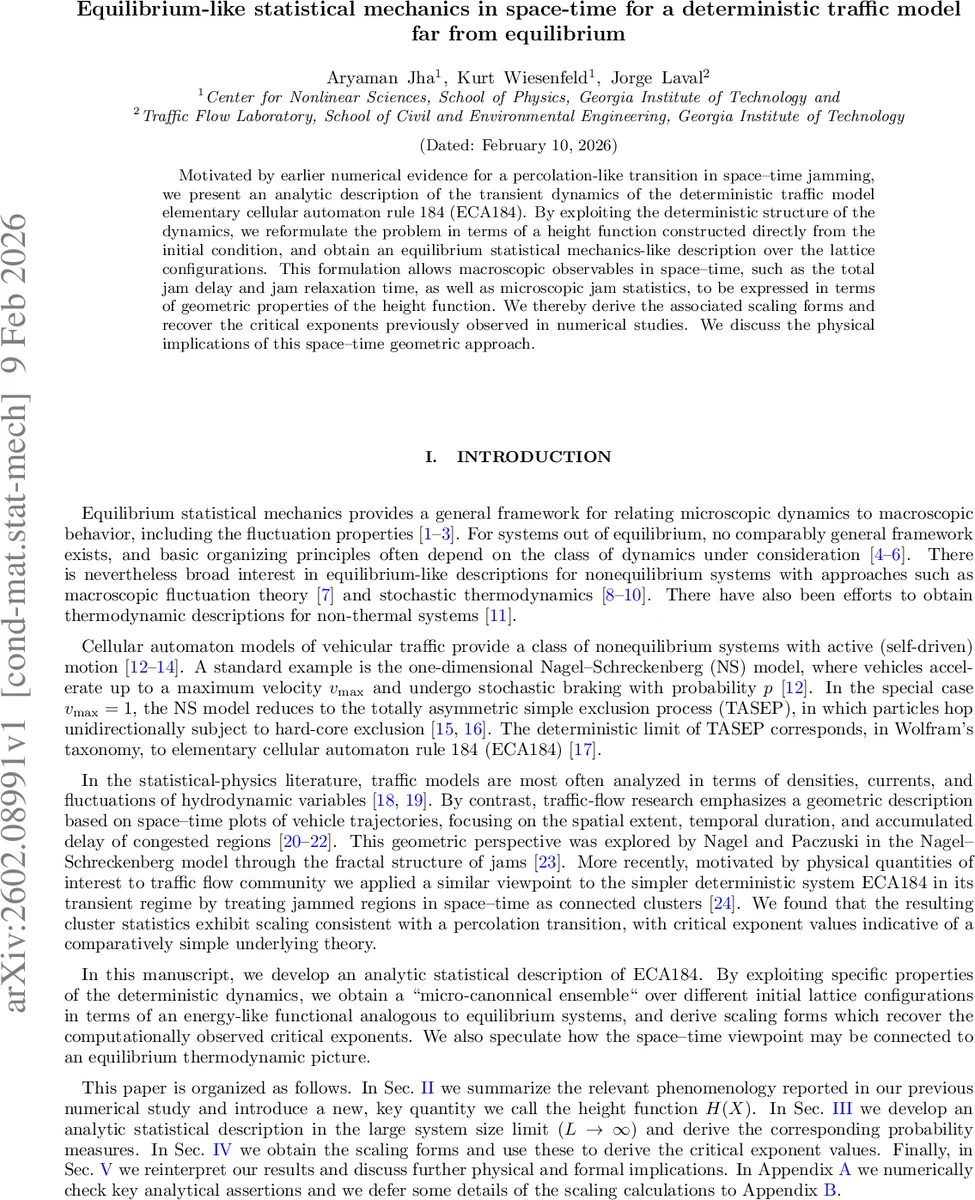

Equilibrium-like statistical mechanics in space-time for a deterministic traffic model far from equilibrium

Motivated by earlier numerical evidence for a percolation-like transition in space-time jamming, we present an analytic description of the transient dynamics of the deterministic traffic model elementary cellular automaton rule 184 (ECA184). By exploiting the deterministic structure of the dynamics, we reformulate the problem in terms of a height function constructed directly from the initial condition, and obtain an equilibrium statistical mechanics-like description over the lattice configurations. This formulation allows macroscopic observables in space-time, such as the total jam delay and jam relaxation time, as well as microscopic jam statistics, to be expressed in terms of geometric properties of the height function. We thereby derive the associated scaling forms and recover the critical exponents previously observed in numerical studies. We discuss the physical implications of this space-time geometric approach.

💡 Research Summary

This paper presents an analytical framework for the transient dynamics of the deterministic traffic model known as elementary cellular automaton rule 184 (ECA184). The authors begin by describing the model: a one‑dimensional lattice of length L with periodic boundaries, each site occupied (1) or empty (0). Vehicles move forward one site if the site ahead is empty; otherwise they remain stationary. The global vehicle density ρ is the control parameter, and the system relaxes to a steady state within at most T_max = L/2 time steps.

In the transient regime, space‑time diagrams reveal clusters of occupied sites (traffic jams) and clusters of empty sites (voids). Each jam cluster i is characterized by its space‑time area a_i (total stationary time of the vehicles in the cluster) and its lifetime θ_i (temporal extent). The total delay A = Σ_i a_i and the maximal jam lifetime T_R = max_i θ_i serve as macroscopic observables; the normalized delay ϕ = A/(L²/2) is taken as an order parameter. Numerical experiments reported in a previous study showed a percolation‑like transition at the critical density ρ_c = ½: for ρ < ρ_c jams dominate, while for ρ > ρ_c voids dominate. Near the transition the authors observed scaling laws ϕ ∼ Δ^β (β≈1), ⟨T_R⟩ ∼ |Δ|^{–γ} (γ≈2), and a correlation‑length exponent ν≈2, where Δ = ρ − ρ_c. Microscopic distributions of jam lifetimes, areas, and elementary jam lengths obey power laws with exponent τ≈1.5 at criticality and exhibit scaling collapse with a cutoff exponent σ≈0.5 away from criticality.

The central methodological advance is the introduction of a height function H(X) constructed directly from the initial binary configuration. By reversing the order of sites, mapping 1→+1 and 0→–1, and shifting the walk so that its global minimum sits at the origin, the authors obtain a discrete path H(X) with H(0)=0 and H(L)=0 for ρ=½. This path is a Dyck‑type lattice walk (non‑negative and returning to zero). Crucially, each “first crossing time” (FCT) δX_i—defined as the horizontal span of an excursion of H(X) above a chosen reference height—corresponds to an elementary jam of length m_i = δX_i/2. Thus all macroscopic observables (total delay, maximal lifetime) and microscopic statistics (jam length distribution, lifetime distribution) can be expressed as geometric functionals of H(X).

Because the initial conditions are sampled uniformly at fixed density, H(X) becomes a stochastic process: at each step it steps up with probability ρ and down with probability 1 − ρ. In the thermodynamic limit (L→∞) this discrete Markov chain is approximated by a continuous drift‑diffusion equation for the probability density p(h,x):

∂_x p = −2v₀Δ ∂_h p + D₀ ∂_h² p,

with drift velocity v₀ proportional to the lattice spacing and diffusion constant D₀ proportional to the square of the step size. The solution is a Gaussian with mean 2v₀Δx and variance 2D₀x. The authors recast this solution in a path‑integral form, yielding a quadratic action

S
