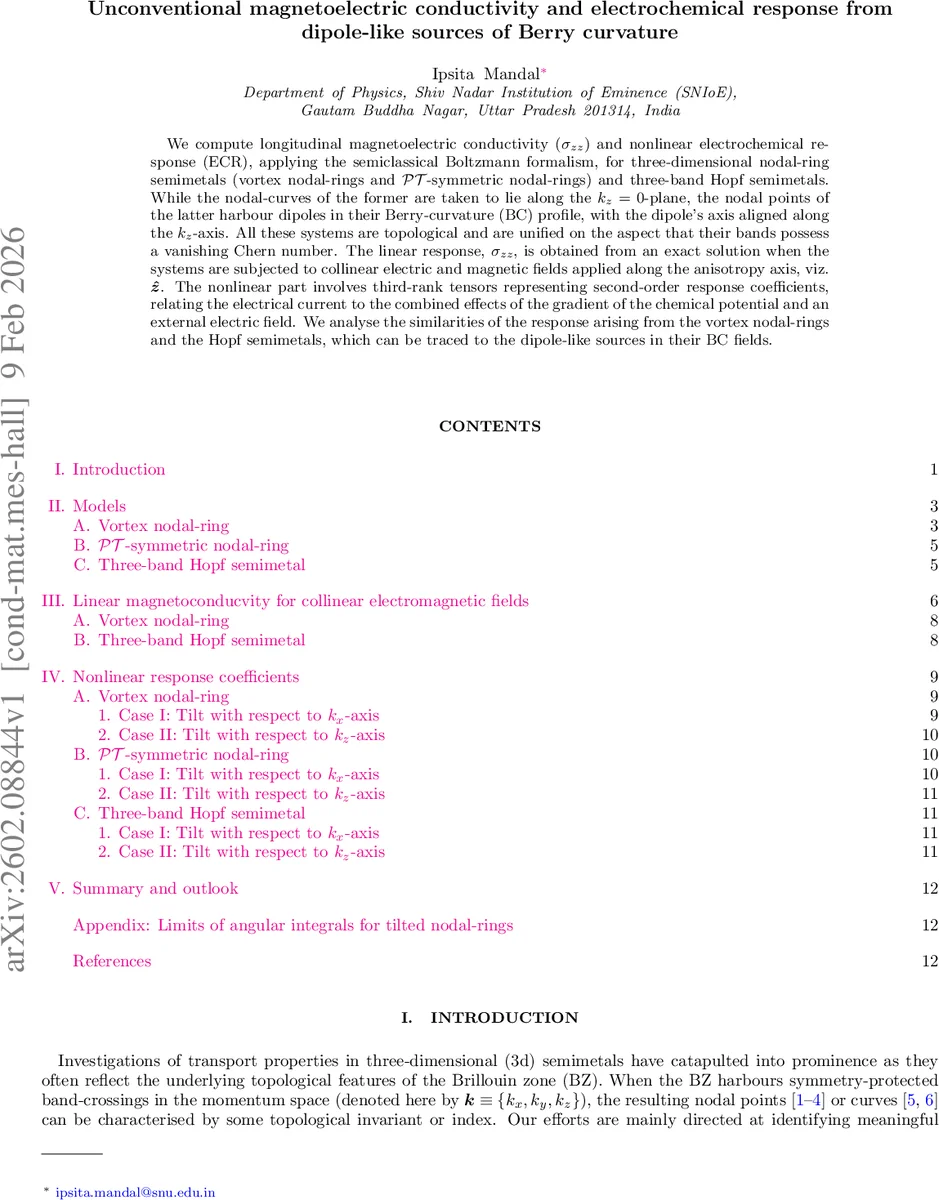

Unconventional magnetoelectric conductivity and electrochemical response from dipole-like sources of Berry curvature

We compute longitudinal magnetoelectric conductivity ($σ_{zz}$) and nonlinear electrochemical response (ECR), applying the semiclassical Boltzmann formalism, for three-dimensional nodal-ring semimetals (vortex nodal-rings and $\mathcal P \mathcal T$-symmetric nodal-rings) and three-band Hopf semimetals. While the nodal-curves of the former are taken to lie along the $k_z = 0$-plane, the nodal points of the latter harbour dipoles in their Berry-curvature (BC) profile, with the dipole’s axis aligned along the $k_z$-axis. All these systems are topological and are unified on the aspect that their bands possess a vanishing Chern number. The linear response, $σ_{zz}$, is obtained from an exact solution when the systems are subjected to collinear electric and magnetic fields applied along the anisotropy axis, viz. $\boldsymbol{\hat z}$. The nonlinear part involves third-rank tensors representing second-order response coefficients, relating the electrical current to the combined effects of the gradient of the chemical potential and an external electric field. We analyse the similarities of the response arising from the vortex nodal-rings and the Hopf semimetals, which can be traced to the dipole-like sources in their BC fields.

💡 Research Summary

This paper presents a comprehensive theoretical study of longitudinal magnetoelectric conductivity (σzz) and nonlinear electrochemical response (ECR) in three distinct classes of three‑dimensional topological semimetals: vortex nodal‑ring (VRN) semimetals, PT‑symmetric nodal‑ring (PTNR) semimetals, and three‑band Hopf semimetals that host Berry‑curvature dipoles. Using the semiclassical Boltzmann formalism with exact solutions (not limited to the relaxation‑time approximation), the authors derive analytical expressions for σzz when static electric (E) and magnetic (B) fields are collinear along the anisotropy axis (the z‑direction). They also compute the second‑order response coefficients, embodied in a third‑rank tensor χijk, which relate the electric current to the product of the chemical‑potential gradient ∇μ and the external electric field E.

The VRN model is a two‑band Hamiltonian whose d‑vector winds around a circular nodal line lying in the k_z=0 plane. Its Berry curvature is nonsingular and distributed continuously along the ring, effectively forming a “Berry‑flux torus”. The OMM (orbital magnetic moment) shares the same momentum dependence, leading to a Zeeman‑like energy shift in a magnetic field. When E∥B∥ẑ, the phase‑space measure is modified by the factor D⁻¹=1+e B·Ω, and the exact Boltzmann solution yields σzz∝(e²/h) (v₀²τ)/(1+(eBτ)²), with a characteristic B² dependence that originates from the continuous Berry‑flux distribution.

The PTNR is also a two‑band system but its Berry curvature is a δ‑function confined to the nodal ring. Consequently, the linear magnetoconductivity is essentially zero in the untilted case. However, the inclusion of a tilt term η·k deforms the Fermi surface from a simple torus into various cyclides (ring‑cyclide, horn‑cyclide). In these tilted regimes the modified phase‑space factor D⁻¹ becomes angle‑dependent, generating finite σzz and non‑vanishing components of χijk. The tilt‑induced asymmetry of the Fermi surface is responsible for the emergence of nonlinear electrochemical currents.

The Hopf semimetal is described by a three‑band λ‑matrix Hamiltonian. Its nodal points act as ideal Berry‑curvature dipoles: the Berry curvature scales as Ω∝k_z k/k⁴, while the OMM scales as m∝k_z k/k³. The dipolar texture is isotropic in the azimuthal direction but points along the k_z axis, mirroring the dipole‑like source discussed for VRN. The exact solution for σzz again shows the same functional form as the VRN case, confirming that the dipolar Berry‑flux distribution governs the linear magnetoelectric response.

For the nonlinear response, the authors expand the Boltzmann distribution to second order in E and ∇μ. The resulting current density contains terms proportional to E·∇μ, (E×Ω)·∇μ, and higher‑order combinations involving the tilt vector η. The third‑rank tensor χijk is evaluated by performing momentum integrals in toroidal coordinates for the VRN and cyclide‑deformed Fermi surfaces, and in spherical coordinates for the Hopf semimetal. The analysis reveals that χijk acquires non‑zero antisymmetric components only when the tilt breaks inversion symmetry, and that its magnitude is directly linked to the strength of the Berry‑curvature dipole (or the integrated Berry‑flux of the vortex ring).

A key insight of the work is the identification of a unifying mechanism: both the vortex nodal‑ring and the Hopf semimetal possess dipole‑like sources of Berry curvature, which lead to remarkably similar linear and nonlinear transport signatures despite their different band structures. In contrast, the PT‑symmetric nodal‑ring, lacking a distributed Berry flux, shows negligible linear response but can exhibit sizable nonlinear ECR when tilted.

The paper also discusses experimental relevance. The predicted σzz scaling with B² and the characteristic angular dependence of χijk could be probed via planar Hall measurements and second‑harmonic transport experiments. The sensitivity of the nonlinear response to tilt suggests that strain or external gating—both of which effectively tilt the band dispersion—could be used to switch on or enhance topological transport signatures.

In summary, the authors provide a rigorous analytical framework that connects Berry‑curvature multipole moments (monopole, dipole, vortex) to observable magnetoelectric and electrochemical transport phenomena. Their results broaden the understanding of how higher‑order Berry‑curvature textures influence both linear and nonlinear response functions, offering new routes to detect and manipulate topological features in three‑dimensional semimetals.
