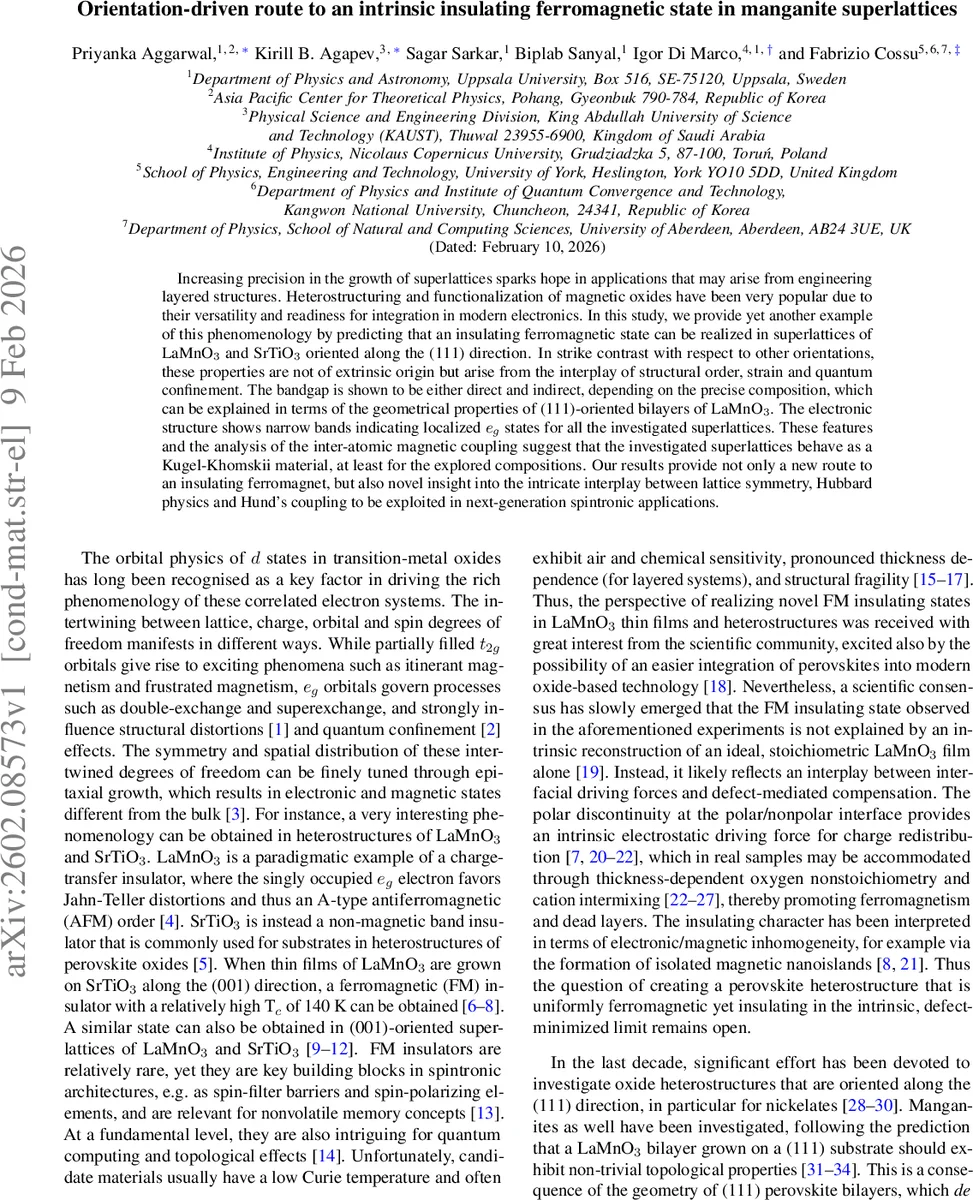

Orientation-driven route to an intrinsic insulating ferromagnetic state in manganite superlattices

Increasing precision in the growth of superlattices sparks hope in applications that may arise from engineering layered structures. Heterostructuring and functionalization of magnetic oxides have been very popular due to their versatility and readiness for integration in modern electronics. In this study, we provide yet another example of this phenomenology by predicting that an insulating ferromagnetic state can be realized in superlattices of LaMnO$_3$ and SrTiO$_3$ oriented along the (111) direction. In strike contrast with respect to other orientations, these properties are not of extrinsic origin but arise from the interplay of structural order, strain and quantum confinement. The bandgap is shown to be either direct and indirect, depending on the precise composition, which can be explained in terms of the geometrical properties of (111)-oriented bilayers of LaMnO$_3$. The electronic structure shows narrow bands indicating localized $e_g$ states for all the investigated superlattices. These features and the analysis of the inter-atomic magnetic coupling suggest that the investigated superlattices behave as a Kugel-Khomskii material, at least for the explored compositions. Our results provide not only a new route to an insulating ferromagnet, but also novel insight into the intricate interplay between lattice symmetry, Hubbard physics and Hund’s coupling to be exploited in next-generation spintronic applications.

💡 Research Summary

The authors theoretically investigate (111)-oriented superlattices composed of alternating layers of LaMnO₃ and SrTiO₃, with the chemical formula (SrTiO₃)₆₋ₙ|(LaMnO₃)ₙ for n ranging from one to five. Using density‑functional theory within the GGA + U framework (U = 4 eV for Mn, U = 5 eV for Ti) and full structural relaxation, they identify the most stable magnetic configurations among ferromagnetic (FM) and three antiferromagnetic (A‑, C‑, G‑type) orders. For n ≥ 2 the ground state is FM with an a‑a‑c⁺ octahedral tilt pattern, whereas the single‑layer case (n = 1) prefers an a‑a‑a⁻ tilt and an in‑plane AFM arrangement.

Electronic structure analysis reveals that all mixed superlattices are insulating. The Mn e_g states form narrow bands that split into occupied and empty parts, preserving a t₂g³e_g¹ configuration on Mn. As the LaMnO₃ block thickens, the e_g bandwidth modestly widens (≈ 1.1 eV for n = 5) but the gap remains, decreasing from about 1 eV (n = 1) to roughly 0.5 eV (n = 5). The nature of the gap alternates with n: direct for even n (n = 2) and indirect for odd n (n = 1, 3, 4, 5). This behavior is traced to the buckled honeycomb lattice formed by the (111) bilayer, whose symmetry‑controlled band folding is highly sensitive to the exact number of Mn layers.

Magnetic exchange interactions are computed with the full‑potential linear muffin‑tin orbital method (RSPt). Ti atoms carry negligible moments, and intra‑layer Mn–Mn couplings are essentially zero due to the superlattice geometry. The dominant exchange is the nearest‑neighbor inter‑layer Mn–Mn coupling, which is strongly ferromagnetic and originates mainly from e_g–e_g superexchange pathways. Deeper inside the LaMnO₃ region the e_g‑e_g contribution weakens and is partially compensated by an antiferromagnetic t₂g‑t₂g component, yet the overall interaction remains ferromagnetic. This orbital‑dependent exchange aligns with the Kugel‑Khomskii model, where occupied e_g orbitals select specific d‑p‑d hopping channels that dictate the sign and magnitude of the exchange.

Structural analysis shows pronounced Jahn‑Teller‑type van Vleck distortions localized on MnO₆ octahedra, confirming orbital ordering consistent with the e_g linear combinations identified in the paper. The coexistence of these distortions, narrow e_g bands, and robust ferromagnetism distinguishes the (111) superlattices from previously reported (001) LaMnO₃/SrTiO₃ heterostructures, where ferromagnetism is often defect‑mediated and metallic.

In summary, the work predicts an intrinsic ferromagnetic insulating state in (111)-oriented LaMnO₃/SrTiO₃ superlattices that arises from the interplay of structural symmetry, epitaxial strain, and quantum confinement, rather than from extrinsic interface effects. The findings provide a new route to engineer insulating ferromagnets and highlight the (111) orientation as a fertile platform for realizing Kugel‑Khomskii physics and potentially topological correlated phases in oxide heterostructures.
