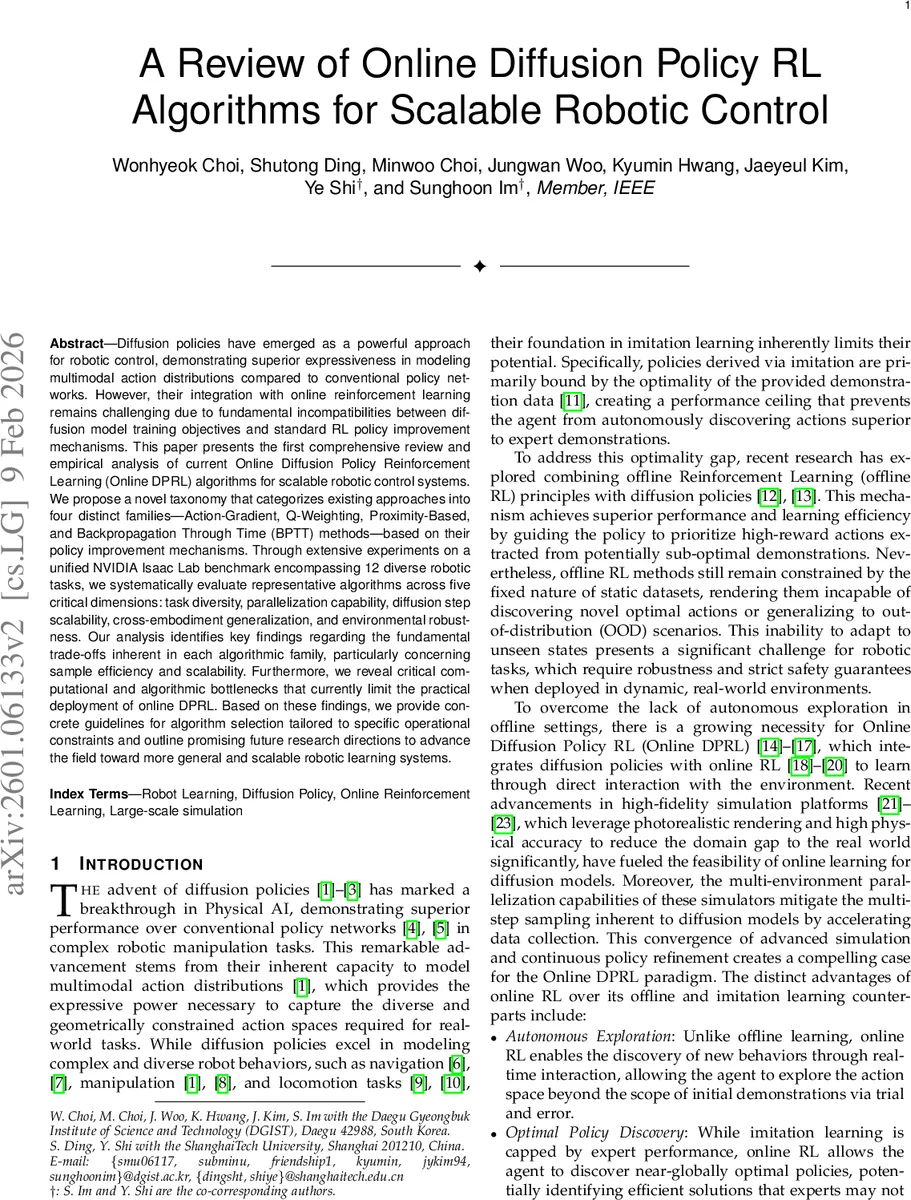

A Review of Online Diffusion Policy RL Algorithms for Scalable Robotic Control

Diffusion policies have emerged as a powerful approach for robotic control, demonstrating superior expressiveness in modeling multimodal action distributions compared to conventional policy networks. However, their integration with online reinforcement learning remains challenging due to fundamental incompatibilities between diffusion model training objectives and standard RL policy improvement mechanisms. This paper presents the first comprehensive review and empirical analysis of current Online Diffusion Policy Reinforcement Learning (Online DPRL) algorithms for scalable robotic control systems. We propose a novel taxonomy that categorizes existing approaches into four distinct families–Action-Gradient, Q-Weighting, Proximity-Based, and Backpropagation Through Time (BPTT) methods–based on their policy improvement mechanisms. Through extensive experiments on a unified NVIDIA Isaac Lab benchmark encompassing 12 diverse robotic tasks, we systematically evaluate representative algorithms across five critical dimensions: task diversity, parallelization capability, diffusion step scalability, cross-embodiment generalization, and environmental robustness. Our analysis identifies key findings regarding the fundamental trade-offs inherent in each algorithmic family, particularly concerning sample efficiency and scalability. Furthermore, we reveal critical computational and algorithmic bottlenecks that currently limit the practical deployment of online DPRL. Based on these findings, we provide concrete guidelines for algorithm selection tailored to specific operational constraints and outline promising future research directions to advance the field toward more general and scalable robotic learning systems.

💡 Research Summary

This paper delivers the first systematic review and large‑scale empirical study of online diffusion‑policy reinforcement learning (Online DPRL) for robotic control. Diffusion policies, which model actions as conditional denoising processes, excel at representing multimodal action distributions, a capability that traditional Gaussian or deterministic policies lack. However, integrating these expressive models with online RL is non‑trivial because diffusion training objectives (score matching, noise prediction) are incompatible with standard RL policy‑gradient objectives, and back‑propagation through the entire reverse diffusion chain is computationally prohibitive and numerically unstable.

To organize the emerging literature, the authors propose a taxonomy that groups existing Online DPRL methods into four families based on how they achieve policy improvement:

1. Action‑Gradient methods (e.g., DIPO, DDiffPG, QSM) compute policy gradients by weighting sampled actions with Q‑values. Typically combined with on‑policy algorithms such as PPO, they benefit from massive parallelization but suffer from poor sample efficiency and a steep increase in computation as the number of diffusion steps grows.

2. Q‑Weighting methods (e.g., QVPO, DPMD, SDAC) adopt an off‑policy paradigm, re‑weighting replay‑buffer transitions using learned Q‑values. This yields high data efficiency and robustness to environment changes, yet the approach is sensitive to Q‑function approximation errors and reward‑scale variations.

3. Proximity‑Based methods (e.g., GenPO, FPO) introduce a distance‑based prior that guides the initial noise of the diffusion process toward promising regions of the action space. Empirically, this family achieves the best overall performance on the benchmark, but it can overfit to specific robot morphologies and degrades in out‑of‑distribution (OOD) scenarios.

4. Back‑Propagation‑Through‑Time (BPTT) methods (e.g., DACER, DACERv2, DIME, CPQL) back‑propagate gradients through the full diffusion chain, providing theoretically exact policy updates. In practice, the memory and compute demands scale linearly with the number of diffusion steps, making real‑time deployment on physical robots infeasible.

The experimental evaluation uses the NVIDIA Isaac Lab suite, a GPU‑accelerated simulator, to run twelve diverse robotic tasks spanning locomotion (e.g., ANYmal‑D, Spot, Go2), manipulation (Franka Lift, Allegro Hand), and hybrid behaviors. Five evaluation dimensions are measured:

• Task Diversity – ability to learn across heterogeneous dynamics and observation spaces.
• Parallelization Capability – throughput when scaling the number of simulated environments.
• Diffusion Step Scalability – performance as the number of reverse‑diffusion timesteps increases.
• Cross‑Embodiment Generalization – transferability of a policy trained on one robot to another.
• Environmental Robustness – resilience to noise, disturbances, and OOD conditions.

Key findings include:

• Sample Efficiency: Off‑policy Q‑Weighting methods achieve the highest sample efficiency, converging faster with fewer environment interactions.
• Parallelization: On‑policy Action‑Gradient and Proximity‑Based families exploit massive parallelism, attaining the highest wall‑clock throughput on multi‑GPU clusters.
• Scalability with Diffusion Steps: BPTT‑based methods become prohibitively expensive beyond ~10 diffusion steps; Action‑Gradient and Q‑Weighting scale more gracefully but still incur noticeable overhead.
• Cross‑Embodiment Transfer: Proximity‑Based approaches overfit to the training embodiment, while Q‑Weighting and Action‑Gradient families retain more consistent performance across robots.
• Robustness to OOD: Off‑policy methods demonstrate superior robustness under noisy or perturbed environments, whereas on‑policy methods can collapse when reward signals deviate from training distribution.

The authors identify four primary bottlenecks limiting practical deployment of Online DPRL:

1. Computational Load of Multi‑Step Sampling – each diffusion step requires a forward pass through a large neural network, inflating GPU memory usage and latency.
2. Random Diffusion Noise – stochasticity in the reverse process can destabilize learning, especially when combined with high‑variance RL returns.
3. Reward‑Scale Sensitivity – many algorithms rely on accurate Q‑value estimates; mis‑scaled rewards lead to poor weighting and divergence.
4. Gradient Instability in BPTT – vanishing or exploding gradients across many diffusion steps hinder convergence.

To address these challenges, the paper proposes several promising research directions:

• Action Chunking – grouping multiple timesteps into a single high‑dimensional action to reduce the number of diffusion passes.
• Safe RL Integration – embedding safety constraints directly into the diffusion loss to guarantee constraint satisfaction during sampling.
• Multi‑Agent DPRL – leveraging collaborative exploration among multiple agents to improve data efficiency and reduce per‑agent sampling burden.
• Inverse RL from Demonstrations – learning reward models from limited expert data to guide diffusion sampling more effectively.
• Hierarchical Diffusion Policies – separating high‑level planning from low‑level action generation, allowing coarse decisions to be made with fewer diffusion steps.

Finally, the authors synthesize practical guidelines for algorithm selection:

• Use on‑policy/Proximity‑Based methods when massive parallel simulation resources are available and the primary goal is raw performance on a single embodiment.
• Prefer off‑policy/Q‑Weighting methods for sample‑limited settings, real‑world deployment, or when robustness to environmental perturbations is critical.
• Consider BPTT‑based approaches only for research settings where exact gradient information is essential and computational resources are abundant.
• For cross‑embodiment or transfer learning scenarios, a hybrid that combines Action‑Gradient updates with Q‑value re‑weighting often yields the best trade‑off.

In summary, this review clarifies the current landscape of Online DPRL, quantifies the trade‑offs between expressiveness, efficiency, and scalability, and outlines concrete pathways toward more general, robust, and computationally tractable diffusion‑policy reinforcement learning for real‑world robotics.
