Design principles for III-nitride-nanocluster photocatalysts from region-resolved electronic structure

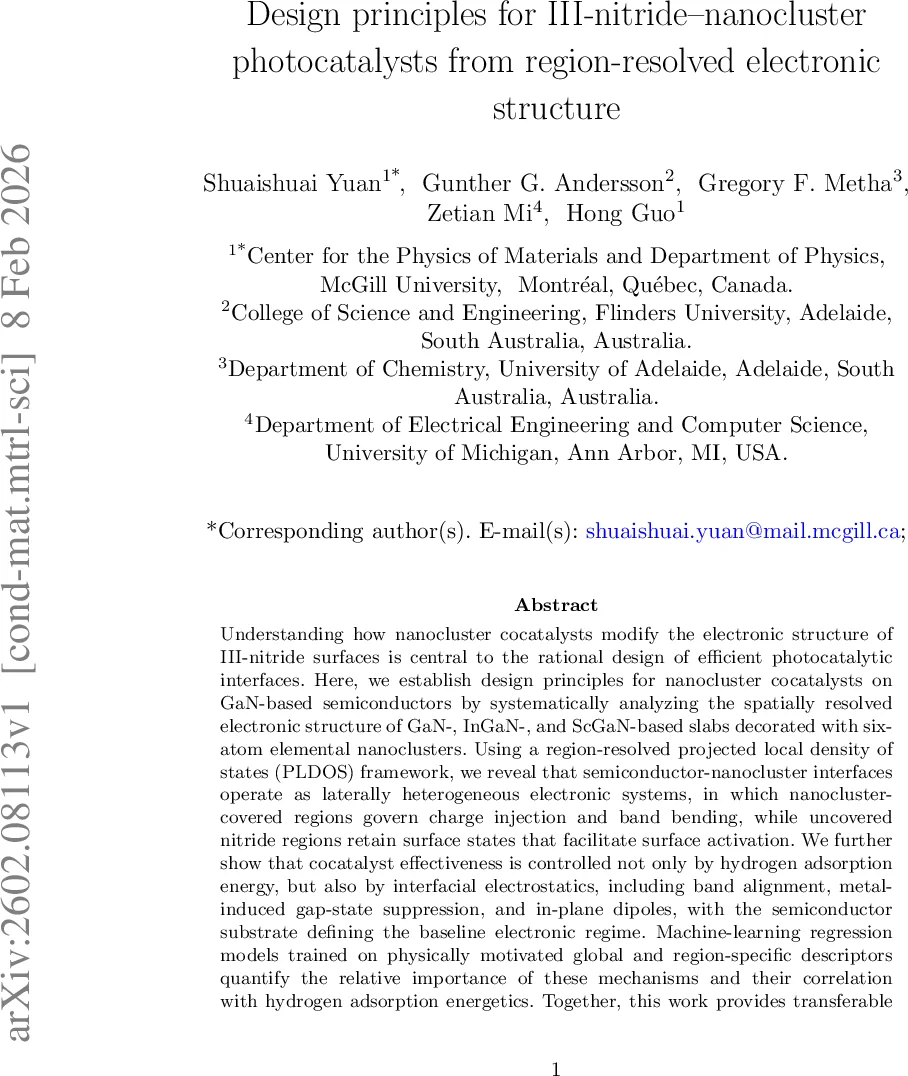

Understanding how nanocluster cocatalysts modify the electronic structure of III-nitride surfaces is central to the rational design of efficient photocatalytic interfaces. Here, we establish design principles for nanocluster cocatalysts on GaN-based semiconductors by systematically analyzing the spatially resolved electronic structure of GaN-, InGaN-, and ScGaN-based slabs decorated with six-atom elemental nanoclusters. Using a region-resolved projected local density of states (PLDOS) framework, we reveal that semiconductor-nanocluster interfaces operate as laterally heterogeneous electronic systems, in which nanocluster-covered regions govern charge injection and band bending, while uncovered nitride regions retain surface states that facilitate surface activation. We further show that cocatalyst effectiveness is controlled not only by hydrogen adsorption energy, but also by interfacial electrostatics, including band alignment, metal-induced gap-state suppression, and in-plane dipoles, with the semiconductor substrate defining the baseline electronic regime. Machine-learning regression models trained on physically motivated global and region-specific descriptors quantify the relative importance of these mechanisms and their correlation with hydrogen adsorption energetics. Together, this work provides transferable design principles for nanocluster cocatalysts on III-nitrides and a generalizable first-principles framework for studying spatially heterogeneous semiconductor-nanocluster interfaces.

💡 Research Summary

This work establishes a systematic, first‑principles framework for designing nanocluster cocatalysts on III‑nitride semiconductors and demonstrates how spatially resolved electronic structure governs photocatalytic performance. The authors constructed a comprehensive database of (110) GaN, InGaN, and ScGaN slabs each decorated with six‑atom elemental nanoclusters spanning much of the periodic table. After geometry optimization, the clusters adopt three motifs—attached, deformed, and dissociated—with the attached and deformed configurations serving as the focus for electronic analysis.

To capture the lateral heterogeneity inherent to these interfaces, the study introduces a region‑resolved projected local density of states (PLDOS) methodology. The surface is partitioned into Region A (directly beneath a nanocluster) and Region B (uncovered nitride). Layer‑by‑layer PLDOS reveals that Region A experiences strong band bending of both the conduction and valence edges, accompanied by a high density of metal‑induced gap states (MIGS) derived from the d‑orbitals of transition‑metal clusters. This creates a localized electric field that facilitates electron injection and rectification. In contrast, Region B retains the intrinsic surface states of the nitride, with sharp peaks near the band edges that can act as active sites for water activation and proton generation.

From these observations the authors define a set of physically motivated descriptors. For Region A they quantify conduction‑band bending (BB_A_CBM), valence‑band bending (BB_A_VBM), MIGS density (N_A_NIGS), and charge redistribution (Δq_A). For Region B they characterize the surface‑state peak position (E_B_peak), peak intensity (I_B_peak), and spectral width (σ_B). Global descriptors such as work function, electronegativity, Bader charge, and elemental group/period are also included. Using these features, machine‑learning regression models (random forest and gradient‑boosted trees) are trained to predict hydrogen adsorption energies across the dataset. Cross‑validation yields an R² of ~0.86, confirming that the region‑specific descriptors capture the key physics governing catalytic activity. Feature‑importance analysis shows that Region A band bending and MIGS density together account for roughly 55 % of the predictive power, while Region B surface‑state intensity contributes about 20 %, underscoring the dual role of charge injection and surface activation.

Based on the combined electronic and statistical insights, three design principles emerge: (1) Leverage lateral heterogeneity – deliberately separate the interface into a nanocluster‑covered zone for charge injection and an uncovered zone for water activation; (2) Engineer interfacial electrostatics – tune band bending, suppress detrimental gap states, and control in‑plane dipoles to maximize charge separation and minimize recombination; (3) Select the substrate wisely – the alloy composition of the III‑nitride sets the baseline electrostatic landscape, while the nanocluster chemistry fine‑tunes local reactivity within that landscape.

The paper therefore provides a transferable set of guidelines for nanocluster cocatalyst design on III‑nitride platforms and introduces a generalizable PLDOS‑based, region‑resolved workflow that can be extended to other semiconductor‑cocatalyst systems. By linking atomistic electronic structure to macroscopic photocatalytic function through data‑driven models, the study bridges the gap between first‑principles theory and practical device engineering, offering a clear pathway toward more efficient solar‑to‑hydrogen conversion technologies.
