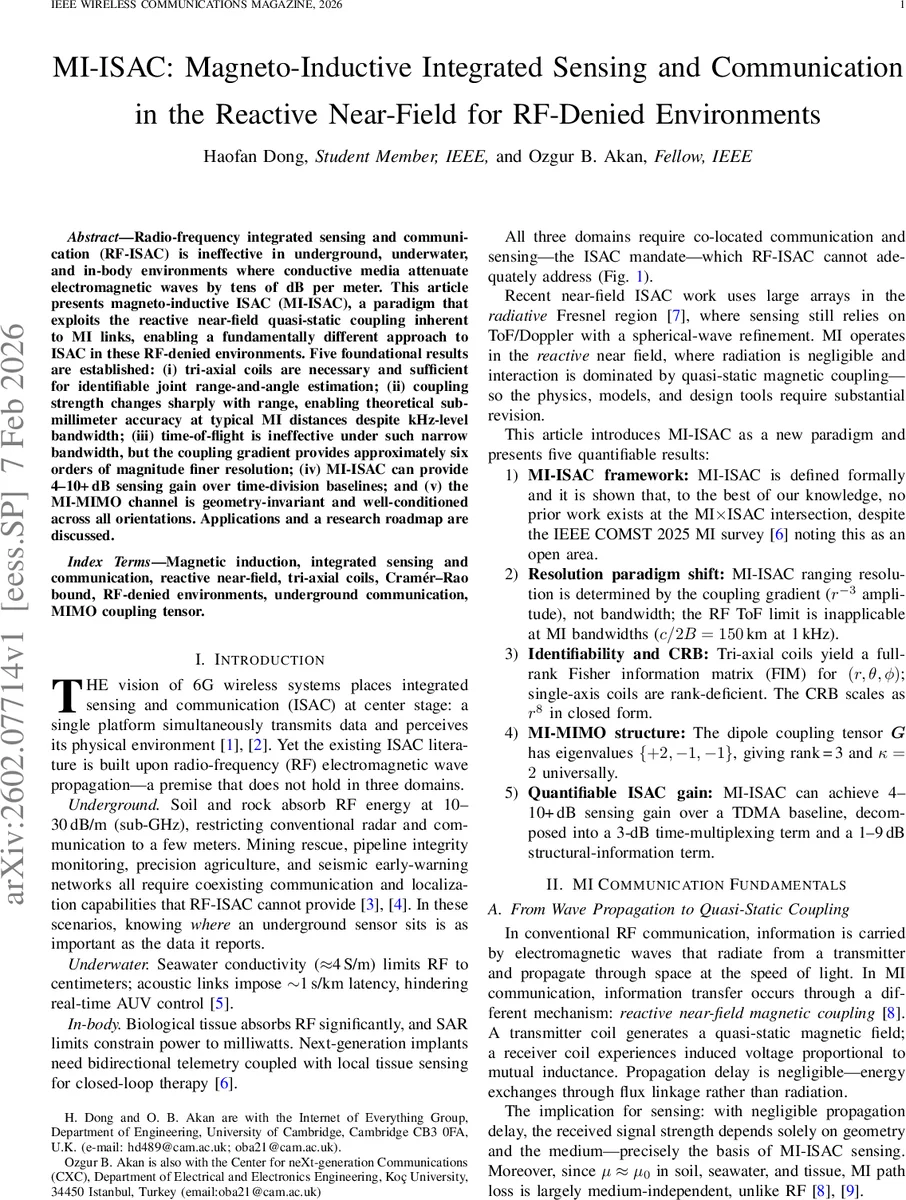

MI-ISAC: Magneto-Inductive Integrated Sensing and Communication in the Reactive Near-Field for RF-Denied Environments

Radio-frequency integrated sensing and communication (RF-ISAC) is ineffective inunderground, underwater, and in-body environments where conductive media attenuate electromagnetic waves by tens of dB per meter. This article presents magneto-inductive ISAC (MI-ISAC), a paradigm that exploits the reactive near-field quasi-static coupling inherent to MI links, enabling a fundamentally different approach to ISAC in these RF-denied environments. Five foundational results are established: (i)~tri-axial coils are necessary and sufficient for identifiable joint range-and-angle estimation; (ii)~coupling strength changes sharply with range, enabling theoretical sub-millimeter accuracy at typical MI distances despite kHz-level bandwidth; (iii)~time-of-flight is ineffective under such narrow bandwidth, but the coupling gradient provides approximately six orders of magnitude finer resolution; (iv)~MI-ISAC can provide 4–10+,dB sensing gain over time-division baselines; and (v)~the MI-MIMO channel is geometry-invariant and well-conditioned across all orientations. Applications and a research roadmap are discussed.

💡 Research Summary

The paper addresses the fundamental limitation of conventional radio‑frequency (RF) integrated sensing and communication (ISAC) in environments where conductive media (soil, seawater, biological tissue) cause severe RF attenuation (10–30 dB/m). To overcome this, the authors propose Magneto‑Inductive ISAC (MI‑ISAC), which exploits the reactive near‑field quasi‑static magnetic coupling that dominates magneto‑inductive (MI) links. In the MI regime, information is transferred via mutual inductance rather than propagating electromagnetic waves, resulting in a deterministic channel that depends only on geometry: h(r,θ,φ)=C·r⁻³·g(θ,φ). Here C aggregates coil parameters, r is the Tx‑Rx separation, and g(θ,φ) encodes the orientation through the dipole coupling tensor G. Because the channel is essentially fading‑free, the received signal amplitude and phase directly reveal spatial parameters.

A central contribution is the demonstration that tri‑axial (three mutually orthogonal) coils at both transmitter and receiver are necessary and sufficient for identifiable joint estimation of range, azimuth, and elevation. A single‑axis coil provides only a scalar observation, leading to a rank‑deficient Fisher Information Matrix (FIM) and making the three‑parameter estimation ill‑posed. In contrast, the 3×3 MI‑MIMO channel generated by tri‑axial coils yields up to six independent real measurements, guaranteeing a full‑rank FIM for all non‑degenerate geometries.

The authors derive the Cramér‑Rao bound (CRB) for range estimation, showing that the r⁻³ coupling law produces a gradient ∂|h|/∂r ∝ r⁻⁴. Consequently, the CRB scales as r⁸:

 CRB(r)=σ_w²·r⁸/(18·N·P·|C|²)

where N is the number of observed symbols, P the transmit power, and σ_w² the noise variance. For typical MI parameters (coil radius 0.15 m, 20 turns, 10 kHz carrier, 1 W transmit power, 1 kHz bandwidth), the theoretical root‑CRB at 10 m distance is about 0.1 mm under ideal thermal noise, and about 0.3 mm with realistic front‑end losses (NF = 6 dB, Q‑loss = 3 dB). Monte‑Carlo maximum‑likelihood simulations confirm that these bounds are achievable, establishing sub‑millimeter ranging precision despite the narrow bandwidth.

The paper also contrasts MI‑based ranging with conventional time‑of‑flight (ToF) methods. ToF resolution is limited by c/(2B); with a 1 kHz bandwidth this yields a nonsensical 150 km resolution, six orders of magnitude coarser than MI’s gradient‑based resolution. The authors identify a crossover distance r*≈10 m, below which MI outperforms even ultra‑wideband (500 MHz) RF ranging by more than three orders of magnitude.

A further insight concerns ISAC efficiency. In a time‑division (TDMA) baseline, only a fraction α of the frame is allocated to dedicated sensing pilots. MI‑ISAC uses the entire frame for both data and sensing, effectively doubling the number of sensing observations when α=0.5 (a 3 dB time‑multiplexing gain). Moreover, because the deterministic MI channel permits non‑data‑aided (NDA) estimation from every received symbol, an additional structural gain of 1–9 dB is realized, depending on SNR and coil configuration. Overall, MI‑ISAC achieves 4–10 dB sensing gain over TDMA, with the higher end corresponding to tri‑axial setups and high SNR regimes.

The MI‑MIMO channel’s eigenstructure is also examined. The dipole coupling tensor G has eigenvalues {+2, −1, −1} for any orientation, giving rank = 3 and a universal condition number κ = 2. The eigenvector associated with +2 aligns with the line‑of‑sight direction (radial mode), providing the strongest coupling, while the two degenerate −1 eigenvectors span the transverse plane (tangential modes). This geometry‑independent eigenstructure enables natural mode decomposition: the radial mode can be optimized for communication throughput, while the tangential modes can be exploited for angular sensing. Unlike RF‑MIMO, no channel state feedback is required because the eigenvalues are known a priori.

Finally, the authors map MI‑ISAC to three representative RF‑denied scenarios: underground Internet‑of‑Underground‑Things (IoUT) for pipeline monitoring, underwater autonomous vehicle control, and in‑body medical telemetry. In each case, MI‑ISAC delivers simultaneous low‑power bidirectional data links and high‑resolution environmental sensing without additional spectral resources. A research roadmap is outlined, covering multi‑node network scaling, higher‑frequency MI designs, adaptive parameter estimation algorithms, and extensive experimental validation.

In summary, MI‑ISAC introduces a fundamentally new paradigm for integrated sensing and communication in media where RF fails. By leveraging deterministic magnetic coupling, tri‑axial coil architectures, and the intrinsic r⁻³ gradient, it achieves sub‑millimeter ranging, substantial ISAC gains, and robust, geometry‑independent MIMO performance, opening pathways for practical deployments in underground, underwater, and in‑body applications.
