Notes from the Physics Teaching Lab: Optical Pumping

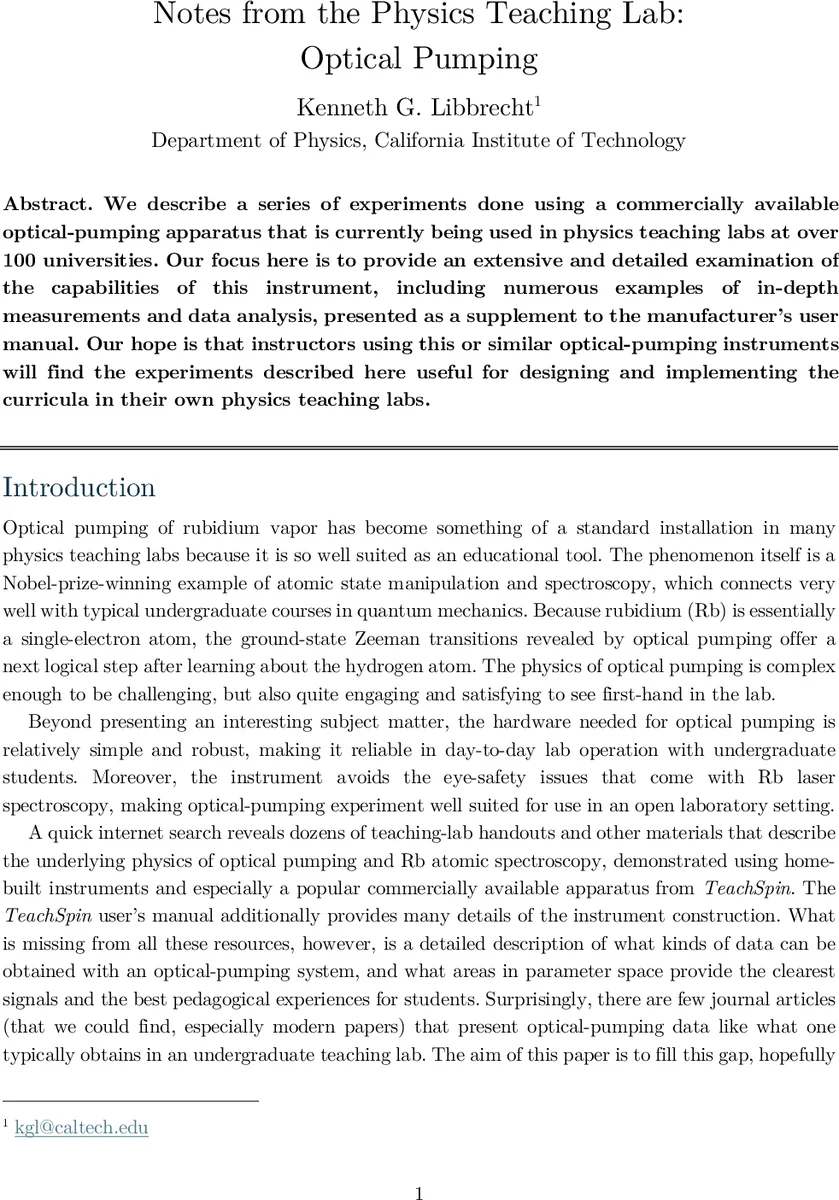

We describe a series of experiments done using a commercially available optical pumping apparatus that is currently being used in physics teaching labs at over one hundred universities. Our focus here is to provide an extensive and detailed examination of the capabilities of this instrument, including numerous examples of extensive measurements and data analysis, presented as a supplement to the manufacturers user manual. Our hope is that instructors using this or similar optical pumping instruments will find the experiments described here useful for designing and implementing the curricula in their own physics teaching labs.

💡 Research Summary

The manuscript presents a comprehensive guide to using a commercially available optical pumping apparatus for undergraduate physics teaching laboratories, a system now deployed in more than a hundred universities. The authors focus on rubidium (Rb) vapor because its single‑valence‑electron structure mimics hydrogen, and its two naturally abundant isotopes (^85Rb with nuclear spin I = 5/2 and ^87Rb with I = 3/2) provide clear hyperfine splittings. The paper begins with a concise review of the atomic level structure: the ground state is an S‑state (L = 0, J = ½) and the D1 transition at 795 nm excites atoms to the P₁/₂ state (L = 1, J = ½). Hyperfine coupling splits each electronic level into F = I ± ½ manifolds, yielding separations of 303 MHz for ^85Rb and 68 MHz for ^87Rb. Adding an external magnetic field produces Zeeman shifts described by ΔE ≈ g_F μ_B B, where the effective Landé g‑factor for the low‑field regime is approximately ±1/3, reflecting that the electron spin dominates the splitting.

The experimental setup is built around the TeachSpin™ optical pumping system. Key components include a 795 nm diode laser (10–30 mW), a narrow bandpass filter to isolate the D1 line, quarter‑wave plates for σ⁺/σ⁻ circular polarization, Helmholtz coils for magnetic fields up to 10 G, and a photodiode‑based detection chain (optionally a spectrometer). The vapor cell is temperature‑controlled (20–50 °C) to set atom densities in the 10⁹–10¹¹ cm⁻³ range. RF coils are used to drive magnetic‑dipole transitions between Zeeman sublevels; the RF frequency is swept while the photodiode records transmission changes, producing spectra that reveal the hyperfine and Zeeman structure.

Data acquisition follows a reproducible protocol: (1) allow the laser to pump the vapor for ~30 s to reach steady state, (2) sweep the RF frequency linearly while recording the photodiode signal, (3) repeat the sweep for different laser powers, cell temperatures, and magnetic‑field strengths, and (4) average multiple scans, subtract background, and fit the resulting peaks with a mixed Gaussian‑Lorentzian model. The authors define “good data” as having a signal‑to‑noise ratio greater than 20, full‑width at half‑maximum below 5 MHz, and hyperfine peak asymmetry under 10 %. These criteria give students concrete targets for optimizing experimental parameters.

Pedagogically, the paper stresses the importance of linking theory to measurement. Students first study the level diagrams and calculate expected transition frequencies, g‑factors, and Zeeman splittings. In the lab they then adjust laser power, polarization, cell temperature, and magnetic field to maximize the quality of the observed spectra, comparing measured line centers and widths with the theoretical predictions. The authors provide worksheets that guide students through error analysis, parameter optimization, and the interpretation of discrepancies, thereby reinforcing concepts from quantum mechanics such as spin‑orbit coupling, the Breit‑Rabi formula, and line‑broadening mechanisms (Doppler, power, collisional).

Beyond the core D1 optical pumping experiment, the manuscript outlines several extensions that can turn a standard lab into a research‑oriented project. One possibility is to lock a microwave source to the hyperfine transition and build a rubidium atomic clock, demonstrating frequency stability at the 10⁻¹² level. Another is to combine the pump beam with a Raman probe to explore nonlinear optics in a vapor. A third avenue is to use the prepared Zeeman‑polarized ensemble as the initial state for quantum‑entanglement experiments, employing microwave pulses to generate spin‑squeezed states. Finally, the authors suggest integrating computational tools (MATLAB, Python) to simulate the optical pumping dynamics and compare simulated spectra with measured data, fostering computational physics skills.

In conclusion, the paper supplies a full‑stack resource: a clear theoretical foundation, a detailed hardware description, step‑by‑step experimental procedures, rigorous data‑analysis guidelines, and pedagogical strategies. By doing so, it equips instructors to transform optical pumping from a “demonstration” into an active learning experience where students engage with real quantum‑state manipulation, develop experimental intuition, and acquire data‑analysis expertise that directly supports upper‑level quantum mechanics curricula.
