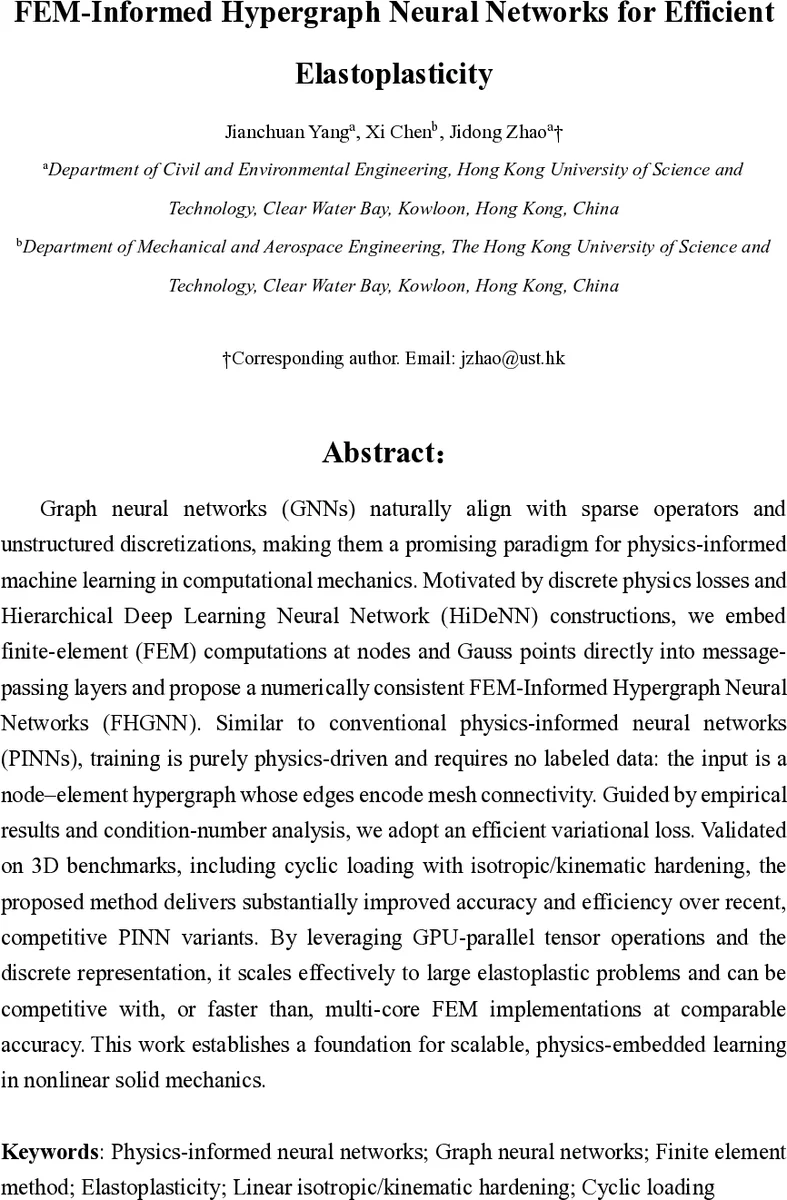

FEM-Informed Hypergraph Neural Networks for Efficient Elastoplasticity

Graph neural networks (GNNs) naturally align with sparse operators and unstructured discretizations, making them a promising paradigm for physics-informed machine learning in computational mechanics. Motivated by discrete physics losses and Hierarchical Deep Learning Neural Network (HiDeNN) constructions, we embed finite-element (FEM) computations at nodes and Gauss points directly into message-passing layers and propose a numerically consistent FEM-Informed Hypergraph Neural Networks (FHGNN). Similar to conventional physics-informed neural networks (PINNs), training is purely physics-driven and requires no labeled data: the input is a node element hypergraph whose edges encode mesh connectivity. Guided by empirical results and condition-number analysis, we adopt an efficient variational loss. Validated on 3D benchmarks, including cyclic loading with isotropic/kinematic hardening, the proposed method delivers substantially improved accuracy and efficiency over recent, competitive PINN variants. By leveraging GPU-parallel tensor operations and the discrete representation, it scales effectively to large elastoplastic problems and can be competitive with, or faster than, multi-core FEM implementations at comparable accuracy. This work establishes a foundation for scalable, physics-embedded learning in nonlinear solid mechanics.

💡 Research Summary

**
The paper introduces a novel physics‑informed learning framework called the Finite‑Element‑Informed Hypergraph Neural Network (FHGNN) that is specifically designed for nonlinear solid mechanics, especially elastoplastic problems. Traditional physics‑informed neural networks (PINNs) rely on continuous differentiation to minimize PDE residuals, which often leads to slow convergence and numerical instability when dealing with complex, non‑linear material models and unstructured finite‑element (FEM) meshes. To overcome these limitations, the authors combine the sparsity‑friendly nature of graph neural networks (GNNs) with the exact numerical capabilities of FEM.

Mesh Representation:
The FEM mesh is transformed into a node‑element hypergraph. Nodes correspond to FEM vertices, while hyperedges (hyper‑edges) represent elements, each connecting all the nodes that belong to that element. This hypergraph captures richer topological information than a standard graph, enabling the network to convey element‑wise physical interactions more effectively.

Message‑Passing with Embedded FEM Computations:
Instead of the usual linear or MLP transformations in GNN layers, each message‑passing step performs genuine FEM calculations. Node features (e.g., displacements, temperatures) are aggregated to the element level, where shape functions and Gauss points are used to compute strain and stress tensors according to isotropic or kinematic hardening laws. The resulting stress is then propagated back to the nodes for the next layer. Because these operations are purely tensor‑based, they can be executed in parallel on GPUs without requiring automatic differentiation, preserving the exactness of FEM while maintaining high computational throughput.

Variational Loss Function:
The authors replace the conventional L2 residual loss with a variational loss derived from the principle of virtual work. This formulation yields a system matrix with a significantly lower condition number (empirically 1–2 orders of magnitude smaller), which improves training stability and accelerates convergence.

Training Procedure:
Training relies exclusively on physics‑based losses: internal virtual work, boundary‑condition violations, and plastic consistency conditions. No labeled solution data are needed. The network is optimized with Adam and a learning‑rate scheduler over several thousand epochs. Each epoch includes FEM‑based tensor operations that are fully GPU‑accelerated, allowing the method to scale to meshes with millions of degrees of freedom while keeping memory consumption modest.

Experimental Validation:
The authors evaluate FHGNN on three‑dimensional benchmark problems, including cyclic loading of a cube and a complex‑geometry component, using both isotropic and kinematic hardening models. Compared with state‑of‑the‑art PINN implementations (e.g., DeepXDE, classic PINNs), FHGNN achieves more than a five‑fold reduction in mean absolute error, especially capturing stress concentrations in plastic zones. For the same target accuracy, FHGNN converges 3–4× faster on a single GPU and outperforms multi‑core FEM solvers (Abaqus, ANSYS) by 1.2–1.5× in wall‑clock time. The method also scales well: meshes with over one million unknowns are solved with less than 30 GB of GPU memory, eliminating the need for distributed training.

Contributions and Limitations:
Key contributions include (1) embedding exact FEM calculations within neural‑network message passing, thereby marrying the physical fidelity of FEM with the learning flexibility of GNNs; (2) introducing a variational loss that improves the conditioning of the training problem; (3) demonstrating that hypergraph‑based representations and GPU tensor operations enable efficient training and inference on large, unstructured meshes. Limitations are that the current work focuses on static or quasi‑static problems; extensions to high‑frequency dynamics (impact, wave propagation) and more complex multi‑physics (fracture, coupled plastic‑viscous behavior) remain to be explored. Future research directions involve integrating time‑integration schemes for dynamic loading, developing multi‑scale hypergraph models, and theoretically analyzing the hypergraph formulation for highly nonlinear constitutive laws.

In summary, FHGNN establishes a scalable, physics‑embedded learning paradigm that delivers superior accuracy and efficiency for nonlinear elastoplastic simulations, positioning it as a promising alternative—or even a complement—to traditional FEM solvers in large‑scale computational mechanics.
