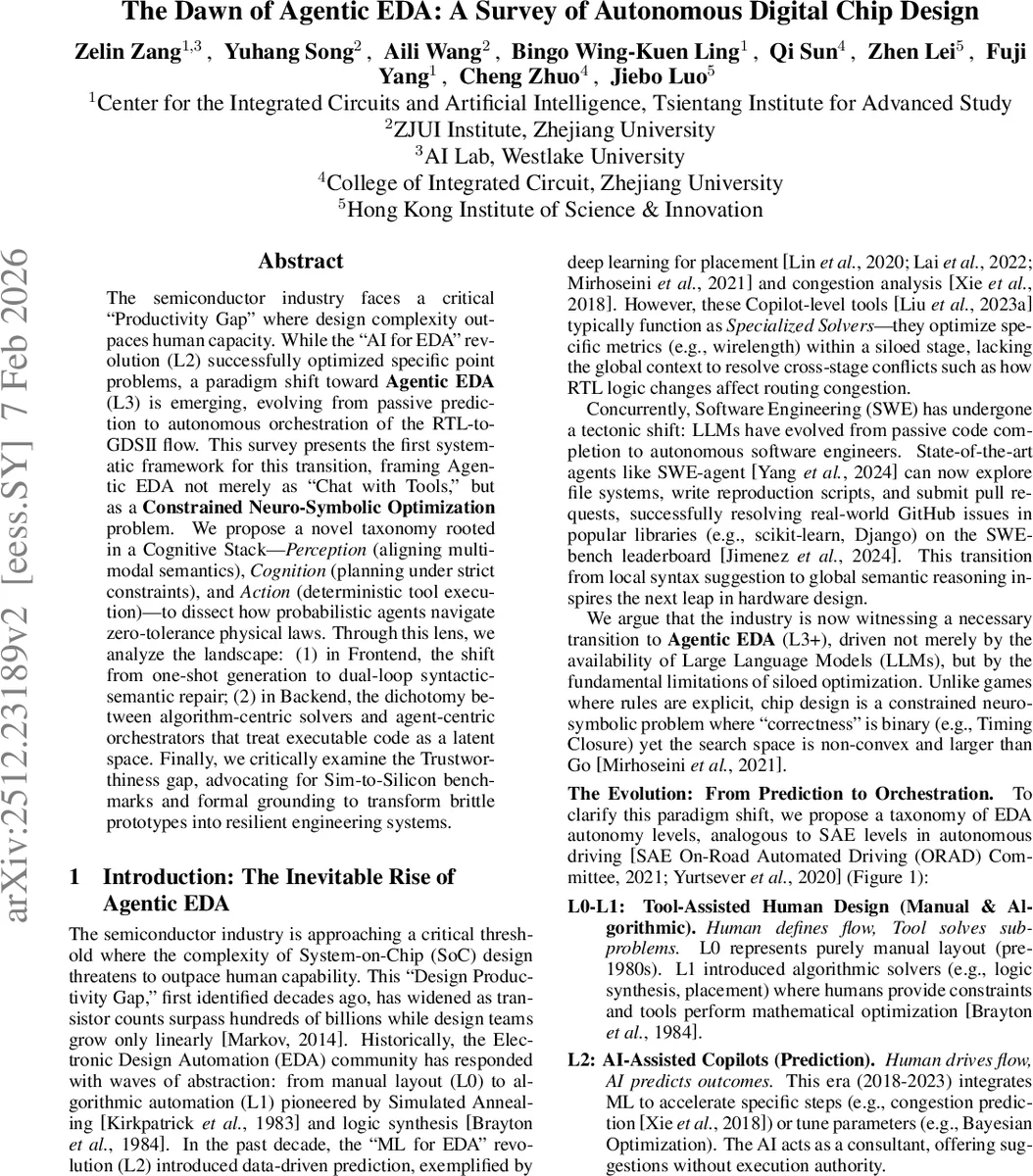

The Dawn of Agentic EDA: A Survey of Autonomous Digital Chip Design

The semiconductor industry faces a critical “Productivity Gap” where design complexity outpaces human capacity. While the “AI for EDA” revolution (L2) successfully optimized specific point problems, a paradigm shift toward Agentic EDA (L3) is emerging, evolving from passive prediction to autonomous orchestration of the RTL-to-GDSII flow. This survey presents the first systematic framework for this transition, framing Agentic EDA not merely as “Chat with Tools,” but as a Constrained Neuro-Symbolic Optimization problem. We propose a novel taxonomy rooted in a Cognitive Stack–Perception (aligning multimodal semantics), Cognition (planning under strict constraints), and Action (deterministic tool execution)–to dissect how probabilistic agents navigate zero-tolerance physical laws. Through this lens, we analyze the landscape: (1) in Frontend, the shift from one-shot generation to dual-loop syntactic-semantic repair; (2) in Backend, the dichotomy between algorithm-centric solvers and agent-centric orchestrators that treat executable code as a latent space. Finally, we critically examine the Trustworthiness gap, advocating for Sim-to-Silicon benchmarks and formal grounding to transform brittle prototypes into resilient engineering systems.

💡 Research Summary

The paper addresses the widening “productivity gap” in semiconductor design, where the exponential growth of transistor counts and system‑on‑chip (SoC) complexity outpaces the linear growth of design teams. While the “AI for EDA” (L2) era has delivered point‑wise improvements—such as deep‑learning‑based placement, congestion prediction, and timing estimation—these tools remain siloed, lacking a global view of the RTL‑to‑GDSII flow and therefore cannot resolve cross‑stage conflicts (e.g., a change in RTL that creates routing congestion).

To bridge this gap, the authors introduce the concept of Agentic EDA (L3+), a paradigm shift from prediction to autonomous orchestration. They propose a systematic framework grounded in a three‑layer Cognitive Stack:

1. Perception – Multimodal encoders transform heterogeneous design artifacts (netlist graphs, HDL text, layout geometry, simulation waveforms) into a unified latent space. Contrastive learning approaches such as CircuitFusion and GenEDA are highlighted for aligning code and graph modalities.

2. Cognition – A neuro‑symbolic reasoning core plans design actions under strict physical constraints (timing closure, DRC, power budgets). The stack supports hierarchical planning, long‑horizon memory (RAG, hierarchical databases), and look‑ahead mechanisms (Tree‑of‑Thoughts) to avoid “design intent drift.”

3. Action – The agent translates high‑level plans into deterministic tool commands (Tcl/Python scripts) that are executed in sandboxed EDA environments. Verification engines (compilers, static timing analyzers, SPICE, DRC) provide binary feedback, which is fed back as gradient‑like signals for the next iteration.

The paper dissects the landscape of existing works through a taxonomy that maps each system to a Methodological Tier:

• Prompt‑Based Reasoning (Training‑Free) – In‑context learning with general‑purpose LLMs (e.g., ChatEDA) that iteratively refine scripts via ReAct‑style prompting.
• Fine‑Tuned Specialization (Training‑Centric) – Domain‑adapted models trained on proprietary RTL or placement data (e.g., AlphaChip, VerilogCoder) using supervised fine‑tuning, RLHF, or DPO.
• Multi‑Agent Collaboration (System‑Centric) – Hierarchical MAS where a manager agent coordinates specialist agents (placement, power, verification) and a critic agent prunes infeasible branches using formal methods (e.g., ORFS‑Agent, ArchPower).

In the frontend (RTL generation and verification), the authors trace the evolution from one‑shot code synthesis—prone to syntax errors and timing violations—to a dual‑loop repair process that couples syntactic correction with semantic validation. Techniques such as Retrieval‑Augmented Generation (RAG) and self‑reflection enable agents to parse error logs, store corrective knowledge, and maintain consistency across long design cycles. Reported metrics (pass@k, compile success rate, functional correctness) show that even state‑of‑the‑art GPT‑4‑based agents achieve only ~63 % pass rates on benchmarks like VerilogEval, underscoring the need for deeper integration.

In the backend (physical design), the survey contrasts traditional algorithmic solvers (SAT/SMT‑based placement, RL‑driven layout) with code‑latent space orchestrators that treat the entire EDA toolchain as an executable environment. Agents generate Tcl/Python scripts, invoke placement, routing, and timing tools, and iteratively refine outputs based on deterministic feedback. Multi‑agent systems further enable cooperative negotiation of constraints (e.g., power vs. performance) and dynamic re‑allocation of resources.

A critical challenge identified is the trustworthiness gap—the “Sim‑to‑Silicon” divide. Most current prototypes are validated only in simulation; none have demonstrated a fully autonomous, zero‑human‑in‑the‑loop tape‑out of an industrial‑grade chip. The authors advocate for standardized benchmarks that combine simulation, formal verification, and silicon measurements, arguing that such benchmarks are essential to transition from brittle research demos to robust engineering products.

Data scarcity is another bottleneck. The paper surveys synthetic data generation methods (e.g., CraftRTL, synthetic RTL corpora) and domain‑specific pre‑training (ChipNeMo, GenEDA) that aim to alleviate the lack of proprietary design logs.

Finally, the authors outline a roadmap toward “Design 4.0” (L4), where human designers specify high‑level intent and autonomous agents execute the full RTL‑to‑GDSII flow without intervention. Realizing this vision requires:

• Scalable multimodal perception models,
• Hierarchical neuro‑symbolic planners with long‑term memory,
• Safe, sandboxed execution environments with rollback capabilities,
• Integrated evaluation pipelines that span simulation, formal verification, and silicon testing.

In summary, the survey reframes Agentic EDA not as a simple “chat‑with‑tools” interface but as a constrained neuro‑symbolic optimization problem. By articulating a clear taxonomy, identifying key technical gaps, and proposing concrete evaluation standards, the paper provides a comprehensive blueprint for the next generation of autonomous chip design systems.
